Aggregate Weighing Feeder Model FBB

• Name Aggregate Weighing Feedermodel-fbb
• Model FBB
• Overall Dimensions
• Length 9728 (mm)
• Width 2544 (mm)
• Height 4388 (mm)
• Weighing Capacity in one Batch 3 (m³)
• Weighing System By Load Cell (4×3 Ton, zemic)
• Weighing Monitor Tender WI511
• Number of Hopper 3
• Aggregate Loading Volume 3×10 (m³)
• Number of Hatches 6
• Hatches System Pneumatic
• Conveyor Belt Width 800 (mm)
• Rubber Kind 3 layer(simple)
• Motor Power 10 (HP)
• Gearbox 1:7 (Ratio)
• Vibrator Kind Electrical
• Power 1.1 (HP)
• Rotate 28003000 (RPM)
• Number 2

Conveyer Belt with 80 cm in width model : COB

• Length 200030000 (mm)cob
• Width 1286 (mm)
• Height (Without Motor) 505 (mm)
• Rubber Width 800 (mm)
• Rubber Kind 3 layer (simple)
• Capacity 300 (t/h)
• Belt Speed 1.3 (m/s)
• Gearbox 1:7 (Ratio)
• Motor Power  210 (m)  37.5 (HP)

Aggregate Weighing Hopper & Conveyer

• Length 200030000 (mm)cob
• Width 1286 (mm)
• Height (Without Motor) 505 (mm)
• Rubber Width 800 (mm)
• Rubber Kind 3 layer (simple)
• Capacity 300 (t/h)
• Belt Speed 1.3 (m/s)
• Gearbox 1:7 (Ratio)
• Motor Power
• 210 (m)
• 37.5 (HP)

2m³ concrete twin shaft model :TWD

• Mixer Overall Dimensions Without Cover, Discharge chute and Structure:untitled
• Length 3510 (mm)
• Width 2780 (mm)
• Height 1624 (mm)
• Structure Overall Dimensions
• Length 5400 (mm)
• Width 3612 (mm)
• Height 2260 (mm)
• Loading Capacity 5700 (Lit)
• Wet Concrete Capacity / Batch 2 (m³)
• Max. Output 100 (m³/h)
• Mix Time 30 (s)
• Shaft Number 2
• Arms Number 10*2
• Arms Kind Ductile
• Blades Kind Anti Friction
• Shaft Speed 24 (r/min)
• Gearbox Kind Planetary
• Model Reggiana Riduttori RA 1700 DFS(Italian)
• Number 2
• Discharge Hatch System Pneumatic
• Oiling Automatic
• Motor Power 2×60 (Hp)

Air compressor

• Tank Capacity: (250 Lit)
• Pressure:8 (Bar)
• Motor Power:2 (HP)

1500 kg cement scale model :BCA

• Length 1530 (mm)bcc2
• Width 1530 (mm)
• Height 3370 (mm)
• Tank Nominal Capacity 1130 (Lit)
• Max. weighing Capacity 1500 (kg)
• Weighing System By Load Cell (3×1 Ton, zemic)
• Weighing Monitor Tender WI511
• Discharge Hatch System By Pneumatic jack
• Discharge Height 1500 (mm)

2 Inch Water Meter Model :WMA

• Flow Rate - 1000(Lit/min) 1165_5352_ water-meter
• Measurement system:by Sensors and Digital Monitor

Screw conveyor model SCE

• Name - Screw Conveyor
• Model - SCE
• Length - 615 (m)
• Pipe Diameter - Ø8 (Inch)
• Capacity - 25 (t/h)
• Screw Speed - 250 (r/min)
• Input & output Opening Diameter    Ø8 (Inch)
• Gearbox - 1:5.8 (Ratio)
• Motor Power - ≤6 (m), 610 (m), 1015 (m)
• 27.5 (HP), 7.510 (HP), 15 (HP)

Central Control Panel CPM -01 Series : The central control cabin with the central control panel is used to supervise batching plant by operator. The cabin is insulated by yonolit Central Control Paneland its inner coating is made of MDF and PVC. The light system is equipped to halogen lamp and necessary outlet and keys are located in the cabin. The dimension of the cabin is 170×170, 200×200 and 200×250 which is changeable according to the customer’s need.

Screw conveyor model SCB

• Name Screw Conveyor scb2
• Model SCB
• Length ≤6 (m)
• Pipe Diameter Ø8 (Inch)
• Capacity 30 (t/h)
• Screw Speed 362.5 (r/min)
• Input & output Opening Diameter Ø8 (Inch)
• Motor Power 7.5 (HP)

Central Control Cabin CRA  Series : The central control cabin with the central control panel is used to supervise batching plant by operator. The cabin is insulated by yonolit central-control-cabin-cr0aand its inner coating is made of MDF and PVC. The light system is equipped to halogen lamp and necessary outlet and keys are located in the cabin. The dimension of the cabin is 170×170, 200×200 and 200×250 which is changeable according to the customer’s need.

Aggregate Weighing Feeder Model FBA

• Length 9609 (mm)35
• Width 2466 (mm)
• Height 4121 (mm)
• Weighing Capacity /Batch 1 (m³)
• Weighing System By Load Cell (4×2.5 Ton, zemic)
• Weighing Monitor Tender WI511
• Number of Hopper 3
• Aggregate Loading Volume 3×10 (m³)
• Number of Hatches 3
• Hatches System Pneumatic
• Conveyor Belt Width 800 (mm)
• Rubber Kind 3 layer(simple)
• Motor Power 10 (HP)
• Gearbox 1:7 (Ratio)
• Vibrator Kind Electrical
• Power 1.1 (HP)
• Rotate 28003000 (RPM)
• Number 2

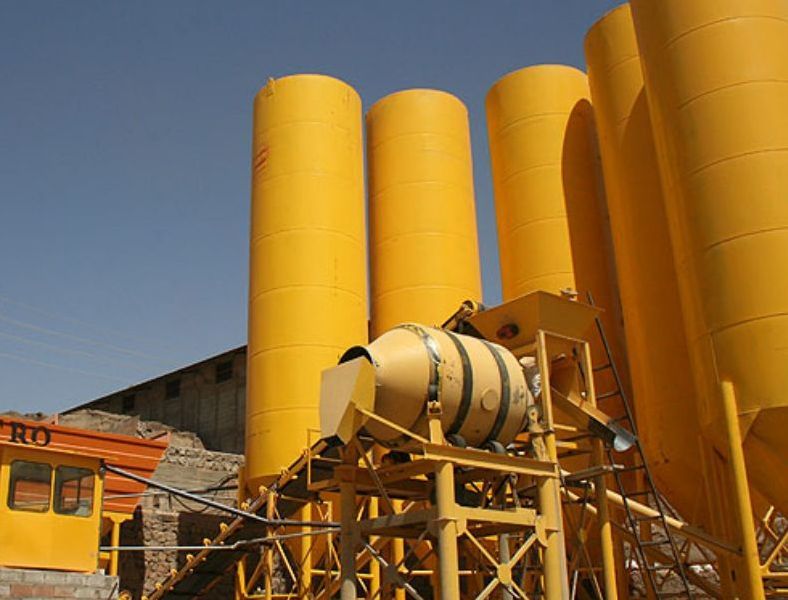

1m³ concrete concrete mixer model : DMA

• Length 3675 (mm)concrete Mixer Drum
• Width 2050 (mm)
• Height 2835 (mm)
• Drum Diameter Ø1750 (mm)
• Nominal Capacity 5300 (Lit)
• Aggregate Loading Capacity 1 (m³)
• Loading Percent (%)18
• Max. Output 30 (m³/h)
• Rotate Speed 11 (rpm)
• Shaft Number 2
• Roll Number 8
• Motor Power 20 (HP)
• Gearbox 1:23 (Ratio)
• Discharge Height 1060 (mm)

Two Sided Hopper Separating Dry & Wet Model :HBA

• Length 2120 (mm)hba2
• Width 1500 (mm)
• Height 3550 (mm)
• Hopper Dimensions & Volume
• Length 1500 (mm)
• Width 1500 (mm)
• Height 720 (mm)
• Volume 1 (m³)
• Changing Output (Wet or Dry) By Hand Lever
• Vibrator Kind Electrical
• Power 1.1 (HP)
• Rotate 28003000 (RPM)
• Number 1

1500 kg cement scale model :BCA

• Length 1530 (mm)bcc2
• Width 1530 (mm)
• Height 3370 (mm)
• Tank Nominal Capacity 1130 (Lit)
• Max. weighing Capacity 1500 (kg)
• Weighing System By Load Cell (3×1 Ton, zemic)
• Weighing Monitor Tender WI511
• Discharge Hatch System By Pneumatic jack
• Discharge Height 1500 (mm)

2 Inch water meter model : WMA

• Flow Rate : 1000(Lit/min)1165_5352_water-meter
• Measurement system:by Sensors and Digital Monitor

Screw Conveyor Model SCB

• Name Screw Conveyor
• Model SCB
• Length ≤6 (m)
• Pipe Diameter Ø8 (Inch)
• Capacity 30 (t/h)
• Screw Speed 362.5 (r/min)
• Input & output Opening Diameter Ø8 (Inch)
• Motor Power 7.5 (HP)

Conveyor Belt With 80 Cm In Width Model: COB

• Length - 200030000 (mm)
• Width - 1286 (mm)
• Height (Without Motor) - 505 (mm)
• Rubber Width - 800 (mm)
• Rubber Kind - 3 layer (simple)
• Capacity - 300 (t/h)
• Belt Speed - 1.3 (m/s)
• Gearbox - 1:7 (Ratio)
• Motor Power - 210 (m), 37.5 (HP)

Air compressor

• 250 lit compressor
• Including two 5.5 Hp electromotor

Central Control Panel CPM -01 Series : The central control cabin with the central control panel is used to supervise batching plant by operator. The cabin is insulated by yonolitdsc00430-1 and its inner coating is made of MDF and PVC. The light system is equipped to halogen lamp and necessary outlet and keys are located in the cabin. The dimension of the cabin is 170×170, 200×200 and 200×250 which is changeable according to the customer’s need

Central Control Cabin CRA Series : The central control cabin with the central control panel is used to supervise batching plant by operator. The cabin is insulated by yonolit central-control-cabin-cr0aand its inner coating is made of MDF and PVC. The light system is equipped to halogen lamp and necessary outlet and keys are located in the cabin. The dimension of the cabin is 170×170, 200×200 and 200×250 which is changeable according to the customer’s need.

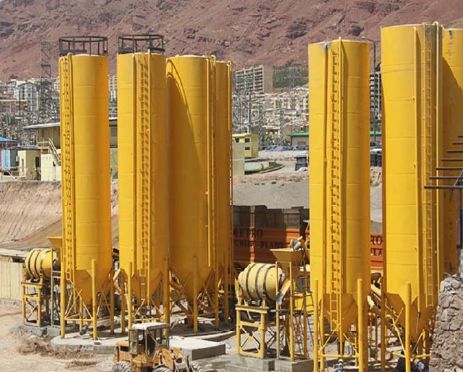

wet concrete capacity 100 (mh) aggregate loading volume 310 (m) max. aggregate weighing volume 3 (m) max. cement weighing capacity 2500 (kg) concrete mixer capacity 2 (m) concrete mixer type: twin shaft discharge height 4 (m) min. consumption water 2 (inch) power 123 (kw) ground dimensions for installation 16.726.5 (m)

Aggregate Weighing Feeder Model FBA

• Length 15030 (mm)35
• Width 2558 (mm)
• Height 4360 (mm)
• Weighing Capacity in one Batch 8 (m³)
• Weighing System By Load Cell (4×5 Ton, zemic)
• Weighing Monitor Tender WI511
• Number of Hopper 5
• Aggregate Loading Volume 5×10 (m³)
• Number of Hatches 10
• Hatches System Pneumatic
• Conveyor Belt Width 800 (mm)
• Rubber Kind 3 layer(simple)
• Motor Power 15 (HP)
• Gearbox 1:7 (Ratio)
• Vibrator Kind Electrical
• Power 1.1 (HP)
• Rotate 28003000 (RPM)
• Number 3
• Compressor 750 (Lit)
• Pressure 8 (Bar)
• Motor Power 10 (HP)

2500 kg cement scale model :BCA

• Name Cement Scalebcc2
• Model BCB
• Overall Dimensions
• Length 1880 (mm)
• Width 1880 (mm)
• Height 3756 (mm)
• Tank Nominal Capacity 1800 (Lit)
• Max. weighing Capacity 2500 (kg)
• Weighing System By Load Cell (3×2 Ton, zemic
• Monitor Tender WI511
• Discharge Hatch System By Pneumatic jack
• Discharge Height 1500 (mm)

Conveyor Belt With 80 Cm In Width Model: COB

• Length 200030000 (mm)cob
• Width 1286 (mm)
• Height (Without Motor) 505 (mm)
• Rubber Width 800 (mm)
• Rubber Kind 3 layer (simple)
• Capacity 300 (t/h)
• Belt Speed 1.3 (m/s)
• Gearbox 1:7 (Ratio)
• Motor Power
• 210 (m)
• 37.5 (HP)

10 Inch Screw Conveyor Model : SCC

• Name - Screw Conveyor
• Model - SCC
• Length - 615 (m)
• Pipe Diameter - Ø10 (Inch)
• Capacity - 40 (t/h)
• Screw Speed - 250 (r/min)
• Input & output Opening Diameter - Ø10 (Inch)
• Gearbox - 1:5.8 (Ratio)
• Motor Power - ≤6 (m), 610 (m), 1015 (m)
• 10 (HP), 15 (HP), 20 (HP)

Air compressor

• 250 lit compressor
• Including two 5.5 Hp electromotor

2 Inch Water Meter Model : WMA

• Flow Rate - 1000(Lit/min)1165_5352_water-meter
• Measurement system:by Sensors and Digital Monitor

Central Control Panel CPM -01 Series : The central control cabin with the central control panel is used to supervise batching plant by the operator. The cabin is insulated by yonolit and its inner coating is made of MDF and PVC. The light system is equipped with halogen lamp and necessary outlet and keys are located in the cabin. The dimension of the cabin is 170×170, 200×200 and 200×250 which is changeable according to the customer’s need

Central Control Cabin CRA Series : The central control cabin with the central control panel is used to supervise batching plant by operator. The cabin is insulated by yonolit central-control-cabin-cr0aand its inner coating is made of MDF and PVC. The light system is equipped to halogen lamp and necessary outlet and keys are located in the cabin. The dimension of the cabin is 170×170, 200×200 and 200×250 which is changeable according to the customer’s need.
