ARC Welding Machine

We are leaders in the market for providing best range of Mag/ARC 250 Welding Machine, Saw 1250I Saw Welding Machine, Saw 1250T Saw Welding Machine, ARC 300 Welding Machines and Tig/ARC 300 Welding Machine

Mag/ARC 250 Welding Machine

Mag/ARC 250 Welding Machine

₹ 25,000 / Piece Get Latest Price

Min. Order (MOQ) 1 Piece
Efficiency (%) 85
Input Power Voltage AC 440V (3 phase) ±15% 50/60
Rated Input Power Capacity(KVA) 8.3
Output Current Ranges(A) 50 -250
Rated Output Voltage(V) 26.5
Duty Cycle(%) 60
Weight(KGs) 17.5
Power factor 0.93
Over all dimension (mm) 505*218*355
Post Gas (sec) 1±0.5
Wire Speed m/min 2.5-13
Welding Coil Dia (mm) 0.8
Protection class of case IP21
Diameter of Arc welding electrode (mm) 1.6 - 4

Features

\n

Power Saving up to 30 - 70 %
Power Factor (PF) more than 0.9
Good ARC start and arc force
Suitable to weld all kind of Electrodes
Less spatter and good welding bead
ARC strength can be adjusted due to reactor control technology
Small, light, portable and cost effective
Hight duty cycle enables contunies welding.
Three protection (anti-dust, anti damp proof, antisepsis) user friendly design

View Complete Details

Ask Latest Price & Details

Saw 1250I Saw Welding Machine

Saw 1250I Saw Welding Machine

Min. Order (MOQ) 1 piece
Input Power Voltage AC 440V (3 phase) ±15% 50/60
Rated Input Power Capacity(KVA) 55
Output Current Ranges(A) 1250
Rated Output Voltage(V) 90
Duty Cycle(%) 60
Weight(KGs) 100
Overall Dimension (mm) 765 x355 x725
Protection Class of Case IP21
Wire Feeder Speed (m/mm) 30 -120
Efficiency (%) 92
Diameter of Wire (mm) 2 -6
Type Inverter

Features

\\n

Power Saving up to 30 - 70 %
High Quality & Spatter less in welding
Good ARC start and arc force
Protection against low voltage, high voltage, single phase & surge voltage
Suitable to weld all kind of Electrodes
Excellent arc - starting current regulating ability according to welding procedure
Weld pool is deep, high quality weld bead and shapping.

View Complete Details

Ask Latest Price & Details

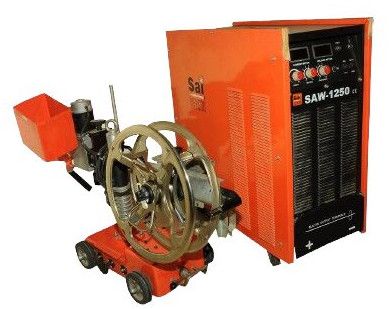

Saw 1250T Saw Welding Machine

Saw 1250T Saw Welding Machine

₹ 39,000 / Piece Get Latest Price

Min. Order (MOQ) 1 piece
Input Power Voltage AC 400V (3 phase) ±15% 50/60
Rated Input Power Capacity(KVA) 76
Output Current Ranges(A) 1250
Rated Output Voltage(V) 75
Duty Cycle(%) 60
Weight(KGs) 370
Overall Dimension (mm) 995 x615 x635
Protection class of case IP21
Wire Feeder Speed (m/mm) 30 -120
Efficiency (%) 80
Diameter of Wire (mm) 2-8
Type Thyristor

Features

\\n

Power Saving up to 30 - 70 %
High Quality & Spatter less in welding
Good ARC start and arc force
Protection against low voltage, high voltage, single phase & surge voltage
Suitable to weld all kind of Electrodes
Excellent arc - starting current regulating ability according to welding procedure
Weld pool is deep, high quality weld bead and shapping.

View Complete Details

Ask Latest Price & Details

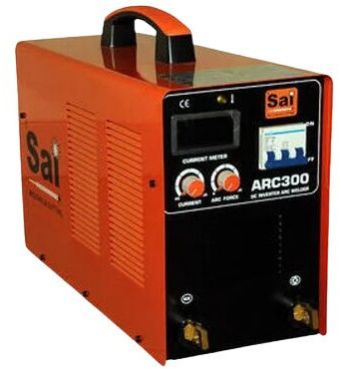

ARC 300 Welding Machines

ARC 300 Welding Machines

₹ 5,000 - ₹ 12,000 / piece Get Latest Price

Min. Order (MOQ) 1 piece
Country of Origin India
Input Power Voltage AC 440V (3 phase) ±15%
Rated Input Power Capacity(KVA) 12
Input Power Freuency(Hz) 50/60
No Load Voltage(V) 69
Output Current Ranges(A) 20 -300
Rated Output Voltage(V) 33
Duty Cycle(%) 60
Efficiency (%) 85
Power factor 0.93
Weight(KGs) 18
Overall Dimension (mm) 580 x320 x495
Protection class of case IP23
Driver Adjustment Range 0.100
Diameter of Electrode (mm) 2.4 -4

Features

\\n

Power Saving up to 30 - 70 %
Power Factor (PF) more than 0.9
Light in weight & compact in size
High Quality & Spatter less in welding
Good ARC start and arc force
Protection against low voltage, high voltage, single phase & surge voltage
Suitable to weld all kind of Electronics

View Complete Details

Ask Latest Price & Details

Tig/ARC 300 Welding Machine

Tig/ARC 300 Welding Machine

₹ 18,500 - ₹ 20,000 / Piece Get Latest Price

Min. Order (MOQ) 1 Piece
Efficiency (%) 85
Input Power Voltage AC 440V (3 phase) ±10% 50/60
Rated Input Power Capacity(KVA) 8.3
Output Current Ranges(A) 20 -300
Rated Output Voltage(V) 22
No Load Voltage(V) 60
Duty Cycle(%) 60
Weight(KGs) 18.4
Overall Dimensions (mm) 580 x 334 x 480
Post Gas (Sec) 0 -15
Current Of MMA(A) 20 -300
Driver Adjustment Range 0 -100
Welding plate thickness (mm) 1 -12
Power factor 0.93
Protection class of case IP23

Features

\\n

Power Saving up to 30 - 70%
Power Factor (PF) more than 0.9
Light in weight & compact in size
High Quality & Spatter less in welding
Good ARC start and arc force
Protection against low voltage, high voltage, single phase & surge voltage
Suitable to weld all kind of Electrodes
H.F. Arc Starting with pulse control
Two functionof DC TIG / MMA
Be able to weld Mild Steel, Stainless Steel, Copper & Titanium Metals etc.

View Complete Details

Ask Latest Price & Details

Tig/ARC 400 Welding Machine

Tig/ARC 400 Welding Machine

₹ 15,000 - ₹ 18,500 / Piece Get Latest Price

Min. Order (MOQ) 1 Piece
Input Power Voltage AC 440V (3 phase) ±10% 50/60
Rated Input Power Capacity(KVA) 13
Output Current Ranges(A) 20 -400
Rated Output Voltage(V) 26
No Load Voltage(V) 67
Duty Cycle(%) 60
Weight(KGs) 26.8
Overall Dimensions (mm) 565 x 283 x 495
Post Gas (Sec) 5
Current Of MMA(A) 20 -400
Driver Adjustment Range 0-100
Welding plate thickness (mm) 1-20
Efficiency (%) 85
Power factor 0.93
Protection Class of Case Ip23

Features

\\n

Power Saving up to 30 - 70%
Power Factor (PF) more than 0.9
Light in weight & compact in size
High Quality & Spatter less in welding
Good ARC start and arc force
Protection against low voltage, high voltage, single phase & surge voltage
Suitable to weld all kind of Electrodes
H.F. Arc Starting with pulse control
Two functionof DC TIG / MMA
Be able to weld Mild Steel, Stainless Steel, Copper & Titanium Metals etc.

View Complete Details

Ask Latest Price & Details

Tig/ARC 400P Welding Machine

Tig/ARC 400P Welding Machine

Min. Order (MOQ) 1 Piece
Efficiency (%) 85
Input Power Voltage AC 440V (3 phase) ±10% 50/60
Rated Input Power Capacity(KVA) 13
Output Current Ranges(A) 20 -400
Rated Output Voltage(V) 26
No Load Voltage(V) 67
Duty Cycle(%) 60
Weight(KGs) 33.2
Overall Dimensions (mm) 575 x 300 x 495
Post Gas (Sec) 10
Current Of MMA(A) 5 -400
Driver Adjustment Range 0 -100
Welding plate thickness (mm) 0.5 -20
Power factor 0.93
Protection class of case IP23

Features

\\n

Power Saving up to 30 - 70%
Power Factor (PF) more than 0.9
Light in weight & compact in size
High Quality & Spatter less in welding
Good ARC start and arc force
Protection against low voltage, high voltage, single phase & surge voltage
Suitable to weld all kind of Electrodes
H.F. Arc Starting with pulse control
Two functionof DC TIG / MMA
Be able to weld Mild Steel, Stainless Steel, Copper & Titanium Metals etc.

View Complete Details

Ask Latest Price & Details

ARC 630 Welding Machines

ARC 630 Welding Machines

₹ 5,500 - ₹ 12,500 / piece Get Latest Price

Min. Order (MOQ) 1 piece
Country of Origin India
Input Power Voltage AC 440V (3 phase) ±15%
Rated Input Power Capacity(KVA) 35
Input Power Freuency(Hz) 50/60
No Load Voltage(V) 72
Output Current Ranges(A) 20 -630
Rated Output Voltage(V) 44
Duty Cycle(%) 60
Efficiency (%) 85
Power factor 0.95
Weight(KGs) 55
Overall Dimension (mm) 670 x395 x633
Protection class of case IP23
Driver Adjustment Range 0.150
Diameter of Electrode (mm) 2.4 -8 grouping

Features

\\n

Power Saving up to 30 - 70 %
Power Factor (PF) more than 0.9
Light in weight & compact in size
High Quality & Spatter less in welding
Good ARC start and arc force
Protection against low voltage, high voltage, single phase & surge voltage
Suitable to weld all kind of Electronics

View Complete Details

Ask Latest Price & Details

ARC 400 Welding Machines

ARC 400 Welding Machines

Min. Order (MOQ) 1 piece
Country of Origin India
Input Power Voltage AC 440V (3 phase) ±15%
Rated Input Power Capacity(KVA) 10
Input Power Freuency(Hz) 50/60
No Load Voltage(V) 69
Output Current Ranges(A) 20-400
Rated Output Voltage(V) 36
Duty Cycle(%) 60
Efficiency (%) 85
Power factor 0.93
Weight(KGs) 28 .5
Overall Dimension (mm) 580 x320 x495
Protection class of case IP23
Driver Adjustment Range 0.130
Diameter of Electrode (mm) 2.4 -5

Features

\\n

Power Saving up to 30 - 70 %
Power Factor (PF) more than 0.9
Light in weight & compact in size
High Quality & Spatter less in welding
Good ARC start and arc force
Protection against low voltage, high voltage, single phase & surge voltage
Suitable to weld all kind of Electronics

View Complete Details

Ask Latest Price & Details

ARC 250 Welding Machines

ARC 250 Welding Machines

Min. Order (MOQ) 1 piece
Country of Origin India
Input Power Voltage AC 400V (3 phase) ±15%
Rated Input Power Capacity(KVA) 9.4
Input Power Freuency(Hz) 50/60
No Load Voltage(V) 62
Output Current Ranges(A) 20 -250
Rated Output Voltage(V) 30
Duty Cycle(%) 60
Efficiency (%) 85
Power factor 0.93
Weight(KGs) 8
Overall Dimension (mm) 945 x218 x355
Protection class of case IP23
Driver Adjustment Range 0.60
Diameter of Electrode (mm) 1.6 -4

Features

\\n

Power Saving up to 30 - 70 %
Power Factor (PF) more than 0.9
Light in weight & compact in size
High Quality & Spatter less in welding
Good ARC start and arc force
Protection against low voltage, high voltage, single phase & surge voltage
Suitable to weld all kind of Electronics

View Complete Details

Ask Latest Price & Details

ARC 200 Welding Machines

ARC 200 Welding Machines

Min. Order (MOQ) 1 piece
Input Power Voltage AC 240V (1 phase) ±10%
Rated Input Power Capacity(KVA) 7
Input Power Freuency(Hz) 50/60
No Load Voltage(V) 62
Output Current Ranges(A) 20 -200
Rated Output Voltage(V) 27
Duty Cycle(%) 60
Efficiency (%) 85
Power factor 0.93
Weight(KGs) 8
Overall Dimension (mm) 440 x218 x355
Protection class of case IP23
Driver Adjustment Range 0.60
Diameter of Electrode (mm) 1.6 -3.15

Features

\\n

Power Saving up to 30 - 70 %
Power Factor (PF) more than 0.9
Light in weight & compact in size
High Quality & Spatter less in welding
Good ARC start and arc force
Protection against low voltage, high voltage, single phase & surge voltage
Suitable to weld all kind of Electronics

View Complete Details

Ask Latest Price & Details

Tell Us What are you looking for? Will call you back

Contact Us

SARASWATHI SHANMUGAM (SAI SHEET STAMPINGS PRIVATE LIMITED)
41 AND 42, GEASON NAGAR, Ayanambakkam, Chennai, Tamil Nadu - 600095, India
https://www.saistampings.in
Share us via
Found Something Wrong with this Listing? Report Here.

View Contact No.
