Electric Welding Machine

Our Complete range of products are CRP-RH20-06-W Robotics Welding Machine and CRP-RH14-10-W Robotics Welding Machine.

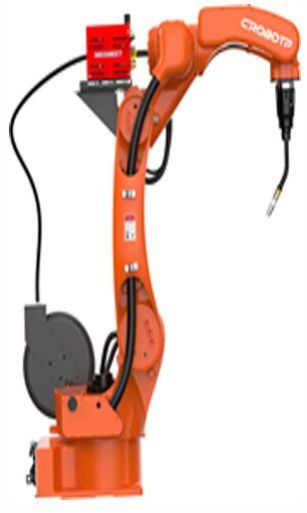

CRP-RH20-06-W Robotics Welding Machine

₹ 18 Lakh / Set Get Latest Price

Min. Order (MOQ) 1 Set
Number Of Flower Robotics Welding Machine
Arm Span 2.0 Meters
Design Compact, Can Be Installed On The Ground Or Upside Down
Working Space Large
Running Speed Fast
Positioning Accuracy High
Safety Features Emergency Stop Board, Safety Relay Circuit
Robot Body Adopts Highly Flexible Special Cable
Power Supply Built-in Three-phase Transformer For Stable Power Supply
Middle Hole Diameter 44mm
Installation Requirements Meets Water-cooling Torch And Bellows Torch Installation Requirements

\nFeatures\n

· The arm span is nearly 2.0 meters. The design is highly compact and can be flexibly i nstalled on the ground or upside down.

· With large working space, fast running speed and high repeated positioning accuracy, it is suitable for wide range of welding applications.

· The safety emergency stop board independent of the control system is equipped with, and the safety relay circuit is adopted to provide double-circuit emergency stop to ensure the reliability of emergency stop.

· The robot body adopts highly flexible special cable.

· Built-in three-phase transformer makes 380V and 220V isolated to help the power supply more stable. Built-in three-phase filter can effectively improve the performance of EMC and EMI.

· The robot body is with dual-circuit gas pipe to meet the welding demand.

· The inner diameter of 6-axis middle hole is 44mm, it can meet the installation r equirements of water-cooling torch and bellows torch.

· Highly flexible welding cable is built-in.

Specification

Specification

Model

CRP-RH20-06-W

Armform

Vertical multiplejoints

Degreeof freedom

6 axis

Maximum payload

6KG

Repeated positioning accuracy

±0.08mm

Maximum reachingdistance

2012mm

Robot bodyweight

291KG

Installation mode

Ground, upside down mounting,wall mounting

Maximum travel

axis1	Ground/upside down mounting -165°~165°, wall mounting -30°~30°
axis2	-155°~100°
axis3	-165°~245°
axis4	-190°~190°
axis5	-105°~110°
axis6	-210°~210°

Maximum speed

axis1	160°/S
axis2	160°/S
axis3	169°/S
axis4	301°/S
axis5	338°/S
axis6	535°/S

Allowable torque

axis4	16N.m
axis5	16N.m
axis6	13N.m

Allowable moment of inertia

axis4	0.55kg. m²
axis5	0.55kg. m²
axis6	0.2kg. m²

Installation environment

ambient temperature	0~45°C
relative humidity	20~80％( No condensation)
vibration	Under0.5 G
Others	Robot installation must be away from: Flammable or corrosive liquids or gases, electrical sources of interference

IP level

Body IP54 , wrist IP67

Advantagefeatures

Compact structure, high speed, high precision, high expansibility and easy operation

Application

Welding

ElectricCabinet Configuration

View Complete Details

Ask Latest Price & Details

CRP-RH14-10-W Robotics Welding Machine

₹ 10 Lakh - ₹ 15 Lakh / Set Get Latest Price

Min. Order (MOQ) 1 Set
Number Of Flower Robotics Welding Machine
Installation Ground Or Upside Down
Working Space Large
Running Speed Fast
Positioning Accuracy High
Safety Features Emergency Stopboard, Safety Relay Circuit
Robot Body Cable Highly Flexible Special Cable
Welding Cable Highly Flexible

Features

· The arm span is 1.4 meters. The design is highly compact and can be flexibly installed on the ground or upside down.

· With large working space, fast running speed and high repeated positioning accuracy, it is suitable for wide range ofwelding applications.

· The safety emergency stopboard independent of the control system is equipped with, and the safety relay circuit is adopted to provide double-circuit emergency stop to ensure the reliability ofemergency stop.
