Name: SAI SHEET STAMPINGS PRIVATE LIMITED
Address: 41 AND 42, GEASON NAGAR, Ayanambakkam, Chennai, 600095, India

Our Product / Services

Spot Welding Machines

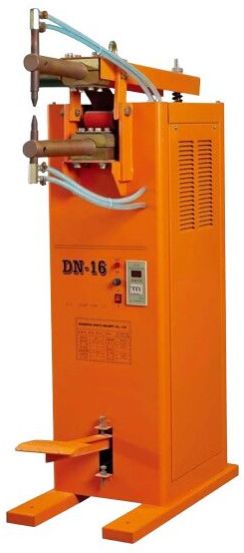

Leading Manufacturer, Supplier & Retailer of Spot Cum Projection Welding Machine.

₹ 40,000 - ₹ 50,000 / piece Get Latest Price

MODEL	Voltage	Phase	Input Power	Primary Current	Duty Cycle	Open - Circuit
DN - 10	380/50	2	10	26.3	10	1.65 ~ 2.4
DN - 16	380/50	2	16	42.1	10	1.98 - 3.01
DN - 25	380/50	2	25	66	10	2.3 - 3.55
DN - 35	380/50	2	35	92	10	2.6- 4.2

MODEL	Adjustable Step No.	Weld Time Adjust(S)	Arm Extension (mm)	Welding Thickness (mm)	Cooling Method	Weight (KG)
DN - 10	4	0~9.99	260	1.5 + 1.5		90
DN - 16	4	0~9.99	280	2 + 2	Main Transformer : Air Cooling	93
DN - 25	4	0~9.99	280	2.5 + 2.5	Electrode : Water Cooling	100
DN - 35	4	0~9.99	280	3.5 + 3.5		108

MODEL	Voltage	Input Power Capacity(KVA)	Input Current (A)	Duty Cycle (%)	Secondary open-circuit Voltage(V)	Electrode Arm Extension Length (KG)	Horn Spacing (mm)
DTN - 25	380/50	25	66	20	2~4.13	430	200
DTN - 40	380/50	40	105	20	2.5~5	430	200
DTN - 50	380/50	50	131	15	2.5~5	450	200
DTN - 63	380/50	63	166	20	2.97~5.94	450	220
DTN - 80	380/50	80	210	20	3.52~7.04	450	220
DTN - 100	380/50	100	263	20	3.66~7.32	480	250
DTN - 125	380/50	125	382	20	4.32~8.64	480	250
DTN - 160	380/50	160	421	20	8.44~9.05	500	300
DTN - 200	380/50	200	526	20	8.84~9.5	500	300
DTN - 300	380/50	300	789	20	12.7~13.6	500	300

MODEL	Upper Electrode Working Stroke(mm)	Max Pressure Among Upper Electrode (N)	Welding Thickness (Low Carbon Steel)(mm)	Pressure of Condensed Air(Mpa)	Water Flow (L/h)	Weight (KG)	Dimensions (mm)
DTN - 25	100	2450	2.5+2.5	0.6	120	182	885 x490 x1545
DTN - 40	100	2450	3+3	0.6	120	194	885 x490 x1545
DTN - 50	100	2450	3+3	0.6	120	194	885 x490 x1545
DTN - 63	100	3800	3.5+3.5	0.6	180	265	1020 x500 x162C
DTN - 80	100	3800	4+4	0.6	180	280	1020 x500 x162C
DTN - 100	100	5900	5+5	0.6	300	350	1100 x580 x178C
DTN - 125	100	5900	5+5	0.6	480	360	1100 x580 x178C
DTN - 160	100	9700	6.5+6.5	0.6	480	535	1120 x620 x188C
DTN - 200	100	9700	7.0+7.0	0.6	780	600	1120 x620 x188C
DTN - 300	100	9700	8.0+8.0	0.6	950	626	1330 x660 x206C
