Min. Order (MOQ)
1 Piece(s)

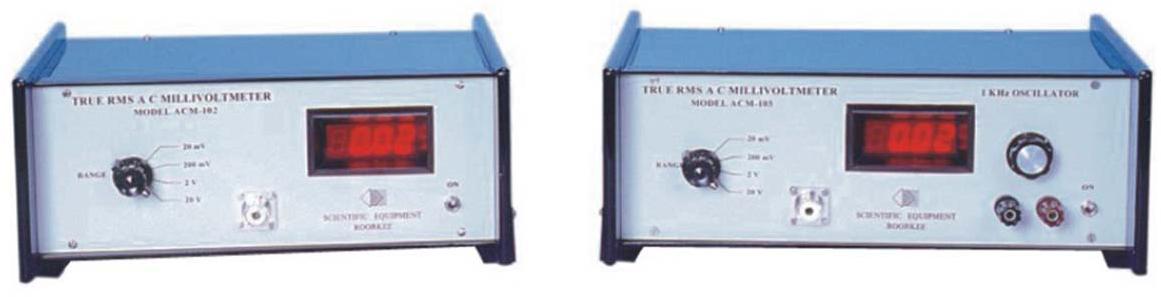

We offer precision A.C. Milli-voltmeter very useful in general laboratory and R&D labs. AC Milli-voltmeter is a very versatile instrument of accurate measurement of low signal like microphone outputs, Amplifier frequency response, RMS voltage measurement etc.Features: Measures True RMS VoltageAccuracy 1%High Input ImpedanceHigh StabilityExcellent Linearity Applications Measurement of low signal like microphone outputs e.g. in r.m.s. sound level monitoringAmplifier frequency response well beyond audio rangesRMS voltage measurement of modulated signalsPower measurements with external standard resistance SpecificationsVoltage Range: 20mV, 200mV, 2V and 20VFrequency Range: 10Hz to 200KHzInput Impedance: 1M shunted by 25pf on all rangesAccuracy: 1% in the range 10Hz-100KHz; 2% in the range 100KHz-200KHzDisplay: 3 digit, 7 segment LED (12.5mm height) with decimal and overflow indicationPower Supply: 220V 10%, 50HzWeight: 2.5Kg & 3KgAccessories: 75cm shielded cable with a coaxial connector at one end and banana plugs on the other endACM-103 (Additional Features)Oscillator Output: 0-300mV continuously variableFrequency: 1KHz fixed
