40G QSFP+ Transceiver

China leading manufacturers and suppliers of 40G Qsfp+ Transceiver,Multiplexer Fiber Optical Transceiver, and we are specialize in Qsfp+ Transceiver Module,40G Qsfp+ Fiber Optical Transceiver, etc.

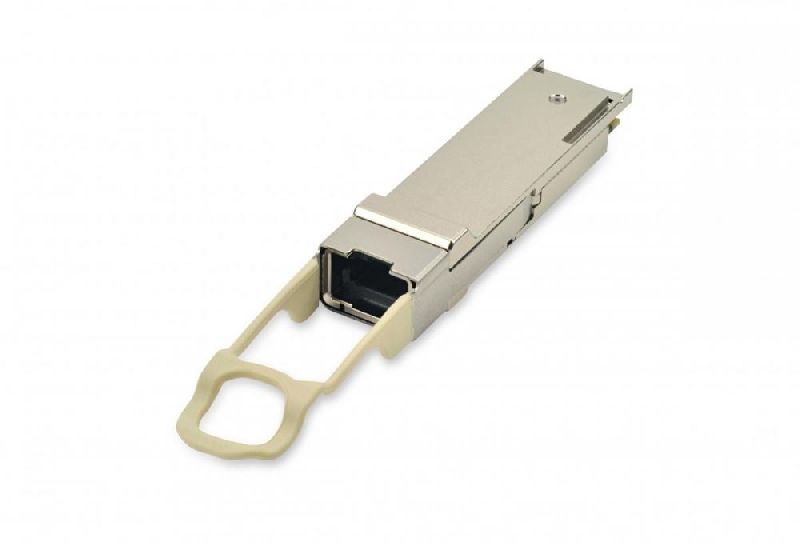

56G QSFP+ SR4 Fiber Optic Transceiver

Min. Order (MOQ) 1 Piece(s)
Warranty 1 Year
Brand Name Adela
Distance Upto 60 M
Power Dissipation < 1.5W
Power Consumption 4 W
Temperature Range 0°C to 70°C

Looking for ideal 56G QSFP SR4 60m Optical Transceiver Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the 56G QSFP SR4 Optical Transceiver are quality guaranteed. We are China Origin Factory of 56G QSFP SR4 60m Transceiver. If you have any question, please feel free to contact us.

Features :

Four-channel full-duplex transceiver module
Hot-pluggable QSFP+ form factor
Maximum link length of 60m on OM3 Multimode Fiber (MMF) and 100m on OM4 MMF
Up to 14.025Gb/s per channel
Unretimed XLPPI electrical interface
Reliable VCSEL array technology
Single 1x12 MPO receptacle
RoHS-6 compliant

Specifications :

Data Rate (max) - 56 Gb/s
Protocol - 10x Fibre Channel Compliant , 40G Ethernet Compliant , IB QDR Compatible
Operation Temperature (^oC) - 0-70
Diagnostics - N/A
Transmitter - 4x VCSEL
Receiver - PIN
Voltage Supply - 3.3
Connector - MPO
Wavelength - 850nm Band

Applicatiions :

Infiniband 4xFDR
Infiniband 4xFDR10
Infiniband 4XQDR
SAS 2.1/3.0
IEEE 40BASE-SR4

Additional Information:

Packaging Details : Packaging Material Carton , Wooden , Plastic
Customized Packaging Facility Yes

View Complete Details

Ask Latest Price & Details

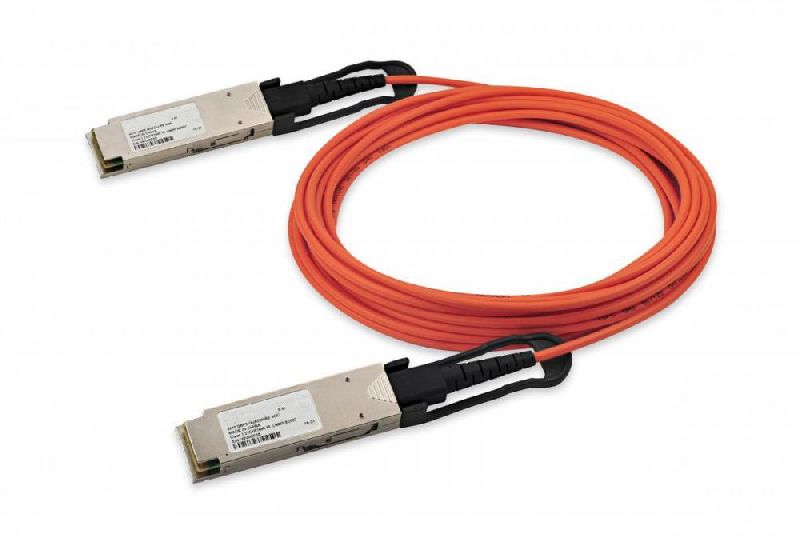

40G QSFP+ Active Optical Cable

Min. Order (MOQ) 1 Piece(s)
Brand Name Adela
Operating Temperature 0°C ~ +70°C
Out Sheath Diameter 8-15 mm
Nominal Weight 40-60 kg/km
End Face Type UPC/APC
Connector SC Connector

Features :

Full duplex 4 channel 850nm parallel active optical cable
Compliant to SFF-8436 QSFP+ Specification Revision 4.0
QSFP+ footprint (Quad small form-factor, pluggable)
Supports 40 Gbps aggregative data rate links of up to 150 m
Transmission data rate up to 10.3Gbit/s per channel
4 channels 850nm VCSEL array
4 channels PIN photo detector array
Low power consumption of max 1.5 W Power Level 1 compliance
Hot pluggable electrical interface
RoHS-6 Compliant (lead-free)

Applications :

Infiniband transmission at 4ch SDR, DDR and QDR
40GBASE-SR4 40G Ethernet
Data Centers

Additional Information:

Packaging Details : Packaging Material Carton , Wooden , Plastic
Customized Packaging Facility Yes

Recommended Operating Conditions

Parameter	Symbol	Min	Typical	Max	Unit	Not
Operating Case Temperature	Tc	0		70	°C
Module Supply Current	Iin	-	-	350	Ma
Signaling Speed Per Channel	S	2.5		10.3G	Gb/s
Standard Cable Lengths		3		150	M	1
Bit Error Ratio	BER			43385		2

View Complete Details

Ask Latest Price & Details

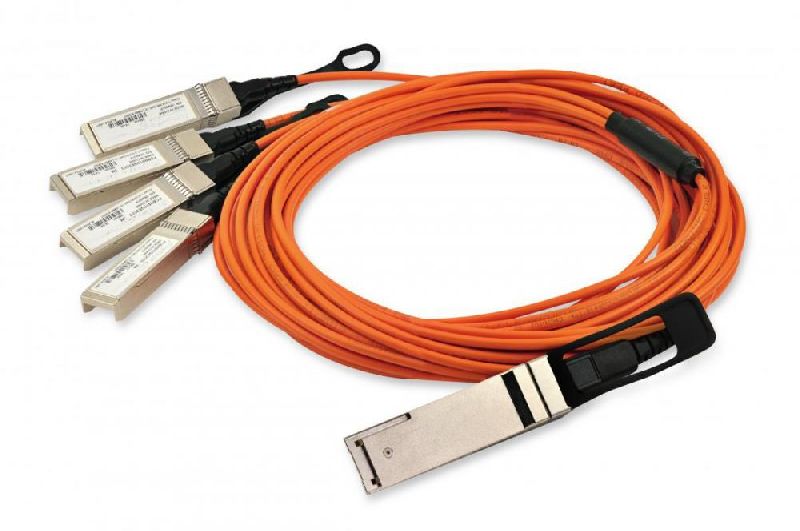

40G QSFP Breakout Active Optical Cable

transportation shipment

40g qsfp+ to 4sfp+ breakout active optical cable, aoc offers it professionals a cost-effective interconnect solution for merging 40g qsfp and 10g sfp+ enabled host adapters, switches and servers. For typical applications, users can install this splitter active optical cable between an available qsfp port on their 40gbps rated switch and feed up to four upstream 10gbe-sfp+ enabled switches. Each qsfp-sfp+ splitter active optical cable features a single qsfp connector (sff-8436) rated for 40gbps on one end and (4) sfp+ connectors (sff-8431), each rated for 10-gb/s, on the other. Featuresfull duplex 4 channel 850nm parallel active optical cableelectrical interface compliant to qsfp+ connector (sff-8436) and sfp+ connectors (sff-8431)qsfp+ footprint (quad small form-factor, pluggable) supports 40 gbps aggregative data rate links of up to 150 m transmission data rate up to 10.3gbit/s per channel4 channels 850nm vcsel array4 channels pin photo detector arraylow power consumption of max 1.5 w power level 1 compliance hot pluggable electrical interface 0 to 70c case temperature operating range rohs-6 compliant (lead-free) applications40 gigabit ethernetfibre channel applicationsinfiniband qdr, sdr, ddrhigh-performance computing clustersservers, switches, storage and host card adapters.

View Complete Details

Ask Latest Price & Details

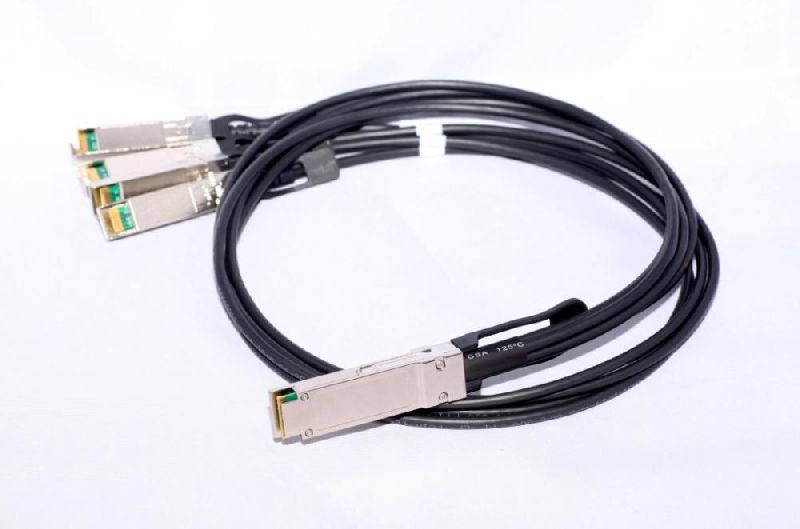

40G QSFP 4SFP Direct Attach Cable

transportation shipment

40g qsfp+ direct attach cables are compliant with the sff-8436 specifications. Sfp+ direct attach cables are compliant with the sff-8431, sff-8432 and sff-8472 specifications. various choices of wire gauge are available from 30 to 24 awg with various choices of cable length up to 7m. Featurescompliant with sff- 8436, sff-8431, sff-8432 and sff-8472up to 10. 3125gbps data rate per channelup to 7m transmissionoperating temperature: 070single 3.3v power supplyrohs compliant benefitscost-effective copper solutionlowest total system power solutionlowest total system emi solutionoptimized design for signal integrity applications40g ethernet general product characteristics q/4sfp+ dac specifications number of lanes tx & rx channel data rate 10.3125 gbps operating temperature 0 to + 70c storage temperature -40 to + 85c supply voltage 3.3 v nominal electrical interface 38 pins edge connector(qsfp+) 20 pins edge connector(sfp+) management interface serial, i2c high speed characteristics parameter symbol min typ max units notes differential impedance zd 90 100 110 differential input return loss sddxx

View Complete Details

Ask Latest Price & Details

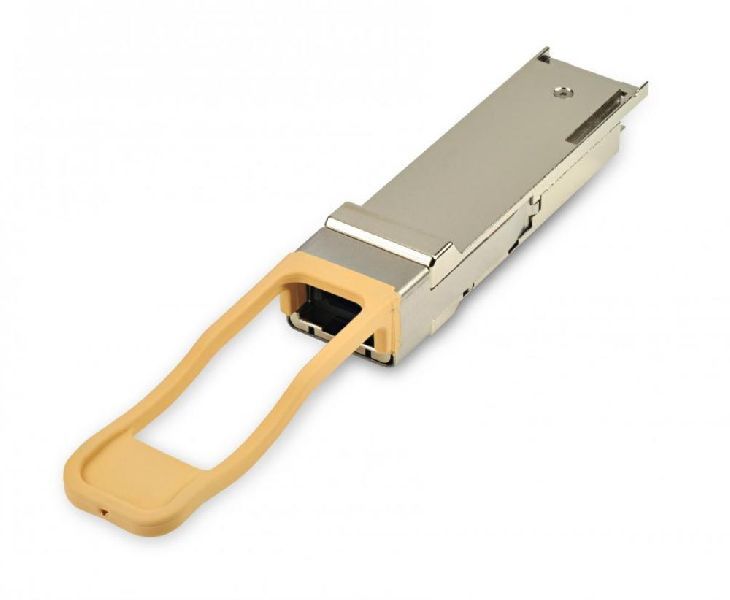

40G QSFP+ SR4 100m Fiber Optic Transceiver

transportation shipment

40g qsfp+ sr4 optical transceiver is a parallel 40gb/s quad small form-factor pluggable (qsfp+) optical module. It provides increased port density and total system cost savings. The qsfp+ full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10gb/s operation for an aggregate data rate of 40gb/s on 100 meters of om3 multi-mode fiber. An optical fiber ribbon cable with an mtp/mpo connector can be plugged into the qsfp+ module receptacle. Proper alignment is ensured by the guide pins inside the receptacle. The cable usually can not be twisted for proper channel to channel alignment. Electrical connection is achieved through an msa-compliant 38-pin edge type connector. Features 4 channels 850nm vcsel and pin electrical interface compliant to sff-8436 support 40ge data rate hot pluggable qsfp+ form factor single mpo connector receptacle built-in digital diagnostic functions operating case temperature 0c to +70c 3.3v power supply voltage transmitter characteristics.

View Complete Details

Ask Latest Price & Details

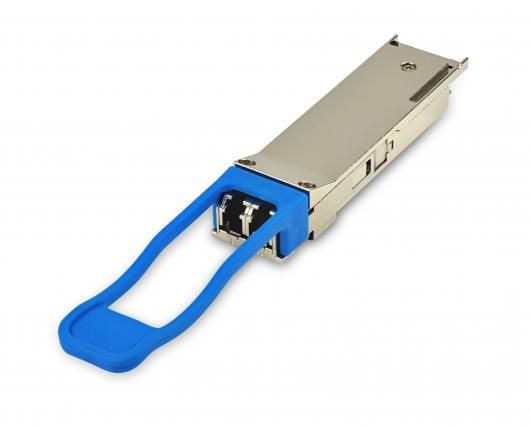

40G QSFP+ LR4 2-10km Fiber Optic Transceiver

transportation shipment

40G QSFP+ LR4 optical transceiver modules are designed for use in 40 Gigabit Ethernet links over single mode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-LR4 2-10km. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is compliant per the RoHS . Features Supports 40GBASE-LR4; Lane bit rate 10.3 Gb/s; Up to 10km transmission on SMF; DML laser and PIN receiver; I2C interface with integrated Digital Diagnostic monitoring; Single +3.3V power supply; Maximum power consumption 3.5 W; Operating case temperature: -5 to +70 C; Complies with QSFP+ MSA: SFF-8436 and SFF-8679; Complies with EU Directive 2011/65/EU (RoHS 6/6);

Ask Latest Price & Details

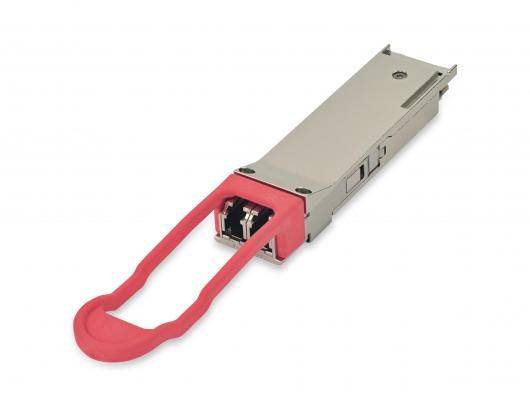

40G QSFP+ ER4 40km Fiber Optic Transceiver

transportation shipment

The 40G QSFP+ ER4 optical transceiver is a transceiver module designed for 40km optical communication applications. The design is compliant to 40GBASE-ER4 of the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331nm as members of the CWDM wavelength grid defined in ITU-T G694.2. It contains a duplex LC connector for the optical interface and a 148-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module.40G QSFP+ transceiver is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA). It hasbeen designed to meet the harshest external operating conditions including temperature, humidity and EMI interference. Features Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ER4 Standard QSFP+ MSA compliant Compliant with QDR/DDR Infiniband data rates Up to 11.2Gb/s data rate per wavelength 4 CWDM lanes MUX/DEMUX design Up to 40km transmission on single mode fiber (SMF) Operating case temperaturewww.adelafiber.com

View Complete Details

Ask Latest Price & Details

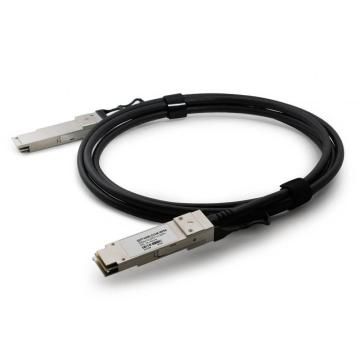

40G QSFP+ Direct Attach Cable

Min. Order (MOQ) 1 Piece(s)
Brand Name Adela
Number of Lanes Tx & Rx
Channel Data Rate 10.3125 Gbps
Operating Temperature 0 to + 70°C
Storage Temperature -40 to + 85°C
Electrical Interface 38 pins edge connector
Management Interface Serial, I2C

Features :

Compliant with SFF- 8436.
Up to 10.3125Gbps data rate per channel
Up to 7m transmission
Operating temperature - 070âï¿½ï¿½
Single 3.3V power supply
RoHS compliant

Benefits :

Cost-effective copper solution
Lowest total system power solution
Lowest total system EMI solution
Optimized design for Signal Integrity

Applications : 40G Ethernet

Additional Information:

Packaging Details : Packaging Material Carton , Wooden , Plastic
Customized Packaging Facility Yes

High Speed Characteristics

Parameter	Symbol	Min	Typ	Max	Units	Notes
Differential Impedance	Zd	90	100	110	Ω	-
Differential Input Return Loss	SDDXX	<-12+2* SQRT (f) with f in GHz			dB	0.01~4.1GHz
Differential Input Return Loss	SDDXX	<-6.3+13* Log10/(f/5.5) with f in GHz			dB	4.1~11.1GHz
Common Mode Output Return Loss	SCCXX	< -7+1.6*f with f in GHz			dB	0.01~2.5GHz
Common Mode Output Return Loss	SCCXX	-	-	-3	dB	2.5~11.1GHz
Difference Waveform Distortion Penalty	dWDPc	-	-	6.75	dB	-
VMA Loss	L	-	-	4.4	dB	-
VMA Loss to Crosstalk Ratio	VCR	32.5	-	-	dB	-

View Complete Details

Ask Latest Price & Details
