Vibrating Machine

We are leaders in the market for providing best range of Vibration Machine

Vibration Machine

₹ 2 Lakh - ₹ 4 Lakh / Piece Get Latest Price

Min. Order (MOQ) 5 Piece
Number Of Flower Vibration Machine
Application Vibrating The Mix In Moulds At A Frequency Of 12, 000 ± 400 Cycles Per Minute.
Material Mould Steel, Springs, Endless Belt
Packaging Each Machine Is Supplied With AIM 414 One Cube Mould With ISI Certification Mark And Poking Rod.
Power Supply 220V, 50Hz, Single Phase, AC Supply
Optional Accessories Top Attachment Of Vibration Machine Suitable For 50 Mm Mould
Ref. Standard IS:4031, IS:10080, EN 196-1:413-2, EN 13454-2
Replaceable Parts Mould Steel, For 70.6 Mm Cube With ISI Certification Mark As Per IS:10080, Side Spring, Supporting Springs (Set Of Four), Springs For Fitting Mould (Set Of Two), Endless Belt, Belt Guard, Eccentric Shafts With Bearing

Vibration Machine\n

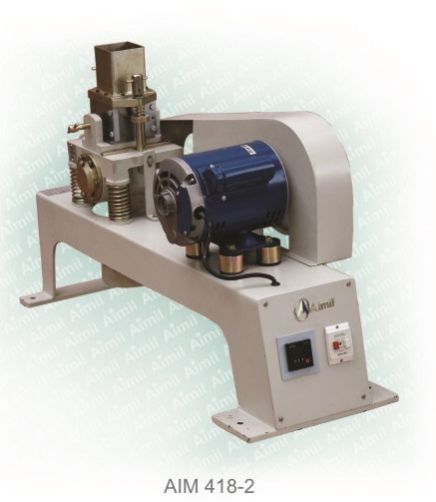

AIM 418-2 & AIM 418-3

Ref. Standard: IS:4031, IS:10080, EN 196-1:413-2, EN 13454-2

A specially designed Vibration Machine is used for vibrating the mix in moulds at a frequency of 12, 000 ± 400 cycles per minute, as per specifications.

The Vibrator is mounted over coiled springs and the vibrations are developed by means of a revolving eccentric shaft. The centre of gravity of the vibrator, including the cube and mould, is either at the centre of the eccentric shaft or within 25 mm below it. The simple design of the machine facilitates easy assembly and dismantling of the cube moulds. Each machine is supplied with AIM 414 one cube mould with ISI Certification Mark and poking rod.

Suitable for operation on 220V, 50Hz, Single Phase, AC supply.

\n \nThe equipment consists of the following replaceable parts:\n

\n
AIM 414 – Mould Steel, for 70.6 mm Cube with ISI Certification Mark as per IS:10080
\n
\n
AIM 41801 – Side Spring
\n
\n
AIM 41802 – Supporting Springs (Set of four)
\n
\n
AIM 41803 – Springs for Fitting Mould (Set of two)
\n
\n
AIM 41804 – Endless Belt
\n
\n
AIM 41805 – Belt Guard
\n
\n
AIM 41807 – Eccentric Shafts with bearing
\n

\n \nOrdering Information:\n

\n
AIM 418-2 – Vibration Machine with built-in Digital Timer, NABL Calibrated
\n
\n
AIM 418-3 – Vibration Machine with built-in Digital Timer, without Calibration
\n

\n \nOptional Accessories:\n
