The Rotary Ice Cream Tub Filling Machine can fill different varieties of ice creams. The Rotary Ice Cream Tub Filling Machine use fully automatic operations such as Dispensing of tubs, dry nut sprinkling optional, plastic lid dispenser, ejecting of finished tubs and Filling of ice-cream into tub.
Advantage of PLC :Specifications
| Filling Quantity | Up to 1000 ml as required |
|---|---|
| Tub Despending | Automatic |
| Lid | Automatic |
| Ejecting | Automatic |
| Drive | 0. 5 HP motor , vfd, ratchet indexing. |
| Machine Output | 1200 tubs per hrs. |
| Air Supply | Maximum 6CFM, at 80 PSI |
| Electricity Supply | Cycle 50 htz. , 440 volts . 3 phase |
Note :
| |

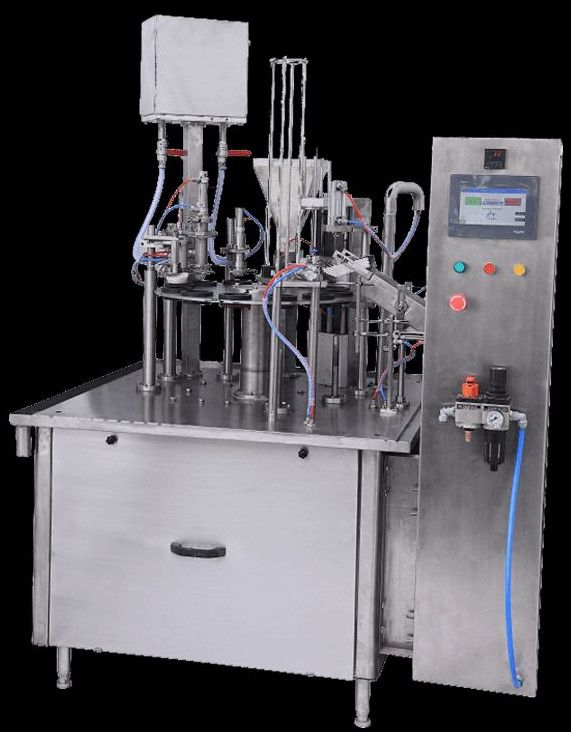

We manufacture Ice Cream Cone Filling Machine by using SS-304 or food grade material. The filling machine is used to fill varieties of ice cream such as plain, with ingredients and with ripple. The Ice Cream Cone Filling Machine is perfectly designed to fill chocolate spray in biscuit cones, ice-cream into cups / cones, top filling with chocolate or fruit syrup, dry nut sprinkling, card board lid dispenser and closing of cones and ejecting of the finished cones or cups. The output of this machine is 1500 cups or cones per hour and its maximum filling capacity is 3000 cups or cones per hour freezer dispensing of cups. Ice Cream Cone Filling Machine is the best machine for filling different types of ice creams in the cones or cups.
Specifications
| Filling Quantity | up to 120 ml. |
|---|---|
| Speed Variator | A/c frequency drive, plc make |
| Mitsubishi, Machine Output | Up to 3000 Cups/ Cones per Hour |
| Round Cup | Max. Dia = 80 Mm, Height = 75 Mm. |
| Round Cone | Max. Dia = 60 Mm, Height = 150 Mm. |
| Power Requirement | 0. 5 Hp Motor |
| Air Supply | 1000 Liter/minute At 6 Kg. |
| Ingredient Size | 10mm X 10mm X 10mm |
| Dies | 48 Nos. 50 & 100 ml cup 60 & 120 ml cone |
Note :
All the pneumatic components are festo make only. Air compressor will not be supplied with machine. Dry and moisture free air required for the machine. The design & specifications of the machine are subject to change without notice.
Other Information :
| |
Additional Information:
Payment Terms : L/C, T/T, Western Union,
Delivery Time : 8 week
