Clamps

Our Complete range of products are Rubber Lined Split Clamp, Riser Clamp, U Strap Clamp, Plain Split Clamp and Sprinkler Clamp.

Rubber Lined Split Clamp

Rubber Lined Split Clamp
  • Size 1inch, 2inch
  • Material Rubber
  • Shape Round
  • Thickness 0.5mm
  • Application Pipe Stopper
  • Feature Optimum Durability, Proper Finish
  • Surface Polished

We are enlisted among the leading Manufacturers, Exporters and Suppliers of Rubber Lined Split Clamp. Suitable for ceiling suspension or vertical wall mounting of piping, our Rubber Lined Split Clamp comes in wide assortment of variegated specifications. The Rubber Lined Split Clamp is fabricated using mild steel electro galvanized and sophisticated technology strictly in compliance with the set industry standards. The clamp features high quality rubber lining for suppression of sound and vibration. Further, Rubber Lined Split Clamp is made available are very competitive prices. Compliance

  • Federal Specification As A 1192 (Type 1)
  • Mss-Sp58 (Type 1)
  • Mss-Sp69
  • ww-h-171E (type 1)
  • Eg-Astmb 633 Sc3, Bs 1706 Fe / Zn 12

Features

  • High quality rubber lining for suppression of sound and vibration.
  • Both clamps are ribbed for providing additional strength
  • Lips are provided with additional thread lengths by means of extended collared tap holes.
  • For pipe size, OD 100 mm and above, welded side nuts have been provided.
  • Suspension nuts have twin threads, M8, M10 for flexibility of installation.
  • Side bolts have slotted cross head for ease of tightening.

Selection / Ordering

  • Pipe OD / Pipe size plus insulation thickness.
  • Indicate if starline rubber inserts are proposed to be used. (for automatic selection of clamp).
  • Hot dip galvanised finish (Suffix "HDG")
  • EPDM Lined (suffix "R")
  • Epoxy powder coated finish (Suffix "P")
  • Stainless Steel construction (Suffix "SS")

Note

  • Due to policy of continual improvement, the specifications are subject to change withtout prior notice
  • Measurements are subjects to 5% tolerance
  • To achieve good sound suppression, do not overload fitting

Download Product Catalogue


Download Detail File : Click Here

Table No : B -04-01)

Model No. Copper (Inches) Steel (Sch 40) UPVC/PE ABS
Inches Mm
SRLSC018 15, 18 3/8" ¼" 16
SRLSC022 22 ½" 22 20 DN15 (21.4)
SRLSC028 24, 28 ¾" 28 25 DN20 (26.8)
SRLSC035 35 1" 35 32.38 DN25 (33.6)
SRLSC040 42 1 ¼" 42 40, 43 DN32 (42.3)
SRLSC048   1 ½" 48 45 DN40 (48.3)
SRLSC054 54     54
SRLSC060 64 2" 60 60 DN50 (60.4)
SRLSC063
SRLSC070 67, 70     70
SRLSC075 76 2 ½" 75 75 DN65 (75.4)
SRLSC083 80     83
SRLSC090   3" 90 90
SRLSC100 102, 105     102 DN 80 (88.9)
SRLSC110 108     110
SRLSC115   4" 115 115 DN100 (114.3)
SRLSC125 125     125
SRLSC133       135
SRLSC140   5" 140 140 DN125 (140.2)
SRLSC150       152
SRLSC160 159     160
SRLSC168 167 6" 168   DN150 (168.3)
SRLSC170
SRLSC194
SRLSC200 206     200
SRLSC220   8" 219 220, 225 DN200 (225.0)

Selection Table (Table No. : B- 03-01)

Model No. Range (mm) Pipe OD (inch) Nominal OD (mm) Fixing Nut Dimension (mm) Thick(mm) Break Load (kgs) Safe Load (kgs)
SRLSC018 12/16/14 3/8" ¼" 15 M8/M8-M10 60 20 26 36 1.5 450 150
SRLSC022 17-23 ½" 22 M8/M8-M10 65 20 29 43 1.5 450 150
SRLSC028 24-30 ¾" 28 M8/M8-M10 70 20 32 50 1.5 450 150
SRLSC035 32-38 1" 35 M8/M8-M10 85 20 36 56 1.5 450 150
SRLSC040 39-45 1 ¼" 42 M8/M8-M10 92 20 39 63 1.5 450 150
SRLSC048 45-51 1 ½" 48 M8 / M8 -M10 98 20 42 72 1.5 450 150
SRLSC054 51-58   54 M8/M8-M10 104 20 45 75 1.5 450 150
SRLSC060 58-64 2" 60 M8/M8-M10 110 20 48 81 1.5 450 150
SRLSC063 65-71   63 M8-M10 115 20 51 88 1.5 450 150
SRLSC075 72-81 2 ½" 75 M8-M10 125 20 56 93 2 600 200
SRLSC090 82-89 3" 90 M8-M10 146 20 63 111 2 600 200
SRLSC100 90-98 3 ½" 100 M8-M10 156 20 68 121 2 600 200
SRLSC110 99-108   110 M8-M10 166 20 73 131 2 600 200
SRLSC115 110-116 4" 115 M8-M10 171 20 78 136 2 600 200
SRLSC125 119-127   125 M10 181 20 81 146 2 600 200
SRLSC133 126-135   133 M10 184 20 85 154 2 600 200
SRLSC140 136-145 5" 140 M10 196 20 88 161 2 600 200
SRLSC150 146-156   150 M10 206 20 93 171 2 600 200
SRLSC168 158-169 6" 168 M10 224 25 102 189 2 600 200
SRLSC170 170-180   175 M10 235 25 106 195 2 600 200
SRLSC194 194-206   190 M10 245 25 110 200 2 600 200
SRLSC200 208-220 8" 200 M10/M12 256 25 118 221 2.5 900 300
SRLSC220 225-238   220 M10/M12 276 25 128 241 2.5 900 300
SRLSC250 247-260   250 M10/M12 306 25 143 271 2.5 900 300

Graph


Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details
Riser Clamp

Riser Clamp
  • Application Industrial
  • Thickness 2-5mm
  • Weight 100-150gm
  • Feature Rust Proof
  • Surface Finishing Polished

Customers can contact us for purchasing Riser Clamp as per the requirement. Designed with utmost precision, our Riser Clamp comes in a wide huge assortment of variegated sizes. It features mild steel electro galvanized construction which is rigid and anti-corrosive in nature. Riser Clamp finds extensive usage for guiding and providing rigid support and ensuring stability under large lateral load for all types of vertical piping. When used as pipe guides, lateral stability is ensured while permitting axial thermal expansion / contraction. Compliance

  • Federal Specification AS-A-1192 (Type 1)
  • MSS-SP58 (Type 1)
  • MSS-SP69
  • WW-H-171E (Type 1)
  • EG-ASTMB 633 SC3, BS 1706 FE / Zn 12

Selection / Ordering

  • Pipe OD and material plus insulation thickness.
  • Hot Dip Galvanised Finish (Suffix "HDG")
  • EPDM lined (Suffix "R")
  • Epoxy Powder Coated finish (Suffix "P")
  • Stainless Steel Construction (suffix "SS")

Note

  • Due to policy of continual improvement, the specifications are subject to change without prior notice
  • Measurements are subject to 5% tolerance

Download Product Catalogue


Download Detail File : Click Here

Selection Table (Table No. : B – 17 – 01)

Part No. Pipe Size Length (L) Metal Size (mm) E Bolt Size Max Load Kgs
SRC022 ½" 200 4x25 M10 80
SRC028 ¾" 210 4x25 M10 90
SRC035 1" 230 4x25 M10 100
SRC040 1 ¼" 260 4x25 M10 120
SRC048 1 ½" 260 4x25 M10 120
SRC060 2" 260 4x25 M10 150
SRC075 2 ½" 290 4x38 M12 200
SRC090 3" 290 4x38 M12 250
SRC100 3 ½" 330 4 x 38 M12 350
SRC115 4" 330 4x38 M12 350
SRC140 5" 350 6x38 M16 550
SRC168 6" 380 6x38 M16 700
SRC220 8" 470 8x38 M16 900
SRC273 10" 520 10x50 M16 1100
SRC323 12" 580 12x50 M20 1100
SRC355 14" 610 12x50 M20 1600
SRC406 16" 660 16x60 M20 1600
SRC457 18" 710 16x60 M20 1900
SRC508 20" 760 16x60 M20 1900
SRC610 24" 880 16x75 M20 2400
SRC762 30" 1040 16x75 M20 2400
SRC915 36" 1210 16x100 M25 3200

Graph


Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details
U Strap Clamp

U Strap Clamp
  • Material Rubber
  • Shape U Shape
  • Thickness 0.5mm
  • Application Connect Pipe Flange
  • Feature Optimum Durability, Proper Finish.
  • Surface Polished

Our company offers quality approved U Strap Clamp in numerous specifications. The U Strap Clamp, that we offer, is precisely designed using strictly in compliance with the set industry standards. We utilize electro galvanized mild steel and sophisticate technology in designing U Strap Clamp. Each clamp features slotted mounting holes for convenient installation. It finds application in clamping plain or insulated pipes to standard channel supports such as trapeze hangers, floor stands and wall brackets. Further, U Strap Clamps are available in intermediate sizes to ensure tight installation. Compliance

  • Federal Specification As-A-1192 (Type 1)
  • MSS-SP58 (Type 1)
  • MSS-SP69
  • WW-H-171E (Type1)
  • EG-Astmb 633 Sc3, Bs 1706 Fe / Zn 12

Selection / Ordering

  • Hot dip Galvanised finish (Suffix "HDG")
  • EPDM Lined (Suffix 'R')
  • Epoxy Powder coated finish (Suffix "P")
  • Stainless steel construction (Suffix "SS")

Note

  • Due to policy of continual improvement, the specifications are subject to change without prior notice
  • Measurements are subject to 5% tolerance

Download Product Catalogue


Download Detail File : Click Here

Dimensional Data For U-Strap Clamp (Table No. : B-11-01)

Model Size D (mm) A (mm) B (mm) D Bolt Size C Strip Size (mm)
SUSC022 ½" 22 79 54 M8 25x2
SUSC028 ¾ 28 85 60 M8 25x2
SUSC035 1 35 92 67 M8 25x2
SUSC042 1 ¼ 42 99 74 M8 25x2
SUSC048 1 ½ 48 106 81 M8 25x2
SUSC054   54 112 87 M8 25x2
SUSC060 2 60 118 93 M8 25x2
SUSC067   67 125 100 M8 25x2
SUSC075 2 ½ 75 146 116 M10 25x3
SUSC082   82 151 121 M10 25x3
SUSC086   86 157 127 M10 25x3
SUSC090 3 90 160 130 M10 25x3
SUSC094   94 164 134 M10 25x3
SUSC100 3 ½ 100 172 142 M10 25x3
SUSC105   105 177 147 M10 25x3
SUSC110   110 182 152 M10 25x3
SUSC115 4 115 187 157 M10 25x3
SUSC120   120 192 162 M10 25x3
SUSC126   126 198 168 M10 25x3
SUSC133   133 202 172 M10 25x3
SUSC137   137 206 176 M10 25x3
SUSC142   142 213 183 M10 25x3
SUSC148   148 219 189 M10 25x3
SUSC155   155 226 196 M10 25x3
SUSC161   161 233 203 M10 25x3
SUSC167 6" 167 240 210 M10 25x3
SUSC173   173 246 216 M10 25x3
SUSC179   179 250 220 M10 25x3
SUSC185   185 257 227 M10 38x3
SUSC190   190 262 232 M10 38x3
SUSC198   198 270 240 M10 38x3
SUSC205   205 275 245 M10 38x3
SUSC212   212 281 251 M10 38x3
SUSC219 8" 219 288 258 M10 38x3
SUSC223   223 295 265 M10 38x3
SUSC230   230 300 270 M10 38x3
SUSC241   241 340 300 M12 38x4
SUSC259   259 356 316 M12 38x4
SUSC263   263 363 323 M12 38x4
SUSC273 10" 273 368 328 M12 38x4
SUSC285   285 380 340 M12 38x4
SUSC295   295 392 352 M12 38x4
SUSC315   315 412 372 M12 38x4
SUSC323 12 323 420 380 M12 38x4
SUSC338   338 434 394 M12 38x4
SUSC345   345 446 406 M12 38x4
SUSC356 14" 356 473 423 M16 50x4
SUSC374   374 491 441 M16 50x4
SUSC387   387 506 456 M16 50x4
SUSC400   400 518 468 M16 50x4
SUSC406 16" 406 524 474 M16 50x4
SUSC420   420 541 491 M16 50x4
SUSC432   432 550 500 M16 50x4
SUSC450   450 567 517 M16 50x4
SUSC456 18" 456 574 524 M16 50x5
SUSC470   470 591 541 M16 50x5
SUSC482   482 600 550 M16 50x5
SUSC508 20" 508 624 574 M16 50x5
SUSC521   521 639 589 M16 50x5
SUSC533   533 651 601 M16 50x5
SUSC559   559 676 626 M16 50x5
SUSC572   572 690 640 M16 50x5
SUSC583   583 702 652 M16 50x5
SUSC610 24" 610 726 676 M16 50x5
SUSC634   634 762 712 M16 50x6
SUSC660   660 788 738 M16 50x6

Selection For Common Pipe / Insulation Sizes (Table No : B-13-01)

Steel Pipe Nominal Clamp Model for Insulation / RSI Thickness
Bare Pipe 19 mm 25 mm 32 mm 28 mm 50 mm
½" SUSC022 SUSC060 SUSC075 SUSC086 SUSC100 SUSC120
¾" SUSC028 SUSC067 SUSC082 SUSC094 SUSC105 SUSC126
1" SUSC035 SUSC075 SUSC086 SUSC100 SUSC110 SUSC137
1 ¼" SUSC042 SUSC082 SUSC094 SUSC105 SUSC120 SUSC142
1 ½" SUSC048 SUSC086 SUSC100 SUSC115 SUSC126 SUSC148
2" SUSC060 SUSC100 SUSC110 SUSC126 SUSC137 SUSC161
2 ½" SUSC075 SUSC115 SUSC126 SUSC142 SUSC155 SUSC175
3" SUSC090 SUSC126 SUSC142 SUSC155 SUSC167 SUSC190
4" SUSC115 SUSC155 SUSC167 SUSC179 SUSC190 SUSC219
5" SUSC142 SUSC179 SUSC190 SUSC205 SUSC219 SUSC241
6" SUSC167 SUSC205 SUSC219 SUSC230 SUSC241 SUSC273
8" SUSC219   SUSC273 SUSC285 SUSC295 SUSC323
10" SUSC273   SUSC323 SUSC338 SUSC345 SUSC374
12" SUSC323   SUSC374 SUSC387 SUSC400 SUSC420
14" SUSC356   SUSC406 SUSC420 SUSC432 SUSC456
16" SUSC4016   SUSC456 SUSC470 SUSC482 SUSC508
18" SUSC456   SUSC508 SUSC521 SUSC533 SUSC559
20" SUSC508   SUSC559 SUSC572 SUSC583 SUSC610

Graph


Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details
Plain Split Clamp

Plain Split Clamp
  • Material Metal
  • Surface Finishing Polished
  • Thickness 2-5mm
  • Feature Rust Proof
  • Application Industrial
  • Shape Round

We are instrumental in offering precision engineered Plain Split Clamp in a variety of specifications. Plain Split Clamp finds wide application in ceiling suspension or vertical wall mounting of piping. Our Plain Split Clamp is fabricated using pristine mild steel which is electro galvanized ensuring enhanced service life. Both clamps are ribbed for providing additional strength. The lips are provided with additional thread lengths by means of extended collard tap holes. In addition to this, welded side nuts have been provided for pipe size, Od 100 mm and above. Suspension nuts have threads, M8, M10 for flexibility of installation. Moreover, side bolts have slotted cross head for ease of tightening. Our Plain Split Clamp is reasonably priced not to burn hole in the pockets of our valuable customers. Compliance

  • Federal Specification As A 1192 (Type 1)
  • Mss- Sp 58 (Type 1)
  • MSS-Sp69
  • WW-H-171E (Type 1)
  • EG-ASTmb 633 SC3, BS 1706 FE / Zn 12

Selection / Ordering

  • Pipe Od / Pipe size plus insulation thickness.
  • Indicate if starline rubber inserts are proposed to be used. (for automatic selection of clamp).
  • Hot dip galvanised finish (suffix "HDG")
  • EPDM Lined (Suffix "R")
  • Epoxy Powder Coated finish (Suffix "P")
  • Stainless Steel Construction (Suffix "SS")

Note

  • Due to policy of continual improvement, the specifications are subject to change without prior notice
  • Measurements are subject to 5% tolerance
  • To achieve good sound suppression, do not overload fitting.

Download Product Catalogue


Download Detail File : Click Here

Selection Table (Table No. : B-01-01)

Model No. Range Size (inch) Nominal od (mm) Dimension (mm) Thick (mm) Safe Load (kgs)
A B C D
SPSC018 15-18 03/08/14 15 59 20 23 30 1.5 125
SPSC022 18-22 ½ 22 66 20 26 37 1.5 125
SPSC028 23-28 ¾ 28 72 20 29 43 1.5 125
SPSC035 30-35 1 35 79 20 33 50 1.5 125
SPSC040 38-43 1 ¼ 40 86 20 36 57 1.5 125
SPSC048 45-50 1 ½ 48 92 20 39 63 1.5 125
SPSC054     54 98 20 42 69 1.5 125
SPSC060 58-63 2 60 104 20 45 75 1.5 125
SPSC063     63 108 20 47 72 1.5 125
SPSC070     70 114 20 50 85 1.5 150
SPSC075 70-76 2 ½ 75 119 20 53 90 2 150
SPSC083     83 127 20 57 98 2 150
SPSC090 87-95 3 90 134 20 60 105 2 150
SPSC100 96-105 3 ½ 100 144 20 65 115 2 150
SPSC110     110 154 20 70 125 2 150
SPSC115 105-114 4 115 159 20 73 130 2 200
SPSC125     125 169 20 78 140 2 200
SPSC133     133 177 20 82 148 2 200
SPSC140 132-140 5 142 184 20 85 155 2.5 200
SPSC150     150 194 20 90 165 2.5 200
SPSC160     160 204 25 95 175 2.5 200
SPSC168 164-175 6 168 212 25 99 183 2.5 200
SPSC200 214-225 8 200 244 25 115 215 2.5 200
SPSC220     220 264 25 125 235 2.5 200
SPSC250 271-283 10 250 294 25 140 265 2.5 300
SPSC315 315-331 12 315 359 25 173 330 2.5 300

Application (Table No. : B-02-01)

Model No. Steel (Sch 40) UPVC/PE ABS
Inches Mm
SPSCC018       16
SPSCC022 ½ 22 20 DN15 (21.4)
SPSCC0028 03/04/14 28 25 DN20 (26.8)
SPSCC035 1 35 32, 38 DN25 (33.6)
SPSCC040 1 ¼ 42 40, 43 DN32 (42.3)
SPSCC048 1 ½ 48 45 DN 40 (48.3)
SPSCC054     54
SPSCC060 2 60 60 DN50 (60.4)
SPSCC063
SPSCC070     70
SPSCC0175 2 ½ 75 75 DN 65 (75.4)
SPSCC083     83
SPSCC090 3 90 90
SPSCC100     102 DN80 (88.9)
SPSCC110     110
SPSCC115 4 115 115 DN100 (114.3)
SPSCC125     125
SPSCC133     135
SPSCC140 5 140 140 DN 125 (140.2)
SPSCC150     152
SPSCC160   160
SPSCC168 6   168 DN150 (168.3)
SPSCC200     200
SPSCC200 8 219 220, 225 DN 200 (225.0)
SPSCC250     250 DN225 (250.4)
SPSCC315       DN300 (315.5)

Graph


Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details

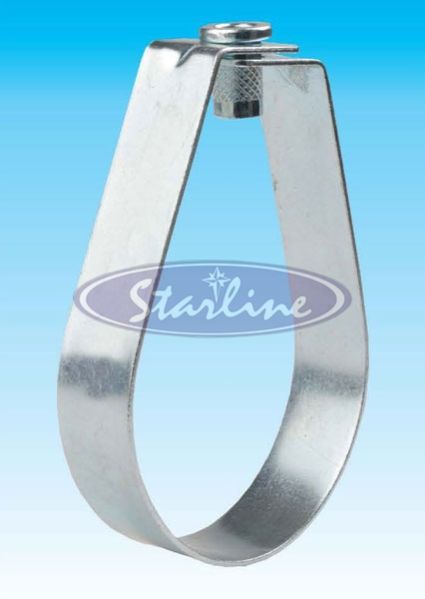

Sprinkler Clamp

Sprinkler Clamp
  • Size 1inch, 2inch
  • Material Steel
  • Shape Round
  • Thickness 0.5mm
  • Application Connect Pipe Flange
  • Feature Optimum Durability, Proper Finish

We bring forth optimum quality Sprinkler Clamp in a broad assortment of assortment different sizes. Our skilled engineers make use of mild steel electro galvanized in fabricating Sprinkler Clamp. The Sprinkler Clamp is ideal for use in sprinkler systems and fire extinguishing systems for free hanging of horizontal pipe lines. Known for its quality and durability, our Sprinkler Clamp guarantees high permissible load. Further, mounting of Sprinkler Clamp is possible without any additional tooling. Complince

  • Federal Specification As-A-1192 (Type 1)
  • MSS-SP58 (Type 1)
  • MSS SP69
  • WW-H-171E (Type 1)
  • EG-ASTMB 633 SC3, BS 1706 FE / ZN 12

Selection / Ordering

  • Hot dip Galvanised finish (Suffix "HDG")
  • EPDM Lined (Suffix "R").
  • Epoxy powder coated finish (suffix "P")
  • Stainless Steel Construction (Suffix "SS")

Note : Due to policy of continual improvement, the specifications are subject to change without prior notice.

Download Product Catalogue


Download Detail File : Click Here

Selection Table (Table No. B-07-01)

Model No. Pipe Size (inches) Theraded Connection (r) mm Strip Size (mm) Height (mm) (H) Height Adjustment (h) mm Safe Working Load (kgs)
SSC028 ¾" 10 1.5x20 61 28 150
SSC035 1" 10 1.5x21 68 35 150
SSC040 1 ¼" 10 1.5x22 75 42 150
SSC048 1 ½" 10 1.5x23 81 48 150
SSC060 2" 10 1.5x24 100 60 150
SSC075 2 ½" 10 2x32 120 73 225
SSC090 3" 10 2x33 135 89 225
SSC100 3 ½" 10 2x34 150 105 225
SSC115 4" 10 2.5x32 165 115 225
SSC140 5" 12 2.5x40 195 140 300
SSC168 6" 12 3x40 230 168 300
SSC200 8" 12 3x50 290 219 450
SSC250 10" 12 3x50 315 273 500

Graph


Download Detail File : Click Here
View Complete Details
Ask Latest Price & Details
Tell Us What are you looking for? Will call you back

Contact Us

View Contact No.
