Cased Restrained Spring Mount (50mm)

  • Material Metal
  • Thickness 1.0-3.0 Mm
  • Weight 5-10 Kg.
  • Application Industrial
  • Load Capacity 30gk/CM2
  • Tensile Force 200%
  • Hardness 50 Mohs

Design that complies with the BS 1726-1:1987 and tolerance that meets the standard BS 1726-1:2002, such is the adherence of our Cased Restrained Spring Mount (50mm) with the quality standards. We are counted among the chief Manufacturers, Exporters, and Suppliers of Cased Restrained Spring Mount (50mm) from Kerala, India. We bring forth the quality-tested Spring Mounts for the applications that deal with fluids in motion.

  • Download Product Catalogue
    Download Detail File : Click Here
View Complete Details

Cased Spring Mount

  • Material Metal
  • Thickness 1.0-3.0 Mm
  • Weight 5-10 Kg.
  • Application Industrial
  • Load Capacity 30gk/CM2
  • Hardness 50 Mohs
  • Standard Deflection 25 mm

Our Cased Spring Mount is available in both 25 mm & 50 mm standard deflection. Cased Spring Mount that we manuafcture, export and supply is widely used for isolating floor-mounted sources of noise and vibration near critically quiet areas. Our Cased Spring Mount is a perfect combination of neoprene and spring. Hence, our Cased Spring Mount can isolate audible or inaudible noise and vibration produced from floor mounted mechanical equipment. It is used in reciprocating compressors, close coupled and base mounted pumps, packaged air handling units, condensing units, roof top air handling units, air cooled / water cooled chillers, centrifugal / axial fans, internal combustion engines, generators, drop hammers, punch presses up to static deflection requirement of up to 50 mm. Conforms To Designed to BS 1726 1 : 1987 Tolerance to BS 1726 1 : 2002 SAE and Ashrae guidelines for vibration Isolation Features Spring elements are designed to operate without spring buckling and shall have minimum of 50% overload capacity. Spring mount has external leveling arrangements to ensure equipment is in level condition after installation. Deflection can be provided for 25 mm and 50mm at Rated Load. Inner walls of lower casing have resilient rubber snubbers which Provides a smooth guide for the top casing. Prevents metal to metal contact Limits lateral movement during startups, shutdown and due to horizontal wind load. Thick Ribbed Neoprene pads are provided below the springs which provide noise barrier for high frequencies which may otherwise be tranmitted to building structures. Springs are powder coated with individual colours to facilitate identification. Springs and casings are powder coated upto 100 microns with 1, 000 hours of salt spray rating Conforming to ASTM B-117. Option Frame Hot dip Galvanised (Prefix Part Number with "HDG") Spring Neoprene coated (Prefix part number with "N") Spring Plastic coated (Prefix part Number with "P") Selection / Ordering : While calculating operating equipment weight, variables such as weight of water, weight of pipe fittings, valves etc should be taken into consideration to arrive at the actual loading on the spring. Installation Guide lines : Detailed Installation guidelines are included in the spring mount package.

  • Download Product Catalogue
    Download Detail File : Click Here
  • Selection Table For 25mm Deflection Cased Spring Mounts (Table No. : C- 02 – 01)
    Isolator Model Rated Load (kg) Spring Colours Dimensions (mm)
    L W H HIR* A BC D d
    SCSM-A50 50 Black
    ASCSM-A100 100 Blue 137 55 98 114 87 120 03/08/14 12
    SCSM-A150 150 Grey
    SCSM-A200 200 Orange
    SCSM-B200 200 Black
    SCSM-B250 250 Yellow 165 67 112 132 107 145 ½ 14
    SCSM-b300 300 Blue
    SCSM-b400 400 Grey
    SCSM-C400 400 Brown
    SCSM-C500 500 Grey 187 80 134 158 129 165 05/08/14 14
    SCSM-c600 600 Orange
    SCSM-C700 700 Green
    SCSM-C800 800 Pink
    SCSM-c1000 1000 White 187 80 146 170 129 165 05/08/14 14
    SCSM-C1200 1200 Purple 187 80 146 170 129 165 05/08/14 14
    SCSM-C1400 1400 Purple/Yellow
    SCSM-C1600 1600 Purple/White
    SCSM – 2C2000 2000 White
    SCSM-2c2400 2400 Purple 277 80 156 185 219 255 07/08/14 14
    SCSM-2C2800 2800 Purple/Yellow
    SCSM-2C3200 3200 Purple / White
    SCSM-4C4000 4000 White
    SCSM-4C4800 4800 Purple
    SCSM-4C5600 5600 Purple/Yellow 261 155 165 199 203 239 1 14
    SCSM-4C6400 6400 Purple/White



    Note : Represents average free height in each grouping of models. Height of some models in group may vary slightly from this figure.

  • Selection Table For 50mm Delfection Cased Spring Mounts (table No. : C- 03 – 01)
    Isolator Model Rated Load (Kg) Spring Colours Dimensions (mm)
    L W H HIR* A BC D D
    SCSM50-B50 50 Red
    SCSM50-B100 100 Yellow 165 67 135 155 107 145 ½ 14
    SCSM50-B150 150 Blue
    SCSM50-C200 200 Green
    SCSM50-C250 250 Red 187 80 145 169 129 165 05/08/14 14
    SCSM50-C300 300 Black
    SCSM50-C400 400 Yellow 187 80 153 177 129 165 05/08/14 14
    SCSM-C500 500 Black/Green
    SCSM50-C600 600 Yellow/Green
    SCSM50-G700 700 Black
    SCSM50-G800 800 Yellow
    SCSM50-G1000 1000 Blue 203 95 178 202 145 181 05/08/14 14
    SCSM50-G1200 1200 Blue/Green
    SCSM50-G1400 1400 Blue/Brown
    SCSM50-2G1600 1600 Yellow
    SCSM50-2G2000 2000 Blue 311 95 188 217 253 289 07/08/14 14
    SCSM50-2G2400 2400 Blue/Green
    SCSM50-2G200 2800 Blue / Brown
    SCSM50-4G3200 3200 Yellow
    SCSM50-4G4000 4000 Blue 295 185 197 231 237 273 1 14
    SCSM50-4G4800 4800 Blue/Green 295 185 197 231 237 273 1 14
    SCSM50-4G5600 5600 Blue/Brown
  • Graph
    Download Detail File : Click Here
View Complete Details

Housed Spring Mounts

  • Thickness 1.0-3.0 Mm
  • Weight 5-10 Kg.
  • Application Industrial
  • Tensile Force 200%
  • Hardness 50 Mohs
  • Size Standard
  • Capacity 910 Kg

We make available the best-in-class Housed Spring Mounts at the disposal of global market. We are called as the top Manufacturer, Exporter, and Supplier of Housed Spring Mounts from Kerala, India. Parts with different color coding are precisely embedded in these Mounts, which make them easy to identify. The Mounts are fabricated in compliance with the quality standards. Buyers can avail themselves of the Spring Mounts in varied specifications, here!

  • Download Product Catalogue
    Download Detail File : Click Here
View Complete Details

Metal Base Open Spring Mount

  • Material Metal
  • Thickness 1.0-3.0 Mm
  • Weight 5-10 Kg.
  • Application Industrial
  • Load Capacity 30gk/CM2
  • Tensile Force 200%
  • Hardness 50 Mohs
  • Standard Deflection 25 mm

We are the respected Manufacturer, Exporter and Supplier of durable Metal Base Open Spring Mount . Our Metal Base Open Spring Mount helps to isolate vibration from rotation and reciprocating machines. It is widely applied in air handling units, axial and centrifugal fans, ductwork, pipe work, condensing units, pump units, chillers, genset, etc. Metal Base Open Spring Mount is provided along with upper load plate and leveling assembly for accurate leveling. Conforms To Designed to BS 1726 1 : 1987 Tolerance to BS 1726 1 : 2002 SAE and Ashrae Guidelines for vibration Isolation Features Laterally Stable springs are designed to prevent spring buckling and capable of 50% overloading capacity. Springs and casing are powder coated with 100 hours of salt spray test conforming to Astm b-117. Upper load plate and leveling assembly are provided for accurate leveling. In heavier capacities, springs are welded to load plate with neoprene pad. Standard product range offers upto 2" deflection with optional custom made isolators of higher deflection. Thick ribbed neoprene pads are provided below load plate noise isolation and non skid. Colour Coded coated springs for easy identification of load. Selection / Ordering : Static Load.

  • Selection Table (Table No. : C-05-01) Isolation Efficiency At Typical Machine Speeds
    M/C Speed (rpm) Efficiency %
    15mm Defl. 25mm Defl. 50mm Defl.
    300 Di not use 34 75.2
    500 68.7 83.3 92.3
    750 88.1 93.2 96.7
    1000 93.7 96.3 98.2
    1200 95.5 97.4 98.7
    1500 97.3 98.4 99.2
    1750 98 99.8 99.4
    2000 98.5 99.1 99.5



    Note : The above figures are theoretical values only based on the vertical natural frequency of the spring system assuming in infinitely stiff structural supports. The effects of high frequency spring coil resonances on low frequency performance are also ignored.

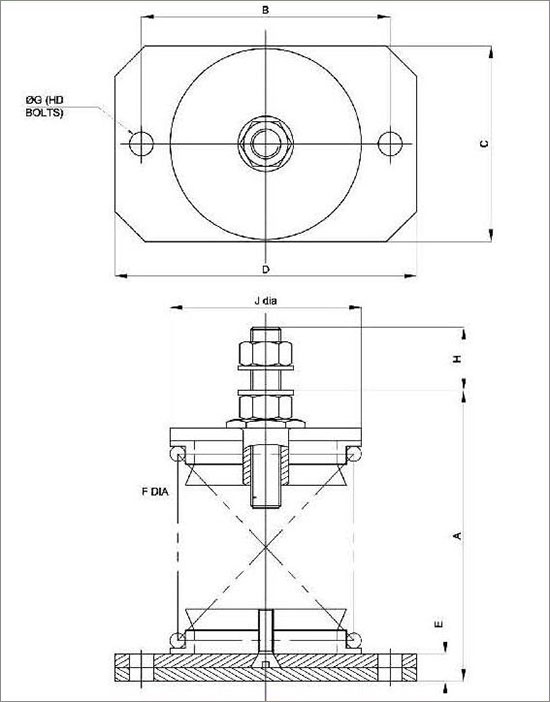

  • Technical Specifications (Table No : C-05-02) Design Data & Dimensions
    Part No. Colour code Rated load (kg) Deflection at Rated Dimensions (mm)
    A B C D E F G H J
    SOSM25/30 Yellow 30 25
    SOSM25/60 Green 60 25
    SOSM25/100 Blue 100 25 115 85 75 110 10 M10 8 20 55
    SOSM25/160 White 160 25
    SOSM25/250 Red 250 25
    SOSM25/200 Red 200 25
    SOSM25/300 Purple 300 25
    SOSM25/400 Grey 400 25
    SOSM25/500 Orange 500 25 144 110 100 140 11 M16 12 27 75
    SOSM25/600 Brown 600 25
    SOSM25/700 Orange / Black 700 25
    SOSM25/800 Brown/Black 800 25
    SOSM50/100 Yellow 100 50
    SOSM50/200 Green 200 50
    SOSM50/300 Blue 300 50 180 110 100 140 11 M16 12 27 75
    SOSM50/400 White 400 50
    SOSMS50/500 Red/Black 500 50
    SOSM25/650 Yellow 650 26
    SOSM25/850 Green 850 27
    SOSM25/1050 Blue 1050 26 175 165 130 200 18 M20 16 42 127
    SOSM25/1250 White 1250 26
    SOSM25/1300 Red 1300 27
    SOSM25/1600 Purple 1600 25
    SOSM25/2000 Grey 2000 26 225 210 150 250 18 M24 16 51 152
    SOSM25/2300 Brown 2300 29
    SOSM50/510 Black/Purple 510 51
    SOSM50/760 Black/Grey 760 51
    SOSM50/1000 Black/Orange 1000 50 240 210 150 250 18 M20 16 42 127



    Note : Internal Nested Spring spring stiffness is linear over its working range.

  • (Table No : C – 05 – 03)
    Part No. Colour code Rated load (kg) Deflection at rated load (mm)
    SOSM20/10 Purple 10 20
    SOSM20/15 Yellow 15 20
    SOSM20/20 Grey 20 20
    SOSM20/40 Green 40 20
    SOSM20/70 Red 70 20
    SOSM15/100 Blue 100 15
  • Graph 01
    Download Detail File : Click Here
  • Graph 02
    Download Detail File : Click Here
  • Graph 03
    Download Detail File : Click Here
  • Download Product Catalogue
    Download Detail File : Click Here
View Complete Details

Restraind Spring Mount SRSM (25mm)

  • Material Metal
  • Thickness 1.0-3.0 Mm
  • Weight 5-10 Kg.
  • Application Industrial
  • Load Capacity 30gk/CM2
  • Tensile Force 200%
  • Hardness 50 Mohs

We make available premium Restraind Spring Mount SRSM (25mm) to the length and breadth of the country and abroad. We are a Manufacturer, Exporter, and Supplier of Restraind Spring Mount SRSM (25mm) from Kerala, India. The Mounts design and tolerance is 100% compliant with the standard BS 1726-1:1987 and BS 1726-1: 2002 respectively. It is made felicitous for various applications including cooling towers, vibrations for pumps, and compressors.

  • Download Product Catalogue
    Download Detail File : Click Here
View Complete Details

Cased Restraind Spring Mount SCRSM (25mm)

  • Thickness 1.0-3.0 Mm
  • Weight 5-10 Kg.
  • Application Industrial
  • Load Capacity 30gk/CM2
  • Tensile Force 200%
  • Size Standard

We make available premium Cased Restraind Spring Mount SCRSM (25mm) to the length and breadth of the country and abroad. We are a Manufacturer, Exporter, and Supplier of Cased Restraind Spring Mount SCRSM (25mm) from Kerala, India. The Mounts design and tolerance is 100% compliant with the standard BS 1726-1:1987 and BS 1726-1: 2002 respectively. It is made felicitous for various applications including cooling towers, vibrations for pumps, and compressors.

  • Download Product Catalogue
    Download Detail File : Click Here
View Complete Details
