Hangers

Leading Manufacturer, Supplier & Retailer of Anti Vibration Neoprene Hanger, Spring Hanger (25 mm), Spring Hanger (50 mm), Adjustable Clevis Hanger and Combination Spring Hanger (25 mm).

Anti Vibration Neoprene Hanger

  • Material Metal
  • Diameter 1-5mm
  • Thickness 10-20mm
  • Application Industrial
  • Color Grey
  • Feature Durable, Optimum Quality

Anti Vibration Neoprene Hanger that we manufacture, export and supply is widely recommended for the isolation of vibration produced by suspended mechanical equipment less than 15 kw such as exhaust fans, duct work, fan coil units, piping etc. Our Anti Vibration Neoprene Hanger is especially recommended to isolate sources of audible frequency of vibration where static deflection requirement is up to 13mm. Furthermore, the frame of the Anti Vibration Neoprene Hanger is made from G.I. Steel and powder coated to 100 microns paint thickness (exceeds 1000 hours of salt spray test) and conforming to Astm B- 117. Conforms To Designed to BS 1726 -1: 1987 Tolerance To BS 1726-1: 2002 SAE and Ashrae Guidelines for vibration isolation Features Frame is made of G.I. Steel and powder coated to 100 microns paint thickness (exceeds 1000 hours of salt spray test) and conforming to Astm B- 117. Option : Frame hot dip galvanised. Part Number prefix with "HDG". Rubber mount is designed with hollow conical section thus ensuring loading of rubber in shear as well as compression mode and hence provides better isolation performance. Hanger cage is designed to accommodate suspension rod misalignment upto 30 o Colour coded to faciliate easy identification Steel Brackets are fail safe upto 500% overloading Elastomer inserts are moulded from oil Resistant Compounds Selection / Ordering : Point load (Calcutated to include all variables such as weight of water in pipe lines etc if applicable). Installation Guide Lines : Included in packaging.

  • Download Product Catalogue
    Download Detail File : Click Here
  • Selection Table (Table No. : C-22-01)
    Model Colour Code Rated Load (kg) Rated Deflection (mm) Dimensions (mm)
    L W H F D
    SNH-A-R Red 18 8 65 50 80 35 M8
    SNH-A-G Green 35
    SNH-A-B Blue 50
    SNH-B-R Red 100 10 77 60 100 48 M10
    SNH-B-G Green 140
    SNH-B-B Blue 200
    SNH-C-R Red 250 10 94 80 145 73 M12
    SNH-C-G Green 350
    SNH-C-B Blue 500
    SNH-D-R Red 600 13 107 95 180 90 M12
    SNH-D-G Green 700
    SNH-D-B Blue 900
  • Graph
    Download Detail File : Click Here
View Complete Details

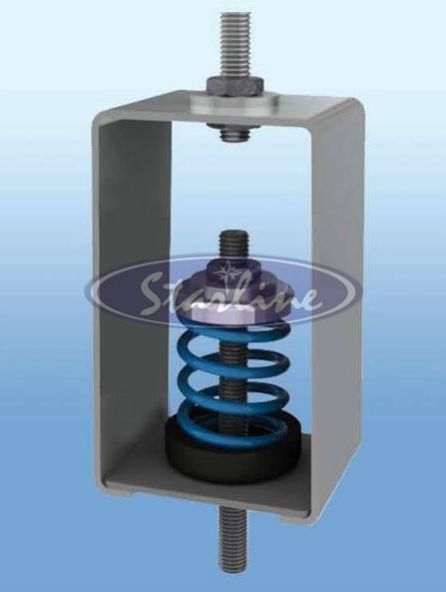

Spring Hanger (25 mm)

  • Material Metal
  • Length 0-25inch
  • Color Grey
  • Technics Black Oxide
  • Surface Finishing Power Coated
  • Feature Corrosion Resistance, Hardend & Temper
  • Hanger Thickness 0-50mm

Spring Hanger (25 mm) that we offer is available with 25mm standard deflection. Our Spring Hanger is extensively used for isolation of vibration produced by suspended mechanical equipment, low speed suspended fan, transformers, ductwork, piping, etc. It is especially recommended for isolating any suspended source of audible or inaudiable noise and vibration with minimum static deflection requirement exceeding 13 mm and up to 25 mm. We make available bulk quantities of our Spring Hanger at very economical rates. Conforms To Designed to BS 1726-1: 1987 Tolerance to BS 1726-1: 2002 SAE and Ashrae Guidelines for vibration isolation Product Features Spring diameter to height ratios are designed to ensure that spring will never buckle even when fully loaded. Suspension rod misalignment (30 degree arc) is compensated in hanger design. Locking rubber bush centralizes the spring and prevents dislocation. Springs are powder coated with appropriate color coding to facilitate identification. Frame is made of G.I. Steel and powder coated to 100 microns paint thickness (exceeds 1000 hours of salt spray test) and conforming to ASTM B-117. Option : Frame Hot dip Galvanized. Part Number prefix with "HDG". Spring Neoprene coated. Part Number Prefix with "N". Spring Plastic Dip coated. Part Number prefix with "P". Isolation Brackets are capable of overloading upto 500%. Selection / Ordering : Point load (Calculated to include all variables such as weight of water in pipe lines etc. If applicable). Installation Guide lines : Included in Packaging.

  • Download Product Catalogue
    Download Detail File : Click Here
  • Selection Table For 25 Mm Deflection Spring Hangers

    Isolator Model



    Rated Load (kg)



    Spring Colours



    Dimensions (mm)

    L

    W

    F

    H

    D

    SSH25-A25

    25

    Green











    SSH25-A50

    50

    Black

    77

    60

    76

    120

    M10

    SSH25-A75

    75

    Yellow











    SSH25-A100

    100

    Blue











    SSH25-A150

    150

    Grey

    77

    60

    84

    120

    M10

    SSH25-A200

    200

    Orange











    SSH25-B200

    200

    Black











    SSH25-B250

    250

    Yellow

    77

    80

    93

    145

    M12

    SSH25-B300

    300

    Blue











    SSH25-B400

    400

    Grey











    SSH25-C400

    400

    Brown











    SSH25-C500

    500

    Grey

    94

    80

    110

    180

    M16

    SSH25-C600

    600

    Orange











    SSH25-C700

    700

    Green











    SSH25-C800

    800

    Pink

    94

    80

    130

    220

    M22

    SSH25-C1200

    1200

    Purple











    SSH25-C1400

    1400

    Green











    SSH25-C1600

    1600

    Pink











    SSH25-C2000

    200

    White

    235

    75

    165

    325

    M30

    SSH25-C2400

    2400

    Purple











    SSH25-C2800

    2800

    Yellow

    235

    75

    165

    350

    M36

    SSH25-C3200

    3200

    White

    235

    75

    165

    350

    M36

  • Graph
    Download Detail File : Click Here
View Complete Details

Spring Hanger (50 mm)

  • Material Metal
  • Length 0-25inch
  • Color Grey
  • Surface Finishing Power Coated
  • Feature Corrosion Resistance, High Quality
  • Weight Capacity 0-5Tons
  • Hanger Thickness 0-50mm

We are into the business of manufacturing, exporting and supplying excellent grade Spring Hanger (50 mm) with 50 mm standard deflection. Our Spring Hanger is used for isolation of vibration produced by suspended mechanical equipment, low speed suspended fan, transformers, ductwork, piping, etc. Spring Hanger that we offer is especially recommended for isolating any suspended source of audible or inaudible noise and vibration with minimum static deflection requirement exceeding 25 mm and up to 50 mm. Moreover, bulk quantities of our Spring Hanger can be obtained at very affordable rates from us. Conforms To Designed to BS 1726 1: 1987 Tolerance to BS 1726 1: 2002 SAE and Ashrae Guidelines for vibration Isolation Features Spring Diameter to height ratios are designed to ensure that spring will never buckle even when fully loaded. Suspension rod misalignment (30 degree arc) is compensated in hanger design. Locking rubber bush centralizes the spring and prevents dislocation. Springs are powder coated with appropriate color coding to facilitate identification. Frame is made of G.I. Steel and powder coated to 100 microns paint thickness (exceeds 1000 hours of salt spray test) and conforming to ASTM B-117. Isolation brackets are capable of overloading upto 500%. Option Frame Hot dip Galvanized. Part Number Prefix with "HDG". Spring Neoprene Coated. Part Number prefix with "N". Spring Plastic Dip coated. Part Number prefix with "P". Spring Hangers of higher capacity and Deflection shall be Engineered as per Specific Requirements. Nomenclature for special Engineered spring hangers shall be SSH (XXX-Deflection G (XXXXX-Load) Selection / Ordering : Point load (Calculated to include all variables such as weight of water in pipe lines etc if applicable). Installation Guide Lines : Included in Packaging.

  • Download Product Catalogue
    Download Detail File : Click Here
  • Selection Table For 50 Mm Deflection Spring Hangers
    Isolator Model Rated Load (kg) Spring Colours Dimensions (mm)
    L W F H D
    SSH50-B25 25 Green
    SSH50-B50 50 Black
    SSH50-B75 75 Yellow 77 60 118 170 M12
    SSH50-B100 100 Blue
    SSH50-B150 150 Grey
    SSH50-C200 200 Orange 94 80 127 200 M16
    SSH50-C250 250 Black
    SSH50-C300 300 Yellow
    SSH50-C400 400 Blue
    SSH50-C500 500 Grey 94 80 135 200 M16
    SSH50-C600 600 Brown
    SSH50-G700 700 Green
    SSH50-G800 800 Pink 107 95 163 240 M20
    SSH50-G1000 1000 White
    SSH50-G1200 1200 Purple 7 95 163 260 M24
    SSH50-G1400 1400 Green
    SSH50-G1600 1600 Pink 260 100 200 360 M30
    SSH50-G2000 2000 White
    SSH50-G2400 2400 Purple 260 100 200 385 M36
    SSH50-G2800 2800 Yellow 260 100 200 385 M36



    Note : Spring Hangers with higher capacity available on application.

  • Graph
    Download Detail File : Click Here
View Complete Details

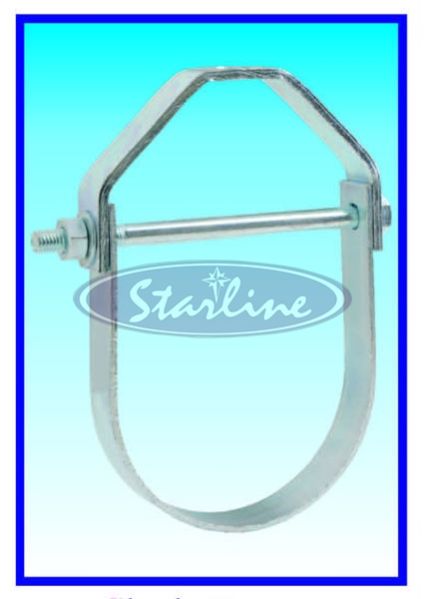

Adjustable Clevis Hanger

  • Material Metal
  • Shape U Shape
  • Thickness 10-20mm
  • Color Grey
  • Pattern Plain
  • Application Hanging Goods
  • Finishing Polished
  • Feature Durable, Good Quality

We are into the business of manufacturing, exporting and supplying precision engineered Adjustable Clevis Hanger . Designed in a variety of specifications, our Adjustable Clevis Hangers are fabricated using mild or stainless steel that is hot dip galvanized or electro galvanized. They are extensively used to achieve effective level installation of pipe lines. Also, the hangers find usage in firefighting and chilled water pipe work. Suitable for sound suppression in pipe lines, our Adjustable Clevis Hangers are applied for independent suspension of large pipes and suspension of insulated or plain stationary piping. Further, our Adjustable Clevis Hanger is reasonably priced. Product Features Allows Vertical level adjustment of pipe lines after installation. Models CHS250 and above are fitted with steel spacer sleeve as standard. Optional EPDM lined hangers are available to minimize condensation, improve noise attenuation and prevent contact between dissimilar metals. Compliance Federal Specification AS A 1192 (Type 1) MSS SP58 (Type 1) MSS-SP69 WW-H-171E (Type 1) EG-ASTMB 633 SC3, BS 1706 FE / ZN 12 Selection / Ordering Bare piping : OD. Insulated Piping : effective OD or pipe size plus insulation thickness. Whether starline rubber support inserts are proposed to be used Material Specs EPDM lined : (Suffix "R"). Epoxy powder coated finish (Suffix "EPC") Hot dip galvanizes (Suffix "HDG") Stainless Steel (Suffix "SS") Note Due to policy of continual improvement. The specifications are subject to change without prior notice. Measurements are subject to 5% tolerance.

  • Download Product Catalogue
    Download Detail File : Click Here
  • Selection Table (Table No : B-05-01)
    Model Steel Pipe Nominal Dimensions in mm

    Max.

    Load

    (Kg)

    A B C (Adjustment) D D E F
    CHS 25 1" 80 60 20 M6 10 2 x 20 2 x 20 250
    CHS 30 1 ¼" 90 65 20 M6 10 2 x 20 2 x 20 250
    CHS 40 1 ½" 100 75 25 M6 10 2 x 20 2 x 20 250
    CHS 50 2" 120 85 30 M6 10 2 x 20 2 x 20 250
    CHS 65 2 ½" 145 105 35 M8 12 3 x 25 3 x 25 350
    CHS 75 3" 170 120 45 M8 12 3 x 25 3 x 25 350
    CHS 88 3 ½" 190 135 45 M8 12 3 x 25 3 x 25 350
    CHS 100 4" 205 145 50 M10 12 5 x 25 3 x 25 500
    CHS 125 5" 250 175 55 M12 16 5 x 30 3 x 30 650
    CHS 150 6" 280 190 55 M12 16 5 x 30 5 x 30 650
    CHS 200 8" 340 225 60 M16 20 5 x 38 5 x 38 950
    CHS 250 10" 400 255 60 M16 22 6 x 38 5 x 38 1150
    CHS300 12" 460 285 60 M16 22 10 x 50 6 x 50 1700
    CHS 350 14" 510 320 65 M20 24 10 x 50 8 x 50 1700
    CHS 400 16" 565 350 70 M24 24 12 x 60 6 x 60 2200
    CHS 450 18" 650 410 100 M24 24 12 x 60 6 x 60 2200
    CHS 500 20" 725 460 100 M30 30 12 x 75 10 x 75 2400
    CHS 600 24" 840 520 100 M30 30 16 x 75 10 x 75 2700
    CHS 750 30" 1025 620 125 M36 30 20 x 75 10 x 75 3100
    CHS 900 36" 1210 730 150 M36 30 20 x 75 10 x 75 4500
  • Graph
    Download Detail File : Click Here
View Complete Details

Combination Spring Hanger (25 mm)

  • Material Carbon Steel
  • Length 0-25inch
  • Surface Finishing Polished
  • Feature Accuracy Durable, Dimensional
  • Hanger Thickness 0-50mm

We are a renowned Manufacturer, Exporter and Supplier of Combination Spring Hanger (25 mm) in global market. The Combination Spring Hanger, that we offer, is used for suspension of heavy rotating equipments like air handling units, fan coil units, ventilation fans, large variable air volume boxes and many more. Designed with utmost precision, our Combination Spring Hanger strictly complies with ASTM B 117.l. It features G.I. Steel frame which is powder coated to 100 microns paint thickness. The hanger is very effective when vibrations of high frequency and large amplitude are present. Compliance Designed to BS 1726 1 : 1987 Tolerance To BS 1726-1 : 2002 SAE and Ashrae guidelines for vibration isolation Options Frame hot dip Galvanised (Prefix Part Number with "HDG") Spring Neoprene Coated (Prefix part Number with "N") Spring Plastic coated (Prefix part number with "P") Selection / Ordering : Point load (Calculated to include all variables such as weight of water in pipe lines etc if applicable). Installation Guide Lines : Included in packaging.

  • Download Product Catalogue
    Download Detail File : Click Here
  • Selection Table For 25 Mm Deflection Combination Spring Hangers (Table No. : C-19-01)
    Isolator Model Rated Load (kg) Spring Colours Dimensions (mm)
    L W SF* RF H D
    SCSH-A25 25 Green
    SCSH– A50 50 Black 77 60 76 39 160 M10
    SCSH-A75 75 Yellow
    SCSH-A100 100 Blue
    SCSH-A150 150 Grey 77 60 84 39 160 M10
    SCSH-A200 200 Orange
    SCSH-B200 200 Black
    SCSH-B250 250 Yellow
    SCSH-B300 300 Blue 77 60 93 46 190 M12
    SCSH-B400 400 Grey
    SCSH-C400 400 Brown
    SCSH-C500 500 Grey 94 80 110 73 250 M16
    SCSH-C6002 600 Orange
    SCSH-C700 700 Green
    SCSH-C800 800 Pink
    SCSH-C1000 1000 White 94 80 130 73 295 M22
    SCSH-C1200 1200 Purple



    Note : Represents average free height in each grouping of models. Height of some models in group may vary slightly from this figure.

  • Graph
    Download Detail File : Click Here
View Complete Details

Pre Compressed Spring Hanger (50 mm)

  • Material Metal
  • Length 0-25inch
  • Color Grey
  • Technics Hot Dip Galvanized
  • Surface Finishing Power Coated
  • Feature Dimensional
  • Weight Capacity 0-5Tons
  • Hanger Thickness 0-50mm

We are counted amongst the respected Manufacturers, Exporters and Suppliers of Pre Compressed Spring Hanger (50 mm) . It is widely applied in the suspension of water pipelines and in seismically restrained rotating equipment. Pre Compressed Spring Hanger that we offer is highly appreciated for its sturdy construction, high strength and excellent performance. Furthermore, we make available bulk quantities of Pre Compressed Spring Hanger at very reasonable rates. Conforms To Designed to BS 1726-1: 1987 Tolerance to BS 1726-1: 2002 SAE and Ashrae Guidelines for vibration isolation Product Features Spring Diameter to height ratios are designed to ensure that spring will never buckle even when fully loaded. Suspension rod misalilgnment (30 degree arc) is compensated in hanger design. Direct Connection to lower suspension rod by means of a threaded rod coupler. Printed deflection scale to indicate total spring deflection. Pre compressed spring effectively minimizes transfer of variations in pipe load during of pipes thus protecting equipment connections / flexible joints and also prevents overloading of the main equipment isolators. Locking rubber bush centralizes the spring and prevents dislocation. Springs are powder coated with appropriate color coding to facilitate identification. Frame is made of G.I. Steel and powder coated to 100 microns paint thickness (exceeds 1000 hours of salt spray test) and conforming to ASTM b- 117. Options Frame hot dip Galvanised (Prefix Part Number with "HDG") Spring Neoprene Coated (Prefix Part Number with "N") Spring Plastic Coated (Prefix Part Number with "P") Selection / Ordering : Point Load (Calculated to Include all variables such as weight of water in pipe lines etc if applicable). Installation Guide Lines : Included in Packaging.

  • Download Product Catalogue
    Download Detail File : Click Here
  • Selection Table For 50 Mm Deflection Precompressed Spring Hangers
    Isolator Model Rated Load (kg) Spring Colours Dimension (mm)
    L W H E (apprx.) d
    SPCSH50-B25 25 Green
    SPCSH50-B50 50 Red
    SPCSH50-B75 75 Black 77 60 170 100 M12
    SPCSH50-B100 100 Yellow
    SPCSH50-B150 150 Blue
    SPCSH50-C200 200 Green
    SPCSH50-C250 250 Red
    SPCSH50-C300 300 Black
    SPCSH50-C400 400 Yellow 94 80 200 115 M16
    SPCSH50-C500 500 Black/Green
    SPCSH50-C600 600 Yellow/Green
    SPCSH50-G700 700 Black
    SPCSH50-G800 800 Yellow 107 95 240 130 M20
    SPCSH50-G1000 1000 Blue
    SPCSH50-G1200 1200 Blue/Green 107 95 260 145 M24
    SPCSH50-G1400 1400 Blue/Brown 107 95 260 145 M24
    SPCSH50-2G1600 1600 Yellow 260 100 360 175 M30
    SPCSH50-2G2000 2000 Blue
    SPCSH50-2G2400 2400 Blue/Green 260 100 385 190 M36
    SPCSH50-2G2800 2800 Blue/Brown 260 100 385 190 M36
  • Graph
    Download Detail File : Click Here
View Complete Details

Combination Spring Hanger (50 mm)

  • Material Stainless Steel
  • Length 0-25inch
  • Technics Hot Dip Galvanized
  • Surface Finishing Power Coated
  • Feature Corrosion Resistance, Hardend & Temper

We hold expertise in offering precision engineered Combination Spring Hanger (50 mm) . Our designers utilize G.I. Steel in making Combination Spring Hanger conforming to ASTM B 117.l. The hanger is powder coated to 100 microns paint thickness. The Combination Spring Hanger, that we offer, is extensively used for suspension of heavy rotating equipment such as air handling units, fan coil units, ventilation fans, large variable air volume boxes, pipes and air ducts in mechanical rooms. It is highly effective when vibrations of high frequency and large amplitude are present. Ensuring double protection against transmission of noise to structures, our Combination Spring Hanger features neoprene component and molded neoprene cup below the spring. Compliance Designed to BS 1726 1 : 1987 Tolerance To BS 1726-1 : 2002 SAE and Ashrae guidelines for vibration isolation Options Frame hot dip Galvanised (Prefix Part Number with "HDG") Spring Neoprene Coated (Prefix part Number with "N") Spring Plastic coated (Prefix part number with "P") Selection / Ordering : Point load (Calculated to include all variables such as weight of water in pipe lines etc if applicable). Installation Guide Lines : Included in packaging.

  • Download Product Catalogue
    Download Detail File : Click Here
  • Selection Table For 50 Mm Deflection Combination Spring Hangers (Tabloe No. : C-20-01)
    Isolator Model Rated Load (kg) Spring Colours Dimensions (mm)
    L W SF* RF H D
    SCSH50-b25 25 Green
    SCSH50-B50 50 Red 77 60 118 46 215 M12
    SCSH50-B75 75 Black
    SCSH50-B100 100 Yellow
    SCSH50-B150 150 Blue
    SCSH50-C200 200 Green
    SCSH50-C250 250 Red 94 80 127 73 270 M16
    SCSH50-C300 300 Black
    SCSH50-C400 400 Yellow 94 80 135 73 270 M16
    SCSH50-C500 500 Black/Green
    SCSH50-C600 600 Yellow/Green
    SCSH50-G700 700 Black
    SCSH50-G800 800 Yellow 107 95 163 73 315 M20
    SCSH50-G1000 1000 Blue
    SCSH50-G1200 1200 Blue / Green 107 95 163 73 335 M24
    SCSH50-G1400 1400 Blue/Brown 107 95 163 73 335 M24



    Note : Represents average free height in each grouping of models. Height of some models in group may vary slightly from this figure.

  • Graph
    Download Detail File : Click Here
View Complete Details

Light Duty Spring Hanger

  • Material Metal
  • Length 0-25inch
  • Color Grey
  • Surface Finishing Power Coated
  • Feature Corrosion Resistance, Hardend & Temper
  • Weight Capacity 0-5Tons
  • Hanger Thickness 0-50mm

Light Duty Spring Hanger that we offer is widely used for light duty applications like small fans, humidifiers, variable air volume boxes, small fan coil units, small size piping, and air ducting in mechanical rooms. Light Duty Spring Hanger features a sturdy spring whose diameter to height ratios are designed to ensure that the spring will never buckle even when fully loaded. Furthermore, bulk quantities of our Light Duty Spring Hanger can be obtained at very nominal rates from us. Conforms To Designed to BS 1726 1 : 1987 Tolerance to BS 1726 1 : 2002 SAE and Ashrae guidelines for vibration Isolation Features Spring diameter to height ratios are designed to ensure that spring will never buckle even when fully loaded. Suspension rod misalignment (30 degree arc) is compensated in hanger design. Locking rubber bush centralizes the spring and prevents dislocation. Springs are powder coated with appropriate color coding to faciliatate identification. Frame is made of G.I. Steel and powder coated to 100 microns paint thickness (exceeds 1000 hours of salt spray test) and conforming to ASTM B-117. Options Frame Hot dip Galvanised (Prefix part Number with "HDG") Spring Neoprene Coated (Prefix Part Number with "N") Spring Plastic Coated (Prefix part Number with "P") Selection / Ordering : Point Load (Calculated to include all variables such as weight of water in pipe lines etc if applicable). Installation Guide Lines : Included in packaging.

  • Download Product Catalogue
    Download Detail File : Click Here
  • Selection Table For Spring Hangers – Light Duty (Table No : C – 07-01)
    Isolator Model Rated Deflection Rated Load (kg) Spring Colours Dimension (mm)
    L W F* H D (max)
    SSHL-M6   6 Green
    SSHL-M9   9 Red
    SSHL-M15 13 mm 15 Black 58 50 44 72 M10
    SSHL-M21   21 Yellow
    SSHL-M28   28 Blue
    SSHL-P6   6 Green
    SSHL-P9   9 Red
    SSHL-P15   15 Black
    SSHL-P21 25mm 21 Yellow 58 50 64 100 M10
    SSHL-P28   28 Blue
    SSHL-P35   35 Grey
    SSHL-P50   50 Orange



    Note : Represents average Free Height in each grouping of models. Height of some models in group mya very slightly from this figure

  • Graph
    Download Detail File : Click Here
View Complete Details

Pre Compressed Spring Hanger (25 mm)

  • Material Metal
  • Length 0-25inch
  • Color Grey
  • Surface Finishing Power Coated
  • Feature Accuracy Durable, Corrosion Resistance
  • Weight Capacity 0-5Tons
  • Hanger Thickness 0-50mm

Our company is a renowned Manufacturer, Exporter and Supplier of Pre Compressed Spring Hanger (25 mm) . The Pre Compressed Spring Hanger is extensively used in suspension of water pipe lines and seismically restrained rotating equipment. The frame of our Pre Compressed Spring Hanger is made of G.I. Steel and powder coated to 100 microns paint thickness (exceeds 1000 hours of salt spray test), conforming to ASTM B 117 standard. Our hanger is designed with a printed deflection scale to indicate total spring deflection. We specialize in catering to the bulk requirements of Pre Compressed Spring Hanger with utmost ease. Compliance Designed to BS 1726 1 : 1987 Tolerance to BS 1726-1 : 2002 SAE and Ashrae Guidelines for vibration isolation Features Spring diameter to height ratios are designed to ensure that spring will never buckle even when fully loaded. Suspension rod misalignment (30 degree arc) is compensated in hanger design. Direct connection to lower suspension rod by means of a threaded rod coupler. Printed deflection scale to indicate total spring deflectionl. Pre compressed spring effectively minimizes transfer of variations in pipe load during filling of pipes thus protecting equipment connections / Flexible joints and also prevents overloading of the main equipment isolators. Locking rubber bush centralizes the spring and prevents dislocation. Springs are powder coated with appropriate color coding to facilitate identification. Frame is made of G.I. Steel and powder coated to 100 microns paint thickness (exceeds 1000 hours of salt spray test) and conforming to ASTM B 117. Option Frame Hot dip galvanised (Prefix part Number with "HDG") Spring Neoprene Coated (Prefix Part number with "N") Spring Plastic coated (Prefix part Number with "P") Selection / Ordering : Point load (Calculated to include all variables such as weight of water in pipe lines etc if applicable). Installation Guide Lines : Included in Packaging.

  • Download Product Catalogue
    Download Detail File : Click Here
  • Selection Table For 25 Mm Deflection Precompressed Sring Hangers (Table No. : C-13-01)
    Isolator Model Rated Load (kg) Spring colours Dimension (mm)
    L W H E (apprx.) D
    SPCSH-A25 25 Green
    SPCSH-A50 50 Black 77 60 120 68 M10
    SPCSH-A75 75 Yellow
    SPCSH-A100 100 Blue
    SPCSH-A150 150 Grey 77 60 120 75 M10
    SPCSH-A200 200 Orange
    SPCSH-B200 200 Black
    SPCSH-B250 250 Yellow 77 60 145 85 M12
    SPCSH-B300 300 Blue
    SPCSH-B400 400 Grey
    SPCSH-C400 400 Brown
    SPCSH-C500 500 Grey 94 80 180 115 M16
    SPCSH-C600 600 Orange
    SPCSH-C700 700 Green
    SPCSH-C800 800 Pink 94 80 220 145 M22
    SPCSH-C1000 1000 White
    SPCSH-C1200 1200 Purple
    SPCSH-2C1400 1400 Green
    SPCSH-2C1600 1600 Pink 235 75 325 175 M30
    SPCSH-2C2000 2000 White
    SPCSH-2C2400 2400 Purple
    SPCSH-2C2800 2800 Purple/Yellow 235 75 350 190 M36
    SPCSH-2C3200 3200 Purple/White
  • Graph
    Download Detail File : Click Here
View Complete Details

Spring Hanger

We are offering spring hanger (50 mm) that is ideally used in dampening and isolation of low frequency vibrations that are generated by suspended mechanical equipment. Besides, the spring hanger (50 mm) with higher capacity represents the average free height in grouping of each model. features locking rubber bush to prevent dislocation and centralize the spring spring diameter ensuring prevention from buckling of spring even when fully loaded g.i. Steel frame with powder coated to 100 microns paint thickness (exceeding 1000 hours of salt spray test) compensation of suspension rod misalignment of 30 degree arc in hanger design powder coated springs with appropriate color coding for easy identification selection specification of point load that includes all the variables like weight of water in pipe lines and others .

View Complete Details

Combination Spring Hanger

The combination spring hanger (50 mm) manufactured by us is demanded to be used for suspension of heavy rotating equipment that includes fan coil units, air handling units, ventilation fans, pipes large variable air volume boxes, and air ducts in mechanical rooms. qualities g.i. Steel frame with powder coated to 100 microns paint thickness (exceeding 1000 hours of salt spray test) neoprene component acts as effective acoustic barrier assurance of protection against noise transmission molded neoprene cup to prevent contact of metal and spring compensation of suspension rod misalignment of 30 degree arc in hanger design locking rubber bush to prevent dislocation and centralize the spring effective isolation spring diameter ensuring prevention from buckling of spring even when fully loaded powder coated springs with appropriate color coding for easy identification selection point load including all variables like weight of water in pipe lines and others specifications isolator modelrated load (kg)spring coloursdimensions (mm)lwsf*rfhdscsh50-b2525green776011846215m12scsh50-b5050redscsh50-b7575blackscsh50-b100100yellowscsh50-b150150bluescsh50-c200200green948012773270m16scsh50-c250250redscsh50-c300300black948013573270m16scsh50-c400400yellowscsh50-c500500blackgreenscsh50-c600600yellowgreenscsh50-g700700black1079516373315m20scsh50-g800800yellowscsh50-g10001000bluescsh50-g12001200bluegreen1079516373335m24scsh50-g14001400bluebrown

View Complete Details

Pre Compressed Spring Hanger

We offer pre compressed spring hanger (25 mm) that is used in suspension of seismically restrained rotating equipments as well as water pipe lines. The pre compressed spring hanger (25 mm) that we deal in is of superior quality. characteristics spring diameter ensuring prevention from buckling of spring even when fully loaded compensation of suspension rod misalignment of 30 degree arc in hanger design threaded rod coupler for direct connection to lower suspension rod indication of total spring deflection with printed deflection scale protection of equipment connections and flexible joints minimum variations in pipe load at the time of filling the pipes overloading is prevented in the main equipment isolators locking rubber bush to prevent dislocation and centralize the spring powder coated springs with appropriate color coding for easy identification g.i. Steel frame with powder coated to 100 microns paint thickness (exceeding 1000 hours of salt spray test) selection point load including all variables like weight of water in pipe lines and others

View Complete Details

Pre Compressed Spring Hanger

We are offering pre compressed spring hanger (50 mm) for availing which the clients have to specify the point load. The pre compressed spring hanger (50 mm) is used for suspending seismically restrained rotating equipments and water pipe lines. attributes threaded rod coupler for direct connection to lower suspension rod indication of total spring deflection with printed deflection scale protection of equipment connections and flexible joints spring diameter ensuring prevention from buckling of spring even when fully loaded compensation of suspension rod misalignment of 30 degree arc in hanger design minimum variations in pipe load at the time of filling the pipes overloading is prevented in the main equipment isolators locking rubber bush to prevent dislocation and centralize the spring g.i. Steel frame with powder coated to 100 microns paint thickness (exceeding 1000 hours of salt spray test) powder coated springs with appropriate color coding for easy identification .

View Complete Details

Tell Us What are you looking for? Will call you back

Contact Us
