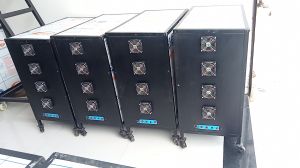

The solar drying system utilizes solar energy to heat up air and to dry any food substance or other product loaded, which is beneficial in reducing wastage of agricultural product or any other product and helps in preservation of the product. Based on the limitations of the natural sun drying e.g. exposure to direct sunlight, liability to pests and rodents lack of proper monitoring, and the escalated cost of the mechanical dryer, a solar dryer is therefore developed to cater for this limitation.

The solar drying system utilizes solar energy to heat up air and to dry any food substance or other product loaded, which is beneficial in reducing wastage of agricultural product or any other product and helps in preservation of the product. Based on the limitations of the natural sun drying e.g. exposure to direct sunlight, liability to pests and rodents lack of proper monitoring, and the escalated cost of the mechanical dryer, a solar dryer is therefore developed to cater for this limitation.

The Waste water will be pumped on a Metal Open tray (painted with absorber paint) through a simple pump and from there it will be falling on the Receiver by gravity. The receivers will be heated by concentrating solar energy. The temperatures on the Receivers will be more than 1, 000° C.   The falling water on the receivers will start evaporating and the rest of the water which is not evaporated will be heated up. The heated water will fall again in the nearby Solar Pond through a sprinkler system and the cycle will be repeated continuously.   To control the flow of water, we will be installing level indicator with a controller to make the process completely automatic.   TSS reserves the rights for any improvements in the above specifications, which can lead to higher efficiency and cost reduction of the system.

• ModelSurya Force Draft Domestic Cook stove
•
• Cooking Capacity5 to 20 Peoples
• Thermal Efficiency40 %
• Power Output2.497 KW
• Best in class efficiency.

World’s First Solar Hybrid Cooking System for all cooking needs: Several static concentrators of 32 sq. m. reflecting / concentrating solar rays on one receiver each. The Thermic fluid heated in the receivers due to solar energy goes to Hot oil storage tank. The system is connected with Thermic Fluid Storage tanks and Hot oil pipelines that in turn are inter-connected with the boiler and cooking vessels for all your cooking needs. Applications in Gurudwara serving Langar, Residential Schools, Mid-Day Meal program, Military and Defence teams deployed in remote and urban areas, hotels, Jails, Institutions, Industries providing Canteen facilities to Employees, Temples, Ashrams and many more catering to more than 200 to Several Thousands Persons daily. Seen in photo here are several static concentrators reflecting / concentrating solar rays on one receiver each. The Thermic Fluid is heated in receivers due to solar energy in Storage tank. The system would have a central tracking system so that the concentrators track the Sun automatically. The system has back-up boiler (Thermo-Pac) which will be operational only in non-sunny days and hours. The system is connected with Hot Oil Pipelines that in turn are inter-connected with the boiler and cooking vessels as shown in the drawing. TSS reserves the rights for any improvements in the above specifications, which can lead to higher efficiency and cost reduction of the system.

By using Thermo siphon Technology. In Thermo Siphoning Technology the water is fed through feed water line to the receiver which comes from the storage tank and the outlet of the receiver sends the water back to the storage tank (small systems). In Pressurized Hot Water applications the water is pumped by pressure so the phase change does not occur due to high temperatures.           Applications    Space heating Power Plants Process industries Boiler feed water ?Unlike flat plate collectors, due to high temperature at the receiver the thermo siphoning is much faster and there is no blockages in the tubes or freezing of water. TSS reserves the rights for any improvements in the above specifications, which can lead to higher efficiency and cost reduction of the system.

SK - 28 Solar Dish Cooker works like a Direct Solar Cooking System consists of Solar Grade mirrors that move to track the movement of the Sun. Each morning, the operator rotates the concentrating reflector back to a starting position in which the reflected beam is aligned with the axis of rotation of the reflector, and starts electronic panel. Every few days the operator adjusts the angle between the axis of rotation and the concentrating reflector to accommodate the seasonal variation in the height of the Sun. Once the reflected beam is aligned with the axis of rotation of the concentrating reflector and the timer is on, the reflected beam remains aligned with the axis of rotation all day. The reflecting surface of the concentrating reflector consists of a number of facets, usually flat glass mirrors. The reflecting area of the dish is 2.8 Sq. M. One can fry, roast, bake, and boil with this system.

By using Thermo siphon Technology. In Thermo Siphoning Technology the water is fed through feed water line to the receiver which comes from the storage tank and the outlet of the receiver sends the water back to the storage tank (small systems). In Pressurized Hot Water applications the water is pumped by pressure so the phase change does not occur due to high temperatures.           Applications    Space heating Power Plants Process industries Boiler feed water ?Unlike flat plate collectors, due to high temperature at the receiver the thermo siphoning is much faster and there is no blockages in the tubes or freezing of water. TSS reserves the rights for any improvements in the above specifications, which can lead to higher efficiency and cost reduction of the system.

• ModelSurya Force Draft Domestic Cook stove
•
• Cooking Capacity5 to 20 Peoples
• Thermal Efficiency40 %
• Power Output2.497 KW
• Best in class efficiency.

The solar drying system utilizes solar energy to heat up air and to dry any food substance or other product loaded, which is beneficial in reducing wastage of agricultural product or any other product and helps in preservation of the product. Based on the limitations of the natural sun drying e.g. exposure to direct sunlight, liability to pests and rodents lack of proper monitoring, and the escalated cost of the mechanical dryer, a solar dryer is therefore developed to cater for this limitation.

Linuo Ritter International distributes highly efficient evacuated tubes. We offer high performance evacuated tubes with an improved geometry and performance. The evacuated tubes consists of two concentric glass tubes which are sealed in a semi-circular shape on one side and are joined to one another on the other side. The space between the tubes is evacuated and hermetically sealed (evacuated insulation). To use solar energy, the internal glass tube is coated with an environmentally friendly, highly selective layer on the outside, thus turning it into an absorber. The selective coating is protected in the evacuated space. The aluminum nitride sputter coating used is characterized by an extremely low emission and a high absorption rate.

Solar Cabinet dryer is apparently a hot box where wide range of products can be dried. It consist of a rectangle box insulated at base and covered with double layered transparent roof possibly a toughen glass. For ventilation holes are provided at the base of box to circulate the fresh air. The outlet is provided at the side and rear panel of the box. The box can be of M.S. or wood as per requirement and for higher efficiency inside rear panel can be covered through Aluminum sheet or foil or any other reflective material. As the temperature in the box increases, hot air passes out of upper aperture by natural draft creating a partial vacuum and inducing fresh air up through bottom resulting constant perceptible flow of air over the drying product placed on perforated trays to facilitate air circulation. The hot air gradually removes the moisture content of the product. Wide applications in food, herbs and spices.
