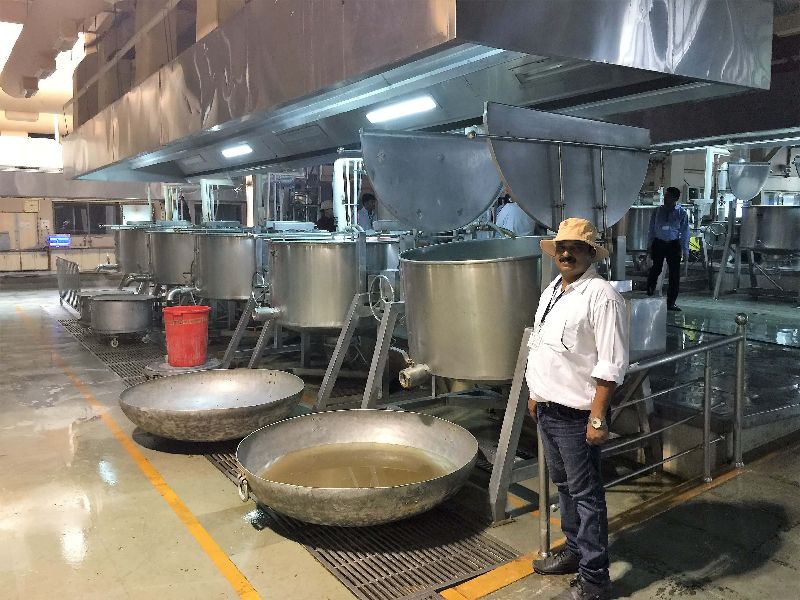

Worlds First Solar Hybrid Cooking System for all cooking needs:Several static concentrators of 32 sq. m. reflecting / concentrating solar rays on one receiver each.The Thermic fluid heated in the receivers due to solar energy goes to Hot oil storage tank. The system is connected with Thermic Fluid Storage tanks and Hot oil pipelines that in turn are inter-connected with the boiler and cooking vessels for all your cooking needs.

Applications in Gurudwara serving Langar, Residential Schools, Mid-Day Meal program, Military andDefenceteamsdeployed in remote and urban areas, hotels, Jails, Institutions, Industriesproviding Canteen facilities to Employees, Temples, Ashrams and many more catering to more than 200 to Several Thousands Persons daily.

Seen in photo here are several static concentrators reflecting / concentrating solar rays on one receiver each.

• The Thermic Fluid is heated in receivers due to solar energy in Storage tank.
• The system would have a central tracking system so that the concentrators track the Sun automatically.
• The system has back-up boiler (Thermo-Pac) which will be operational only in non-sunny days and hours.
• The system is connected with Hot Oil Pipelines that in turn are inter-connected with the boiler and cooking vessels as shown in the drawing.

Solar Direct Cooking Systemconsists of concentrating reflector that moves to track the movement of the Sun. In TSS Direct Cooking System the reflected and concentrated Sunlight enters a nearby kitchen directly through a secondary reflector to fall ona cooking pot or frying surface.

Each morning, the operator rotates the concentrating reflector back to a starting position in which the reflected beam is aligned with the axis of rotation of the reflector, and starts the tracking mechanism (Electronic). Every few days the operator adjusts the angle between the axis of rotation and the concentrating reflector to accommodate the seasonal variation in the height of the Sun. Once the reflected beam is aligned with the axis of rotation of the concentrating reflector and the timer is in motion, the reflected beam remains aligned with the axis of rotation all the day. The reflecting surface of the concentrating reflector consists of a number of facets, usually flat solar grade mirrors. A concrete pad and a welded steel space frame provide support for the concentrating reflector. The area of the concentrating reflectors in the configurations shown here is usually about10 sq. m. or 16 sq. m.

• Complete system designed as per MNRE specifications and guidelines.
• Specialized solar grade mirrors with 90% reflectivity.
• The system can sustain wind velocity of 200 Km./Hr.
• We provide AMC for the system after warrantyperiod.
• Using TSS Direct Cooking System one can fry, roast, bake and boil in the comfort of the kitchen.

Applications in Residential schools, mid-day meal program, defenceteams deployed in remote and urban areas, hotels, institutions, industries providing canteenfacilities to employees, temples and many morecatering to less than 200 personsdaily.
