Our Product / Services

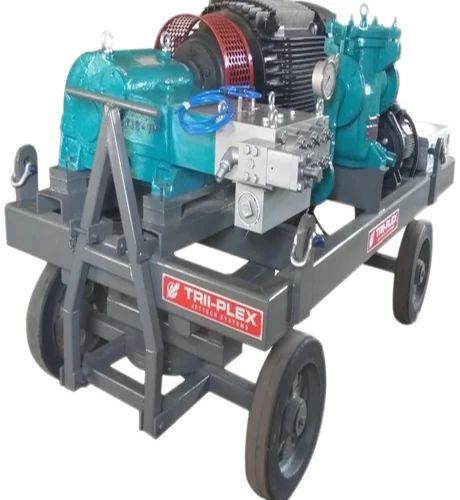

Our product range contains a wide range of Water Blasting Machine, Hydro Blasting Machine, High Pressure Water Jet Blasting Machine and Water Pressure Blasting Machine
Hydro Water Blasting Pump. PXI Model.Hawk Made in Italy. Available in 15 hp to 30hp.
We thank you for your enquiry.
Enclosed please find herewith a detailed Techno-Commercial proposal for your ready reference.
As a supplier of High-Pressure Triplex Plunger Pump, it is our concern to see that you get highest value for money with our product; our product is superior to our competitors and also available at lower rate.
It will be a pleasure to have a long-term business relation with your esteemed company.
Once we complete order, our task is not being considered as complete. We believe in to be superior service.
Additional Information:
Trii-plex Jettech Systems are Suppliers & Manufacturers of High Pressure Water Jet Blasting Machines. Hydro Blasting uses water pressure between 5000 PSI to 20, 000 PSI as per requirement of Flow Rate & Pressure for many Industrial Cleaning applications such as Washing, Hydro Jetting, Water Blasting, Tube Cleaning of Heat Exchanger / Evaporator / Condenser etc. These High Pressure Plunger Pumps are design with pre set packings & concentric ceramic plungers to provide high pressure up to 1400 BAR.
Water-blasting is terms which describe the use of water propelled at high speeds to clean surfaces and materials. By focusing and pressurizing the water stream, the force generated can remove films and materials such as paint from walls, metal, and highways, rubber from airfield runways, sealants and membranes from concrete and chewing gum from sidewalks.
Technical Specification:
Model No: MPX-30.500
Flow Rate: 30 LPM (7.93 GPM)
Max. Pressure: 500 BAR (7250 PSI)
Motor (HP): 40 HP (Standard / Flameproof)
Technical Features about Plunger Pump:
Pump Head: Forged Brass.
Plungers: Solid Ceramic Plungers.
Pump Main Body: Fully anodized Crankcase.
Connecting Rod: High wear resistant Forged Alloy Steel.
Crank Shaft: High wear resistant Forged Alloy Steel.
Plunger Seal: Improved low and high pressure seals.
Valve Assembly: High wear resistant Stainless Steel.
Oil: 15W40.
Accessories we supply with systems:
01, Triplex Plunger Bare Pump
02, Electric Motor (Three Phase – Standard / Flameproof)
03, Platform (Base frame / Trolley mounted)
04, Glycerin Filled Pressure Gauge – 2.5”, 4” Dial
05, Unloader Valve
06, Pressure Relief Valve
07, Electric Control Panel (Standard / Flameproof)
08, Trigger Operated Gun, High Pressure Dump Gun
09, High Pressure Water Rubber Hose – 10 Mtrs, 15Mtrs, 20Mtrs, 30Mtrs
10, Low Pressure Suction & Bypass hose
11, Cleaning Nozzles, Tube Cleaning Nozzles
12, Flexible Lances for Tube Cleaning
13, Rigid Lances – 400mm, 600mm, 800mm, 1000mm
14, Booster Pumps
15, Heavy Duty Filters (Strainers)
Applications:
1. Many area industrial cleaning purpose, heat exchanger tube cleaning, condenser tube cleaning, pipe cleaning, reactor tank cleaning, filter screen cleaning, boil cleaning, tank cleaning, etc…
2. Pipe pressure test, valve / hose pressure test, hydro pressure test, etc
3. Water injection
4. Cement plant pipe cleaning, grease remove from the equipment surface, fouling layer removal
5. Construction industry, car / truck cleaning, mixing drum / tank cleaning, tar / cement / agglutinant cleaning, etc
6. Food processing plant, mixing tank cleaning, grease/ fouling layer / residual removal, evaporator/boil cleaning, etc
7. Shipyard rust removal, paint removal, ship hull cleaning, boat surface cleaning, dirt removal, sea creatures remove from the hull bottom.
8. Metallurgy plant, Concrete surface preparation Surface preparation, boil, feed tank, warehouse dirt cleaning, descale removal…
9. Metal cutting, steel plate cutting, thickness about 20mm
10. Aluminium smelters tank cleaning, rose box cleaning, molding machine cleaning, bauxite deposit removal.
11. Machine producing plant, volume / pipe / tank / rust / oxide skin cleaning…
Please mention Flow Rate (LPM), Pressure (BAR) & for which Application use when you sent Inquiry to us.
