We are leaders in the market for providing best range of High Pressure Hydrotest Pump, Hydrostatic Test Pump, Electric Motor Operated Hydrostatic Pump, High Pressure Hydrostatic Testing Pump and Hydrostatic Pressure Testing Pump

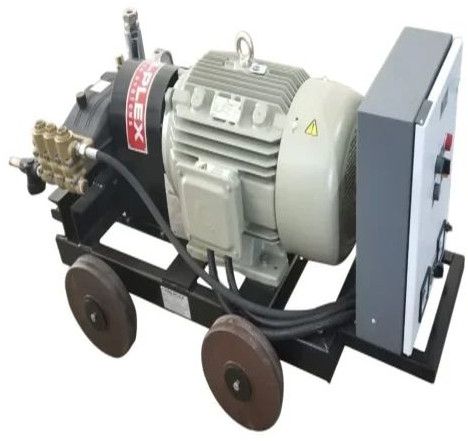

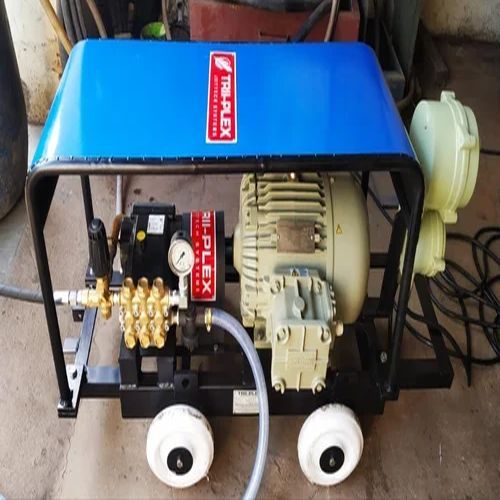

We are a leading Manufacturer, Exporter, and Supplier of high-quality High Pressure Hydrostatic Test Pump made of durable Stainless Steel. Our Hydrostatic Test Pumps, proudly manufactured in India, are ISO 9001:2008 certified for superior quality. The Triiplex brand ensures reliability and performance. With a Max Flow Rate of 15 LPM and Electric Power Source, our pump is efficient and effective. Featuring a 15mm Plunger Size, this pump is ideal for various industrial applications requiring high pressure testing. Trust us for top-notch products that meet your testing needs with precision and excellence.
Trii-plex Jettech Systems are Manufacturers of Hydrostatic Pressure Testing Pumps Equipments of 21 LPM Flow Rate and Pressure 500 Kg/cm2 with Accessories, Spare Parts.
Hydrostatic Testing Pumps are Characteristic capability to perform Pressure Test of Tubes, Pipes, Hoses, Cylinder, Pressure Vessels Boilers, Hydrostatic Test of Cross Country Pipe Lines, Valves, Castings, Components, etc. for Leaks, Cracks or Defects.
Every Pressure Test is different and that is why the solutions of our Trii-plex Jettech Systems engineers are as diverse as your applications. For with our extensive expertise we can adapt every Test Pump to your specific needs. Pressure and Flow Rates can be individually set and controlled and the pressure testing progression can be clearly logged. With Hydrostatic Testing, component or vessel is tested with a liquid (typically water), and pressurizing until test pressure is reached. Once the pressure is reached, the test is complete, and for other tests hydrostatic pressure must be held for a specific amount of time. Depending on the application, the hydrostatic testing can be used to help identify leaks, structural integrity, manufacturing flaws, wear, corrosion and burst pressure.
Technical Specification:
Model No: PXI-21.500
Flow Rate: 21 LPM (5.55 GPM)
Min. Pressure: 250 BAR (3625 PSI)
Max. Pressure: 500 BAR (7250 PSI)
Motor (HP): 15HP30HP (Standard / Flameproof)
Technical Features about Plunger Pump:
Pump Head: Forged Brass.
Plungers: Solid Ceramic Plungers.
Pump Main Body: Fully anodized Crankcase.
Connecting Rod: High wear resistant Forged Alloy Steel.
Crank Shaft: High wear resistant Forged Alloy Steel.
Plunger Seal: Improved low and high pressure seals.
Valve Assembly: High wear resistant Stainless Steel.
Oil: 15W40
Features:
Applications:
Special Features:
Electrically Motorized Driven System, Totally Dependable, Reliable and Efficient Performance.
Standard Accessories:
Additional Information:

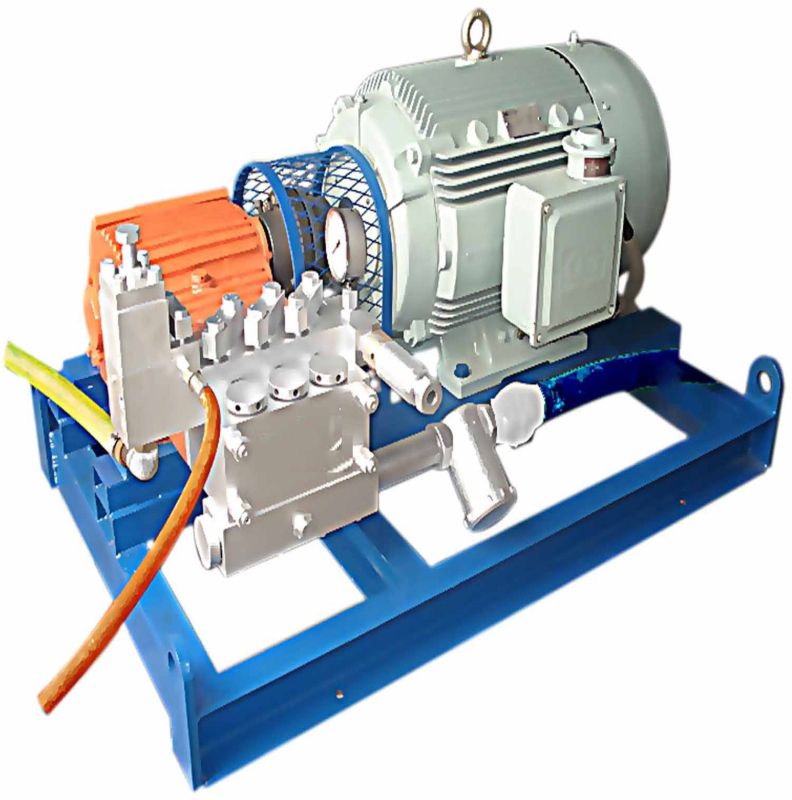

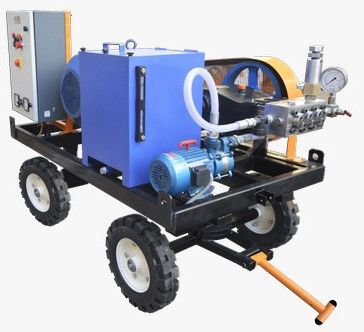

We offer the Triiplex 1200 Bar High Pressure Hydrotest Pump, crafted from durable Stainless Steel for reliable performance in Hydrostatic Testing applications. Our semi-automatic pump is ISO 9001:2008 certified, ensuring top-notch quality. Proudly made in India, this High Pressure Hydrotest Pump boasts a Max Flow Rate of 10 L/Min and a Pressure Rating of 1200 Bar. With an electric power source, it is ideal for manufacturers, exporters, and suppliers seeking efficient testing solutions. Trust Triiplex for premium quality and precision engineering in every pump.
