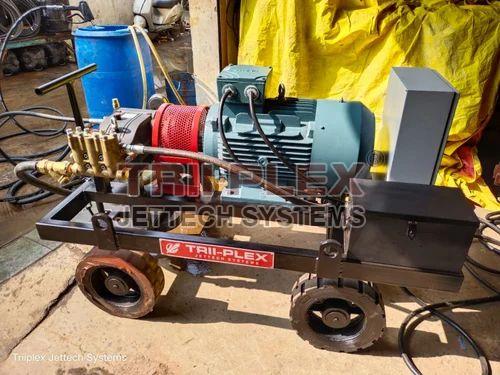

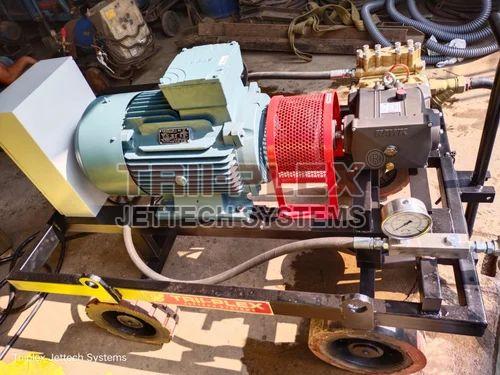

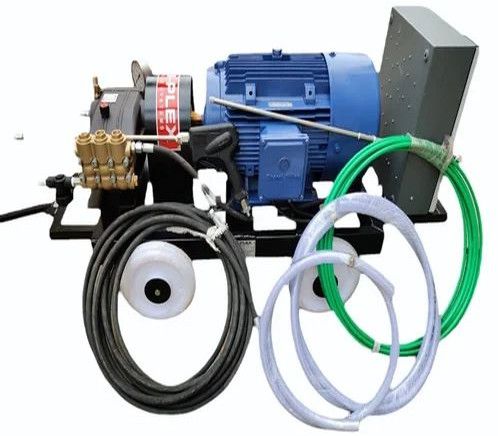

Trii-plex Jettech Systems are Suppliers & Manufacturers of High Pressure Water Hydro Blasting Machines. High Pressure Water Blasters uses water pressure between 5000 PSI to 20, 000 PSI as per requirement of Flow Rate & Pressure for many Industrial Cleaning applications such as Washing, Hydro Jetting, Water Blasting, Tube Cleaning of Heat Exchanger / Evaporator / Condenser etc. These High Pressure Plunger Pumps are design with pre set packings & concentric ceramic plungers to provide high pressure up to 1400 BAR.
Water-blasting is terms which describe the use of water propelled at high speeds to clean surfaces and materials. By focusing and pressurizing the water stream, the force generated can remove films and materials such as paint from walls, metal, and highways, rubber from airfield runways, sealants and membranes from concrete and chewing gum from sidewalks.

Technical Specification:
Model No: PXI-21.500
Flow Rate: 21 LPM (5.55 GPM)
Min. Pressure: 250 BAR (3625 PSI)
Max. Pressure: 500 BAR (7250 PSI)
Motor (HP): 15HP30HP (Standard / Flameproof)

Technical Features about Plunger Pump:
Pump Head: Forged Brass.
Plungers: Solid Ceramic Plungers.
Pump Main Body: Fully anodized Crankcase.
Connecting Rod: High wear resistant Forged Alloy Steel.
Crank Shaft: High wear resistant Forged Alloy Steel.
Plunger Seal: Improved low and high pressure seals.
Valve Assembly: High wear resistant Stainless Steel.
Oil: 15W40.

Accessories we supply with systems:
01, Triplex Plunger Bare Pump
02, Electric Motor (Three Phase – Standard / Flameproof)
03, Platform (Base frame / Trolley mounted)
04, Glycerin Filled Pressure Gauge – 2.5”, 4” Dial
05, Unloader Valve
06, Pressure Relief Valve
07, Electric Control Panel (Standard / Flameproof)
08, Trigger Operated Gun, High Pressure Dump Gun
09, High Pressure Water Rubber Hose – 10 Mtrs, 15Mtrs, 20Mtrs, 30Mtrs
10, Low Pressure Suction & Bypass hose
11, Cleaning Nozzles, Tube Cleaning Nozzles
12, Flexible Lances for Tube Cleaning
13, Rigid Lances – 400mm, 600mm, 800mm, 1000mm
14, Booster Pumps
15, Heavy Duty Filters (Strainers)

Applications:
1. Many area industrial cleaning purpose, heat exchanger tube cleaning, condenser tube cleaning, pipe cleaning, reactor tank cleaning, filter screen cleaning, boil cleaning, tank cleaning, etc
2. Pipe pressure test, valve / hose pressure test, hydro pressure test, etc
3. Water injection
4. Cement plant pipe cleaning, grease remove from the equipment surface, fouling layer removal
5. Construction industry, car / truck cleaning, mixing drum / tank cleaning, tar / cement / agglutinant cleaning, etc
6. Food processing plant, mixing tank cleaning, grease/ fouling layer / residual removal, evaporator/boil cleaning, etc
7. Shipyard rust removal, paint removal, ship hull cleaning, boat surface cleaning, dirt removal, sea creatures remove from the hull bottom.
8. Metallurgy plant, Concrete surface preparation Surface preparation, boil, feed tank, warehouse dirt cleaning, descale removal…
9. Metal cutting, steel plate cutting, thickness about 20mm
10. Aluminium smelters tank cleaning, rose box cleaning, molding machine cleaning, bauxite deposit removal.
11. Machine producing plant, volume / pipe / tank / rust / oxide skin cleaning…

Please mention Flow Rate (LPM), Pressure (BAR) & for which Application use when you sent Inquiry to us.

Additional Information:

• Item Code: MPX_30-500
• Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer), D/P, D/A, RTGS Cheque NEFT
• Port of Dispatch: Mumbai, Mundra, Kandla, Pipavav
• Production Capacity: As per client requirement
• Delivery Time: Tantative
• Packaging Details: Bubble Plastic wrapping with wooden boxes, Export Packaging, As per client requirement we will doing packaging of High Pressure Triplex Plunger Pumps & Systems. Client Satisfaction is our MOTO.

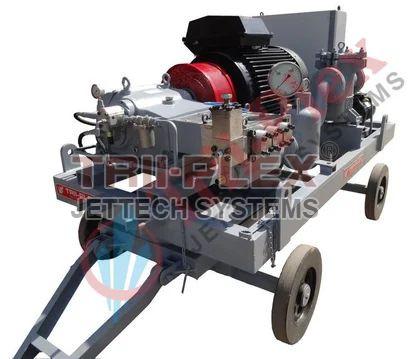

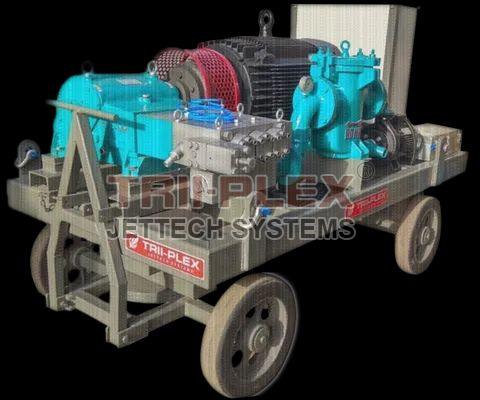

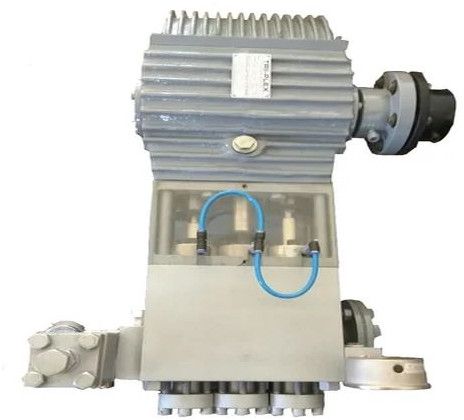

Ultra- Reciprocating High Pressure Plunger Pump are rated working pressure up to 1378bar/20000 PSI and Flow Rate of upto 42L/min. With Triplex Ceramic Plunger Oil Cooling Systems.

Accessories we supply with Water Blasting Systems:

• Triplex Plunger Bare Pump (Optional Plunger Cooling System)
• Electric Motor (Standard / Flameproof)
• Diesel Engine (Optional)
• Platform (Base frame / Movable Trolley mounted)
• Pressure Gauge (Glycerin Field)
• Unloader Valve
• Pressure Relief Valve
• Heavy Duty Filter (Strainer)
• Electric Control Panel (Standard / Flameproof)
• Trigger Operated Dump Gun (Optional)
• High Pressure Hyd. Rubber Hose – 10 Mtrs (Extra as per client req.)
• Low Pressure Suction Bypass hose
• Cleaning Nozzles, Tube Cleaning Nozzles, Tornado Nozzles,
• Flexible Lances Hose for Tube Cleaning (Imported)
• Rigid Lances – 400mm, 600mm, 800mm, 1000mm

Additional Information:

• Item Code: VM_20
• Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer), D/P, Other

Description :

• A triplex plunger pump is a type of positive displacement pump that uses three plungers or pistons to create pressure and move fluid through a system. These pumps are commonly used in industrial and commercial applications for high-pressure fluid transfer and injection, such as in oil and gas exploration, water treatment, and cleaning systems. The three plungers are typically mounted on a crankshaft and reciprocate back and forth in a cylinder, creating suction and pressure strokes to move fluid through the pump. The pump's flow rate and pressure can be adjusted by changing the speed of the crankshaft, the size of the plungers, or the stroke length.

Specification :

• Product type : Triplex plunger pump
• Flow rate : 17 LPM
• Pressure : 350 Bars
• Motor power : 15 HP
• RPM : 1450 RPM
• Water temperatures up to 65°C (149F)

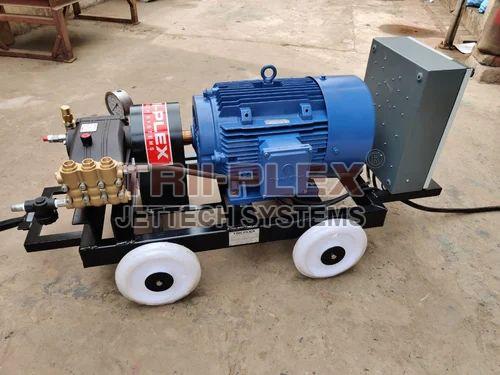

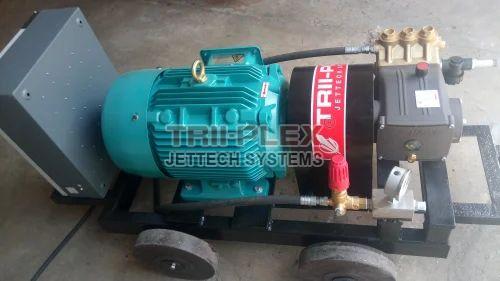

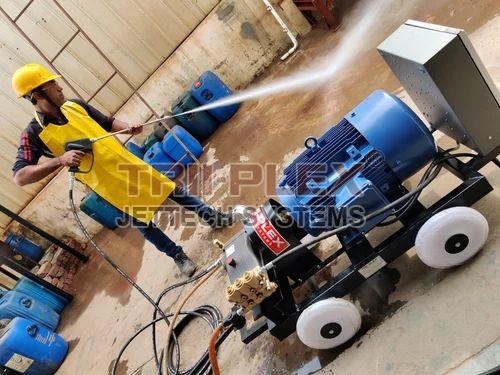

Industrial Triplex High Pressure Plunger Pumps 5000PSI, 17LPM
Being a customer oriented enterprise, we are engaged in providing a wide array of Industrial Triplex High Pressure Plunger Pumps.

Application:

• Hydrostatic Pressure Testing of Heat Exchangers, Boilers, Valves, Tubes Pipes, C.I. Castings, etc.
• Water Blasting of RCC Demolition, Paint Removal, Ship Hull Cleaning, Heat Exchanger Clean, Boilers, Condensor Clean, Marbles Stone Clean, etc.
• Hydro Jetting of Industrial Tube Clean like Surface Preparations, Heat Exchanger, Boiler, Condensor, Evaporator, APH Basket Tubes, Air Cooled Condensor (ACC) Cleaning, Woods Cleaning, Oil Grease Cleaning, etc.

Technical Features about Plunger Pump:

• Pump Head: Forged Brass
• Plungers: Solid Ceramic Plungers
• Pump Main Body: Fully anodized Crankcase
• Connecting Rod: High wear resistant Forged Alloy Steel
• Crank Shaft: High wear resistant Forged Alloy Steel
• Plunger Seal: Improved low and high pressure seals
• Valve Assembly: High wear resistant Stainless Steel
• Oil: 15W40
• Accessories we supply with systems:
• Triplex Plunger Bare Pump
• Electric Motor (Three Phase – Standard / Flameproof)
• Platform (Base frame / Trolley mounted)
• Pressure Gauge
• Unloader Valve
• Pressure Relief Valve
• Electric Control Panel (Standard / Flameproof)
• Trigger Operated Gun (Without Trigger available)
• High Pressure Rubber Hose – 10 Mtrs
• Low Pressure Suction Bypass hose
• Cleaning Nozzles, Tube Cleaning Nozzles
• Flexible Lances for Tube Cleaning
• Rigid Lances – 400mm, 600mm, 800mm, 1000mm

Advantages:

• Triplex High Pressure Piston Pumps in their high efficiency, their ability to generate high pressure and to produce constant volume irrespective of the pressure
• Consequently, where an application demands controlled variable flow, they are eminently suited to variable speed drives
• Using a Triplex High Pressure Pump with a variable speed drive can provide very high efficiencies, up to 95% depending on the pump type design and how it has been installed, across a wide range of flow rates and pressures

After-Sales Service Quality Guarantee:

• One-year warranty: free on-site maintenance and training (except wearing parts replacement and quality problems resulted from improper use by users)
• Repairing and maintaining service is provided timely once received the inquiry, taking the customer satisfaction as first priority
• Quality-related problem will be dealt with by professional staff at the first time getting the feedback from customers
• On-site technical service including guide for installation, commissioning, training will be provided based strictly on customers request after products arrived at the working site
• After warranty service is guaranteed for performance failure happened in normal operation condition, which will be implemented according to relevant laws and regulations.

Trii-plex Jettech Systems are Manufacturers of Ultra- High Pressure Plunger Pump as per client requirement of Flow Rate Pressure. We serve in many Industries wise applications like Sugar Plant (Refinery), Power Plants, Cement Plant, Tank Manufacturers, Tire Rubber, Ocean Platform, Oil Field, Petrochemical, Automobile, Ship Industry, Steel Structure Industry, Aerospace, Automobiles, etc.

TRII-PLEX VM-32 series of Ultra-high Pressure Water Pumps are rated working pressure up to 500bar/7252 PSI Volume of upto 110L/min. With Triplex Plunger Oil Cooling System.
Applications:

• Water cleaning for some building surface
• High Pressure Hydrostatic Test of Heat Exchangers, Boilers, Tubes, Cross country pipelines
• High pressure water blasting
• Many area industrial cleaning purpose, heat exchanger tube cleaning, condenser tube cleaning, pipe cleaning, reactor tank cleaning, ACC Tube Cleaning, APH Basket Tubes Cleaning, filter screen cleaning, boil cleaning, tank cleaning, etc.
• Cement plant pipe cleaning, grease remove from the equipment surface, fouling layer removal
• Shipyard rust removal, paint removal, ship hull cleaning, boat surface cleaning, dirt removal, sea creatures remove from the hull bottom
• Hydro Jetting Services
• High pressure water cleaning vessel
• Surface cleaning, Pipe / Tank cleaning, Tube Bundles Cleaning
• Textile Industrial Work for Humidification
• Pharmaceutical factory and concrete removal and roughening
• Remove sand, oil, rust, colloid, paint and dirty stuff of castings
• Remove bread crust in rotary kiln of cement plant

Advantages for High Pressure Triplex Plunger Pump:

This pump can change flow by different diameter of plunger

Can adjust work pressure to make high pressure

The renewal of plunger and packing is simple and quick

Additional Information:

• Item Code: VM_32
• Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer), D/P, Other
• Port of Dispatch: Mumbai, Mundra, Kandla, Pipavav
• Production Capacity: As per client requirement
• Delivery Time: Tantative

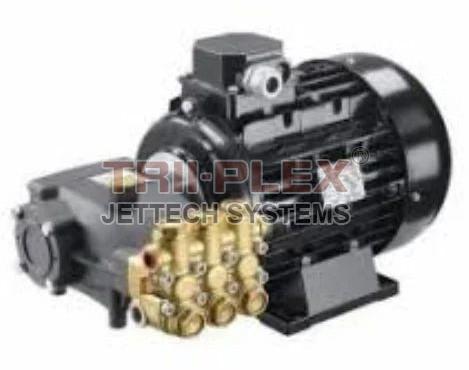

Triplex Plunger High Pressure Pumps 2900psi, 30LPMThese Triplex Plunger High Flow Pressure Pumps are uses for High Pressure Water Jet Cleaning, Hydrostatic Pressure Testing, Water Blasting, Hydro Jetting, Washing in all Industries wise application clean.

Trii-plex Jettech Systems are manufacturers of whole systems with Triplex Reciprocating Plunger Pump as per client proper requirement. The offered Triplex Plunger Pumps are manufactured using quality examined components by our deft professionals with the aid of sophisticated techniques.

Application:

• Hydrostatic Pressure Testing of Heat Exchangers, Boilers, Valves, Tubes Pipes, C.I. Castings, etc.
• Water Blasting of RCC Demolition, Paint Removal, Ship Hull Cleaning, Heat Exchanger Clean, Boilers, Condensor Clean, Marbles Stone Clean, etc.
• Hydro Jetting of Industrial Tube Clean like Surface Preparations, Heat Exchanger, Boiler, Condensor, Evaporator, APH Basket Tubes, Air Cooled Condensor (ACC) Cleaning, Woods Cleaning, Oil Grease Cleaning, etc.
• Water Sandblasting for Paint Removal, Casting Clean, etc.

Technical Features about Plunger Pump:

Pump Head: Forged Brass.

Plungers: Solid Ceramic Plungers.

Pump Main Body: Fully anodized Crankcase.

Connecting Rod: High wear resistant Forged Alloy Steel.

Crank Shaft: High wear resistant Forged Alloy Steel.

Plunger Seal: Improved low and high pressure seals.

Valve Assembly: High wear resistant Stainless Steel.

Oil: 15W40.

Accessories we supply with systems:

1. Triplex Plunger Bare Pump
2. Electric Motor (Three Phase – Standard / Flameproof)
3. Platform (Base frame / Trolley mounted)
4. Pressure Gauge
5. Unloader Valve
6. Pressure Relief Valve
7. Electric Control Panel (Standard / Flameproof)
8. Trigger Operated Gun (Without Trigger available)
9. High Pressure Rubber Hose – 10 Mtrs
10. Low Pressure Suction Bypass hose
11. Cleaning Nozzles, Tube Cleaning Nozzles
12. Flexible Lances for Tube Cleaning
13. Rigid Lances – 400mm, 600mm, 800mm, 1000mm

Additional Information:

• Item Code: NLTI30200
• Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer), D/P, D/A, Other
• Port of Dispatch: Mumbai Mundra Kandla Pipavav
• Production Capacity: 25
• Delivery Time: Tantative
• Packaging Details: Bubble Plastic wrapping with wooden boxes, Export Packaging, As per client requirement we will doing packaging of High Pressure Triplex Plunger Pumps & Systems. Client Satisfaction is our MOTO

TRII-PLEX VM-22 series of Triplex High Pressure Plunger Pumps are rated working pressure up to 1034bar/15000 PSI and Flow Rate of upto 50L/min. With Triplex Ceramic Plunger Oil Cooling Systems.

Trii-plex Jettech Systems are Manufacturers of Industrial Ultra Triplex Plunger High Pressure Pumps as per client’s requirement of Flow Rate Pressure. We serve in many Industries wise applications like Sugar Plant (Refinery), Power Plants, Pharmaceuticals, Cement Plant, Tank Manufacturers, Tire Rubber, Ocean Platform, Oil Field, Petrochemical, Automobile, Ship Industry, Steel Structure Industry, Aerospace, etc.

Advantages for High Pressure Triplex Plunger Pump:

This pump can change flow by different diameter of plunger Can adjust work pressure to make high pressure The renewal of plunger and packing is simple and quick.

Applications for Ultra Triplex Plunger Pressure Pump are:

• Water cleaning for some building surface
• High Pressure Hydrostatic Test of Heat Exchangers, Boilers, Tubes, Cross country pipelines
• High pressure water blasting
• Many area industrial cleaning purpose, heat exchanger tube cleaning, condenser tube cleaning, pipe cleaning, reactor tank cleaning, ACC Tube Cleaning, APH Basket Tubes Cleaning, filter screen cleaning, boil cleaning, tank cleaning, etc.
• Cement plant pipe cleaning, grease remove from the equipment surface, fouling layer removal
• Shipyard rust removal, paint removal, ship hull cleaning, boat surface cleaning, dirt removal, sea creatures remove from the hull bottom
• Hydro Jetting Services
• High pressure water cleaning vessel
• Surface cleaning, Pipe / Tank cleaning, Tube Bundles Cleaning
• Textile Industrial Work for Humidification
• Pharmaceutical factory and concrete removal and roughening
• Remove sand, oil, rust, colloid, paint and dirty stuff of castings
• Remove bread crust in rotary kiln of cement plant

Additional Information:

• Item Code: VM_22
• Pay Mode Terms: L/C (Letter of Credit), T/T (Bank Transfer), D/P, D/A, Other
• Port of Dispatch: Mumbai, Mundra, Kandla, Pipavav
• Production Capacity: As per client requirement
• Delivery Time: Tantative
