Made of a solid piece of high grade super hard material, there are no joints, so as to ensure a smooth path for wire travel during nozzle movement.Precision : Made to a high precision standard, excellent for precise coil layering.Minimum friction : Every inner bore & radius is fully polished. Both inlet & outlet radius are carefully calculated, shaped & polished to mirror finish to eliminate scratching of the enamelled layer of wire.Excellent for winding special winding instances such as motor Rotors and Stators

In order to ensure product compliance with stated quality norms, we conduct several tests at several stages. The raw materials that are used for the production of our finished products are acquired in minimally processed or unprocessed states; these are free from impurities as well. The offered product is available in a quality warranty of 12 months.



Trophy-T-1OO S/B (SIider/Belt Type)

• Finished ID - 12/8 mm
• Finished OD - 40 mm
• Finished HT - 20 mm
• Wire Dia - 0.08-0.30/0.30-0.60 mm
• Speed - 1500/1000 rpm
• Memoryn - 499 Programs
• Bifilar Winding - Yes
• Foot Switch - Yes
• Power off Data Backup - Yes
• Power - AC, 230V, 200W

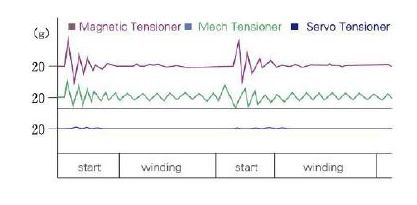

The ASV-DF series tensioner features a high-speed and high-torque AC servo motor, fast response and an accurate feedback system to provide high speed and quality winding for a medum size wire's tension requirements.

Details : The series operates with AC220V power supply, and comes with two-stage tension setting and wire breakage detection.

Advantages

• Precise, stable and consistent tension control
• Two stage tension setting: simple switching between main tension and second tenson
• Wide tension range
• Simple tension setting

Details

• Weight - 10 kg
• Max Wire travel speed - 15m/s
• Maximum tension 5000 g
• Selection of Main Tension Spring - 51-1#, 52-2#, 53-3#, 54-4#
• Dimensions - 404mm*357mm*184mm

Requirements

• Power supply - AC 220V
• Compressed air. 5kg/cm²

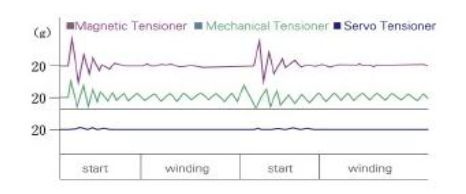

The DSX-TT series features high speed closed loop servo control, with a maximum wire-feeding speed of 15 meters per second.



Its high-speed/high torque DC servo motor and built-in Adaptive Speed Control Software provides fast response to rapid changes in coil winding speed and a wider tension range for high-speed precision winding.



The series operates with a DC24V power supply, and come built-in wire breakage detection.



Advantages

• Precise, stable and consistent tension for hi-speed precision winding

• Easy tension adjustment

• Simple and clear LED indicator

• Wide tension range



Requirements : Power supply. - DC 24V

With a pulse motor, a tension control system and a tension measurernant system all packed within the body casing the DS-ETK-C series compact in design.



The sensitive and quick response feedback control system provides precise. stable and consistent tension for high speed quality winding. Two different tension values can be set.



It also features a built-in tension measurement system The real time display of the tension value provides a clear and convenient way to observe the wording tension, aiding in better control of product quality.



The series comes with two stage tension setting and wire breakage detection.



Details

• Weight – 2.5 kg

• Dimensions - 318mm*185mm*81mm



Requirements

• Power supply : DC 24V/ DC 48V

• Compressed air. 5kg/cm²

The DSV-ETK series features high speed closed loop servo tensioners with maximum wire-feeding speed of 25 meters per socond.

Details :

• The combination of a built-in Adaptive Speed Control Software and high speed/torque DC servo motor provides fast response to rapid changes in coil winding speed and a wide tension range for high -speed precision winding.
• It also features a built-in tension measurement system. The real-time display of tension calue provides a clear & convenient, way to observe the winding tension, aiding in better control of product quality.
• The series operates with DC48V power supply, and comes with two -stage tensions setting and wre breakage detection.

Advantages

• Simple & clear LED indicator
• Easy adjustment of main tension
• Dual spring tension control, wide tension range

Requirements

• Power supply - DC 48V
• Compressed air. 5kg/cm²

The DS-TT pulse servo tensioner features a sensitive and quick response feedback control system, Providing Precise , Stable and consistent tension for high speed quality Winding.

Details :

• Its pulse motor and control system are packed within a body made by molded ABS plastic. Its design is solid, compact and Lightweight.
• Its operates with DC 24V and comes with Wire Breakage detection.
• The series offers the Followig Wire speed versions: 7m/sec and 12m/sec.

Advantages

• Light weight and compact design
• Precise, stable and consistent tension control fat quality Winding
• Adjustment knob positioned at the front. easy adjustment
• Built-in wile breakage detection
• Reliable and require low maintenance

The DS-TK-C pulse servo tensioner features a sensitive and quck response feedback control system, providing precise, stable and consistent tension for high speed quality winding.

Details :

• Its pulse motor and control system are packed within a body casing made by molded ABS plastic. Its design is Solid, compact. and lightweight
• It operates with DC power (24V or 48V, depending on its model ) and comes with two-stage tension setting and wire breakage detection.
• The DS-TK-C series offers me following wire speed versions : 7 m/sec, 10 m/sec and 12m/sec.

Advantages :

• Precise, stable and consistent tension control for quality winding
• Two stage tension setting; switch between main tension and second tension is simple
• Dual spring tension control, wide tension range
• Adjustment knob and scale are positioned at the front, easy adjustment for both rnain and second tension
• Built-in were breakage detection
• Reliable and require low maintenance

Selection of Tension Arm

• SA-ZC4-RB2010-0.5*1.4*150
• SA-ZC4-NX012-2*2.5*150P
• SA-ZC4-NX011-1.4*2*150P
• SA-ZC4-NX012 -3*4*150P

Details

• Selection of Tension Spring : 41#-45#
• Dimensions : 295mm* 162mm* 98mm
• Weight : 2.1 kg

Requirements

• Power supply - DC 24V / DC 48V
• Compressed air - 5kg/cm²

The DSV-CF series features high speed closed loop servo tensioners with maximum wire-feeding speed of 25 meters per socond.



Details :

• The combination of a built-n Adaptive Speed Control Software and high speed/torque DC servo motor provides fast response to rapid changes in coil winding speed and a wide tension range for high -speed precision winding.
• The series operates with DC48V power supply, and comes with a two - stage tension setting and wire breakage detection.
• Its selective optional functions are real time tension measurement & display system



Advantages :

• Precise, stable and consistent tension for hi -speed precision winding
• Two stage tensicn setting
• Easy adjustment of main tension and second tension
• Simple & clear LED indicator
• Dual spring tension control, wide tension range



Requirements

• Power supply : DC 48V
• Compressed air. 5kg/cm²

The DS - CF/DS-DF pulse servo tensioner features a sensitive and quick response feedback control system, providing precise, stable and consistent tension for high speed quality winding

Details :

• Its pulse motor and control system are packed with, n a solid and compact body casing.
• It operates with DC24V power suppy and comes with two stage tension setting and wire breakage detection.

Advantages :

• Precise, stable and consistent tonsion control
• Two stage tension setting; simple switching between main tension and second

Selection of Tension Arm

• SA-ZC4-RB2010-0.5*1.4*150SA-ZC4-NX012-2*2.5*150P
• SA-ZC4-NX011-1.4*2*150P
• SA-ZC4-NX012 -3*4*150P

Details :

• Selection of Main Tension Spring : 21#-26#
• Selection of attenuation Tension Spring : 31#-35#
• Dimensions : 350mm* 150mm*70mm

Requirements

• Power supply - DC 24VCompressed air - 5kg/cm²

BASIC SPECIFICATIONS OF DS-CF SERIES

ModelNo.	TensionRange(G)	MaxWire TravelSpeed (M/S)	PowerSupply	RatedCurrent (A)	SuitableWire Size(Mm)
DS-CF-C07-45J200	1200	7	DC24V	1.2	0.010.18
DS-CF-C07-45J1200	1001200	7	DC48V	7.5	0.100.50
