Our Products

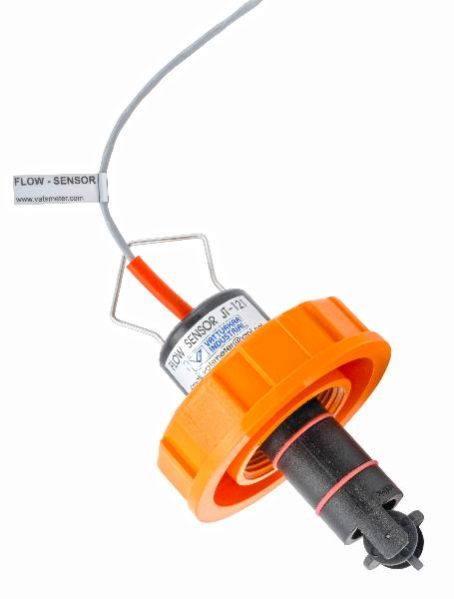

Our offered Product range includes MINI SENSOR LP-20, REV Pump, Conductivity Meter, OEM SPECIAL JT-121 PP SENSOR and Conductivity Sensor.
VATS Conductivity/Resistivity sensors are designed to provide versatile installation and accurate sensing across a very broad dynamic range. Coupled with VATS meters a range with 2% of reading accuracy is achieved without the need for troublesome sensor platinization. Standard wiring allows connection without costly "patch cords."
Features:
Flow-through design eliminate bubble entrapment or sediment build-up
Controlled surface finish ensures accuracy and repeatability
Removable sensor fitting design
Built-in strain relief
Proper electrode clearance reduces possible 01 resin or particle entrapment, critical with 0.01 cell designs
In-line or submersible mounting
PTFE insulator
Applications
Pure Water Treatment
* Reverse Osmosis
* De-ionization
* Distillation
Boiler Condensate
Semiconductor Water Production
Rinse water monitoring and control
Chemical Concentrations
Cleaner and Degreaser Concentrations
TDS
Salinity
USP Purified Water and WFI Water Production

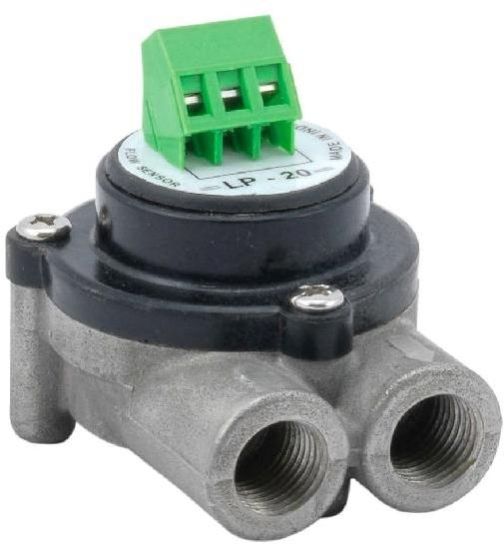

LP-20 is general purpose flow sensor, Its working rane can be defined according to its nozzle size for low flow range application.With proper installations, sensor achieves better accuracy Special Features:Inlet and outlet on same side, Compact Design.
| |

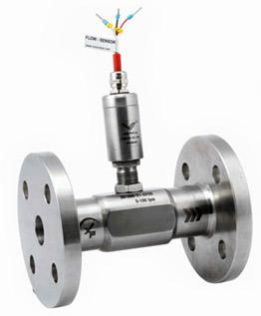

| XP is a Full Bore SS body Turbine Flow Sensor suitable for High Pressure water and oil application. Turbine flow sensor is a combination of freely rotating turbine assembly; SS housing and solid state pick-up tungsten carbide-Ceramic bearing makes it practically frictionless producing large linear range. Detachable square wave generated pick-up assembly is much advance solid state device to give output at noisy industrial environment. Variety of matching controllers and indicator are available suitable to match different electronic requirements. | |
| Features:Outstanding accuracyFast response to change of flow.Suitable for pressurized Oil applications.Industry Standard End ConnectionsCost effective.Available in 20 mm, 25 mm & 50 mm. Use of filter before Flowmeter is necessary.Straight Run condition given in manual must be maintain while installation. | |
|
| Technical Data | Electrical Connection ratings | Material | |||
| Velocity: | 1 to 10 m/s | Power supply: | 12-24 V DC +/-15% | Housing: | S.S. 316 |
| Linearity: | +/- 1 % | Consumption: | < 30 mA | Rotor: | G.F |
| Repeatability: | +/- 0.5 % | Output Signal: | NPN & PNP | Bearing Bush: | Ceramic |
| Temperature range: | 0 to 70oC | Output: | 12-24 V Square Wave | Shaft: | TC |
| Pressure range: | upto 400 bar | Cable Type: | 2 Core PTFE Shielded | Â | Â |
| End Connection: | BSP/TC/FLANGE | ||||
| Filteration: | 100 microns | ||||

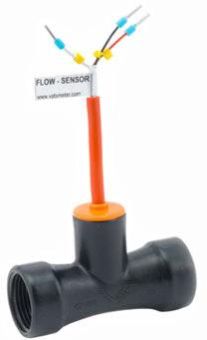

| The LP-30 Turbine Sensor is a G.F body Mini Sensor suitable for Low pressure Application, and general purpose device. LP-30 provides simple pulse output in proportion to supply voltage and fluid flow which makes interfacing easy. It is developed for measuring regulating or metering and guarantees most precise measurement of fluid quantities. Compact package and light weight design to suit the growing needs of Low flow measurement of liquid in Industry. | |||
| |||
| Technical Data | Electrical Connection Ratings | Material | |||
| Flow Rate: | 2.5 to 40 LPM | Supply Voltage: | 12 - 24 V DC | Sensor Body: | G.F 30 % |
| Linearity: | +/- 1 % | Output Voltage: | 12 - 24 V DC | Paddle: | G.F 30 % |
| Repeatability: | +/- 0.5 % | Retainer: | G.F 30 % | ||
| Temperature range: | Upto 50o C | Bearing Bush: | Ceramic | ||
| Pressure range: | Upto 3.5 bar | Pin: | T.C | ||
| End Connection: | 3/4" BSP Female | ||||
