Turbine flow sensor

Listing ID #4135537

Get Latest Price

Supply Type Exporter, Supplier

Preferred Buyer From : All over the world

XP is a Full Bore SS body Turbine Flow Sensor suitable for High Pressure water and oil application. Turbine flow sensor is a combination of freely rotating turbine assembly; SS housing and solid....

View More Details

Send Enquiry

Product Details

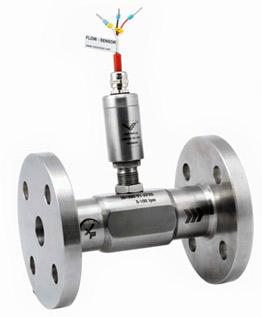

XP is a Full Bore SS body Turbine Flow Sensor suitable for High Pressure water and oil application. Turbine flow sensor is a combination of freely rotating turbine assembly; SS housing and solid state pick-up tungsten carbide-Ceramic bearing makes it practically frictionless producing large linear range.
Detachable square wave generated pick-up assembly is much advance solid state device to give output at noisy industrial environment. Variety of matching controllers and indicator are available suitable to match different electronic requirements.

Features:
• Outstanding accuracy
• Fast response to change of flow.
• Suitable for pressurized Oil applications.
• Industry Standard End Connections
• Cost effective.
• Available in 20 mm, 25 mm & 50 mm.
» Use of filter before Flowmeter is necessary.
» Straight Run condition given in manual must be maintain while installation.

Applications:
• Hydraulics
• Agriculture
• Automobile
• Diesel
• Wind energy
• Food and Beverages
• Heavy Engineering
• Power

Technical Data		Electrical Connection ratings		Material
Velocity:	1 to 10 m/s	Power supply:	12-24 V DC +/-15%	Housing:	S.S. 316
Linearity:	+/- 1 %	Consumption:	< 30 mA	Rotor:	G.F
Repeatability:	+/- 0.5 %	Output Signal:	NPN & PNP	Bearing Bush:	Ceramic
Temperature range:	0 to 70oC	Output:	12-24 V Square Wave	Shaft:	TC
Pressure range:	upto 400 bar	Cable Type:	2 Core PTFE Shielded	Â	Â
End Connection:	BSP/TC/FLANGE
Filteration:	100 microns
