There are several methods to measure how much light is intercepted by a canopy in order to determine if water loss is from evaporation or transpiration. Theres the hard & expensive way and then theres the smart way: the CTR-1. Virtual make Ceptometer offers convenient and flexible tools for measuring and analyzing incident and transmitted Photo synthetically Active Radiation (PAR) in Crop and Forest canopies. This is a a non-destructive method to easily and accurately measure Leaf Area Index (LAI). It provides vital information about the penetration of PAR into crops and forest, and is essential in work such as comparative crop studies, for separating out the effects of cultivars and treatment. It is particularly well suited to low regular canopies (as found in many agricultural crops). It can be used in most light conditions. The first sensor probe has an array of 10 PAR sensors embedded in a 1m long probe, and is connected with Handheld Terminal. The second sensor probe also has a 1 PAR sensor embedded in a 0.5m long probe, and is connected with handheld Data logger. One PAR Sensor is also connected with data logger for reference incoming radiation. When a reading is taken, all sensors are scanned and the measurements transmitted to the data logger. The average light level along the probe is calculated. Further you can download data from data logger to a computer (USB Port) with the help of "Virtualware" (PC Interface Software).

this ccf sensor is for measurement of the cloud cover factor. This innovation of dr. Sten lofveng makes it possible to get automatic observations of the cloud cover factor, ccf 24 hours a day i.e. The fraction of the sky that is covered with clouds. It consists of a day time unit that observes the sky in 4 directions in parts of the solar spectrum, a night time unit that observes the sky in the thermal infra-red spectrum. A microcomputer evaluates the signals and controls the output.

Sanitization Chamber / Tunnel

Virtual make Sanitization Chamber / Tunnel is the state of art fully automatic sanitization solution available in the market.

material: mild steel hand sanitizer stand with powder coated finish

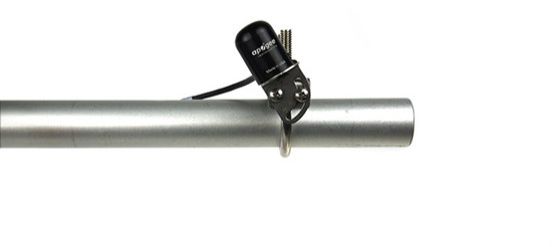

The AM-400 adjustable angle, stainless steel mounting bracket can be used for mounting Apogee downward facing sensors (such as our downward NDVI and PRI sensors) at different angles while mounted to a horizontal or vertical mast pole. This bracket can also be used to mount upward facing sensors (such as our silicon-cell pyranometers) in plane-of-array configurations. For applications that require absolutely level mounting, we recommend using one of our precision leveling bases, such as the AL-120.

Simple and Accurate Mounting

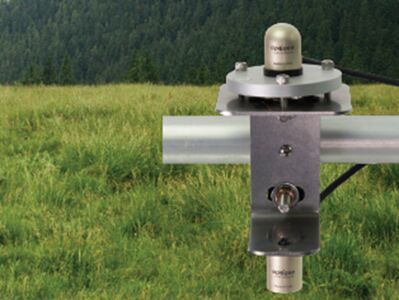

The AL-120 solar mounting bracket is designed

to mount Apogee Instruments solar sensors to

a mast or pipe with an outer diameter of 1.3 -

2.1. The bracket has an integrated bubble-level

to make leveling simple and accurate for proper

sensor installation

Simple and Accurate Mounting

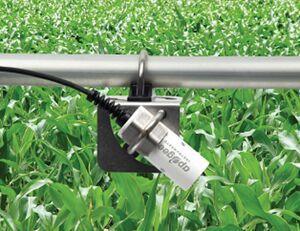

The AM-220 angle infrared radiometer mounting bracket is designed to mount an Apogee Instruments infrared radiometer (older solar shield design) or radiation frost detector to a mast or pipe with an outer diameter of 1.3 to 2.1. The bracket is designed to orient the sensors at varying angles to satisfy all applications

Simple and Accurate Mounting

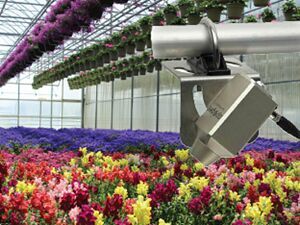

The AS-013 angled field spec mounting bracket facilitates angled mounting of Apogee Instruments field spectroradiometers model SS-110 and SS-120 to a mast or pipe. The bracket is designed to orient the spec at varying angles to satisfy all applications.

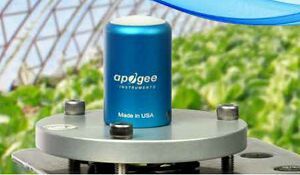

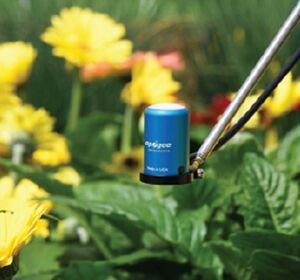

Apogee Instruments Quantum Sensors are the

tool of choice for researchers and agricultural

professionals measuring photosynthetically

active radiation (PAR) all over the world.

Apogee offers two types of quantum sensors: a

Full-spectrum Quantum (previously gold) and

Original Quantum Sensor. Consult our spectral

response graph to decide which model is right

for your application.

Accurate, Stable Measurements

Cost-effective, original quantum sensors work

well for broadband radiation sources (sun,

high-pressure sodium, metal halide, cool white

fluorescent lamps), while full-spectrum sensors

are good for all light sources, including LEDs.

Offers a self-cleaning, cosine-corrected head

that is fully-potted for a waterproof design.

TYPICAL APPLICATIONS

Incoming and reflected PPFD over and under

plant canopies in greenhouses, in fields, and in

growth chambers

Aquatic environments including salt water

aquariums and freshwater lakes and streams

MULTIPLE OUTPUT OPTIONS

Attached hand-held meter

Separate sensor

Line quantum meter- 3 sensors

Line quantum meter- 6 sensors

Line quantum meter- 10 sensors

LINE QUANTUM SENSOR OPTIONS

Sensors are available with multiple detectors

mounted along the length of a rugged anodized

aluminum bar, which provide spatially averaged

PPFD measurements along the length of the bar.

ACCURATE, STABLE MEASUREMENTS

Cosine-corrected with directional errors less than

5 % at a solar zenith angle of 75. Long-term

non-stability less than 2 % per year.

UNIQUE DESIGN

Cost-effective, original quantum sensors work well

for broadband radiation sources. The patented,

dome-shaped aluminum head is cosine-corrected,

self-cleaning, and fully-potted for a waterproof design.

CALIBRATION TRACEABILITY

Apogee SQ sensors are calibrated through side-byside

comparison to the mean of four transfer standard

sensors under a reference lamp. The reference sensors

are recalibrated with a quartz halogen lamp traceable

to the National Institute of Standards and Technology

(NIST).

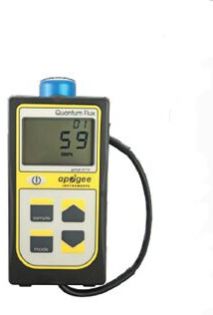

Apogee Instruments PAR meters are the tool of choice for cost-effective, scientific-grade measurement of underwater PAR

levels. Accurate tank PAR mapping, daily light integral measurements, and the adjusting of photosynthetic radiation levels to

mimic nature are all critical to specimen health. Apogee offers two different underwater calibrated meters at two different

price points. The basic MQ-210 features our original detector that is excellent for broadband light sources. The research-grade

MQ-510 features an improved detector excellent for all light sources, including LEDs, and matches LI-COR and Kipp & Zonen

PAR sensors in accuracy while costing much less.

High Accuracy and Stability

Accurate within 1.5 kPa across a pressure range of 15

to 115 kPa (4.43 to 34.96 in Hg). Long-term non-stability

has been measured continuously indoors and in natural

conditions (with sensors mounted inside a datalogger

enclosure) for multiple sensors and is less than 0.5 %

per year. Temperature effects on signal are less than 1 %

across a wide temperature range (-20 to 50 C).

Low Power, Large Signal

Pressure sensor power requirement is approximately 35

mW (7 mA current draw at 5 V DC). Voltage output ranges

from 0 to 5 V DC for a pressure range of 15 to 115 kPa.

Small Size

Sensor is small and lightweight enabling easy deployment

within a datalogger enclosure, protecting the sensor from

the elements.

High Accuracy and Stability

Accurate within 1.5 kPa across a pressure range of 15

to 115 kPa (4.43 to 34.96 in Hg). Long-term non-stability

has been measured continuously indoors and in natural

conditions (with sensors mounted inside a datalogger

enclosure) for multiple sensors and is less than 0.1 % per

year. Temperature effects on signal are less than 0.1 %

per C across a wide temperature range (-40 to 100 C).

Low Power, Large Signal

Pressure sensor power requirement is approximately:

Typical: 30 mW (6 mA, 5 V)

Maximum: 50 mW (10 mA, 5 V)

Voltage output ranges from 4.75 to 5.25 V DC for a

pressure range of 15 to 115 kPa.

Small Size

Sensor is small and lightweight, enabling easy

deployment within a datalogger enclosure, which

protects the sensor from the elements.

The new Apogee ePAR (extended photosynthetically active radiation) sensor was created to measure the wider 400-750 nm radiation range that cutting-edge research is showing to be photosynthetically active, beyond the traditional 400-700 nm range defined by McCree. Most of this transformative work to refine and define the ePAR range is being conducted by Dr. Shuyang Zhen and Dr. Bruce Bugbee at Utah State University

DESIGNED FOR UNDERWATER USE

Sensor heads are fully epoxy potted to be completely waterproof. Diffuser is cosine corrected for accurate 2-pi PAR-mapping. Sensor readings are adjusted in firmware to correct for the immersion effect.

ACCURATE, STABLE MEASUREMENTS

Long-term non-stability determined from multiple replicate quantum sensors in accelerated aging tests and field conditions is less than 2 % per year.

DATALOGGING CAPABILITIES

The meter records up to 99 measurements in logging mode, making automatic measurements every 30 seconds and recording 30-minute averages. Data can be downloaded to calculate DLI.

NIST TRACEABLE CALIBRATION

Apogee Quantum sensors are calibrated by comparison to the mean of four transfer standard sensors under a

reference lamp. The reference sensors are recalibrated regularly to a halogen lamp traceable to the National Institute of Standards and Technology. Calibration certificates are available upon request.

tool of choice for researchers and agricultural professionals measuring photosynthetically active radiation (PAR) all over the world. Apogee offers two types of quantum sensors: a Full-spectrum Quantum and Original X Quantum Sensor. Consult our spectral response graph to decide which model is right for your application.

Accurate, Stable Measurements

Cost-effective, original quantum sensors work well for broadband radiation sources (sun, high-pressure sodium, metal halide, cool white fluorescent lamps), while full-spectrum sensors are good for all light sources, including LEDs. Offers a self-cleaning, cosine-corrected head that is fully-potted for a waterproof design.

Typical PPFD Measurement Applications

Incoming and reflected PPFD over and under

plant canopies in greenhouses, in fields, and in

growth chambers

Aquatic environments including salt water

aquariums and freshwater lakes and streams

Calibration Traceability

Apogee SQ series quantum sensors are calibrated through side-by-side comparison to

the mean of four transfer standard sensors under a reference lamp. The reference sensors are recalibrated with a quartz halogen lamp traceable to the National Institute of Standards and Technology (NIST).

TYPICAL APPLICATIONS

Incoming and reflected PPFD over and

under plant canopies in greenhouses, in

fields, and in growth chambers

Aquatic environments including salt

water aquariums and freshwater lakes

and streams

UNIQUE DESIGN

Measure photosynthetically active radiation with a research grade, full-spectral response sensor. Offers a self-cleaning, cosine-corrected head to minimize errors and is fully-potted for a waterproof design.

ACCURATE, STABLE MEASUREMENTS

Long-term non-stability determined from multiple replicate quantum sensors in accelerated aging tests and field conditions is less than 2 % per year.

CALIBRATION TRACEABILITY

Apogee SQ-500 sensors are calibrated through side-by-side comparison to the mean of four transfer standard sensors under T5 cool white fluorescent lamps. The transfer standard sensors are calibrated through side-by-side comparison to the mean of at least four quantum sensors under T5 cool white fluorescent lamps traceable to the National Institute of Standards and Technology (NIST).

SPECTRAL ERRORS OF COMMERCIAL QUANTUM SENSORS

Spectral errors are theoretical errors calculated from sensor spectral responses and spectral output of radiation sources. Only spectral errors are listed in the table. Calibration, cosine, and temperature error can also contribute to measurement error

TYPICAL APPLICATIONS

Incoming and reflected PPFD over and

under plant canopies in greenhouses, in

fields, and in growth chambers

Aquatic environments including salt

water aquariums and freshwater lakes

and streams

UNIQUE DESIGN

Measure photosynthetically active radiation with a research grade, full-spectral response sensor. Offers a self-cleaning, cosine-corrected head to minimize errors and is fully-potted for a waterproof design.

ACCURATE, STABLE MEASUREMENTS

Long-term non-stability determined from multiple replicate quantum sensors in accelerated aging tests and field conditions is less than 2 % per year.

CALIBRATION TRACEABILITY

Apogee SQ-500 sensors are calibrated through side-by-side comparison to the mean of four transfer standard sensors under T5 cool white fluorescent lamps. The transfer standard sensors are calibrated through side-by-side comparison to the mean of at least four quantum sensors under T5 cool white fluorescent lamps traceable to the National Institute of Standards and Technology (NIST).

SPECTRAL ERRORS OF COMMERCIAL QUANTUM SENSORS

Spectral errors are theoretical errors calculated from sensor spectral responses and spectral output of radiation sources. Only spectral errors are listed in the table. Calibration, cosine, and temperature error can also contribute to measurement error.

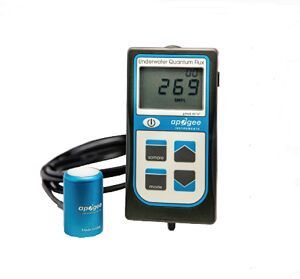

DESIGNED FOR UNDERWATER USE

Sensor heads are fully epoxy potted to be completely waterproof. Diffuser is cosine corrected for accurate 2-pi PAR-mapping. Sensor readings are adjusted in firmware to correct for the immersion effect.

ACCURATE, STABLE MEASUREMENTS

Long-term non-stability determined from multiple replicate quantum sensors in accelerated aging tests and field conditions is less than 2 % per year.

DATALOGGING CAPABILITIES

The meter records up to 99 measurements in logging mode, making automatic measurements every 30 seconds and recording 30-minute averages. Data can be downloaded to calculate DLI.

NIST TRACEABLE CALIBRATION

Apogee Quantum sensors are calibrated by comparison to the mean of four transfer standard sensors under a

reference lamp. The reference sensors are recalibrated regularly to a halogen lamp traceable to the National Institute of Standards and Technology. Calibration certificates are available upon request.

ACCURATE, STABLE MEASUREMENTS

Long-term non-stability determined from multiple replicate quantum sensors in accelerated aging tests and field conditions is less than 2 % per year.

UNIQUE DESIGN

Measure photosynthetically active radiation with a research grade, full-spectral response sensor. Offers a self-cleaning, cosine-corrected head to minimize errors and is fully-potted for a waterproof design.

NO DATALOGGER REQUIRED

Sensor can be connected to a desktop, laptop, or tablet computer via a USB 2.0 type A plug. The ApogeeConnect software gives the user control of data logging and calibration settings, provides real-time output display and graph of PPFD measurements, and allows the data set to be saved as a csv file for analysis. Sensor has internal data storage ability to hold up to 10, 000 measurements.

CALIBRATION TRACEABILITY

Apogee SQ-500 sensors are calibrated through side-by-side comparison to the mean of four transfer standard sensors under a reference lamp. The reference sensors are recalibrated with a quartz halogen lamp traceable to the National Institute of Standards and Technology (NIST).

SPECTRAL ERRORS OF COMMERCIAL QUANTUM SENSORS

Spectral errors are theoretical errors calculated from sensor spectral responses and spectral output of radiation sources. Only spectral errors are listed in the table. Calibration, cosine, and temperature error can also contribute to measurement error.

TYPICAL APPLICATIONS

Plant water status estimation

Road surface temperature measurementfor determination of icing conditions

Terrestrial surface (soil, vegetation, water,

snow) temperature measurement in energy

balance studies

OUTPUT OPTIONS

Analog response

SDI-12

Hand-held meter

Features

Dimensions

Apogee Instruments MI series infrared temperature meters are calibrated to the temperature of a custom blackbody cone held at multiple fixed temperatures over a range of radiometer (detector/sensor body) temperatures. The temperature of the blackbody cone is measured with replicate precision thermistors thermally bonded to the cone surface. The precision thermistors are calibrated for absolute temperature measurement against a platinum resistance thermometer (PRT) in a constant temperature bath. The PRT calibration is directly traceable to the National Institute of Standards and Technology (NIST).

Calibration Traceability

HIGH ACCURACY

Calibrated to a custom black-body cone with a measurement uncertainty of 0.2 C from -30 to 65 C when the sensor temperature is within 20 C of the target. Radiometers are only sensitive to wavelengths from 8 to 14 m to minimize the influence of water vapor and CO on the measurement.

RUGGED HOUSING

Anodized aluminum body with fully-potted electronics. The outer radiation shield reduces thermal fluctuations.

TYPICAL APPLICATIONS

Plant water status estimation

Road surface temperature measurement for

determination of icing conditions

Terrestrial surface (soil, vegetation, water,

snow) temperature measurement in energy

balance studies

OUTPUT OPTIONS

Research-Grade sensors are available in analog and

digital outputs including unamplified voltage outputs,

SDI-12, and Modbus communication protocols.

Research-Grade sensors are also available attached to

a hand-held meter with digital readout. Commercial-

Grade models come in analog (SIL-111) and SDI-12

(SIL-411, SIL-4H1) outputs.

RUGGED HOUSING

Anodized aluminum body with fully-potted

electronics. Research-Grade radiation shields are

made from powder-coated aluminum with a polished

interior for lower emissivity. Commerical-Grade

radiation shields are made from rugged, polished,

UV-resistant ASA plastic.

Apogee line quantum sensors measure a spatial average of photosynthetically active radiation. The MQ-301X has a separate sensor bar with 10 sensors, while the handheld meter displays and stores measurements. The sensor housing design features an integrated bubble level and is fully potted, making the sensor water- and weatherproof.

TYPICAL APPLICATIONS

Incoming and reflected PPFD over and under

plant canopies in greenhouses, in fields, and in

growth chambers

UNIQUE DESIGN

Cost-effective, original quantum X sensors work well for sunlight and some broadband radiation sources. The sensor housing design features an integrated bubble level and is fully potted, making the sensor water- and weatherproof.

ACCURATE, STABLE MEASUREMENTS

Cosine-corrected with directional errors less than 5 % at a solar zenith angle of 75. Long-term non-stability less than 2 % per year.

CALIBRATION TRACEABILITY

Apogee SQ X sensors are calibrated through side-by-side comparison to the mean of four transfer standard sensors under a reference lamp. The reference sensors are recalibrated with a quartz halogen lamp traceable to the National Institute of Standards and Technology (NIST).

TYPICAL APPLICATIONS

Incoming and reflected PPFD over and under

plant canopies in greenhouses, in fields, and in

growth chambers

Aquatic environments including salt water

aquariums and freshwater lakes and streams

UNIQUE DESIGN

Cost-effective, original quantum sensors work well for broadband radiation sources. The patented, dome-shaped aluminum head is cosine-corrected, self-cleaning, and fully-potted for a waterproof design.

ACCURATE, STABLE MEASUREMENTS

Cosine-corrected with directional errors less than 5 % at a solar zenith angle of 75. Long-term non-stability less than 2 % per year.

CALIBRATION TRACEABILITY

Apogee SQ sensors are calibrated through side-by-side comparison to the mean of four transfer standard sensors under a reference lamp. The reference sensors are recalibrated with a quartz halogen lamp traceable to the National Institute of Standards and Technology (NIST).

DESIGNED FOR UNDERWATER USE

Sensor heads are fully epoxy potted to be

completely waterproof. Diffuser is cosine

corrected for accurate 2-pi PAR-mapping.

Sensor readings are adjusted in firmware to

correct for the immersion effect.

ACCURATE, STABLE

MEASUREMENTS

Long-term non-stability determined from

multiple replicate quantum sensors in

accelerated aging tests and field conditions is

less than 2 % per year.

DATALOGGING CAPABILITIES

The meter records up to 99 measurements in

logging mode, making automatic measurements

every 30 seconds and recording 30-minute

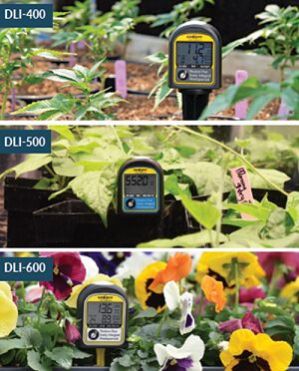

averages. Data can be downloaded to calculate DLI.

NIST TRACEABLE CALIBRATION

Apogee Quantum sensors are calibrated by comparison to the

mean of four transfer standard sensors under a reference lamp.

The reference sensors are recalibrated regularly to a halogen

lamp traceable to the National Institute of Standards and

Technology. Calibration certificates are available upon request.

ACCURATE, STABLE MEASUREMENTS

Cosine-corrected with directional errors less than 5 % at a solar zenith angle of 75. Long-term non-stability less than 2 % per year.

SPECTRAL RESPONSE

Original X quantum sensors work well for broadband sources (sun, high pressure sodium, metal halide, cool white fluorescent lamps).

INTERNAL DATA STORAGE

Sensor has internal data storage capability with the ability to hold up to 10, 000 measurements. This allows the sensor to collect data while connected to most stand-alone 5 V DC USB power sources.

NO DATALOGGER REQUIRED

Sensor can be connected to a desktop, laptop, or tablet computer via a USB 2.0 type A plug. The ApogeeConnect software gives the user control of data logging and calibration settings, provides real time output display and graph of PPFD measurements, and allows the data set to be saved as a csv file for further analysis.

INDEPENDENT CALIBRATION

The SQ-420X is calibrated independently for sunlight and electric light to improve measurement accuracy The light source calibration can be selected in the settings menu of the Apogee software.

CALIBRATION TRACEABILITY

Apogee SQ X sensors are calibrated through side-by-side comparison to the mean of four transfer standard sensors under a reference lamp. The reference sensors are recalibrated with a quartz halogen lamp traceable to the National Institute of Standards and Technology (NIST).

TYPICAL APPLICATIONS

Measurement of O in laboratory experiments orof O gradients in soil/underground

Monitoring gaseous O in indoor environments

for climate control, in compost piles, and in

mine tailings

Monitoring redox potential in soils

Determination of respiration rates through

measurement of O consumption in sealed

chambers

OUTPUT OPTIONS

Analog V DC

SDI-12

or hand-held meter

HEATED DETECTOR

The gas permeable membrane inlet can be heated to prevent water vapor from condensing and blocking the diffusion path when sensors are used in soil or compost.

UNIQUE DESIGN

Sensors have an internal thermistor fully sealed for temperature monitoring. Sensors are housed in a polypropylene body for long-term use underground. Two head options include a diffusion head for field use and a flow-through head for laboratory use.

SIMPLE CALIBRATION

Voltage output is linearly proportional to absolute amount of oxygen. Calibration is accomplished by measuring the voltage under ambient conditions (atmosphere is 20.95 % O) and deriving a linear calibration factor. A zero offset can be obtained with N gas (recommended for measurements below 10 % O).

TYPICAL APPLICATIONS

Measurement of O in laboratory experiments

or of O gradients in soil/underground

Monitoring gaseous O in indoor environments

for climate control, in compost piles, and in

mine tailings

Monitoring redox potential in soils

Determination of respiration rates through

measurement of O consumption in sealed

chambers

OUTPUT OPTIONS

Analog V DC

SDI-12

or hand-held meter

HEATED DETECTOR

The gas permeable membrane inlet can be heated to prevent water vapor from condensing and blocking the diffusion path. When sensors are used in soil or compost.

Features

UNIQUE DESIGN

Sensors have an internal thermistor fully sealed for temperature monitoring. Sensors are housed in a polypropylene body for long-term use underground. Two head options include a diffusion head for field use and a flow-through head for laboratory use.

SIMPLE CALIBRATION

Voltage output is linearly proportional to absolute amount of oxygen. Calibration is accomplished by measuring the voltage under ambient conditions (atmosphere is 20.95 % O) and deriving a linear calibration factor. A zero offset can be obtained with N gas (recommended for measurements below 10 % O).

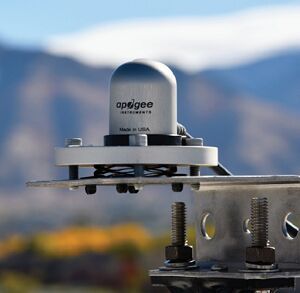

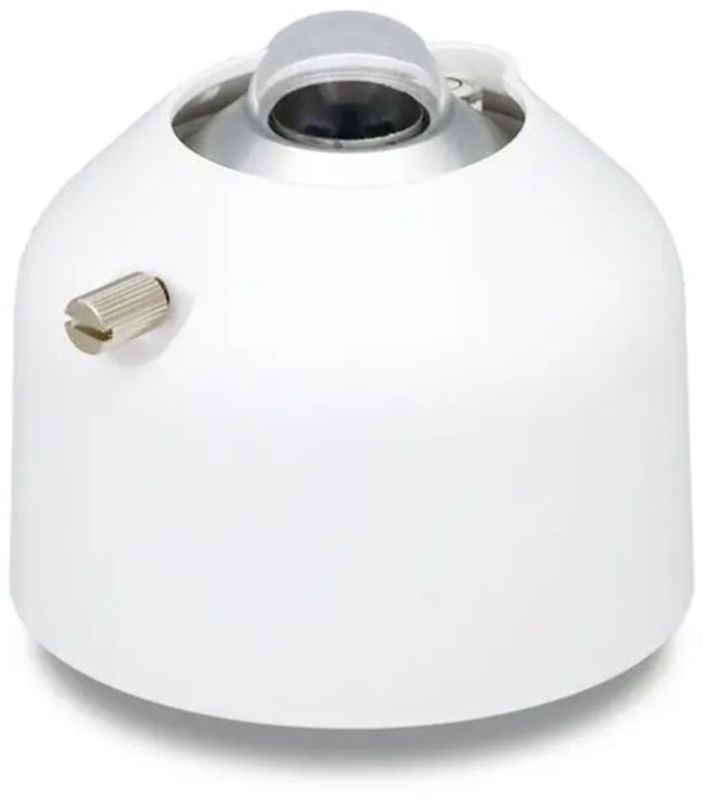

Apogee offers silicon-cell and thermopile

pyranometers that are both rated ISO 9060:2018

Class C (fast response). Our popular silicon-cell

models are less expensive and have a faster

response time, but can have errors under cloudy

conditions. Our thermopile pyranometers feature a

unique, cost-effective design with an inexpensive

diffuser and blackbody thermopile detector that

provides a broader and more uniform spectral

response for better performance in all atmospheric

conditions.

STABLE MEASUREMENTS

Long-term non-stability determined from multiple

replicate pyranometers in accelerated aging tests

and field conditions is less than 2 % per year.

UNIQUE DESIGN

An accurate, cosine-corrected patented

design sheds water and dirt for a self-cleaning

performance. A heated option is available with a

0.2 W heater to minimize errors caused by dew,

frost, or snow.

TYPICAL APPLICATIONS

Solar panel arrays

Agricultural, ecological, and hydrological weather

networks

CALIBRATION TRACEABILITY

Apogee SP series pyranometers are calibrated

through side-by-side comparison to the mean of

four transfer standard sensors under a reference

lamp. The reference sensors are recalibrated

under sunlight in Logan, UT traceable to the

World Radiometric Reference (WRR) in Davos,

Switzerland.

Apogee SP series pyranometers are calibrated through side-by-side comparison to the mean of four transfer standard sensors under a reference lamp. The reference sensors are recalibrated under sunlight in Logan, UT traceable to the World Radiometric Reference (WRR) in Davos, Switzerland

TYPICAL APPLICATIONS

Solar panel arrays

Agricultural, ecological, and hydrological

weather networks

STABLE MEASUREMENTS

Long-term non-stability determined from multiple replicate pyranometers in accelerated aging tests and field conditions is less than 2 % per year.

UNIQUE DESIGN

A patented dome-shaped sensor head keeps the sensor clean and minimizes errors by shedding water. Sensors are housed in a rugged anodized aluminum body and electronics are fully-potted.

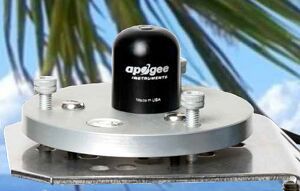

Wide Range

Sensitive from 250 to 400 nm,

spanning the solar UV and range of

electric lamps.

Measurement Units

Calibration factors for photon flux

density units [mol m s] and energy

flux density [W m] are provided with

each sensor allowing for rapid unit

conversions.

Rugged, Self-cleaning Housing

The patented dome-shaped sensor

head facilitates runoff of dew and rain,

helping to keep the detector clean

and minimizing errors caused by dust

blocking the radiation path. Sensors are

housed in a rugged anodized aluminum

body and electronics are fully-potted.

Typical Applications

Applications include: UV radiation

measurement in outdoor environments

(sensor is not recommended for longterm

continuous outdoor deployment),

laboratory use with artificial light

sources (e.g., germicidal lamps), and

monitoring the filtering ability and

stability of various materials.

RUGGED, SELF-CLEANING HOUSING

Sensor features an anodized aluminum body with

fully-potted electronics. The dome-shaped sensor

head minimizes errors by shedding dust and water for

a self-cleaning performance.

CALIBRATION TRACEABILITY

Apogee UV-A series sensors are calibrated through

side-by-side comparison to the mean of four transfer

standard UV-A sensors under UV-enhanced T5

fluorescent tubes. The transfer standard UV sensors

are calibrated though side-by-side comparison to

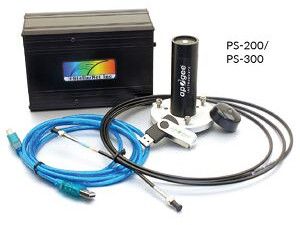

an Apogee model PS-300 spectroradiometer under

sunlight (clear sky conditions) in Logan, Utah. The

PS-300 is calibrated with a quartz halogen lamp

traceable to the National Institute of Standards and

Technology (NIST).

UV-A radiation is important in material sciences and has numerous photo-biological functions

that are both harmful and beneficial. Apogees new UV-A radiometers offer a low-cost option

for continuously measuring UV-A radiation in outdoor environments, laboratory settings, and

monitoring the filtering ability and stability of various materials

RUGGED, SELF-CLEANING HOUSING

Sensor features an anodized aluminum body with

fully-potted electronics. The dome-shaped sensor head

minimizes errors by shedding dust and water for a selfcleaning

performance.

HIGH QUALITY CABLE

Pigtail-lead sensors feature on IP68, marine-grade

stainless-steel cable connectors attached directly to the

sensor head to simplify sensor removal for maintenance

and recalibration.

CALIBRATION TRACEABILITY

Apogee UV-A series sensors are calibrated through

side-by-side comparison to the mean of four transfer

standard UV sensors under sunlight (clear sky conditions)

in Logan, Utah. The transfer standard UV-A sensors are

calibrated though side-by-side comparison to an Apogee

model PS-300 spectroradiometer under sunlight (clear sky

conditions) in Logan, Utah. The PS-300 is calibrated with a

quartz halogen lamp traceable to the National Institute of

Standards and Technology (NIST).

TYPICAL APPLICATIONS

Meteorology and Weather stations

Hatcheries and incubators

Climatic chambers and green houses

Storage rooms

Artificial snow machines

Battery operated devices

AERODYNAMIC SHAPE

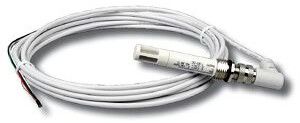

The Apogee EE08-SS is a customized version of the EE08 probe made by Austrian manufacturer E + E Elektronik. After years of evaluation, the EE08-SS has emerged as our sensor of choice over more expensive probes for accuracy, stability, and durability. The Apogee EE08-SS features an improved right angle, IP67 rated, stainless-steel M12 connector; heat-reflective white cabling; and a more durable, metal-grid dust filter. These features added by Apogee only slightly increase the price over the base model from E + E, but greatly improve the performance and reduce the maintenance of the probe, especially when used with a fan-aspirated radiation shield like the Apogee TS-100.

Apogee SP series pyranometers are calibrated through side-by-side comparison to the mean of four transfer standard sensors under a reference lamp. The reference sensors are recalibrated under sunlight in Logan, UT traceable to the World Radiometric Reference (WRR) in Davos, Switzerland.

TYPICAL APPLICATIONS

Solar panel arrays

Agricultural, ecological, and hydrological

weather networks

STABLE MEASUREMENTS

Long-term non-stability determined from multiple replicate pyranometers in accelerated aging tests and field conditions is less than 2 % per year.

UNIQUE DESIGN

A patented dome-shaped sensor head keeps the sensor clean and minimizes errors by shedding water. Sensors are housed in a rugged anodized aluminum body and electronics are fully-potted.

MOUNTING OPTIONS

Mount the SP-710-SS with an AL-130 albedometer mounting bracket or an AM-130 albedometer mounting fixture with a 12 rod. The SP-722-SS is mounted using an AM-150 mounting bracket or AM-500 mounting bracket. The AM-150 may be used to mount sensors directly to a solar panel

Typical Applications

Air temperature and humidity measurement in

weather networks, often for weather forecasting

The precise measurement of air temperature and

humidity gradients above the land surface

Climate change monitoring

Aerodynamic Shape

A curved inlet redirects air into the shield and funnels

it past the sensing area, which allows for a lower

power requirement than other fan-aspirated shields

on the market

Rugged, Low Power Fan

The fan has an ingress protection rating of IP55, which

minimizes moisture and dust ingress. Fan speed and

power can be further reduced when environmental

conditions warrant. If the fan is continuously operated

at full-speed, its lifetime is rated at 50, 000 hours (5.7

years). The fan includes a tachometer, which allows

RPM to be monitored to detect obstruction.

Purchasing Options

The TS-100/200 is a shield only model. The TS-110/210

comes with a discounted, pre-installed ST-110 precision

thermistor that provides 0.1 C uncertainty right out of

the box. Also available with EE08-SS relative humidity

probe (TS-120/220, TS-130/230).

TYPICAL APPLICATIONS

Chlorophyll concentration determination in

plant leaves

Assessment of nutrient status, fertilizer

requirements, evaluation of stress, and

optimization of harvest

NON-DESTRUCTIVE MEASUREMENTS

The meter measures the ratio of red and near infrared

transmittance with a sample rate of less than 3 seconds,

resulting in measurements that are non-destructive and nearly

instantaneous. This facilitates rapid measurement of multiple

leaves and monitoring of the same leaves over time.

LINEAR OUTPUT IN ABSOLUTE UNITS

Calibrated to measure chlorophyll concentration in units of

mol of chlorophyll per m. This eliminates problems with

relative measurements like SPAD, which is not linearly related

to chlorophyll concentration.

STORAGE CAPACITY AND

GEO-REFERENCING

Memory allocated to data storage allows for 160, 000 logged

measurements. A mini USB port allows for direct connection

to a computer to download data. An RS-232 port is available

for external GPS connection, allowing field data to be

geo-referenced. Storage capacity of geo-referenced data is

94, 000 measurements

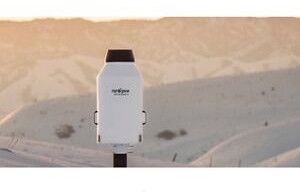

The Apogee Cloudburst weighing precipitation gauge measures

total precipitation from rain, snow, sleet, and hail with an algorithm

to correct for temperature, evaporation, and vibration.

The SG-400 series models are available in SDI-12 outputs. Inlet

options include heated or unheated, with 8-inch (900 mm / 35

inches capacity) or 200 cm2 (1500 mm / 59 inches capacity)

openings to meet National Weather Service (NWS) and World

Meteorological Organization (WMO) recommendations.

Features:

Rugged, large capacity, all-weather weighing precipitation gauge

with no moving parts

High-accuracy, stable, stainless steel load cell enables easy

recalibration or replacement when necessary

Black inlet adds natural solar heating, and heated inlet option

prevents snow from capping on top of the gauge

Algorithm to filter the influences of evaporation, vibration, and

temperature on measurements

Matches the research-quality measurements of competing

gauges at a lower price

Accurate measurements of important indoor

environmental parameters in one elegant device

Works as a stand-alone operation or integrates

into systems for greenhouses, grow rooms, and

vertical farms

Features: User-friendly, accurate datalogger with multiple

integrated sensors

PAR (SM-500) or ePAR (SM-600) sensor options

Data can be downloaded to smartphones or

dataloggers via Modbus or Bluetooth

Graphical summaries of data over days, weeks,

or months with the ApogeeConnect app for iOS

and Android

Can hang by thin wires or be mounted to a mast

Integrators should contact Apogee for

deployment opportunities

The heated precipitation detector measures precipitation frequency and length. The

heating component allows it to detect solid precipitation such as sleet, snow, and hail in

addition to liquid precipitation. By facilitating evaporation, it also increases the devices

accuracy in measuring precipitation timing, even in short duration precipitation events.

The heated precipitation detector can provide precise start and stop timing

measurements.

The heated precipitation detector is built to minimize power consumption by using the

minimum heater level required to maintain the desired temperature. The heater

settings are customizable by the user to either increase the heaters performance or

decrease the power consumption

Features: SDI-12 output

Customizable heater settings

Precise start & stop precipitation

timing measurements

Sensitive capacitance circuit for

accurate measurements

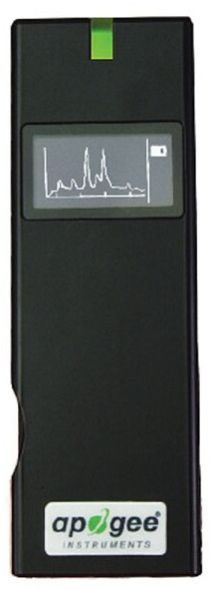

PORTABLE MEASUREMENTS

The MS-100 is small and lightweight, with a

rugged housing and minimal moving parts.

The spectroradiometer is self-powered to

take measurements anywhere, and the unit

can store measurements for dowloading to

a PC later.

MEASUREMENT MODES

PPFD

ePPFD

YPFD

TPFD

PFD-UV

PFD-B

PFD-G

PFD-R

PFD-FR

FR F

PPE

iPPE

CFI

CRI

CCT

Lux

R F-R R

Foot candle

LambdaP

LambdaD

CIE 1931 x & y

CIE 1976 u & v

Features : TYPICAL APPLICATIONS

Measurement of spectral output from radiation sources

used for growing in greenhouses, growth chambers, etc.

Measurement of solar spectra with changing

atmospheric conditions

Measurement of spectral reflectance on stationary

(e.g., agricultural or ecological weather stations and flux

towers), and mobile (e.g., plant phenotyping) platforms

COMPLETE PACKAGE

The InSight package includes a carrying case,

MS-100, a protective case, a quickstart guide,

mini-USB cable, power adapter, Modbus

communication board, neck strap screw, and

neck strap. The Apogee InSight software is

available at

Features: TYPICAL APPLICATIONS

Measurement of spectral output of radiation

sources for plant or human lighting

Reflectance and transmittance measurements of

natural and synthetic surfaces and materials

Absorptance measurements of chemical samples

THREE WAVELENGTH OPTIONS

350 to 1000 nm

300 to 830 nm

300 to 1000 nm

PORTABLE FIELD MEASUREMENTS

Features a small and lightweight design with a rugged housing and no moving parts. Spectroradiometer is powered through the USB port on a computer allowing mobile field measurements

COMPLETE PACKAGE

Includes spectroradiometer, two meter fiber-optic cable, cosine-corrected detector, USB cable, USB drive with required drivers and software (compatible with all 32-bit and 64-bit Windows operating systems), and shoulder bag (functions as a carrying case and field measurement pack). A reflectance probe and reflectance standard are available as accessories.

Features: TYPICAL APPLICATIONS

Measurement of spectral output of radiation

sources for plant or human lighting

Reflectance and transmittance measurements of

natural and synthetic surfaces and materials

Absorptance measurements of chemical samples

THREE WAVELENGTH OPTIONS

350 to 1000 nm

300 to 830 nm

300 to 1000 nm

PORTABLE FIELD MEASUREMENTS

Features a small and lightweight design with a rugged housing and no moving parts. Spectroradiometer is powered through the USB port on a computer allowing mobile field measurements.

COMPLETE PACKAGE

Includes spectroradiometer, two meter fiber-optic cable, cosine-corrected detector, USB cable, USB drive with required drivers and software (compatible with all 32-bit and 64-bit Windows operating systems), and shoulder bag (functions as a carrying case and field measurement pack). A reflectance probe and reflectance standard are available as accessories

Apogees NDVI sensors are designed

to measure reflectance in red and near

infrared wavebands to calculate the

normalized difference vegetation index

(NDVI). NDVI is a measurement of

plant greenness correlated with canopy

chlorophyll content and leaf area that is

used to monitor green-up in the spring

and senescence in the fall.

NDVI sensors are used to ground

truth NDVI measurements taken from

satellite imagery and continuously

monitor plant health in the field and in

controlled environments.

Features: KEY FEATURES

Digital SDI-12 output is standard with analog options available by request. Domed diffuser promotes self-cleaning to minimize errors from dust and debris.

HIGH QUALITY CABLE

Pigtail-lead sensors feature an IP68, marine-grade stainless-steel cable connectors attached directly to the sensor head to simplify sensor removal for maintenance and recalibration.

FOR BEST MEASUREMENTS

For best results, we recommend pairing upward-looking sensor(s) with downward-looking sensor(s).

Features: TYPICAL APPLICATIONS

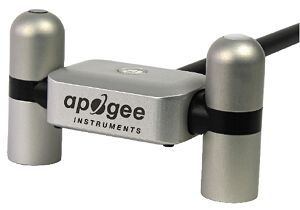

Net radiation is a key variable in the surface energy balance and influences turbulent fluxes, including evapotranspiration. Applications include measurements on flux towers and weather stations.

DIGITAL OUTPUT

An on-board 24-bit analog to digital converter makes measurements and provides a digital SDI-12 (SN-500) or Modbus (SN-522) output. This eliminates the need for multiple analog datalogger channels to measure each of the four components

of net radiation.

HIGH ACCURACY

Measure all four components of net radiation with a digital output that saves datalogger channels. Comparable accuracy to industry-leading competition in long-term field testing.

COMPACT & LIGHTWEIGHT

The small lightweight design enables easy mounting to a cross arm using the AM-500 mounting bracket, which facilitates precision leveling.

HEATED SENSORS

Each sensor includes a 0.2 W heater to minimize errors from dew, frost, rain, and snow that can block the radiation path.

Apogee

DLI meters are a rugged,

simple-to-use device for spot

checking PAR or ePAR levels

while automatically recording

the daily light integral and

hours of light (photoperiod)

for up to 99 days.

Features: Live photosynthetically active radiation (PAR)

or extended PAR (ePAR) measurements

Logs and displays 99 days of:

Daily Light Integral (DLI)

Photoperiod to 0.1 hours

View data on-screen or download via USB-C port

-20 threaded mounting socket for use with

common camera tripods, etc

Rugged and splashproof

Scientific-grade accuracy

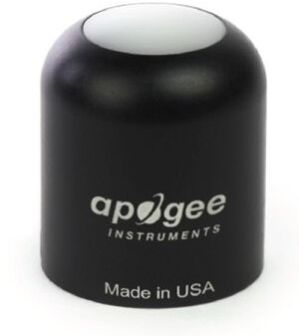

The new Apogee PAR-FAR sensor is a research-grade tool for measuring both the traditional PPFD photosynthetic photon flux and separately quantifying the photon flux of far-red photons (700-760 nm). The outputs include the traditional quantum flux, the far-red photon flux, and the far-red fraction (far-red photon flux density / sum of PPFD and far-red photon flux density). This sensor quantifies far-red photons, and for many applications it reduces the need for a more complex measurement with a spectroradiometer

Features: TYPICAL APPLICATIONS

Monitoring plant light environments

Research plant morphogenic activity

Photobiology studies

KEY FEATURES

Digital SDI-12 output is standard with analog and Modbus options available. A domed diffuser promotes self-cleaning to minimize errors from dust and debris.

HIGH QUALITY CABLE

Pigtail-lead sensors feature IP68, marine-grade stainless-steel cable connectors attached directly to the sensor head to simplify sensor removal for maintenance and recalibration

Lighting quality is just as important as lighting quantity. In addition to measuring total PPFD, the Portable Spectroradiometer splits light to individually measure each color intensity or wavelength. Spectral output measurements can be used to maximize lighting efficiency, change the light characteristics to mimic seasonal changes, optimize visual appearance of displays, and many other applications

Features: Wavelength Options

340 to 820 nm (SS-110) and 635 to 1100 nm (SS-120) wavelengths.

Complete Package

Includes spectroradiometer and cosine-corrected detector mounted in the housing, 180 FOV head, AL-200 bubble-level, USB cable for computer interface, carrying case, and USB drive with required drivers and software (Windows compatible, XP and later; Mac compatible, 10.9 and later).

Unattended Field Measurements

Spectroradiometer is small and lightweight with all measurement components contained in the durable, waterproof housing. Power consumption is low (1 W at 12 V DC) with automatic temperature compensation.

Typical Applications

Measurement of spectral output of radiation sources for plant or human lighting, reflectance and transmittance measurements of natural and synthetic surfaces and materials (often plant leaves and canopies), and absorptance measurements of chemical samples.

Features:

Output Options

0 to 114 mV

0 to 2.5 V

Accurate, Stable Measurements

Long-term non-stability determined from multiple replicate pyrgeometers in accelerated aging tests and field conditions is less than 2 % per year.

Unique Design

Designed to optimize performance and price. The patented dome-shaped aluminum head is completely waterproof and minimizes errors by shedding water and dirt. All electronics are fully-potted.

On-board Heater

A 0.2 W heater keeps water off the sensor and minimizes errors caused by dew, frost, rain, or snow blocking the radiation path.

Typical Measurement Applications

Longwave radiation measurement in

agricultural, ecological, and hydrological

Weather networks and renewable energy

applications.

Many plants are affected by interruptions in dark periods even by extremely dim light. Apogees new Quantum Light Pollution Sensor is designed to detect photons from 340-1040 nm that are below the sensitivity level of a typical quantum sensor. Detecting stray photons that disrupt the night is critical in preventing negative effects in plants such as plant hermaphrodism and stunted growth. The patented, dome-shaped aluminum head is cosine-corrected, self-cleaning, and fully-potted for a waterproof design

Features: TYPICAL APPLICATIONS

Incoming PFD measurements over plant canopies

in indoor greenhouses or in growth chambers,

and reflected or under-canopy (transmitted) PFD

measurements in the same environments

Measuring extremely dim light that may cause

interruptions in plant dark periods

MULTIPLE OUTPUT OPTIONS

Analog

4 to 20 mA

SDI-12 output

ACCURATE, STABLE MEASUREMENTS

Cosine-corrected with directional errors less than 5 % at a solar zenith angle of 75. Long-term non-stability less than 2 % per year.

HIGH QUALITY CABLE

Pigtail-lead sensors feature on IP68, marine-grade stainless-steel cable connectors attached directly to the sensor head to simplify sensor removal for maintenance and recalibration

CALIBRATION TRACEABILITY

Apogee Instruments SQ-600 series quantum sensors are calibrated through side-by-side comparison to the mean of four transfer standard quantum sensors under a reference lamp. The transfer standard quantum sensors are recalibrated with a quartz halogen lamp traceable to the National Institute of Standards and Technology (NIST).

On calm, clear nights leaf temperatures can drop well below air temperature. A radiation frost occurs when frost forms on the surface before the air temperature reaches freezing. The Apogee radiation frost dectector contains a high accuracy thermistor mounted in a rugged housing. The thermistor mimics a leaf, which provides estimates of leaf temperatures when monitoring radiation frost events

Features: Thermistor accuracy is 0.1 C across a range of 0 to 70 C, providing accurate measurements at temperatures near zero where frost damage is likely to occur.

Output Options

Analog and digital output options include an unamplified voltage output or SDI-12 communication protocol.

Typical Applications

Applications include leaf temperature estimates in crop fields, orchards, and vineyards. Leaf temperatures returned by the detector can then be used to alert growers to the potential of frost damage to crops.

Apogee Red - Far-Red sensors combine two photodetectors designed to measure wavelength ranges and peaks that approximate phytochrome absorption. The red / far-red ratio can be calculated from these measurements. Red and far-red wavelengths are of particular interest because they influence photosynthetic and morphogenic activity. Phytochrome pigments sensitive to varying ratios of red and far-red light provide information to the plant about its light environment

Features: TYPICAL APPLICATIONS

Monitoring plant light environments

Research plant morphogenic activity

Photobiology studies

KEY FEATURES

Digital SDI-12 output is standard with analog and Modbus options available. A domed diffuser promotes self-cleaning to minimize errors from dust and debris.

HIGH QUALITY CABLE

Pigtail-lead sensors feature on IP68, marine-grade stainless-steel cable connectors attached directly to the sensor head to simplify sensor removal for maintenance and recalibration.

The ST-100 has a waterproof housing and is designed for measuring soil and water temperature. The ST-110 minimizes solar load and thermal conduction to accurately measure air temperature. The ST-200 measures delicate or small surfaces with a fast response time.

Features: ST-150 PRT

The ST-150 is a 1/8 inch, Class A PRT with an IP67 rating. White heat shrink is used on the cable behind the PRT to minimize heat transfer to the sensor. PRT sheath dimensions are 3.18 mm diameter and 57.15 mm length, minimizing thermal mass.

ST-300 PRT

The ST-300 is a high accuracy PRT designed to minimize solar load and thermal mass. White heat shrink is used on the cable behind the PRT to reduce solar load. PRT sheath dimensions are 3.18 mm diameter and 57.15 mm length, minimizing thermal mass.

The new Apogee Cache (microCache) is a rugged, battery-powered, Bluetooth Low

Energy, single-sensor datalogging device that currently interfaces with most Apogee

analog sensors. When used as a standalone field-logging device, the unit features enough

memory to store 9 months of 1-minute data using the internal battery. Data can be viewed

on your mobile device using our free Apogee Connect App software for iOS and Android

devices. ApogeeConnect features live meter mode, real-time graphing, and the ability to

wirelessly transmit datasets to your computer

Features: Stores and transmits real-time data to iOS and

Android devices

View and download data with ApogeeConnect

app for mobile devices

Programmable sampling and logging intervals

Live meter and datalogger modes

Large capacity: 9 months of data at a 1-minute

logging interval

High resolution 24 bit analog-to-digital converter

IP67 rated for harsh environments

Works with Apogee quantums, pyranometers,

infrared radiometers. and more. See our

website for a current list of compatible

sensors

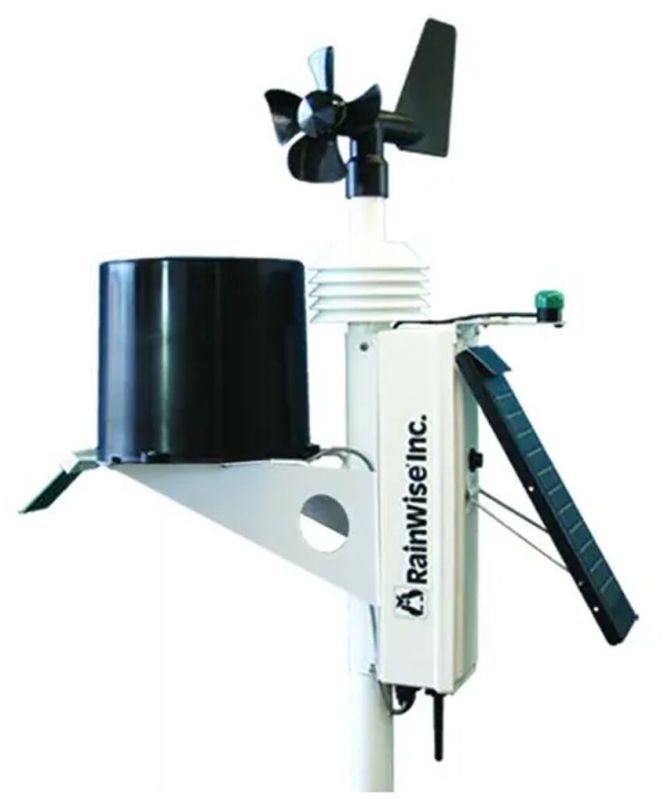

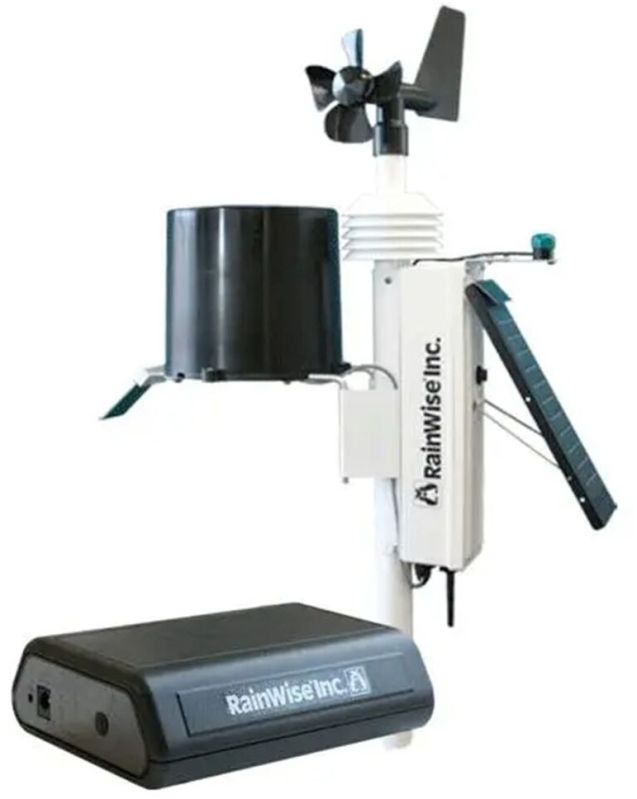

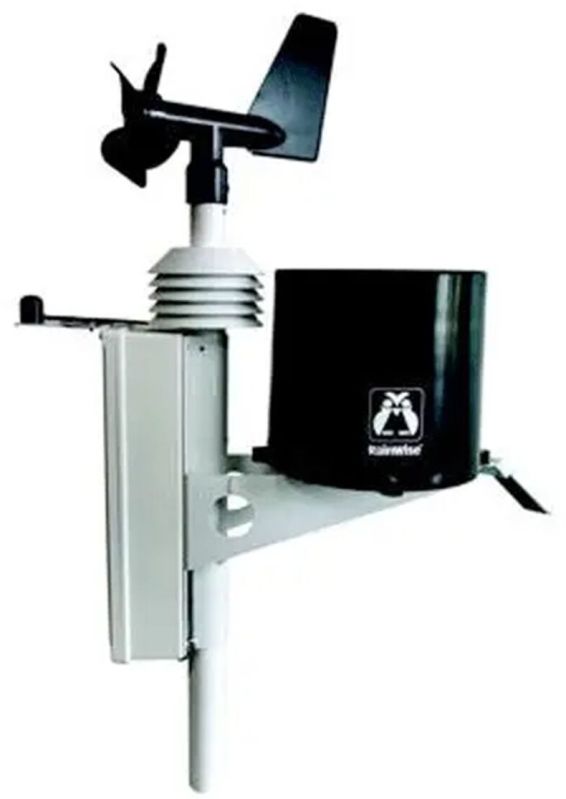

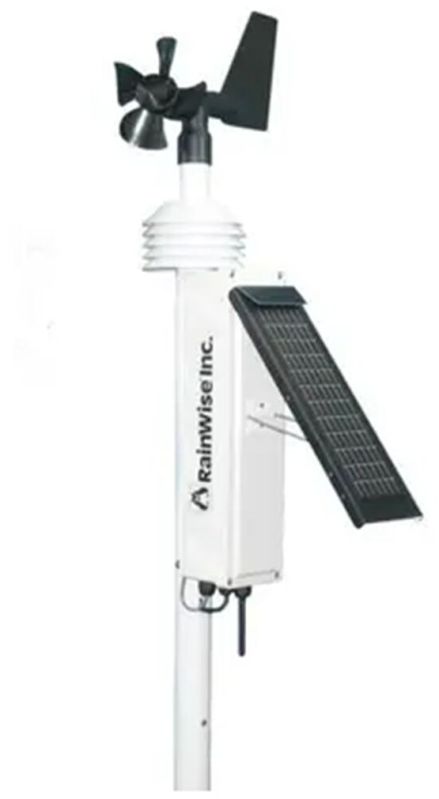

The AgroMET is a wireless, solar-powered weather station made

with the grower in mind, providing the best accuracy of any

consumer weather station on the market. This compact, rugged

and elegantly designed unit comes fully assembled providing

quick and easy installation.

Known for our accurate and reliable sensor assembly, the

AgroMET has several groundbreaking features:

1) Transmission range of up to one mile (when positioned with

an unobstructed line-of-site view to the receiver) that surpasses

the current long range distance of 1000 feet;

2) Rapid data refresh rate of every 2 seconds makes receiving

your data virtually real-time;

3) No local computer is needed to process, transmit or store

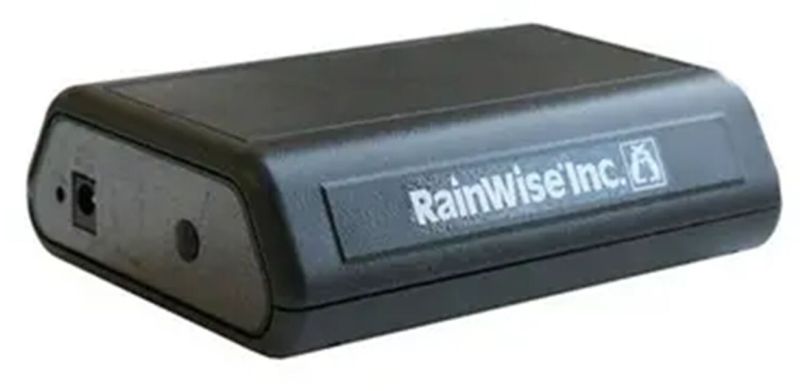

your data; the IP-100 network interface (purchased separately)

links your weather station directly to our cloud-based website

for multiple viewing options including Internet, iPhone and iPad.

The IP-100 also allows for direct integration with Network for

Environment and Weather Awareness (NEWA) website where

available.*

4) The AgroMET includes our tipping bucket rain gauge - the

tipping bucket design was originally developed by RainWise in

1974 and has become the industry standard for rain gauges!

5) Our unique aervane design: others use 3-cup anemometers

that are susceptible to collecting water that can cause freezing

and breaking, leading to repeated down time and ongoing

expensive replacements. Our trademark rotary blade design

eliminates this concern. In addition our design utilizes an

internal, contact-free magnetic system that provides constant

horizontal wind tracking, leaving no mechanical parts to wear

out over time and require replacement. Finally, our aervane is

crafted in such a way as to minimize crevices in the body that

would be susceptible to ice build-up causing downtime and

breakage.

The AgroMETs lightweight and compact design makes

installation quick and easy. Various mounting options are

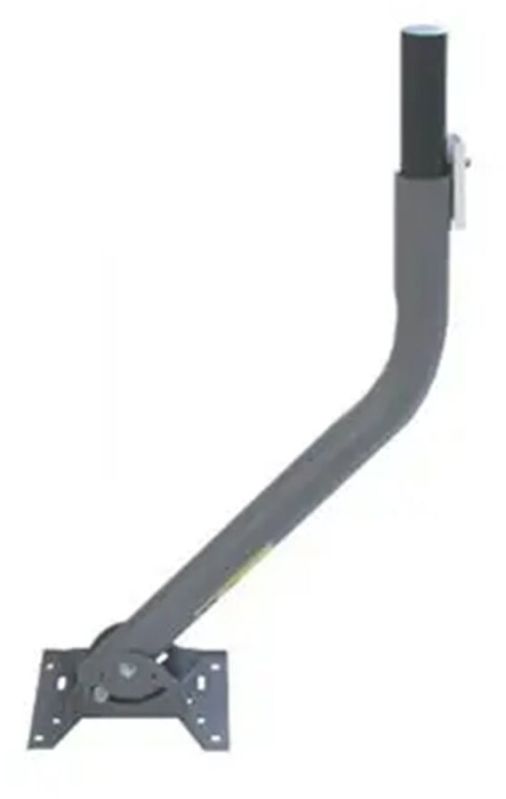

available including the RainWise Mono Mount. The AgroMET is

supplied with a detachable mast section that can be secured to

an existing structure.

Accessing your Data

The AgroMET send directly to the IP-100 Network Interface (sold separately) allowing for

multiple display options including our RainwiseNet cloud-based data host and web portal page

and our iPhone & iPad apps.

*If you live in select areas of the Northeastern US your data can be directly uploaded to the

Network for Environment and Weather Awareness (NEWA) website for use with their Integrated

Crop Management forecasting service. (See for more information)

The AgroMET is a wireless, solar-powered weather station made

with the grower in mind, providing the best accuracy of any

consumer weather station on the market. This compact, rugged

and elegantly designed unit comes fully assembled providing

quick and easy installation.

Known for our accurate and reliable sensor assembly, the

AgroMET has several groundbreaking features:

1) Transmission range of up to one mile (when positioned with

an unobstructed line-of-site view to the receiver) that surpasses

the current long range distance of 1000 feet;

2) Rapid data refresh rate of every 2 seconds makes receiving

your data virtually real-time;

3) No local computer is needed to process, transmit or store

your data; the IP-100 network interface (purchased separately)

links your weather station directly to our cloud-based website

for multiple viewing options including Internet, iPhone and iPad.

The IP-100 also allows for direct integration with Network for

Environment and Weather Awareness (NEWA) website where

available.*

4) The AgroMET includes our tipping bucket rain gauge - the

tipping bucket design was originally developed by RainWise in

1974 and has become the industry standard for rain gauges!

5) Our unique aervane design: others use 3-cup anemometers

that are susceptible to collecting water that can cause freezing

and breaking, leading to repeated down time and ongoing

expensive replacements. Our trademark rotary blade design

eliminates this concern. In addition our design utilizes an

internal, contact-free magnetic system that provides constant

horizontal wind tracking, leaving no mechanical parts to wear

out over time and require replacement. Finally, our aervane is

crafted in such a way as to minimize crevices in the body that

would be susceptible to ice build-up causing downtime and

breakage.

The AgroMETs lightweight and compact design makes

installation quick and easy. Various mounting options are

available including the RainWise Mono Mount. The AgroMET is

supplied with a detachable mast section that can be secured to

an existing structure.

Features

Temperature Sensor

Humidity Sensor

Wind Speed sensor

Wind Direction Sensor

Barometer

Adjustable Solar Panel

Rain Gauge

Solar Radiation

Leaf Wetness sensor

Optional Ground Temperature

Sensor

1 mile line-of-site transmission

2-Year Warranty

Easy to install

Solid Construction

100% Made in the US

Accessing your Data

The AgroMET send directly to the IP-100 Network Interface (sold separately) allowing for

multiple display options including our RainwiseNet cloud-based data host and web portal page

and our iPhone & iPad apps.

*If you live in select areas of the Northeastern US your data can be directly uploaded to the

Network for Environment and Weather Awareness (NEWA) website for use with their Integrated

Crop Management forecasting service. (See for more information)

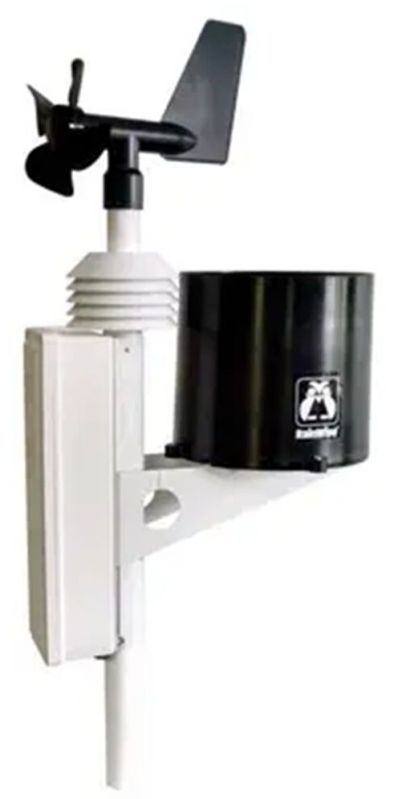

The RainWise MB series of fully assembled, compact wired weather stations offer an economical option

for many Industrial applications. Equipped with the Modbus RTU interface, the RainWise MB line easily

integrates with building automation, large argricultural operations, and industrial control systems.

Based on the popular RainWise MK-III wireless sensor assembly, parameters include: wind speed, wind

direction, barometric pressure, humidity, temperature, rainfall. Leaf wetness and solar radiation are

available in the agricultural model.

The RainWise MB series provides instantaneous, on-site weather data for operational decisions in

public safety and industries affected by weather conditions. All sensor measurements meet the exacting

requirements of users in demanding applications where cost, quality and performance are essential.

The RainWise MB line enables easy connectivity of our premier weather stations to any system

supporting the industry standard Modbus protocol. Seamlessly communicating with either a remote

programmable controller or integrated control system, the RainWise MB line of stations provide

crucial environmental data needed to monitor and carry out actions based on meteorological

conditions such as wind speed, wind direction, temperature and many other weather based

variables. Optional NIST certification of sensors is also available.

Typical Modbus based systems include-

PLCs (Programmable Logic Controller)

RTUs (Remote Telemetry Unit)

SCADA (Supervisory Control and Data Acquisition) Systems

DCS (Distributed Control System)

BMS (Building Management System)

Agricultural Irrigation Systems

Instructions for replacement of the reed switch assembly

1. Loosen the 4 Phillips head screws at the base of the collection bucket.

2. Twist the collection bucket counter-clockwise and remove it from the base.

3. Observe the tipper assembly and note the two axle supports holding it in position.

4. On top of each axle support is an eccentric washer with a screw holding it in

place. Loosen and remove the washer on each support.

5. Remove the tipper assembly (tipper, axle and brass eyelets) being careful not to

loose the eyelets.

6. Observe and remove the switch assembly by loosening the Phillips screw.

7. Cut the two wires on the existing switch assembly at the circuit board leaving

approximately two inches of each wire exposed on the base.

8. Place the new switch assembly in the same manor and position as the former

assembly. Screw it into the base.

9. Strip the insulation from the wire ends and use the provided wire nuts to complete

the switch replacement.

10. Replace the tipper assembly and eccentric washers.

11. The washers can be turned in conjunction to position the tipper with respect to the

switch. The contact between each washer and eyelet allows for this positioning.

Ideally, the distance between the magnet and switch should be between and 1/8

of an inch.

12. Once the position of the tipper is established, tighten the eccentric washers. There

should be some movement of the tipper on the axle, approximately 1/32 of an

inch.

13. Verify proper operation by replacing the collection bucket back on the base and

pouring a small amount of water through the collector to facilitate tipping of the

assembly. You will hear it tip. Each tip should account for a 1/100 inch

increment on the counter or display.

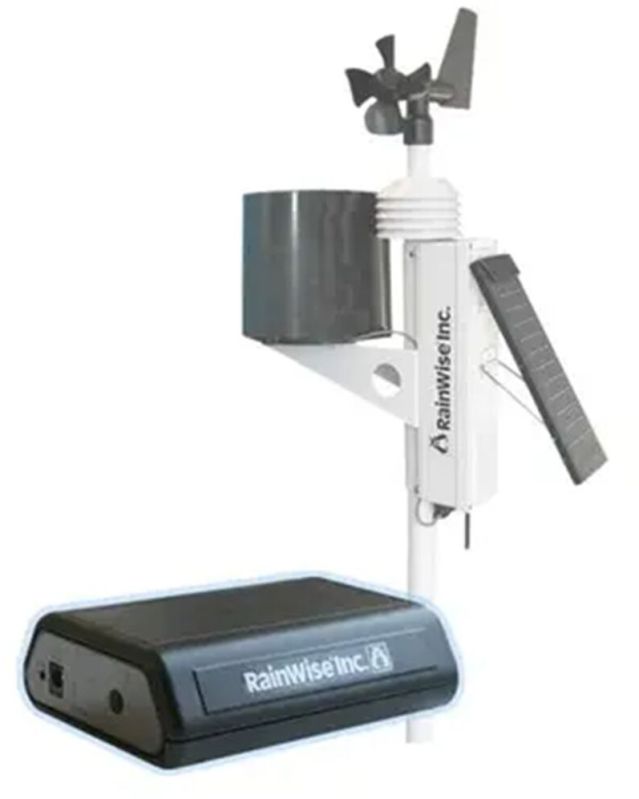

The IP-100 network interface facilitates a way of gathering and transmitting weather data to

multiple formats over a network connection. RainwiseNet is our web data hosting service

designed to monitor and forecast weather data received from RainWise weather stations.

RainwiseNet also provides live links to many other online weather portals, including Weather

Underground, to share data. IPhone and Android apps are also available to view your data

anytime, anywhere

The Professional All-Purpose Compact Weather Station

The RainWise MB line enables easy connectivity of our premier weather stations to any system supporting the industry-standard Modbus protocol. The MK-III-RTI-MB offers the desired selection of sensors for many industrial and building automation applications as well as transportation and environmental usage and monitoring systems

Long Range MK-III Weather Station without Rain Gauge

The MK-III weather station offers improved durability and serviceability. This sleek new design is 33 inches high and weighs just over 7 pounds. It is the most accurate, durable and easiest to install weather station available.000

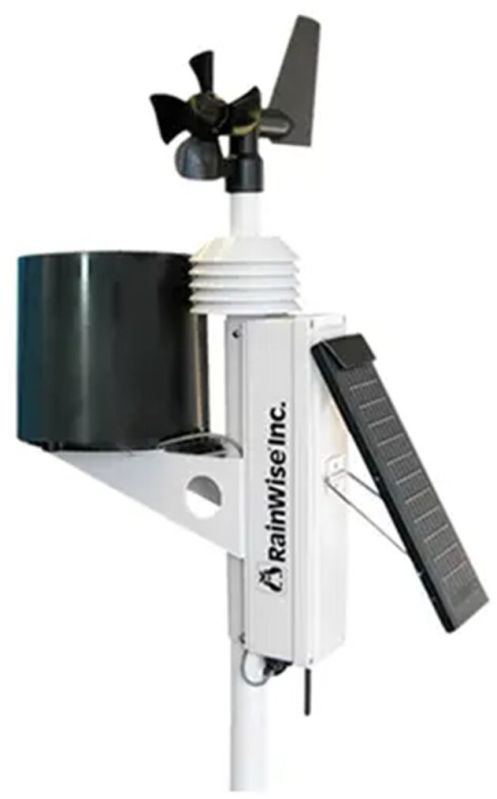

Long Range MK-III Weather Station with Integrated Rain Gauge

The MK-III sensor assembly has been designed to offer improved durability and serviceability. This sleek new design is 33 inches high and weighs just over 7 pounds. It is the most accurate, durable and easiest to install weather station available.

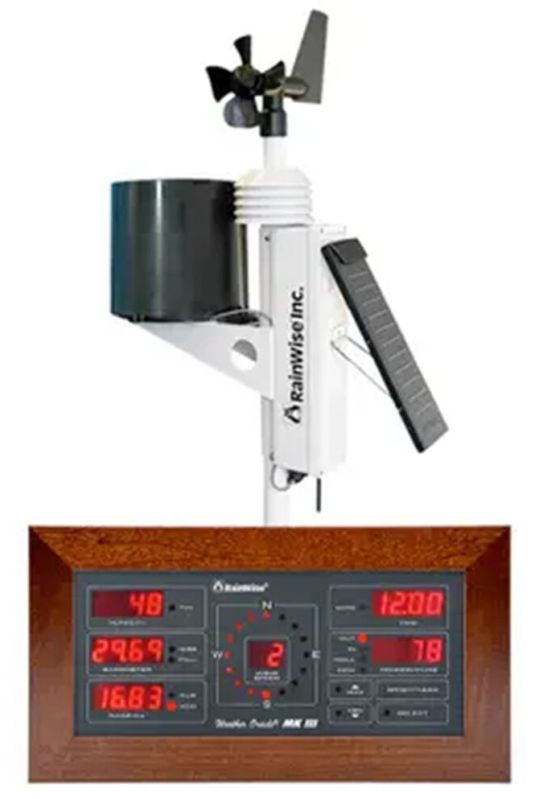

MK-III Weather Station with Oracle Digital Multi-Display

The foundation of every RainWise package is the MK-III weather station. This package includes the MK-III-LR and our Oracle Multi-Display. The MK-III is the most accurate, easy-to-install and durable weather station available.

Due to a supplier change, Display frame colors and styles may vary

The Mono Mount is a flexible mounting alternative to the standard 3-foot tripod. It's quick and easy to install and can be mounted on a pitched or flat roof as well as a vertical surface such as a gable end.

Multi-display for the MK-III-LR Weather Station

The Oracle Multi-Display receives the weather instrument data via radio signal from the MK III-LR weather station.

Due to a supplier change, Display frame colors and styles may vary

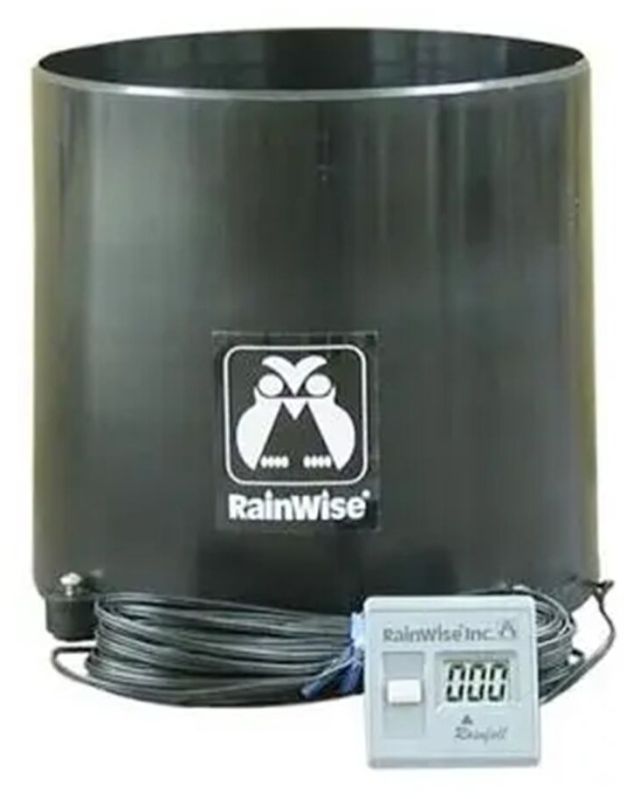

Installation and Operation

of the Rainew Tipping

Bucket Rain Gauge

The Rainew Tipping bucket rain gauge by RainWise

is the culmination of over thirty years of experience as

the largest manufacturer of rain gauges in the world.

Follow these easy instructions and you will experience

years of trouble-free operation and enjoyment from your

rain gauge.

1. The following items should be included in the

shipping box:

* The Rain Gauge

* Connecting Cable (this cable can not be buried)

* The Display

2. Determine a location for the Rain Gauge keeping in mind the following guidelines:

a. Choose a flat, level surface at least one foot above the ground.

b. Make sure the area is open with no overhanging

obstructions.

c. Avoid mounting the gauge on a steel or iron surface.

d. Locate the display inside.

3. Back out the four (4) screws holding the collector onto the base until it can be rotated to a point

where the collector can be removed from the base. Remove the collector. Using the four (4)

screws supplied with the gauge, mount the base at the location you determined in Step 2. Do not

replace the collector.

4. Run the wire from the gauge to the location of the display. You can run the wire through a window

if you are careful not to cut the wire when the window is closed. The cable can not be buried.

5. Plug the connector on the cable into the receptacle in the counter.

6. Move the dipper in the bottom of the Rain Gauge base back and forth. You should see a count on

the display for every tip of the bucket (0.01 per tip). Zero the counter.

7. Place the Rain Gauge collector back onto the base, rotating the collector until the ears are fully

under the screw heads. Tighten the screws until they are snug (Do not over tighten). This

completes the installation.

NOTE: a) The counter is powered by an alkaline button battery # 357 and should last at least a year.

To change the battery, you will need to locate a one inch slot on either side of the back. If you look

into the slot , you will see a pressure tab. Using a small flat blade screw driver, place the end of the

screwdriver between the edge of the case and the tab. Slightly twist. The case should separate. The

battery is located in the silver clip. It will slide out either from the top or bottom. A replacement battery

may be obtained at most drug or hardware stores. b) If your collector becomes obstructed and

you remove the cotter pin to clean the rain inlet, please remember to bend the legs back up out

of the way, when reinstalling, so that it doesnt interfere with the tipping bucket.

Warranty Information:

Our rain gauges have a lifetime warranty on the gauge. The electronics (counters and switches) are

guaranteed for one year. There is also a $15.00 shipping and handling charge on repairs. Please

enclose a brief note, daytime phone number and current shipping address when returning a rain

gauge for repair. We will call with your repair cost.

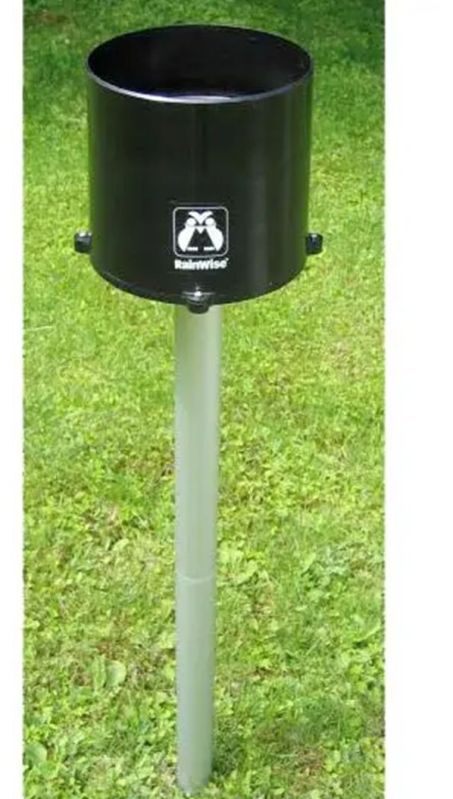

The RainLog 2.0 is the ideal solution for monitoring rainfall amounts in remote locations. When used in

conjunction with a precipitation gauge or rain gauge the system constitutes a complete stand-alone

measuring and recording system. It can be left in the field for months or even years of uninterrupted data

logging due to its large memory and low power consumption.

The RainLog 2.0 is supplied with the RL-Loader software. This software is free, user friendly, and

intuitive. It allows the user to view the data graphically and export it to any third party software.

The ML-01 sensor is the link between the reference cell and broadband thermopile pyranometer. Compared to the reference sensors it has a proper cosine repose and it is relatively compact, but benefits from the same characteristics as a PV module (Response time, Spectral and temperature response).

The MS-40 is an ISO 9060:2018 Class C pyranometer which is based on the EKOs universal sensor platform. It is the most cost effective irradiance sensor to measure Solar irradiance across the full Solar spectrum.

The MS-60 is a ISO 9060:2018 Class B (First class) pyranometer with analog output and improved performance. The new double dome construction provides lower offsets and cosine errors

The compact sensor with single dome is immune to offsets and integrates all value-added functions such as a ventilator, heater and different industrial interfaces.

The RainWise solar irradiance sensor is an excellent add-on to the MK-III weather station. This small, precise sensor is hand tested and calibrated at our factory.

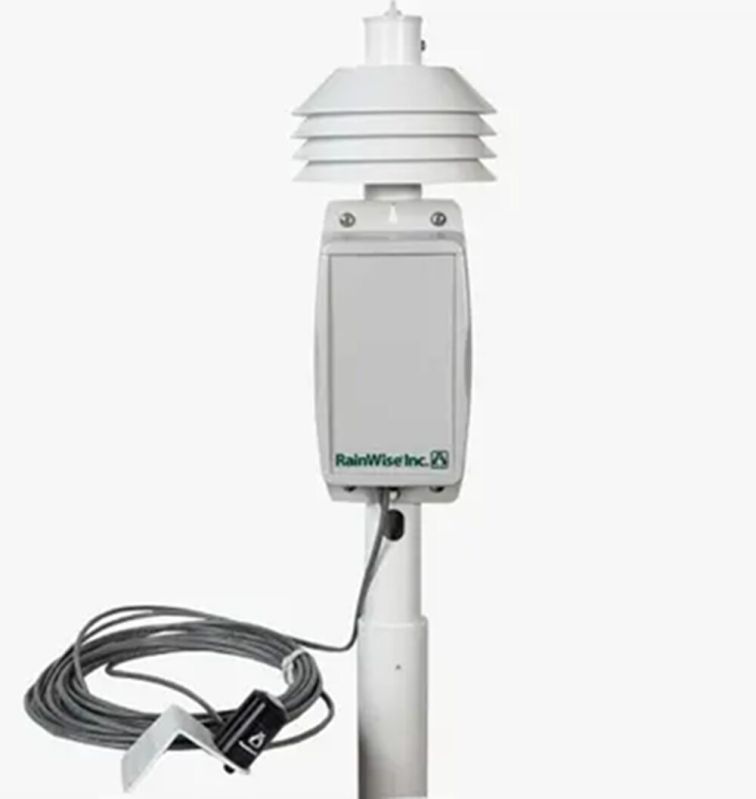

The PVMet 75 is a compact and lightweight solar monitoring station featuring a Global or Plane-of-Array Irradiance Sensor, one or two Back-of-Panel Temperature Sensor(s), and an Ambient Air Temperature Sensor. Simple to install on any solar project, the PVMet 75 connects to Modbus RTU Communication with an ethernet TCP option available. Ships fully assembled and factory calibrated.

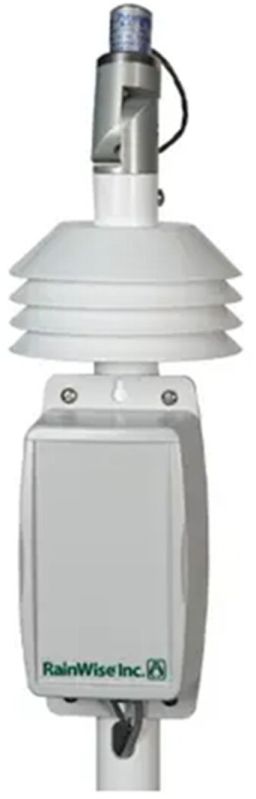

The PVMet 100 includes all the same sensor options as the PVMet 75 but offers an adjustable EKO ML-01E Irradiance Sensor that can be set to provide Global or Plane-of-Array Irradiance. The adjustable option provides installers the flexibility to match the sensor to the PV panel angle. Compact and simple to install on any solar project, the PVMet 100 connects to Modbus RTU Communication with an ethernet TCP option available. Ships fully assembled and factory calibrated.

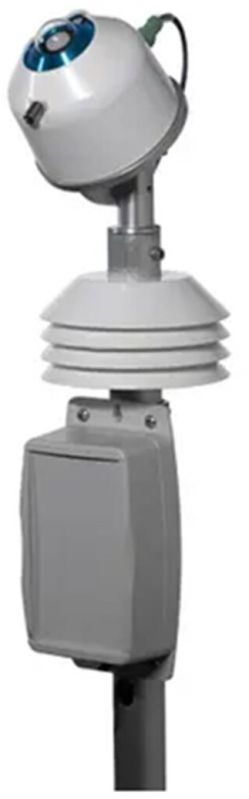

The PVMet 150 offers a precise thermopile pyranometer for optimal performance alongside an adjustable Global or Plane-of-Array Irradiance Sensor, one or two Back-of-PV Panel Temperature Sensor(s), an Ambient Air Temperature Sensor, and the option for an additional Irradiance Sensor. Simple to install on any solar project, the PVMet 150 connects to Modbus RTU Communication with an ethernet TCP option available. Ships fully assembled and factory calibrated.

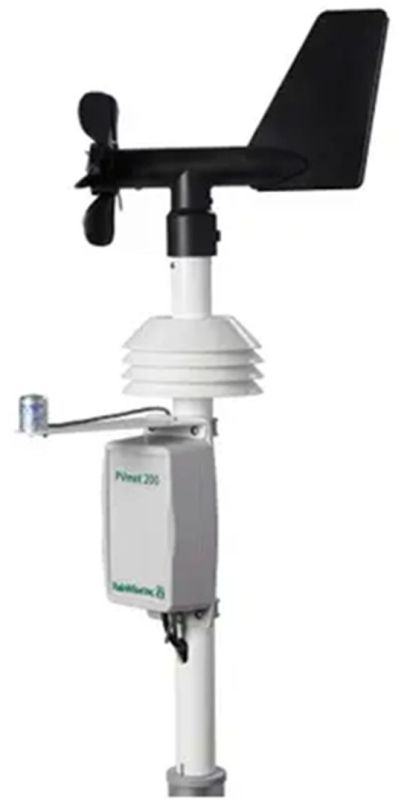

The PVMet 200 is our best-selling commercial model featuring the highest caliber PV and wind sensors. The PVMet 200 includes an option for both a Global and Plane-of-Array Irradiance Sensor, one or two Back-of-Panel Temperature Sensor(s), an Ambient Air Temperature Sensor, and a Wind Speed and Direction Sensor. Simple to install on any solar project, the PVMet 200 connects to Modbus RTU Communication with an ethernet TCP option available. Ships fully assembled and factory calibrated.

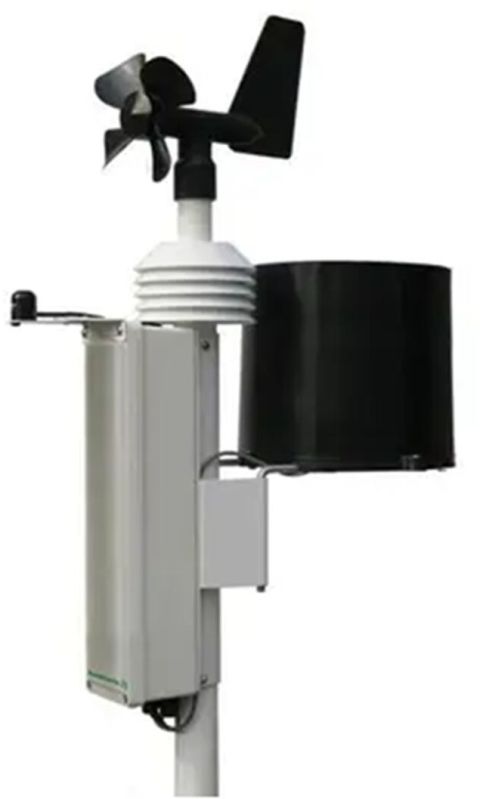

The PVMet 330 is a complete monitoring experience with our full range of sensors to optimize PV power generation. The PVMet 330 includes an option for both a Global and Plane-of-Array Irradiance Sensor, one or two Back-of-Panel Temperature Sensor(s), an Ambient Air Temperature Sensor, a Wind Speed and Direction Sensor, a Relative Humidity Sensor, a Barometric Pressure Sensor, and a Rain Gauge Sensor. Simple to install on any solar project, the PVMet 330 connects to Modbus RTU Communication with an ethernet TCP option available. Ships fully assembled and factory calibrated.

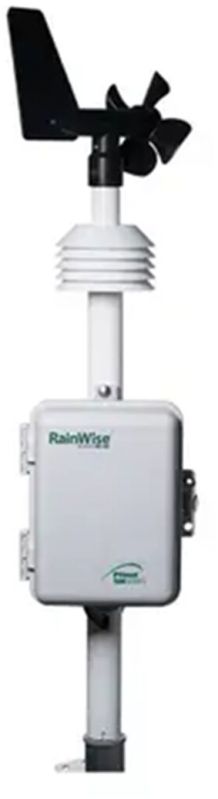

The PVMet 500 delivers a customizable, multi-point monitoring solution that provides reliable energy management on any solar project. Choose up to three Irradiance Sensors and three Back-of-Panel Temperature Sensors along with three standard sensor options and an optional Ultra Sonic Anemometer, Mini Aervane, or Rain Gauge. Simple to install on any solar project, the PVMet 500 connects to Modbus RTU Communication with an ethernet TCP option available. Ships fully assembled and factory calibrated

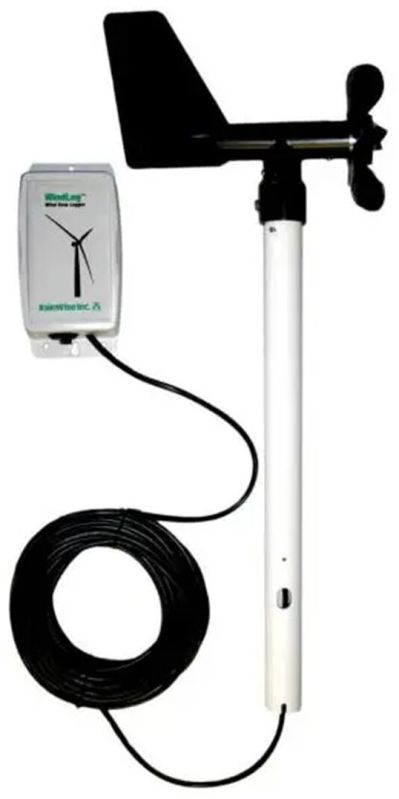

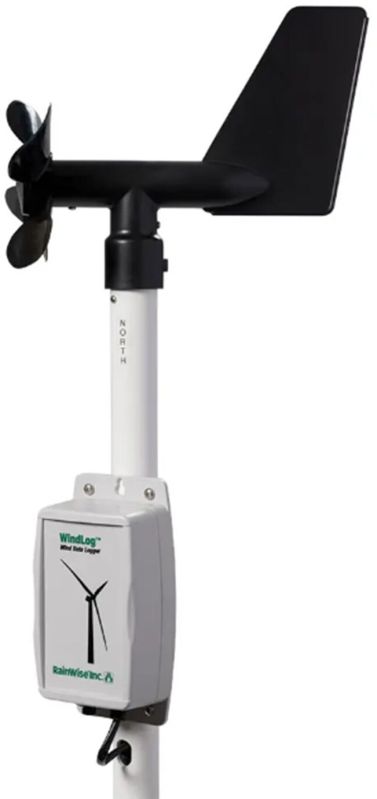

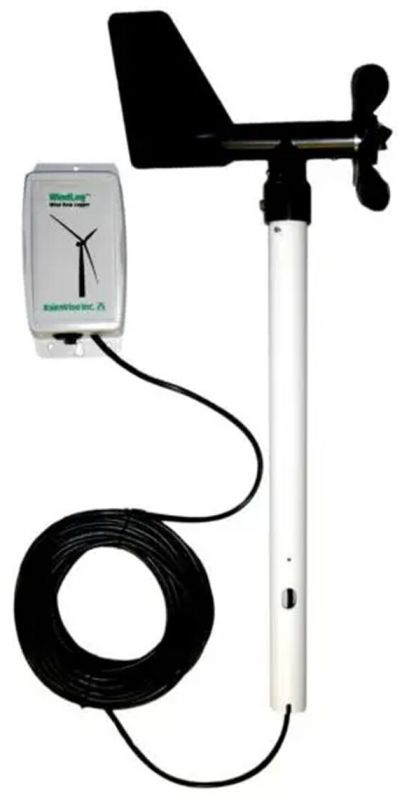

The WindLog is a compact wind data logger designed to accurately measure and record wind speed, direction, and gust for optimizing turbine placement and performance. Includes WindSoft free software package to generate statistics, graphs, and reports.

An enclosed 12dBI antenna with a wide 45 beam angle. Improves the range and signal strength of the 2.4 GHz transmitters. It is easy to install and can replace standard 2.1dBi omnidirectional antennas.

Professional Agricultural Weather System with Cloud Web Hosting

The superior technology of the AgroMET Weather Station with the addition of the IP-100 to upload your weather data to the web

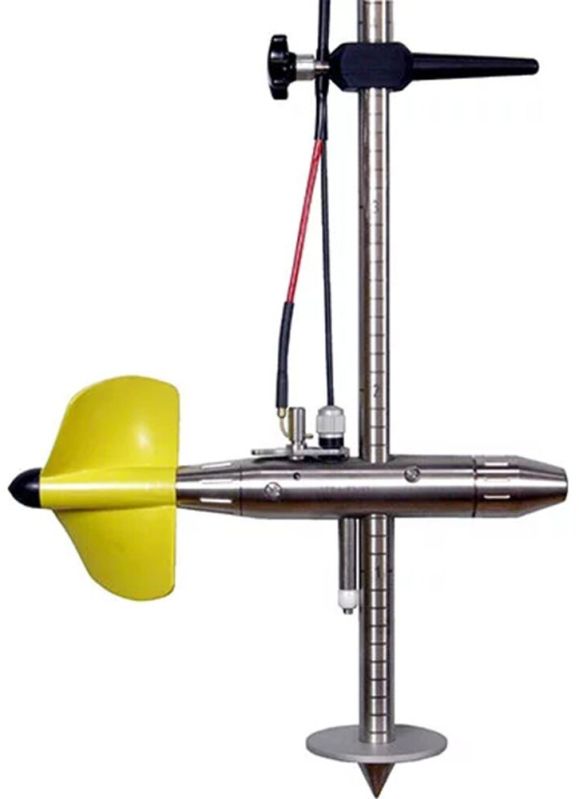

The serves for determination of current velocities in water SEBA

- Universal Current Meter F1 courses, canals, rivers and the sea,

for use with rods or as cable-suspended meter equipment from

0, 025 m/s up to 10 m/s.

The compact, flexible, and affordable ChannelMaster is a

horizontally-oriented Acoustic Doppler Current Profiler (H-ADCP) designed to collect high-accuracy water velocity, stage, and

discharge data for a wide array of applications

High-resolution monitoring of saltwater intrusion dynamics

Robust, maintenance-free multiparameter probes (MPS) made of 1.4539 stainless steel

Multi-level measurements of temperature (T) and electrical conductivity (EC)

Slim design ( 22 mm) for observation wells down to 1 diameter

Available with up to 7 MPS-TEC segments and individual cable lengths

Compatible with all SEBA data logger (SlimlogCom, UnilogCom .)

Upgrade with pressure sensor for water level measurements

The intelligent SEBA Top Piece is a sophisticated, compact

remote transmission system for an economic control of groundwater

monitoring stations.

The NetLogCom has been specially developed and tailored to

meet the stringent requirements of the waterway and water

management administrations, as set out in Annex E of Waterlevel

legislation. Thanks to the powerful NXP i. MX6 processor,

functions and data access on the NetLogCom run separately

and can thus be processed in parallel. This also affects the processing

on all interfaces.

The SEBA SlimLogPlus measurement data logger is the newest

improvement of our tried-and-tested and successful SlimLog

series, which has been optimized for installation in level pipes

from 2 for stationary groundwater and surface water monitoring.

The SlimLogPlus is characterized by numerous new features

and valuable improvements, which come to bear in practical

operation and rough field use

The UnilogCom can digitally record water level or any other

parameter such as flow, water quality or rainfall. The implementation

of a state-of-the-art serial flash memory enables a

relatively high data capacity combined with high data security.

The new logger systems also stands out by a lower power consumption

and reduced dimensions of the electronic circuit

board

Compact, robust, flexible - the new UnilogLight is a versatile

service-wonder within the SEBA Universal Logger family. As an

economic and all-purpose data logging system, the Unilog-

Light is suitable for a large scope of applications in the fied of

hydrology and meteorology

The IRIDIUM satellite communication system currently

consists of 66 active satellites enabling a world-wide data

transmission by means of low earth orbits, LEO. The availability

of data is thus ensured at any time and without time slot

reservation

DEMASdb is a graphical database interface that was specifically

designed for the collection, storage and management of

measurement data. The application is suitable for both large

and small monitoring networks. DEMASdb channels and imports

the incoming measurement data manually or automatically,

introducing them in the Paradox database and thus

keeping everything in order. Alternatively, DEMASdb can

also be connected to the existing SQL databases (e.g. Oracle,

MySQL). DEMASdb is also multi-user, so that multiple users can

simultaneously access the data. Thus, it is always ensured that

all data remains consistent. Limitations are imposed on the

partially or fully unauthorised users by means of configurable

user rights (option). The export function of DEMASdb allows

for the time series to be converted to different file formats

and then to be passed on to third parties. With the evaluation

software contained in DEMASdb DEMASvis the archived time

series can be displayed in the clear form of charts and tables by

clicking on the measuring points Explorer

DEMASole is the expansion module of DEMASdb serving for

online call of measuring values. It controls measuring systems

that are equipped with data transmission e.g. a modem. The data

collection online is effected automatically. In combination with

DEMASdb, data transmissions are started directly using the user

interface of DEMASdb. DEMASole is also available as a stand-alone

version and thus enables the integration into existing process control

systems.

DEMASole is divided into two components:

The so-called call module and the configuration module. Using

the configuration module, online measuring stations with their

respective access parameters (request job, type of connection) are

set up. The configuration file can be exported in *.XML format for

further use on other PCs via authorized online access, without any

further modifications. The call module is effected on a computer

with access to the hardware resources (telephone modem etc.).

DEMASvis is a comfortable, windows-based software for visualisation

and analysis of time series. The simultaneous display of

graphs and lists guarantees optimum clarity. Numerous features

(including zoom, transition curve correction, control value input,

block diagrams) and calculation features facilitate working with

both measurement data from SEBA loggers as well as from other

sources or storage media. With the practical Live Mode, the users

of SEBA cable electric contact gauge KLL-Q-2 the ability to automatically

send the current readings as push data, and to visualise

in both tabular and graphical form and save them with DEMASvis,

for instance, on the field-fit HDA-Pro .

DEMASvis is available as an independently running program

with a single workstation license. However, the evaluation software

also constitutes an integral part of DEMASdb (data capture

management evaluation software) and with limited functionality as a

visualisation program ConfigPC

The DischargeApp is a low-cost, user-friendly smartphone

application which provides fast and accurate discharge

measurements in rivers and open channels. It is only needed

to have four ground control points on the field, no expensive

equipment is left at the place. Additionally, the cross-section

of the water body needs to be measured. Depending on the

size and complexity of the channel, the initial site setup may

take between 15 minutes and 1 hour, but his has to be done

only once.

Measuring the discharge on a dedicated DischargeApp site

takes less than a minute. The computation occurs locally on

the smartphone, hence the DischargeApp can be used to

measure in regions without network coverage. Once the

measurement is done, data transmission to the cloud is possible

immediately or later, as soon as internet is available. This

allows error-free data transmission and storage. The measurements

can be accessed via the integrated DischargeDataHub

platform. On this platform measurement data, sites, users and

user permissions can be managed. Access to the data is secure

and login protected

The DischargeKeeper is an innovative product for the continuous

measurement and storage of water level, surface velocity

and discharge in rivers, irrigation furrows and wastewater

channels.

The DischargeKeeper consists of an IP-camera, an infrared

beamer as well as processing and transmission units. This

non-intrusive measurement system can be mounted on

existing structures in a versatile way.

The SEBA-Electric Contact Meter type KLL is a portable, reliable

instrument for measuring the water level and total depth in

boreholes, wells, reservoirs etc.

For the measurement the probe is lowered to the water level.

When touching the level, a sensor effects the illumination of a

signal lamp. On request, an additional acoustic signal will be

released by a buzzer. The depth is shown on the cable in metres

and centimetres. If the measurement of water level and

total depth is desired, an additional ground sensor (see accessories)

is adaptable. When the sensor is touching the bottom,

the signal lamp is switched off. In case of very small diameter

tubes, instrumentes with a probe of 10 mm dia. (not suitable

for ground-sensor and sensor-cap) are available

The new SEBA-Electric Contact Meter type KLL-Light is a

portable, reliable instrument for measuring water level and total

depth in boreholes, wells, reservoirs etc. It especially stands

out for its fast and reliable data logging.

The cable drum of the KLL-Light is made of lightweight, shock

resistant polycarbonate, which is perfectly suited for field use

due to its solidity. The corrosion resistant probe is connected

via an anticorrosive polyethylene cable with two steel cores to

the battery-powered signal unit in the cable drum.

The KLL-Light Electric Contact Meter is equipped with an

acoustic signal as well as an optical signal (signal-LED). On

deploying the probe into the borehole, well, reservoir or other,

the optical and acoustical signals will indicate when the probe

touches the water-level, since the electric circuit is closed

by the liquid medium. At the sound of the signal, the depth

can be read off the graduation at the cable in meters and

centimeters.

Furthermore, a multicolor LED indicates the level of the 9 V

monobloc battery.

Optionally we offer a hanging solution to fix the cable drum to

the top of 2 sounding tubes, allowing for an easier handling

in the field.

The SEBA-Electric Contact Meter type KLL is a portable, reliable

instrument for measuring the water level and total depth in

boreholes, wells, reservoirs etc.

For the measurement the probe is lowered to the water level.

When touching the level, a sensor effects the illumination of a

signal lamp. On request, an additional acoustic signal will be

released by a buzzer. The depth is shown on the cable in metres

and centimetres. If the measurement of water level and

total depth is desired, an additional ground sensor (see accessories)

is adaptable. When the sensor is touching the bottom,

the signal lamp is switched off. In case of very small diameter

tubes, instrumentes with a probe of 10 mm dia. (not suitable

for ground-sensor and sensor-cap) are available

for measurements of water quality at groundwater or surface

water measuring sites. Suitable for 50mm (2) diameter wells.

The instrument has an extremely compact design, easy operation

with fast and precise acquisition of many water quality

parameters. The current measured values are clearly displayed.

Optionally, the instrument can be equipped with an integrated

data logger with a storage capacity of up to 1, 120, 000

values for an automatic or manual data recording. By default,

the KLL-Q-2 is supplied with an accoustic signal device when

the sensor touches the water surface. The new graduated

round-cable with robust PE-covering (laserprinted, cm/dm/m)

is fade proof and abrasion resistant

The SEBA-Electric Contact Meter type KLL is a portable, reliable

instrument for measuring the water level and total depth in

boreholes, wells, reservoirs etc.

For the measurement the probe is lowered to the water level.

When touching the level, a sensor effects the illumination of a

signal lamp. On request, an additional acoustic signal will be

released by a buzzer. The depth is shown on the cable in metres

and centimetres. If the measurement of water level and

total depth is desired, an additional ground sensor (see accessories)

is adaptable. When the sensor is touching the bottom,

the signal lamp is switched off. In case of very small diameter

tubes, instrumentes with a probe of 10 mm dia. (not suitable

for ground-sensor and sensor-cap) are available.

The FlowFlat mobile measuring system is the result of many

years of experience in the field of magnetic-inductive flow

measurement. Due to the measuring principle (Faradays

law of induction), the FlowFlat does not require any moving

particles in the measuring medium, unlike ultrasonic

Doppler measuring systems. Flow measurements, e.g.

of spring discharges, can therefore be carried out with the

FlowFlat without any problems. The FlowFlat also offers

great advantages over the hydrological vane, especially under

difficult conditions such as turbulent flows, low flow velocities

and/or weedy measuring cross-sections. Changes

in conductivity have no influence on the measurements.

With a measuring accuracy of 0.5 % of the measured value

and a measuring range of 5 m/s, reliable flow measurements

can be carried out from a water depth of just 5 cm in conjunction

with the 20 mm vane rod (accessory). The FlowFlat is

characterized by a robust design, simple operation and a wide

range of applications.

Programming and setting is carried out with the help of simple

menu navigation via the large, backlit LC display and a waterproof

membrane keypad. The measuring system is ready for

use after just a few presettings and the user can start measuring.

All important information (e.g. determined flow velocities

as instantaneous and average values, standard deviation

from the average value) is then displayed. Measured values are

saved at the touch of a button. The memory contents can be

transferred to a Windows PC via the integrated RS232 interface.

The standard scope of delivery includes the magnetic-inductive

sensor with 5 m signal cable (other cable lengths on request),

the operating terminal, an interface cable and an impact-

resistant transport case.

The optional Q4 database and evaluation software (Windows)

is available to users for comprehensive measurement data

evaluation in the office. For more information on the FlowFlat,

accessories and Q4 software, please visit our SEBA homepage

(

The SEBA LevelSense is a system for aquisition of water level

deviations in ground- and surface waters. Through its easy handling

and the convincing cost-performance ratio it is outstandingly

useful for economic updating of existing measuring sites. When it

is used as a stand-alone instrument, it works totally slip-free with

the approved ball-chain and floater/counterweight system.

As type UnilogLight-ENC*) , the shaft encoder is also available as a

cost effective complete systems with integrated data logger.

The handling is simple: All adjustments inside the Level-

Sense can be done with a notebook or operation terminal (e.g.

HDA). For type LevelSense with display, the desired measuring

value can be set by the level observer by turning of the floater

wheel. The instrument can either be powered externally or internally.

With external power supply, a built-in 9 V monobloc

battery is used as a buffer and provides additional safety in

case of a power breakdown.

The system is available in different versions:

1) shaft encoder (= LevelSense)

2) shaft encoder & display (= LevelSense)

3) shaft encoder & display & logger (= UnilogLight-ENC)

The flow rate is measured in up to 18 layers by an ultrasonic

flow velocity sensor using the pulse Doppler method. An average

flow velocity in the detection area of the sound beam is

then calculated from these values. The total flow at the measurement

cross-section is determined from the average flow

velocity, the water level and the channel profile information.

This measurement method is suitable for free flowing water

and backed up water. The data for water level, average flow

velocity and calculated flow rate are stored locally in a batteryoperated

data logger and transmitted via mobile network to a

central station

The SEBA-Mini Current Meter M1 serves for determination of

the current velocities in laboratories, river models, brooks, small

rivers with low water level and for tubes with small diameters.

Special advantages:

universal application

low starting speed

frictionless contact transmission

non-corrosive materials

unit composed system

Description:

A complete current meter equipment comprises current meter,

rods with base, cable and the impulse counter

Instrument case:

The Mini Current Meter is stored with its

spare parts and accessories - without signal

counter - in a weatherproof aluminium

case. You will find the parts clearly arranged

in a deep drawn plastic tray

The Dipper-APT from SEBA provides automatic groundwater

measurements and collection of level and temperature. The

groundwater data logger is only 300 mm long and has a diameter

of 22 mm therefore the Dipper-APT is suitable for applications

in wells from as little as 1.

The installation of a Dipper-APT groundwater data logger is exceptionally

simple and cost effective: In order to monitor and

record the level and temperature variation in a well with its

flash-memory, the logger is simply attached to the casing with

either a thin Kevlar- or steel cable and then lowered down. As

the Dipper-APT is not barometrically compensated, an entire

monitoring system requires just one additional Baro-Dipper.

This Baro-Dipper is utilised to record the barometric pressure.

The variations in barometric pressure are

compensated subsequently fast and simple

with the aid of the DEMASdb software.

For a monitoring network in a geographically

defined area, the installation of a single

Baro-Dipper may suffice. We are happy

to advise and offer solutions to your personal

requirements.

With our operation terminals and software

applications we offer our clients all the essentials

for the set up and operations of an

up-to-date groundwater monitoring system

from a single source.

The Dipper-APT from SEBA provides automatic groundwater

measurements and collection of level and temperature. The

groundwater data logger is only 300 mm long and has a diameter

of 22 mm therefore the Dipper-APT is suitable for applications

in wells from as little as 1.

The installation of a Dipper-APT groundwater data logger is exceptionally

simple and cost effective: In order to monitor and

record the level and temperature variation in a well with its

flash-memory, the logger is simply attached to the casing with

either a thin Kevlar- or steel cable and then lowered down. As

the Dipper-APT is not barometrically compensated, an entire

monitoring system requires just one additional Baro-Dipper.

This Baro-Dipper is utilised to record the barometric pressure.

The variations in barometric pressure are

compensated subsequently fast and simple

with the aid of the DEMASdb software.

For a monitoring network in a geographically

defined area, the installation of a single

Baro-Dipper may suffice. We are happy

to advise and offer solutions to your personal

requirements.

With our operation terminals and software

applications we offer our clients all the essentials

for the set up and operations of an

up-to-date groundwater monitoring system

from a single source

SEBAs engineers responsible for research and development

are faced with a difficult task, as it is very hard to improve an

already perfect product. Long-term experience, know how,

and vital feedback from our word-wide customers enables

the team always to develop new and brilliant solutions for the

DipperPT. The Dipper-PT is an multi-functional data logger

for the accurate collection of both ground and surface water

data. Regardless of the challenges faced, the Dipper-PT always

performs to the highest satisfaction.

With options to upgrade, operation terminals, and customised

software applications, SEBA Hydrometrie offers the complete

range of loggers and sensors necessary for the operation of a

modern environmental monitoring network

Making a good product even better time and again, this is the

challenge that faces our development engineers. Experience,

expertise, technical progress, and, of course, feedback from our

customers from around the world this teamwork allows us to

achieve new and better developments!

The new Dipper-PTEC provides the user with all the benefits of

a modern measuring instrument: a slender and robust construction,

a broad measuring range at maximum resolution, reliable

and maintenance-free sensor technology, and easy operation.

With a multitude of additional technical refinements, the new

Dipper-PTEC compares excellently with other devices on the

market.

Of course, a modern environmental-monitoring system cannot

be operated without practical accessories for programming and

data retrieval, as well as powerful data-management and analysis

software. As a full-service provider, we are a one-stop shop offering

you everything you need to achieve smooth measurement

operation from collection right through to analysis!

Modem for transmission of measured values via mobile network

External mobile 4G modem with radio standard for connection to SEBA measurement data collectors

type Unilog and Unilog-Light

Compact and robust design, designed for use in all climate zones

SMA interface for the connection of different antenna types

Transmission options: GPRS retrieval, FTP/FTPS push, TCP push, SMS push, SMS alert

Depending on the version, the instruments of the series SEBA MultiMET-Sensor consists of a 2-axes ultrasonic static anemometer for the measurement of:

Wind speed and direction, U-V Cartesian components of wind speed,

Relative Humidity and temperature (optional),

Diffuse solar radiation (optional),

Barometric pressure (optional).

In a single instrument the available measurement options combine the standard parameters used in meteorology, making the instrument a compact and light weight meteorological station.

The MultiMET-Sensor features as standard a SDI-12 serial interface and optional RS 232, RS 485, RS 422 serial interfaces with NMEA, MODBUS-RTU communication protocols. All versions have optionally two analog outputs for wind speed and direction, which are factory configurable. The heater option prevents the accumulation of snow, as well as ice formation, allowing precise measurements in all environmental conditions. The heating requires a 230 VAC power supply. The low power consumption of the sensor allows installation in remote sites, where a photovoltaic panel and backup battery (without sensor heating) can supply power.

Equipped with up to 12 sensors, by which 16 different water

quality parameters can be measured, the SEBA multiparameter

sensors provide reliable informations about the conditions

at the measuring site.

The multiparameter sensors MPS represent the consequent

further development of the SEBA multiparameter product

line. The calibration will be performed via user friendly software

SEBAConfig. The Availability of high data quality is the

base for proper evaluation of the hydrological enviroment.

To display the measured values the MPS sensors can be combined

with the SEBA electric contact meter (mainly for ground

water) or with the SEBA MPSChecker (mainly for surface water).

Continuously monitored measuring sites can be equipped

with SEBA data loggers with or without data transmission

(e.g. Unilog) or with integrated logger.

Designed for robust use in the field the sensors perform under

roughest conditions like e.g. in tropic, arid and arctic enviroments.

Rugged and ready for all uses in the field they measure

with optimum precision. SEBA sensors stand out due to high

long-term stability (optical sensors) together with low maintenance

requirements and can be used as stationary or mobile

sensors

Equipped with up to 12 sensors, by which 16 different water

quality parameters can be measured, the SEBA multiparameter

sensors provide reliable informations about the conditions

at the measuring site.

The multiparameter sensors MPS represent the consequent

further development of the SEBA multiparameter product

line. The calibration will be performed via user friendly software

SEBAConfig. The Availability of high data quality is the

base for proper evaluation of the hydrological enviroment.

To display the measured values the MPS sensors can be combined

with the SEBA electric contact meter (mainly for ground

water) or with the SEBA MPSChecker (mainly for surface water).

Continuously monitored measuring sites can be equipped

with SEBA data loggers with or without data transmission

(e.g. Unilog) or with integrated logger.

Designed for robust use in the field the sensors perform under

roughest conditions like e.g. in tropic, arid and arctic enviroments.

Rugged and ready for all uses in the field they measure

with optimum precision. SEBA sensors stand out due to high

long-term stability (optical sensors) together with low maintenance

requirements and can be used as stationary or mobile

sensors.

Equipped with up to 12 sensors, by which 16 different water

quality parameters can be measured, the SEBA multiparameter

sensors provide reliable informations about the conditions

at the measuring site.

The multiparameter sensors MPS represent the consequent

further development of the SEBA multiparameter product

line. The calibration will be performed via user friendly software

SEBAConfig. The Availability of high data quality is the

base for proper evaluation of the hydrological enviroment.

To display the measured values the MPS sensors can be combined

with the SEBA electric contact meter (mainly for ground

water) or with the SEBA MPSChecker (mainly for surface water).

Continuously monitored measuring sites can be equipped

with SEBA data loggers with or without data transmission

(e.g. Unilog) or with integrated logger.

Designed for robust use in the field the sensors perform under

roughest conditions like e.g. in tropic, arid and arctic enviroments.

Rugged and ready for all uses in the field they measure

with optimum precision. SEBA sensors stand out due to high

long-term stability (optical sensors) together with low maintenance

requirements and can be used as stationary or mobile

sensors

Equipped with up to 12 sensors, by which 16 different water

quality parameters can be measured, the SEBA multiparameter

sensors provide reliable informations about the conditions

at the measuring site.

The multiparameter sensors MPS represent the consequent

further development of the SEBA multiparameter product

line. The calibration will be performed via user friendly software

SEBAConfig. The Availability of high data quality is the

base for proper evaluation of the hydrological enviroment.

To display the measured values the MPS sensors can be combined

with the SEBA electric contact meter (mainly for ground

water) or with the SEBA MPSChecker (mainly for surface water).

Continuously monitored measuring sites can be equipped

with SEBA data loggers with or without data transmission

(e.g. Unilog) or with integrated logger.

Designed for robust use in the field the sensors perform under

roughest conditions like e.g. in tropic, arid and arctic enviroments.

Rugged and ready for all uses in the field they measure

with optimum precision. SEBA sensors stand out due to high

long-term stability (optical sensors) together with low maintenance

requirements and can be used as stationary or mobile

sensors

Robust, low maintenance single parameter sonde (SPS) made of 1.4571 stainless steel

for the measurement of nitrate (NO3- , NO3-N)

Slim design ( 48.3 mm) for observation wells starting from 3 diameter

High measuring accuracy, drift-free, only annual verification of the calibration needed

Available in different measuring ranges up to max. 0 266 mg/L NO3-

Output: RS 485 (SHWP, Modbus RTU) for the connection with SEBA data logger

Measuring principle:

The devices emit a continuous radar signal through their

planar shaped antennas. The emitted signal is reflected by the

medium and received as an echo by the antenna.

The frequency difference between the emitted and received

signal is proportional to the distance and depends on the

water level. The determined water level is converted into a respective

output signal and output as measured value.

80 GHz technology:

The 80 GHz technology used enables a unique focusing of the

radar beam and a wide dynamic range of the radar sensors.

The greater the dynamic range of a radar sensor, the wider its

application spectrum and the higher its measurement reliability.

Advantages:

Non-contact radar technology is characterized by extremely

high measurement accuracy. The measurement is influenced

neither by fluctuating product features nor by changing conditions

such as temperature, pressure or dust generation

With the SEBA-Pneumatic Level Type PS-Sensor, SEBA-Hydrometrie

continues the successful product series of continuous

bubbler systems for water level measurement. The PS-Sensor

offers everything a modern, up-to-date measuring system has

to offer. Equipped with two pressure sensors and an automatic

pressure range detection, the PS sensor also meets the highest

demands for measuring accuracy. In addition, the bubbler

has further practical features: a compact, robust design with

integrated compressor and air reservoir ( small space requirement),

an LC display with three function keys, among other

things for measured value display ( easy handling), a large

selection of digital and analogue output signals for connection

to existing (SEBA) data collectors and/or process control

systems ( compatibility) as well as other proven functions,

such as an automatic blow-through device for flushing out

the pressure transmission line. Fast water level changes, e.g.

during lock operation, are also no problem for the PS sensor

The SEBA rain gauge system RG 100 offers a compact design

which combines the protection housing and funnel system

into one unit.

The special aluminum lockable protection housing can contain

the tipping bucket, data logger (UnilogLight, UnilogCom),

modem (GSM/GPRS, satellite), power supply and if desired a

collecting bottle.

Collecting Area: 200 cm2, 400 cm2 or 500 cm2

Recording

Time:

depends on selected data logger type

(UnilogLight, UnilogCom)

Output: Impulse, potential free

Resolution: 1 impulse = 0.1 mm precipitation or

1 impulse = 0.2 mm precipitation

Collecting

bottle:

5 liters, plastic material

Funnel: (DIN 58667) plastic, 200 cm = 10 mm

precipitation

Dimensions: (height, width, depth) 620 x 225 x 285 mm

Weight: 13 kg

.The SEBA-pneumatic gauge type PS-Light-2 serves as a robust,

economic and reliable measuring system for monitoring water

levels in surface waters. The measuring principle is the proportioning

or bubbler system, based upon the other well-known

SEBA instruments in the PS-series. PS-Light-2 pneumatic

gauges have proven reliable in thousands of installations in the

last 20 years around the globe.

An integrated, highly efficient mini compressor, bubbles air

through the pressure tube into the water at adjustable intervals.

The resultant pressure in the tube corresponds exactly to

the hydrostatic pressure above the mouthpiece. This tube pressure

is then measured by a very accurate pressure sensor in the

PS-Light-2. To avoid influences due to obstructions like mud in

the pressure tube, the system is blown out automatically before

each measurement.

The intermittent operation of the PS-Light-2 allows low energy

consumption, and enables operation with batteries or solar panels,

without the need for mains power supply. Together with

a long running lubricant free compressor and a system that

needs no moisture absorbers, the PS-Light-2 can be operated

maintenance-free for very long periods of time.

The basic version of the PS-Light-2 is a sensor with optional output.

However, it can be equipped with LC-display, data logger

or remote data transfer via mobile data. The basic version is delivered

in a robust protective housing (IP 65) suitable for wall or

desk mounting. SEBA PS-Light-2 can be connected to existing

pressure tubes at any time

High precision rain gauge system with impulse output. Suitable

for connection to automatic data loggers (e.g. UnilogLight)

and telemetric transmission systems (GSM/GPRS, satellite).

Tipping bucket with single sided ball bearings, level and adjusting

screw.

For the installation in areas with a risk of frost, the rain gauge

can optionally be equipped with a funnel heating system.

Do you have a LoRaWANTM network and are you looking for

robust, field-compatible sensors for monitoring groundwater

levels and water quality parameters? Then weve got just

the solution! The SlimCom IoT-LR remote data transmission

module has been specially developed and optimised for

LoRaWANTM networks. The slim design of the SlimCom IoT-LR

means it can be installed in above-ground measuring points,

starting from a pipe diameter of 2, as well as in below-ground

measuring points or well shafts.

There are two tried and tested SEBA data collectors to choose

from for the SlimCom IoT-LR, including sensors for measuring

water level and temperature (Dipper-PT) and conductivity

(Dipper-PTEC).

The smart SEBA modular system makes it possible for existing

Dipper-PT/PTECs to be easily retrofitted with the

SlimCom IoT-LR by the user on site.

Maximum operational reliability is guaranteed by the

SlimCom IoT-LR redundant energy supply and SEBA data

collectors, as well as through storage of > 1 million measured

values. Faults in the SlimCom IoT-LR or the LoRaWANTM

network do not have any influence on ongoing measurement

operations. The data is secure and, if required, can be conveniently

read out wirelessly on site using a Bluetooth module

(BlueCon 2) with a smartphone/iPhone or a USB cable with a

notebook (Windows)

The DS (T) 22 fulfills the the requirements of a modern pressure

sensor. The pressure membrane is easy to clean and highly

resistant. The capacitive measuring principle ensures a high

accuracy (0.05 %) and long-term stability (0.1 %/year)

Uncomplicated:

The DS (T) 22 can be connected to all standard data loggers

and controllers (PLCs). Either analog (4-20 mA) or digital output

signals (RS 485: SHWP, Modbus, SDI-12) can be ordered.

Saltwater-resistant:

For special applications, e.g. in coastal areas, brackish

water or landfills, the DS (T) 22 is also available

in high-grade stainless steel 1.4539 form.

Last, but not least:

In addition to the measurement of the water level,

upon request, water temperature can also be recorded

with a high degree of accuracy: 0, 2 C.

Mobile Bridge Jib for single drum winch SEWII

for measurements with cable suspended F1 current meter equipment

5 to 50 kg from bridges with different railings

Comfortabel multi-place measurements

Easy Handling

Quick Mounting

Special version for up to 100 kg available

The SEBA cable way installation SKA is deployed to measure discharge in rivers and channels. Depending on

the kind of waters and the maximum possible current velocity, a suspended current meter equipment, with sinkerweights of 25, 50 and 100 kg can be used.

Versatile water quality measurement in surface water

Mobile, compact field laboratory for measuring water quality parameters

(e.g. oxygen, pH, conductivity, redox potential, turbidity) in surface waters

Spiral cable with stainless steel coupling for SEBA multi-parameter probes of the MPS-D3/D8/K16

3-line backlit LCD

Integrated logger for manual and / or automatic storage of measured values (optional)

B03_

The latest HDA-Pro is the multi-function tablet for the water

resources management sector and represents the generation

of mobile PC performance. Impact-resistant, handy, lightweight

and waterproof the ideal technical characteristics for managing

numerous tasks in the field. All up-to-date PC software is

not only available in the office but also at site for efficient field

operation.

In conjunction with the ConfigPC operating software, all data

loggers in the SEBA product family can be easily parameterized

and read out, and the DEMASvis evaluation software is used to

visualize time series in the form of hydrographs and lists in a

clear display.

With the integrated GPS combined with user-friendly route

planning software packages, the HDA-Pro takes you directly to

your measuring sites.

The Windows tablet is also the perfect assistant for mobile

flow measurement with the ADCP measuring boats from RDI Teledyne

(Stream-Pro, River-Pro, River-Ray) or simply for the

acquisition of vane measurements in conjunction with the

Windows evaluation software Q4.

The latest HDA-Tablet with the widely used operating system Android

represents the new generation of mobile devices. Its especially

designed for the outdoor use. Equipped with a digital text

marker, the the handling is even in winter with gloves.

The casing is dust and water repellent.

A long rechargeable battery life is guaranteed by a high capacity

of 5050 mAh. A replacement battery for a longer field operation

can also be purchased the exchange of batteries is hot-swappable.

The configuration and calibration of SEBA-data logger and

digital sensors will be carried out wireless with the application

SEBAConfigApp and the Bluetooth-adapter SEBA-BlueCon 2.

By activating operation panels on a clearly structured user interface,

current measurements can be read-out, will be visualized in

hydrographs and lists on site and finally stored in ASCII format.

Internet portal for Provision and Visualisation of Measuring data

Web portal for a password-protected provision of time series on the Internet

Data visualisation in the form of hydrographs and lists

Data download of any time series in ASCII- & csv format

Individual configuration (measuring points, sensors, calculating sensors etc.) according to customer specifications

No running costs (Hydrocenter)

Status indicator (traffic light function) of the remote data transmission stations in

the Explorer measuring points (Hydrocenter-Pro)

Positioning of the measuring points via GPS coordinates on an open-street map

Visual Indication of Surface Water Level for Rivers, Streams, Channels,

Reservoirs, and Weirs

Staff gauges made of robust cast aluminum with raised 2 cm E-scale graduation

(1 cm E-scale graduation as an option is possible)

Measuring range: 0-12 m (standard) in 1 meter sections

Scaling and figuring in cm or AMSL (above mean sea level) , black on yellow

Coating made of shock and weather-proof special lacquer

Available finishes: Plumb line-staff gauge, inclined staff gauges, staircase level

The Teledyne Oceanscience Q-Boats are the top choice for reliable

remotely-controlled acoustic Doppler current profiling in

streams, rivers, lakes and coastal waters all over the world. Reduce

your survey time, keep people safe during difficult conditions, or

access hard to reach locations with the Q-Boat to suit your survey

and budget. Mounts for all popular acoustic Doppler profilers are

available as standard.

The Q-Boats provide a total solution to river discharge measurements.

The Q-Boat 1800 features twin high power outdrives to

give a top speed of 5m/s (16fps) with the security of dual motors.

The precision variable speed propulsion allows effective profiling

at speeds as low as 30 cm/s (1.0 fps), and is easy to operate in both

high and low velocity conditions. Dual steering mechanisms offer

added security for safe deployments

Parameter: Description:

Physical: Hull Length: 180 cm (5.9 ft.)

Hull Width: 90 cm (2.95 ft.)

Weight of Base Boat: 30 kg (66 lbs.)

Payload: 30 kg (66 lbs.)

Hull Material: UV Resistant ABS

Motor: Q-Boat 1800 P Dual Brshless 24 VDC Outdrive

Remote Control: Navigation Remote Control Unit Hitec with Vessel Telemetry

Navigation Remote Control Unit Frequency 2.4 GHz FHSS

Navigation Remote Control Range 1200 m

Data Telemetry Range - 900 MHz Hydrolink > 2000 m

Data Telemetry Range - 5.8 GHz Ethernet up to 500 m

Perfomance: Typical Survey Speed 2.4 GHz RF-Schema FHSS

Top Speed: Q-Boat 1800 P 10 kts (5 m/s)

Battery Endurance: Q-Boat 1800 P Up to 240 minutes

Battery Pack: Q-Boat 1800 P 3 x 24 V 30 Ah

Instrumentation: Teledyne RD Instruments RiverRay, Teledyne RD Instruments RiverPro, Teledyne RD Instruments

Rio Grande, Teledyne RD Instruments StreamPro, Teledyne RD Instruments Monitor,

Sontek RiverSurveyor M9, Linkquest Flowquest

For the best data quality in the most challenging measurement

conditions, the Teledyne Oceanscience High-Speed Riverboat

(HSRB) is the new benchmark for acoustic Doppler current profiling

for discharge measurements. The advanced hull design

allows the boat to slice through standing waves and still maintain

instrument position and data collection. Fast-flowing water,

often problematic with conventional tethered boat designs, can

be handled with relative ease with the High-Speed Riverboat.

The HSRB has gathered data at water velocities over 20 fps (6m/s).

The state-of-the-art trimaran hull design cuts through surface

waves, strongly resists overturning, and maintains instrument

orientation in high flows. For sites where tethered boat measurements

have been impossible, or data were too poor to be of

value, the High-Speed Riverboat is the solution. The High-Speed

Riverboat is strong and robust to cope with the worst deployment

conditions

Parameter: Description:

Physical: Center Hull Length: 152.5 cm (60)

Overall Width: 122 cm (48)

Weight: 13.6 kg (30 lbs.)

Hull Material: High-Impact, UV-Resistant ABS

Crossbar Material: Anodized Aluminum with Quick-Release Clamp

Hardware: Stainless Steel

Fin Configuration: Large, Foldable Kick-Up Fins

Perfomance: Typical Measurement Water Velocity: 3-5 m/s (10-16 fps)

Maximum Water Velocity: 6.09 m/s (20 fps)

Instrumentation: Acoustic Doppler Current Profilers: Teledyne RD Instruments RiverRay, Teledyne RD Instruments

RiverPro, Teledyne RD Instruments Rio Grande, Teledyne

RD Instruments StreamPro, Teledyne RD Instruments

Monitor, Sontek RiverSurveyor M9, Linkquest Flowquest,

Rowe RiverPROFILER

Depth Sounder: External Mount

GPS: Hemisphere A101

Hemisphere S320

Teledyne Oceanscience Q-Boats are the number one choice

for reliable remotely-controlled acoustic Doppler current profiling

in streams, rivers, lakes and coastal waters all over the world.

Whether you need to reduce your survey time, keep people safe

during difficult conditions, or access hard to reach locations, there

is a Q-Boat to suit your survey and your budget.

Portable and Convenient

The use of lightweight and resilient ABS hulls and a collapsible

sliding crossbar makes the boat convenient for a single operator.

Transportation to and from the deployment site is easy; simply

slide the outriggers towards the main hull and pick up with

one hand. To deploy the boat, slide the outriggers back, place

the boat in the water, and start your measurement process.

Robust and Powerful

The IP67 rated Q-Boat 1250 has an innovative propulsion system

that uses two thrusters, one in each outrigger. An advanced

2.4 GHz remote control transmitter differentially adjusts the

two thrusters to steer the boat. The result is a robust and highly

maneuverable boat with no rudder or steering linkages.

The Q-Boat 1250 can attain a 2.3 m/s (7.5 fps) top speed

using the standard battery pack, and the remote control

transmitter can be adjusted to allow effective profiling at speeds

as low as 30 cm/s (1.0 fps).

Cost Efficient

Select survey sites based on best measurement locations. The

Q-Boat 1250 does not need a tether line or bridge for deployment,

which saves time and resources. Simply deploy your

Q-Boat and start collecting your ADCP data

The Teledyne Oceanscience Riverboat SP is the top choice for

deployment of the TRDI StreamPro acoustic Doppler current

profiler. Upgrade from the standard StreamPro float to the more

stable, rugged, and corrosion-resistant tethered boat. The Riverboat

SP makes safe, easy measurements of discharge in relatively

slow and fast-moving waters.

The Riverboat SP can gather data at water velocities over 12 fps

(3.6 m/s). The proven bow flare trimaran hull design prevents the

boat from nose-diving and maintains instrument orientation by

reducing pitch, roll, and yaw in varied flows. The trimaran design

reduces drag compared to catamaran designs making the Riverboat

SP capable of operation in a range of water velocities. Long

fins improve stability in very low-flow environments.

Made of unbreakable polyethylene, the Riverboat SP is strong

and can handle tough deployment conditions. The standard boat

configuration fits a 2 TRDI StreamPro ADCP, and the latest instrument

clamp is suitable for the StreamPro with or without an internal

compass upgrade. Large kick-up fins are standard to ensure

snag-free operation.

Features: For use in water velocites up to 12 fps

All required items included for easy plug-and-play

operation

Single or dual person mobilization

Made of molded unbreakable polyethylene

Easy transportation inside the available soft or hard case

Optional Cable Chimp II remotely-operated vehicle

available for slow consistent measurements

Top Pieces are a reliable cover for observation wells and their

permanent protection. The very robust design, made of a

special alloy, makes them resistant to corrosion and weather

(frost-proof).

Due to a dual locking of the lid with the base maximum

security is achieved. Construction allows for a quick opening

and closing of the top piece with a small key - even in

winter.

You can chose between standard and

safety lock (with secured 5-pointhead)

Available sizes: 1, 5 to 6 diameter.

The flood-tight Top Piece is a specially

constructed top piece with a watertight

inlet made of PVC and a handy

strap for easy take out

The SEBA-Depth Indicator

Type TLG has been developed

as a portable unit

for rapide and accurate

observation of bore hole

water levels. It also can be

used for measurements in

the open sea or for measurements

of the cross

section of a lake.

Operated manually by holding above the bore hole it provides

a clear, instantaneous indication on a five figure counter calibrated

in metres and centimetres and is rapidly rewound.

mech. measuring system

rapide and accurate measurements

digital indication of the measuring result

handy and portable

light in weight and compact design

The serves for determination of current velocities in water SEBA

- Universal Current Meter F1 courses, canals, rivers and the sea,

for use with rods or as cable-suspended meter equipment from

0, 025 m/s up to 10 m/s.

Advantages:

application of absolutely anti-corrosive materials

low starting speed of 0, 025 m/s

almost frictionless contact transmission

unit composed system

Description:

The SEBA-Universal Current Meter F1 serves for use on rods

(pic. 1, 2, 3) as well as for cable-suspended-current meter

equipments (pic. 4, 5) for use with SEBA single drum winches

or cable way installations.

Meterbody:

The streamlined meterbody and the axle are manufactured of

high-quality, non-corrosive steel. The hub of the propeller is

filled with oil and rotating in two special ball-bearings. The oil

filling and a capillary seal protects against water entry. A base

stop prevents the propeller from striking the ground.

Contact transmission

One signal is generated from each revolution of the propeller

by means of a permanent magnet. Frictionless operation increases

the sensitivity of the instrument. The contact mechanism

is quickly interchangeable without problems.

Instrument case:

Robust version made of stable plastic material with two cover

hinges.

With this full-electronic counter it is possible to receive frequencies

for all flow velocities. The impulses generated by the

current meter are added and indicated in relation to the preselected

time. The timing starts from the first impulse.

With the basic version, the impulses can be counted in freely

pre-definable measurement intervals. Optionally, the impulse

number to be counted can be pre-selected (Z6-I). A further option

is the direct calculation of the current velocity by means

of pre-definable equations (Z6-V). There are several memory

locations for all adjustments. All the user-defined adjustments

can be made directly at the device or via connected PC and

can be saved permanently

MiniOFS is designed by Dr. Sten Lofving is used to mke direct measurements of visual range.The sensor is sensitive for particels in a zone about 25cm ahead of the location of the sensor who limit the visibility in the air. These particles are normally the microscopic water particles costituting fog , but they may also be snowflakes' raindrops or air pollutants. But mmost indications of low visibility are because of fog or snow

The PWSMini is designed by Dr.Sten Lofving is a spin off from our MiniOFS sensor and it is probably the cheapest present wheather sensor on the market. And it is very compact -width is only 68mm. this little sensor measures 3 important wheter parameters.

1. Visibility 2. Rain 3. Snow

Cloud cover (also known as cloudiness, cloudage, or cloud amount) refers to the fraction of the sky obscured by clouds

when observed from a particular location. This CCF sensor is for measurement of the Cloud Cover Factor. This innovation

of Dr. Sten Lofveng makes it possible to get automatic observations of the Cloud Cover Factor, CCF 24 hours a day i.e. the

fraction of the sky that is covered with clouds. It consists of a day time unit that observes the sky in 4 directions in parts

of the solar spectrum, a night time unit that observes the sky in the thermal infra-red spectrum. A microcomputer

evaluates the signals and controls the output
