Filling Line

Our offered Product range includes Manual Paste Filling Machine, 9 Head Rotary Perfume Filling Machine, Aerosol Filling Machine and Filling Machine.

Manual Paste Filling Machine

Manual Paste Filling Machine

In order to deliver the orders on time, we have backed ourselves with advanced logistics facilities. Quality raw materials have been used for the production of our entire range. As a dependable name, we procure these raw materials only from trustworthy sources present in the market.



Features

  • Suitable to fill 5gm to 500 gm  cream/ paste product.
  • GMP and non GMP models are available.
  • Hopper capacity 5 kg to 12 kg depends upon product.
  • Easy to operate
  • No electricity required
  • Out put upto 10 to 15  fills /min depend upon operators efficiency.
View Complete Details
Ask Latest Price & Details

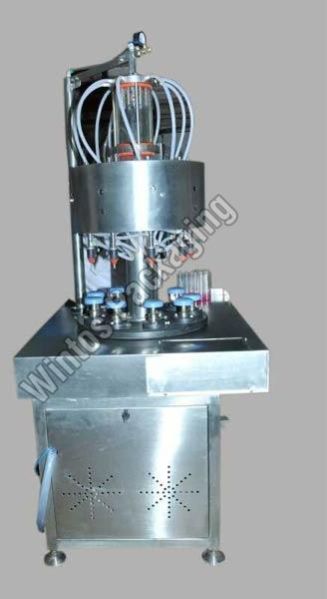

9 Head Rotary Perfume Filling Machine

9 Head Rotary Perfume Filling Machine
  • Country of Origin 230V
  • Power 12-15kw
  • Driven Type Hydraulic
  • Total Carbohydrate 1year
  • Automatic Grade Automatic
  • Feature Easy To Operate, Good Capacity, High Performance

We are engaged in manufacturing & exporting 9 Head Rotary Perfume Filling Machine. We offer 9 Head Rotary Perfume Filling Machine with control panel and conical filter. The machine is suitable for running online. Machine Operation

  • Start the machine and place the empty bottle on the head.
  • The bottle will automatically rotate.
  • Nozzle as per your bottle level.
  • The bottle starts filling as per bottle the level.
  • Excess perfume will be automatically thrown in the jar.
  • No bottle no filling.
  • Machine operation is very easy.

Salient Features

  • Vaccumetric filling system.
  • Flame-proof motor for vacuum pump & main drive.
  • Speed variable system by mechanical by Delta operation (for safety purpose).
  • Electronic flame proof liquid level sensor provided.
  • Perfume transfer pump not required.
  • Hard chrome plated clamps.
  • Teflon NRV/seal & other required parts.
  • Accurate level filling.
  • All contact parts made out of S.S. 304 L materials.
  • Table stand, top, covers made out of S.S. 304 material.
  • Auto overflow perfume transfer in filling line.

Technical Specifications

Model 9 Head
Maximum filling capacity 225 ml
Minimum filling capacity 10 ml
No. of filling head 9
Main drive geared motor 0.5 HP
Vacuum pump 0.5 HP / 150 LPM /
Approx. machine dimension 800mm W x 850mm L x 1800 H
Approx. production capacity (by changing filling syringes) 10 ml to 100 ml : 60to 55 BPM , 100 ml to 200 ml : 40 to 35 BPM
Speed Variable By Delta Make
Manpower required 1 or 2 people
View Complete Details
Ask Latest Price & Details
Aerosol Filling Machine

Aerosol Filling Machine
Stern quality checks, frequent examinations and perfect packaging, we make certain that the range is as per the industrial standards. We are appreciated amidst the celebrated names in the sphere of providing exclusive range that includes aerosol filling machine.
View Complete Details
Ask Latest Price & Details
