Sealing & Strapping Machines

We offer the best product range of Carton Sealing Machine, Semi Automatic Tube Sealing, Coding & Trimming Machine, Induction Sealing Machine, Semi Automatic Tube Sealing Machine and Sealing Machine.

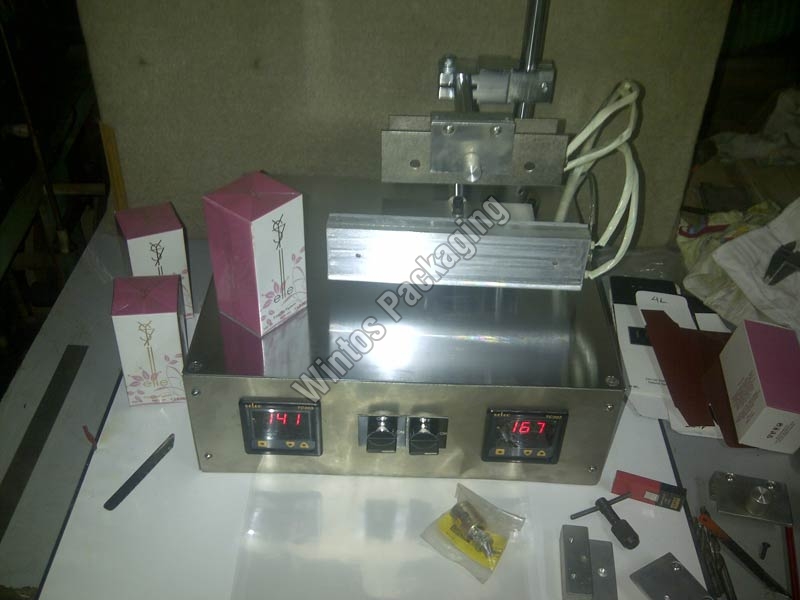

Carton Sealing Machine

Carton Sealing Machine
  • Application Carton Sealing
  • Country of Origin 220V
  • Application Sealing
  • Automatic Grade Automatic, Semi Automatic
  • Power 3-5kw
  • Driven Type Hydraulic

The company has come up as a highly trusted Manufacturer, Exporter & Supplier of Carton Sealing Machine. The Semi Automatic Manual Carton Sealing Machine, offered by the company, can be used on any types of cartons. The Carton Sealing Machine is used to over wrap cartons with the BOPP films manually. Description Of Operation

  • The carton will be sealed manually with manual sealing machine.
  • Firstly, the film will be cut to the required cartoon size while keeping the overlap arrangement.
  • The Carton will be sealed at end seal position with the BOPP film while keeping the require temperature.
  • Side seal will be folded by manually and sealed with heater body with keeping the require temperature & with operating dot seal application.

Scope Of Supply

  • Main Machine
  • Heater Body for Side Seal & End seal operations.

Technical Specifications

Power Input 0.5 kW. III phase 230V
Type of Seal One Side and two End Seal ( Total three Sides Seals)
Packing Material Heat treated Biaxial Oriented Poly Propylene.(B.O.P.P.) 25 Microns thickness.
M/C Suitable to Wrap Any size, as given with the help of change parts ie. For Dot seal application.
Ideal Output Up to 8 to 10 Cartoons/Minute depending on the size as well as rigidity of the carton & also Manually operation Skilled person.
Weight Approx. 50 Kg
View Complete Details
Ask Latest Price & Details
Semi Automatic Tube Sealing, Coding & Trimming Machine

Semi Automatic Tube Sealing, Coding & Trimming Machine
  • Material Metal
  • Country of Origin 220V
  • Automatic Grade Automatic
  • Driven Type Electric
  • Application Sealing
  • Power 3-5kw

We are a major Manufacturer, Exporter & Supplier of Semi Automatic Tube Sealing, Coding & Trimming Machine. The Semi Automatic Tube Sealing, Coding & Trimming Machine is known for its efficient handling of the overall tube packaging processes. The Semi Automatic Tube Sealing, Coding & Trimming Machines are available at the best prices on a timely basis. Technical Specifications

  • Capacity : Machine is suitable for LAMI / PLASTIC TUBE SEALING, TRIMMING & CODING and output up to 20 tube per minute
  • Activities on Pneumatic Cylinders.
  • Opered Paddle Switch Or Push Button
  • Lami/Plastic Tube Sealing System. It consists of One Pneumatic Cylinders fixed with knurling hot jaws the filled tube is placed in between the hot jaws the jaws are made to come closer as soon as a button is pressed. The heating time, holding time is automatically controlled. The sealing time is constant and controlled automatically and you need not depend upon the operator and hence the sealing quality will be consistent.
  • The Full set up will be fixed in a chrome plated MS stand so that it is slay able up and down and can be fixed at a desired length. Depending upon the length of the tube. The whole setup will be mounted on a plated MS stand. The machine will be supplied with a pair of holders for keeping the tube inside the holder.
  • Lami/Plastic Tube Trimming System. It consists of a pneumatic cylinder and fixed with cutter blade. There is a provision for fixing code nose for batch coding. As soon as a pushbutton or a pedal switch is pressed the Cylinder actuates and trims the irregular portion and as well the code nos set embossed. (Batch Coding Metal Stereos Letter 0-9 One Set. and one tube size holder make nylon 3 nos. Will Be Provide)
  • Make of the pneumatic components : Branded Make.
  • Switch gear items : Branded Make.
  • Machine Size : Approx.L- 520mm. W-400mm. H- 700mm
  • Machine Weight : Approx: 60 Kg.
View Complete Details
Ask Latest Price & Details
Induction Sealing Machine

Induction Sealing Machine
The induction sealing machine that we provide to the customers is used in varied applications like those of oil industry, pharmaceutical industry, food industry, cosmetics industry, agriculture and chemical industry. The induction sealing machine that we deal in indirectly heats all the metal parts. dimensionslength 900mmwidth 500mmheight 1200mmtechnical specifications2kw of power output, 25mm to 90mm cap size, output of 50 feet per min, maximum line current of 8 amp, electrical 230 volt single phase 50 hz.
View Complete Details
Ask Latest Price & Details
Semi Automatic Tube Sealing Machine

Semi Automatic Tube Sealing Machine
The organization is involved in catering to the market with its qualitative array of Semi Automatic Tube Sealing Machine. Consider our name, if seeking for high quality products that are prepared using the best grade material and modern technology. Our associates procure it from the reliable names after complete quality satisfaction.
View Complete Details
Ask Latest Price & Details
