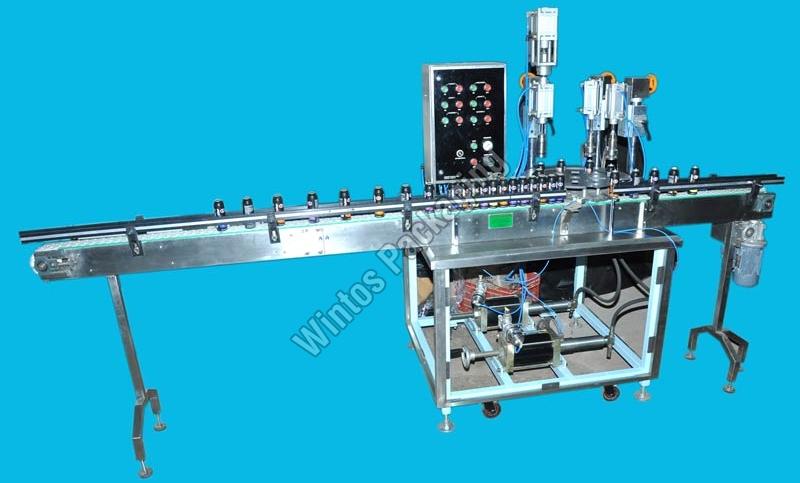

The company has come up as a highly trusted Manufacturer, Exporter & Supplier of Aerosol Filling and Crimping Machine. The Aerosol Filling and Crimping Machine, offered by the company, are known for their feature-studded construction as well as high efficiency. The company offers the Aerosol Filling and Crimping Machines at the best prices and the consignment delivery is always on time. Working

• The filled containers, which are firstly filled at existing line, come on to the line & move forward to the turret cavity.
• The containers go through indexing and are rotated clockwise with proper guiding. After indexing is completed, the pump will be placed inside to the containers, with the operating pump and dispensing unit coming from the chute.
• These pump-loaded containers are oriented & passed to the next station for positioning & crimping the pump with pneumatic-operated cylinders.
• After crimping the pump, the gas will be filled into the containers with the help of booster pumps.
• For these operations, two separate booster pumps are provided to easily fill the container for better accuracy as well as increasing the productivity.
• These filled containers move forward to the next station & come out at the exit side conveyor.
• This cycle repeats again and again with all the sequences one by one and with the electro pneumatic operation.

Details

• Consists of WP ARO - 40 High-speed 8 Stations MODEL GMP, Compact Rotary SINGLE HEAD AUTOMATIC Pump Loading & Crimping & Twin Head Gas Filling M/C for Aerosol Containers. Perfume filling at your scope of supply.
• Consists of All Contact Part SS-316 will be provided.
• Consists of Pump Loading will be Manually feeding arrangement.
• Consists of NO Container - NO Pump Loading as well as No Container No Crimp & also No Container No Gas Filling arrangement will be provided.
• Machine Speed 35 to 40 containers per min Max.
• Consists of Simple System for UHMW/CAST NYLON TURRET with Height Adjustment Any Change over for Varies as per dia. of the Containers.
• Consists of Pre Crimping Head for initially crimp the Pump at the time of Pump placing & Final Crimping will be done with Crimping Head.
• Consists of Gassing Head for Filling the LPG Gas with applying Booster Pump & its operated with Two Stations ie. Initially filled with 40% & then after remaining 60% filled.
• Consists of INDEXING DEVICE which is operated with Pneumatic operation MANIFOLD.
• Consists of CRIMPING DEVICE Pneumatics operated for compact design & up-to-date technology two sets, with the indubigely operation of pressing for initially Pre Crimping, and then Final Crimping will be done.
• SS Control panel Box with provided Pneumatic circuit operation Logic.
• All Pneumatic will be used Branded Make Festo / Janatics / SMC / Duncal as per suitable application.
• Consists of Conveyor Motor FLP 0.5 Hp, Make HINDUSTAN/REMI. And with Suitable Gear Box-24:1 Ratio Make Bonfigloli With Separate Drive System.
• Machine Tentative Dimensions : (Length 4500mm x Width 1500mm x Height 2000mm.)
• Machine Weight Approx : 750 Kg.

The company has emerged as a highly acclaimed Manufacturer, Exporter & Supplier of Tube Filling, Sealing and Crimping Machine. The Tube Filling, Sealing and Crimping Machines are known for their versatility and high efficiency. The company offers the Best Tube Filling, Sealing and Crimping Machine at the best prices on a timely basis. Features

• (Rotomax x 50) Optimum speed 50 tubes / Minute.
• (Rotomax x 35) optimum speed 35 tubes / minue.
• Filling accuracy 1% of fill weight.
• Proven high quality hot air sealing system for plastic & laminated tubes.
• Filling system-positive suction & Displacement.
• Easy & fast changeovers.
• Turret indexing device general mechanism /cam indexing mainfold
• A combination sealer for both metal tube folding, laminated & plastic tube sealing.

Technical Specifications

• Filling range 1 cc to 250 cc (With change of pump inserts)
• Tube dia upto 50mm
• Tube length upto 200 mm

Power Consumption

• Max 4.25 kw
• Min 1.5 kw

Air Consumption

• Max 7 CFM @ 6 kg/cm²
• Min 6 CFM @ 6kg/cm²2

Chilled water consumption

• 4 LPM @ 8-10^oC in case of hot air sealing system.

Standard Features with machine

• Manual tube infeed.
• Automatic tube orientation (option).
• Tail-free filling system.
• Smooth operation by using ferguson drive.
• Automatic coading on the tubes.
• Machine cladded with SS 304.
• Inbuilt centralised lubrication (option).
• No tube, no fill device.

Tube Closing station

• Option 1 : Metal folding & crimping station.
• Option 2 : Lamisealer for laminated or plastic tubes.
• Option 3 : A combination sealer for both metal tube folding, laminated & plastic tube sealing.

Optional Feature with machine

• Automatic tube infeed cassette system.
• Automatic tube cleaning system.
• Both side batch coating system.
• Cap tightening system
• Tubular cover aluminium or SS 304 with Acrylic or polycarbonate housing.
• Jacketed hopper with product stirring device.
• Electronic product counter & time totaliser.
• Reverse / Saddle folding on Aluminium.
• Flame proofing.
• Multicolour filling system.

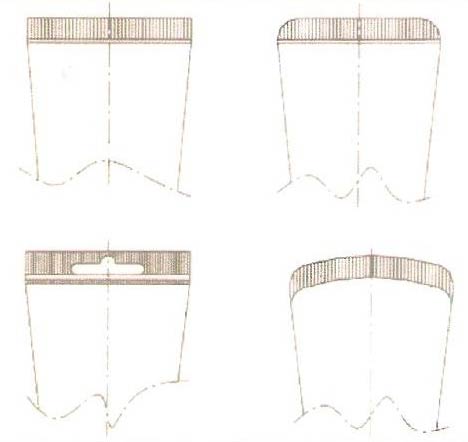

• Designer sealing patterns.
• GMP version.
• PLC based machine operations.
• Before and after filling nitrogen pursing.
• Mechanical tail-free attach filling device.

Machine Weight

• Rotomax A/L tubefiller 525 kgs
• Rotomax C Tubefiller 650 kgs
