Our Products
Graph

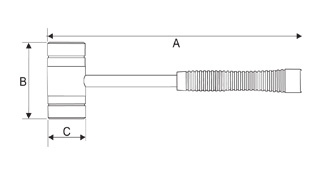

Technical Specifications :
PROD. NO | A | B | C | WT .GMS |
GH 800 | 250 | 92 | 36 | 950 |
GH 1000 | 260 | 96 | 38 | 1150 |
GH 1250 | 260 | 102 | 42 | 1400 |
GH 1500 | 260 | 110 | 44 | 1650 |
Graph
Technical Specifications :
PROD. NO | A | B | ΘC | WT. GMS |
CH 340 | 350 | 120 | 28 | 510 |
CLH 450 | 310 | 127 | 27 | 620 |
*Only Available in Ball Pein |
Graph
Technical Specifications :
PROD. NO | A | B | C | D | WT.GMS |
SFH 20 | 272 | 54 | -- | 20 | 240 |
SFH 25 | 272 | 90 | -- | 25 | 320 |
SFH 30 | 272 | 90 | -- | 30 | 425 |
SFH 40 | 330 | 122 | -- | 40 | 800 |
SFH 50 | 330 | 124 | -- | 50 | 1120 |
Generally Conforming to IS 841-1983
Partially Hardened up to 55 - 58 HRC on Striking surfaces needed as functional requirements for all types of hammers.
Drop forged from high grade carbon steel.Phosphated and painted to provide anti rusting properties.Handle made from high quality axle wood and fixed firmly to hammer head, which does not come out even after long rough use.
Graph
Technical Specifications :
PROD. NO | A | B | C | D | WT. GMS |
WH 110 B* | 260 | 64 | 18 | 20 | 170 |
WH 200 B/C | 300 | BO | 20 | 25 | 325 |
WH 340 B* | 315 | 90 | 26 | 28 | 425 |
WH 500 B/C | 330 | 105 | 25 | 30 | 710 |
WH 600 B* | 375 | 110 | 30 | 35 | 815 |
WH 800 B/C | 375 | 120 | 32 | 40 | 1050 |
* Available in Ball Pein & Cross Pein |
