Our Products
FEATURES & BENEFITS
TAPARIA Non-sparking safety tools
• Provide protection against fire and explosions.
• Are non-magnetic and corrosion-resistant.
• Protect workmen and plant from fire-related accidents.
• Approved by Govt. recognized laboratory in India.
• Made of beryllium copper and aluminium bronze.

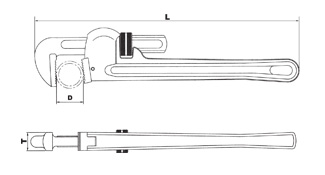

Generally Conforming to IS 4003 Part II 1986
Drop forged from Chrome Molybdenum (Cr Mo) Steel. Precision machined jaw teeth with appropriate teeth angle enables positive grip on the job.Differential hardening of teth and body of the jaw enables high torque and wear resistance of the jaw teeth.
Handle made from ductile cast iron which enables higher torque values for heavy duty pipe wrenches.
Graph
Technical Specifications :
PROD. NO. | NOM. PIPE | T | L | WT. GMS |
HPW 08 | 35 | 15 | 200 | 4200 |
HPW 18 | 76 | 26 | 450 | 2400 |
HPW 10 | 49 | 17 | 250 | 850 |
HPW 24 | 33 | 26 | 600 | 4100 |
HPW 12 | 60 | 23 | 300 | 1100 |
HPW 36 | 140 | 37 | 900 | 8800 |
HPW 14 | 60 | 23 | 350 | 1650 |
HPW 48 | 166 | 37 | 1200 | 13800 |

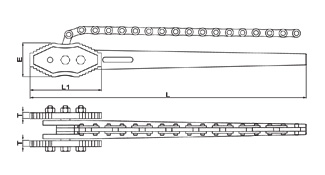

Generally Conforming to IS 4123 - 1982
Drop forged jaws with high - grade steel.An accurately machined jaw teeth on both sides of the jaw provides firm gripping and are easy for reverse operation. Scientifically heat - treated to give maximum strength and wear resistance.
Graph
Technical Specifications :
PROD. NO. | NOM. PIPE SIZE MAX ΘD | L | L1 | E | T | WT. GMS |
CPW04 | CPW04 | 900 | 165 | 80 | 12 | 1100 |
CPW06 | CPW06 | 1000 | 180 | 90 | 13 | 9500 |
CPW08 | CPW08 | 1200 | 190 | 90 | 14 | 11800 |
CPW10 | CPW10 | 1300 | 215 | 95 | 15 | 13500 |
CPW12 | CPW12 | 1400 | 215 | 95 | 15 | 14500 |
CPW16 | CPW16 | 1585 | 215 | 95 | 15 | 16500 |
Graph
Technical Specifications :
PROD. NO. | D | T | L | WT. GMS |
1272 | 33 | 15 | 250 | 500 |
1273 | 42 | 19 | 300 | 750 |
1274 | 48 | 21 | 350 | 1000 |
1275 | 60 | 24 | 450 | 1540 |
1276 | 73 | 28 | 600 | 2920 |
1277 | 90 | 34 | 900 | 5880 |
TAPARIA Torque Wrenches are:-
• Made from hugh grade steel to with stand maximum fatigue, wear and tear.
• All load bearing components are appropriately heat treated and toughened for long life and durability.
• Compact and robust design ensures ease in operation and safety in ruged terrains.
• Three way signal-touch, sight and sound.
• Push through moveable square permits use on both right hand and left hand directions.
• Positive setting without the need for any calibration rig.
• Calculated leverage to reduce labour fatigue.
• No violent kick back and automatic resetting after it clicks.
Graph
Technical Specifications :
MODEL NO. | SPECIFICATIONS | ||||
STANDARD TYPE | RATCHET TYPE | DR. | LB FT. | KGF.M | N.M |
TW10 | TWR10 | 3/8" | 2-10 | 0.3-1.4 | 3-14 |
TW25 | TWR25 | 3/8" | 5-25 | 0.5-3.5 | 5-35 |
TW50 | TWR50 | 1/2" | 10-50 | 1.4-7 | 14-68 |
TW100 | TWR100 | 1/2" | 20-100 | 3-14 | 25-135 |
TW160 | TWR160 | 1/2" | 35-160 | 5-22 | 50-220 |
TW250 | TWR250 | 1/2" | 50-250 | 7-35 | 70-340 |
TW400 | TWR400 | 3/4" | 100-400 | 14-56 | 135-540 |
TW500 | TW500 | 3/4" | 100-500 | 14-70 | 135-675 |
TW750 | TWR750 | 3/4" | 350-750 | 49-105 | 475-1015 |
TW1000 | TWR1000 | 1" | 400-1000 | 55-140 | 540-1380 |
TW1400 | TWR1400 | 1" | 750-1400 | 105-196 | 1000-1900 |
TW2000 | TWR2000 | 1" | 1000-2000 | 135-275 | 1350-2700 |
FEATURES & BENEFITS
Technical Specifications :
SKU | Length (inches) | Length (mm) | Weight (g) |
87-620-23 | 6 | 140 | 225 |
87-621-23 | 8 | 168 | 380 |
87-622-23 | 10 | 248 | 810 |
87-623-23 | 12 | 297 | 1140 |
87-624-23 | 14 | 332 | 1400 |
87-625-23 | 18 | 80 | 414 |
87-626-23 | 24 | 600 | - |
87-627-23 | 36 | 900 | - |
FEATURES & BENEFITS
FEATURES & BENEFITS
Technical Specifications :
SKU | Weight (g) | L (mm) | A (mm) | B (mm) |
---|---|---|---|---|
STHT84112-8 | 350 | 188 | 50 | 12.5 |
STHT84113-8 | 420 | 218 | 50 | 12.8 |
FEATURES & BENEFITS

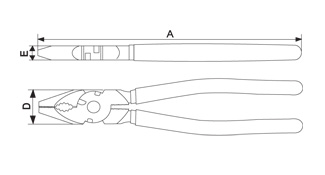

Generally Conforming to IS 6149-1984 Grade II
The Pliers made from high grade Steel, forged and differentially heat treated to give best performance. Fully insulated with quality plastic material sleeves ensures safe electrical working.
It has excellent wire cutting ability for soft and hard wires. Available with fully polished head or Black phosphated and bright polished head.
Graph
Technical Specifications :
PROD. NO | A | B | C | D | L | WT. GMS |
1621-6 | 165 | 33 | 12 | 23.0 | 10.5 | 185 |
1621-7 | 185 | 33 | 12 | 23.0 | 11.5 | 240 |
1621-8 | 210 | 39 | 16 | 27.5 | 12.0 | 325 |
1611-6 | 165 | 35 | 13 | 25 | 10.0 | 170 |
1611-7 | 185 | 38 | 15 | 27 | 10.5 | 220 |
1611-8 | 200 | 40 | 17 | 30 | 12.0 | 285 |
1601-6 | 165 | 35 | 13 | 25 | 10.0 | 190 |
1601-7 | 185 | 38 | 15 | 27 | 10.5 | 220 |
1601-8 | 200 | 40 | 15 | 28 | 12.0 | 310 |
MCP-10 | 255 | - | - | 40 | 15.0 | 540 |
MCP-12 | 300 | - | - | 35 | 15.0 | 620 |
FEATURES & BENEFITS
Heavy duty magnetic holder 360 degrees angle for levelin.
