Air Spray Solution

Ghansoli, Navi Mumbai, Maharashtra

Features of ZC 876 Shiny Cold Galvanizing Coating : ZC 876 Shiny Cold Galvanizing Coating is provides all metal surfaces, such as hot-dip galvanised parts being repaired, with permanent, cathodic corrosive protection. It forms a quick-drying, adhesive, protective layer of micro fine zinc flakes. Provides maximum protection against the formation or spread of rust and corrosion. Excellent Outdoor & Indoor protection Outstanding corrosion High temperature resistance True galvanic protection Application of ZC 876 Shiny Cold Galvanizing Coating It use in All vehicle bodies Agricultural, mining and construction equipment, Piping, storage tanks, Bridges, Ships and marine equipment, Refinery, Water treatment, Pulp & paper, Steel Automobile etc. Direction of ZC 876 Shiny Cold Galvanizing Coating Surface should be dry and free of rust bloom. Shake well until agitator ball is free. Repeat while using. Best results are obtained when sprayed above 60 F. Spray from 12-15 inches away in light, even coats. The optimum film thickness for Bright Zinc is 1.5 to 3.0 mils of dry film. To obtain this thickness via aerosol application, 3 passes of spray are required. Spray the substrate once vertically, once horizontally, and once more vertically for ideal coverage. Additional coats for heavy film can be applied when first coat is dry. For a thickness of 3 mils, repeat the above spray pattern twice. When finished spraying, clean valve by turning can upside down and pressing button until only pressure escapes. If clogging occurs, remove button and clean slot and orifice with fine wire. Precaution of ZC 876 Shiny Cold Galvanizing Coating Contents are Extremely Flammable and Under Pressure. Do not punctured, may explode if heated. Do not apply while equipment is energized, Keep away from all live electrical sources including battery terminals, solenoids, electrical panels and other electronic components. Prevention : Wear eye or face protection. Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. No smoking. Pressurized container : Do not pierce or burn even after use. Do not spray on an open flame or other ignition source, live circuits. Harmful in contact with eyes. Prolonged exposure may cause chronic effects. May cause drowsiness and dizziness Response : IF INHALED: Remove victim to fresh air and keep at rest in a position comfortable for breathing. Call a POISON CENTRE ;or physician if you feel unwell. IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing. If eye irritation persists: Get medical attention. Dispose of contents and/or container according to Federal, State/Provincial and local governmental regulations. Storage of ZC 876 Shiny Cold Galvanizing Coating Store locked up. Protect from sunlight. Do not expose to temperatures exceeding 50C/122 F. Store in a well-ventilated place. Keep container tightly closed. Keep Out of Reach of Children.

Features of ZC 678 Anti corrosion Bright zinc coating is Inhibits rust and corrosion on ferrous metals. Stops rust and corrosion on any iron or steel surface, Provides the appearance of a hot-dip galvanised, Highly resistant to scratching, denting, abrasion, corrosive environments, salt air, heat, moisture and road salts. Quick-drying Non-sagging touch-up of damaged galvanising Its galvanic action ensures better self-healing and sealing Application of ZC 678 Anti corrosion Bright zinc coating Bright-Zinc is the original metallic silver colour zinc-rich coating that has been used on towers, power generators, farms, fencing , Air conditioning equipment / ducts, satellite, antennas. It is used as an anti rust primer on vehicle bodies.It forms a protective coating on welded and drilled section. Used in Marine works and ship manufacturing parts and repairing. also used in heavy equipment, pipes, transformers, electrical poles, threads, welds, automobile, Metal chain fences, storage tanks etc. They are invaluable for use in : Construction Agriculture, Local authorities, Railway, Welding, transport, Automotive, Engineering, Direction of ZC 678 Anti corrosion Bright zinc coating Surface should be dry and free of rust bloom. Shake well until agitator ball is free. Repeat while using. Best results are obtained when sprayed above 60 F. Spray from 12-15 inches away in light, even coats. The optimum film thickness for Bright Zinc is 1.5 to 3.0 mils of dry film. To obtain this thickness via aerosol application, 3 passes of spray are required. Spray the substrate once vertically, once horizontally, and once more vertically for ideal coverage. Additional coats for heavy film can be applied when first coat is dry. For a thickness of 3 mils, repeat the above spray pattern twice. When finished spraying, clean valve by turning can upside down and pressing button until only pressure escapes. If clogging occurs, remove button and clean slot and orifice with fine wire. Precaution of ZC 678 Anti corrosion Bright zinc coating Contents are Extremely Flammable and Under Pressure. Do not punctured , may explode if heated. Do not apply while equipment is energised, Keep away from all live electrical sources including battery terminals, solenoids, electrical panels and other electronic components. Prevention : Wear eye or face protection. Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. No smoking. Pressurised container: Do not pierce or burn, even after use. Do not spray on an open flame or other ignition source, live circuits. Harmful in contact with eyes. Prolonged exposure may cause chronic effects. May cause drowsiness and dizziness Response : IF INHALED: Remove victim to fresh air and keep at rest in a position comfortable for breathing. Call a POISON CENTRE or physician if you feel unwell. IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing. If eye irritation persists: Get medical attention. Dispose of contents and/or container according to Federal, State/Provincial and local governmental regulations. Storage of ZC 678 Anti corrosion Bright zinc coating Store locked up. Protect from sunlight. Do not expose to temperatures exceeding 50C/122 F. Store in a well-ventilated place. Keep container tightly closed. Keep Out of Reach of Children.

Features of ACC 2010 Acrylic Conformal Coating ACC 2010 Acrylic Conformal Coating is a flexible transparent acrylic coating for the protection of electronic circuitry formulated to meet the highest resistance requirements. Used on printed circuit boards as protective coating against moisture, dust, humidity and fungus. Protects all Electrics/Electronics Circuitry equipments in Extreme Service Environments. Excellent adhesion and dielectric properties. Good moisture resistance & Quick Evapouration. Application of ACC 2010 Acrylic Conformal Coating It used as extra/after insulation of coils and transformers and reduces operational noise. Military Equipment Aerospace Industry Air Conditioner Circuit Board Industrial Applications Automotive Applications Direction of ACC 2010 Acrylic Conformal Coating Shake well can before use at least 1 Minutes.Hold the can at least 15 to 20 cm from the surface you are spraying and keep the can upright during use. Protect & Mask areas not Coated. Two light coats is best results better than one heavy coat.Coating becomes dry in 20 minutes. make sure the surface is completely dry before using. completed cure takes place in about 24 hours depends upon the humidity. When finished spraying, clean the aerosol valve by turning the can upside down and pressing the button until only propellant escapes. Precaution of ACC 2010 Acrylic Conformal Coating Contains gas under pressure do not punctured , may explode if heated. Extremely flammable aerosol. Prevention : Wear eye or face protection. Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. No smoking. Pressurized ontainer: Do not pierce or burn, even after use. Do not spray on an open flame or other ignition source. Use only outdoors or in a well-ventilated area. Avoid breathing vapor. Wash hands thoroughly after handling. Causes serious eye irritation. May cause drowsiness and dizziness Response : IF INHALED: Remove victim to fresh air and keep at rest in a position comfortable for breathing. Call a POISON CENTER or physician if you feel unwell. IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing. If eye irritation persists: Get medical attention. Dispose of contents and/or container according to Federal, State/Provincial and local governmental regulations. Storage of ACC 2010 Acrylic Conformal Coating Storage : Store locked up. Protect from sunlight. Do not expose to temperatures exceeding 50 C/122 F. Store in a well-ventilated place.keep container tightly closed. Keep Out of Reach of Children

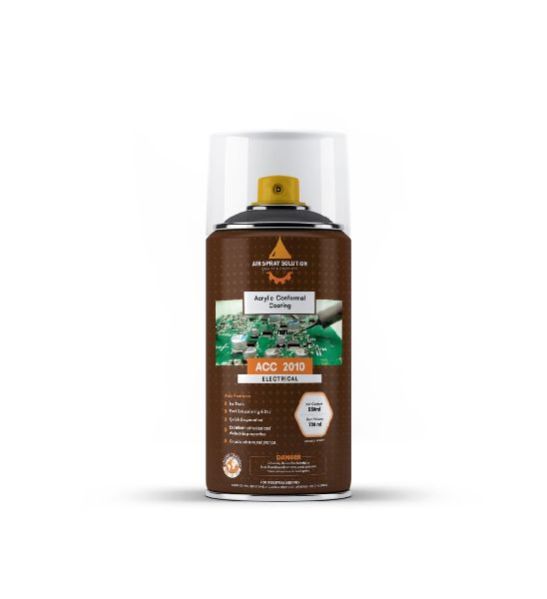

Features of ACC 2010 Acrylic Conformal Coating

• ACC 2010 Acrylic Conformal Coating is a flexible transparent acrylic coating for the protection of electronic circuitry formulated to meet the highest resistance requirements. Used on printed circuit boards as protective coating against moisture, dust, humidity and fungus.
• Protects all Electrics/Electronics Circuitry equipments in Extreme Service Environments.
• Excellent adhesion and dielectric properties. Good moisture resistance & Quick Evapouration.

Application of ACC 2010 Acrylic Conformal Coating

It used as extra/after insulation of coils and transformers and reduces operational noise.

• Military Equipment
• Aerospace Industry
• Air Conditioner Circuit Board
• Industrial Applications
• Automotive Applications

Direction of ACC 2010 Acrylic Conformal Coating

• Shake well can before use at least 1 Minutes.Hold the can at least 15 to 20 cm from the surface you are spraying and keep the can upright during use.
• Protect & Mask areas not Coated. Two light coats is best results better than one heavy coat.Coating becomes dry in 20 minutes. make sure the surface is completely dry before using.
• completed cure takes place in about 24 hours depends upon the humidity. When finished spraying, clean the aerosol valve by turning the can upside down and pressing the button until only propellant escapes.

Precaution of ACC 2010 Acrylic Conformal Coating

• Contains gas under pressure do not punctured , may explode if heated.
• Extremely flammable aerosol.
• Prevention : Wear eye or face protection. Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. No smoking. Pressurized ontainer: Do not pierce or burn, even after use. Do not spray on an open flame or other ignition source. Use only
• outdoors or in a well-ventilated area. Avoid breathing vapor. Wash hands thoroughly
• after handling. Causes serious eye irritation.
• May cause drowsiness and dizziness
• Response : IF INHALED: Remove victim to fresh air and keep at rest in a position comfortable for breathing. Call a POISON CENTER or physician if you feel unwell. IF IN EYES: Rinse
• cautiously with water for several minutes. Remove contact lenses, if present and easy
• to do. Continue rinsing. If eye irritation persists: Get medical attention.
• Dispose of contents and/or container according to Federal, State/Provincial and local
• governmental regulations.

Storage of ACC 2010 Acrylic Conformal Coating

• Storage : Store locked up. Protect from sunlight. Do not expose to temperatures exceeding 50 C/122 F. Store in a well-ventilated place.keep container tightly closed.
• Keep Out of Reach of Children

Features of ZC 876 Shiny Cold Galvanizing Coating

ZC 876 Shiny Cold Galvanizing Coating is provides all metal surfaces, such as hot-dip galvanised parts being repaired, with permanent, cathodic corrosive protection. It forms a quick-drying, adhesive, protective layer of micro fine zinc flakes. Provides maximum protection against the formation or spread of rust and corrosion.

• Excellent Outdoor & Indoor protection
• Outstanding corrosion
• High temperature resistance
• True galvanic protection

Application of ZC 876 Shiny Cold Galvanizing Coating

It use in All vehicle bodies Agricultural, mining and construction equipment, Piping, storage tanks, Bridges, Ships and marine equipment, Refinery, Water treatment, Pulp & paper, Steel Automobile etc.

Direction of ZC 876 Shiny Cold Galvanizing Coating

• Surface should be dry and free of rust bloom.
• Shake well until agitator ball is free.
• Repeat while using. Best results are obtained when sprayed above 60 F. Spray from 12-15 inches away in light, even coats.
• The optimum film thickness for Bright Zinc is 1.5 to 3.0 mils of dry film.
• To obtain this thickness via aerosol application, 3 passes of spray are required.
• Spray the substrate once vertically, once horizontally, and once more vertically for ideal coverage.
• Additional coats for heavy film can be applied when first coat is dry. For a thickness of 3 mils, repeat the above spray pattern twice.
• When finished spraying, clean valve by turning can upside down and pressing button until only pressure escapes.
• If clogging occurs, remove button and clean slot and orifice with fine wire.

Precaution of ZC 876 Shiny Cold Galvanizing Coating

• Contents are Extremely Flammable and Under Pressure.
• Do not punctured, may explode if heated. Do not apply while equipment is energized, Keep away from all live electrical sources including battery terminals, solenoids, electrical panels and other electronic components.
• Prevention : Wear eye or face protection. Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. No smoking. Pressurized container : Do not pierce or burn even after use. Do not spray on an open flame or other ignition source, live circuits. Harmful in contact with eyes. Prolonged exposure may cause chronic effects.
• May cause drowsiness and dizziness Response : IF INHALED: Remove victim to fresh air and keep at rest in a position comfortable for breathing. Call a POISON CENTRE ;or physician if you feel unwell. IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing. If eye irritation persists: Get medical attention.
• Dispose of contents and/or container according to Federal, State/Provincial and local governmental regulations.

Storage of ZC 876 Shiny Cold Galvanizing Coating

• Store locked up. Protect from sunlight. Do not expose to temperatures exceeding 50C/122 F. Store in a well-ventilated place. Keep container tightly closed.
• Keep Out of Reach of Children.

Features of ZC 678 Anti corrosion Bright zinc coating

• ZC 678 Anti corrosion Bright zinc coating is Inhibits rust and corrosion on ferrous metals. Stops rust and corrosion on any iron or steel surface, Provides the appearance of a hot-dip galvanised,
• Highly resistant to scratching, denting, abrasion, corrosive environments, salt air, heat, moisture and road salts.
• Quick-drying
• Non-sagging touch-up of damaged galvanising
• Its galvanic action ensures better self-healing and sealing

Application of ZC 678 Anti corrosion Bright zinc coating

• Bright-Zinc is the original metallic silver colour zinc-rich coating that has been used on towers, power generators, farms, fencing , Air conditioning equipment / ducts, satellite, antennas.
• It is used as an anti rust primer on vehicle bodies.It forms a protective coating on welded and drilled section.
• Used in Marine works and ship manufacturing parts and repairing. also used in heavy equipment, pipes, transformers, electrical poles, threads, welds, automobile, Metal chain fences, storage tanks etc.
• They are invaluable for use in : Construction Agriculture, Local authorities, Railway, Welding, transport, Automotive, Engineering,

Direction of ZC 678 Anti corrosion Bright zinc coating

• Surface should be dry and free of rust bloom.
• Shake well until agitator ball is free.
• Repeat while using. Best results are obtained when sprayed above 60 F. Spray from 12-15 inches away in light, even coats.
• The optimum film thickness for Bright Zinc is 1.5 to 3.0 mils of dry film.
• To obtain this thickness via aerosol application, 3 passes of spray are required.
• Spray the substrate once vertically, once horizontally, and once more vertically for ideal coverage.
• Additional coats for heavy film can be applied when first coat is dry. For a thickness of 3 mils, repeat the above spray pattern twice.
• When finished spraying, clean valve by turning can upside down and pressing button until only pressure escapes.
• If clogging occurs, remove button and clean slot and orifice with fine wire.

Precaution of ZC 678 Anti corrosion Bright zinc coating

• Contents are Extremely Flammable and Under Pressure.
• Do not punctured , may explode if heated. Do not apply while equipment is energised, Keep away from all live electrical sources including battery terminals, solenoids, electrical panels and other electronic components.
• Prevention : Wear eye or face protection. Keep away from heat, hot surfaces, sparks, open flames and other ignition sources. No smoking. Pressurised container: Do not pierce or burn, even after use. Do not spray on an open flame or other ignition source, live circuits.
• Harmful in contact with eyes. Prolonged exposure may cause chronic effects.
• May cause drowsiness and dizziness
• Response : IF INHALED: Remove victim to fresh air and keep at rest in a position comfortable for breathing. Call a POISON CENTRE or physician if you feel unwell. IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing. If eye irritation persists: Get medical attention.
• Dispose of contents and/or container according to Federal, State/Provincial and local governmental regulations.

Storage of ZC 678 Anti corrosion Bright zinc coating

• Store locked up. Protect from sunlight. Do not expose to temperatures exceeding 50C/122 F. Store in a well-ventilated place. Keep container tightly closed.
• Keep Out of Reach of Children.
