SpecificationsConcept:

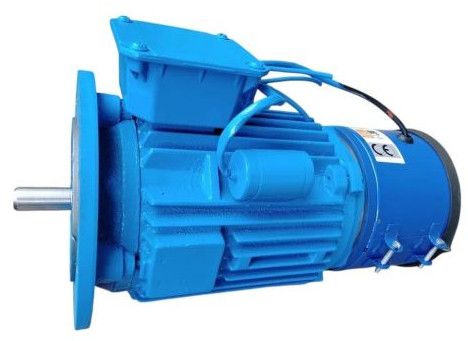

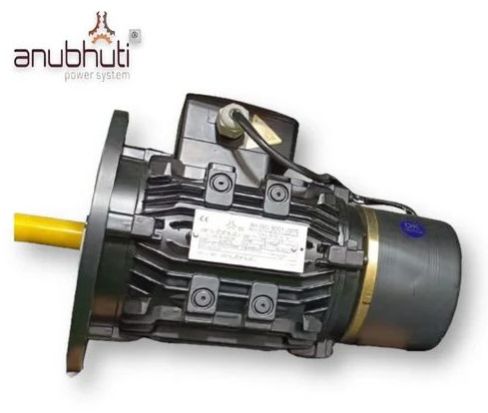

Brake Motor is a combination of three phase or single phase Squirrel Cage Induction Motor with Electro-Magnetic Disc Brake (A.C.) when power is switched off with ordinary motor, the rotating part will stopped after some time but if brake motor is used rotating mass will stop instantaneously. All Brakes are mounted at the non-driving end of the motor, braking disc is mounted directly on the motor shaft. Brakes are directly acting, no lever or links are required.Range:Three phase: – 0.5H.P. to 10 H.P. ( 0.37 to 7.5 Kw.) In 3000, 1500, 1000 & 750 Rpm with A.c. & D.c. brake frame 71 to160L on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60.Singe phase: 0.25 H.P. to 3 H.P. In 3000, 1500, 1000 Rpm with A.c.& D.c. brake frame 63 to 112MMounting: Foot-Flange-FaceVoltage and Frequency: Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able to supply motor in 220, 380, 460, 525volts on HZ. 50 or60 )Insulation: Motor supply with class F insulation as a standard feature. Also, supply H on request of a customer at extra cost.

SpecificationsConcept:
Brake Motor is a combination of three phase or single phase Squirrel Cage Induction Motor with Electro-Magnetic Disc Brake (A.C.) when power is switched off with ordinary motor, the rotating part will stopped after some time but if brake motor is used rotating mass will stop instantaneously. All Brakes are mounted at the non-driving end of the motor, braking disc is mounted directly on the motor shaft. Brakes are directly acting, no lever or links are required.Range:Three phase: – 0.5H.P. to 10 H.P. ( 0.37 to 7.5 Kw.) In 3000, 1500, 1000 & 750 Rpm with A.c. & D.c. brake frame 71 to160L on customer request we are also able to supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60.Singe phase: 0.25 H.P. to 3 H.P. In 3000, 1500, 1000 Rpm with A.c.& D.c. brake frame 63 to 112MMounting: Foot-Flange-FaceVoltage and Frequency: Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able to supply motor in 220, 380, 460, 525volts on HZ. 50 or60 )Insulation: Motor supply with class F insulation as a standard feature. Also, supply H on request of a customer at extra cost.

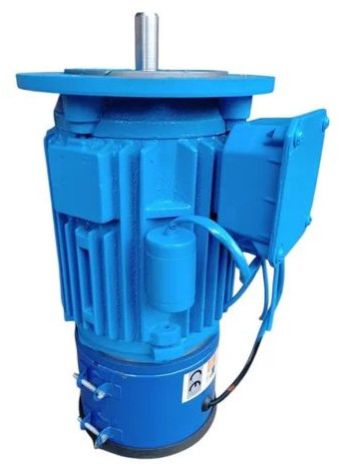

The Flange Mounted Brake Motor is a precision-engineered electric motor equipped with an electromagnetic brake and a flange mounting system for easy and secure installation. Designed for applications requiring quick stopping, safety, and controlled movement, the Flange Mounted Brake Motor ensures high torque performance with reliable braking.

Ideal for vertical or horizontal mounting, the Flange Mounted Brake Motor is widely used in automation systems, elevators, cranes, hoists, and conveyors. Its compact flange design makes it perfect for space-constrained setups, while its rugged construction ensures long-lasting service in industrial environments.

Key Features of Flange Mounted Brake Motor:

Electromagnetic Braking: Instant stop with reliable holding torque.

Space-Saving Flange Design: The Flange Mounted Brake Motor is easy to install in tight areas.

Heavy-Duty Build: Made with robust materials for industrial applications.

Low Vibration & Noise: Ensures quiet and smooth operation.

Energy Efficient: The Flange Mounted Brake Motor runs efficiently, reducing power consumption.

Applications of Flange Mounted Brake Motor:

Cranes & Hoists

Lifts & Elevators

Material Handling Equipment

Machine Tools

Conveyor Systems

Choose the Flange Mounted Brake Motor for efficient, compact, and safe motion control. Whether for vertical loads or automation systems, the Flange Mounted Brake Motor offers dependable performance with quick braking action.
