Our Products

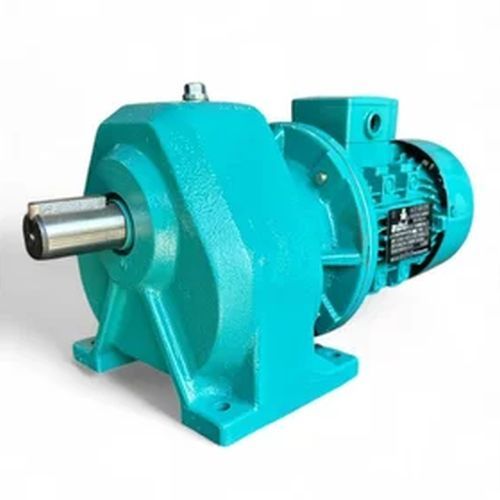

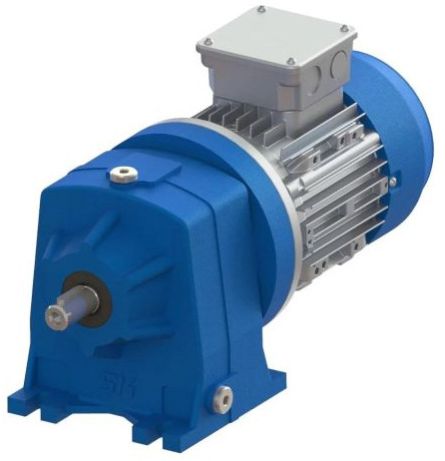

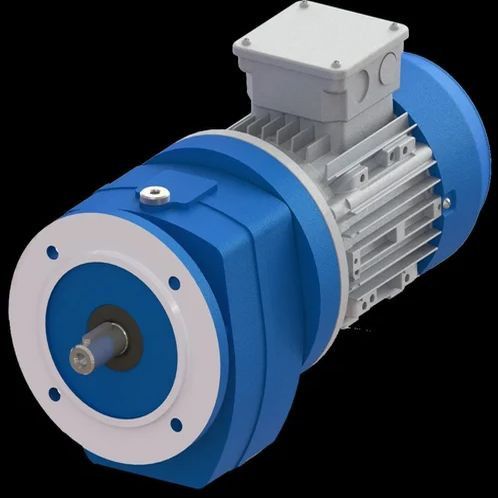

Our offered Product range includes Three Phase Geared Brake Motor, Single Phase Electric Gear Motor, Three Phase Worm Gear Motor, Three Phase Gear Motor and Foot Electric Three Phase Gear Motor.
General:- ANUBHUTI Geared Motors and inline helical gear reducer have been developed in our factory to give co-axial, and compact and reliable mode of speed reduction at high torque.
The gear casings are manufactured from high grade cast iron and are liberally designed for maximum heat dissipation and cool running. Gear and pinions are made from special case hardening alloy steel and are specially heat-treated.
Range:- In addition to our standard range of production of 0.16 HP to 30 HP, 0.1 to 700 RPM as detailed in our price list, other sizes can be offered on specific enquires.
Motor:- Electric motors used in gear units are totally enclosed, fan cooled, squirrel cage induction motors suitable for operation on 415V, 50HZ, 3 Phase, AC supply, Generally IP 54 enclosure, with class B insulation and as per IS : 325 – 1978. However motors with different electrical and mechanical characteristic can also be offered.
Lubrication:- Bearing and gears are lubricated by normal splashing of oil and requires no special attention for long peroids. First fill oil is not supplied. All geared motors are provided with oil filler cum breather plug, drain plug and oil level indicator.The first change of oil should be made after approximately 350 to 450 operating hours. The recommended oils are Indian oil Servo mesh SP 60 or Hindustan Petroleum – Gervil EP 5 or 4 equivalent.
Duties:- Normal duty and heavy duty series gaered motors are available under our regular manufacturing program, Light duty and extra heavy duty series can be offered on specific enquires.
General guidance regarding proper selection of geared motor can be given supply of data regarding HP output speed, nature of load etc.
Testing:- All components are tested to rigid standard of tolerances. Assembled gear units are tested on no load for noise level, oil leakage and temperature rise.
Data to be furnished with enquiry:- The following details are to be furnished along with enquiry.
1. Load in HP or KW
2. Torque in N.M.
3. Supply voltage and frequency details.
4. Operating condition such as peak or shock loads giving magnitude and duration, ambient conditions, (i.e.)temperature humidity etc., number of operating hours per day and mounting positing.
Salient Features:- 1.Geared motors, incorporation liberally designed and perfectly alignedpinions, gears and bearings are compact light in weight and provide a very economic, efficient and trouble free method of speed reduction.
2. Geared motors are suitable for reversible drive and are supplied for variuos mounting positions depending upon requirement.
3. Geared motors incorporate electric motors of proven design evolved over 25 years manufacturing experience.
4. Geared motors are available at very short notice.
Additional Information:
Payment Terms : D/A, D/P,
Packaging Details : BOX
Delivery Time : 2 DAYS
The 3 Phase AC Motor is a highly efficient and dependable machine, widely utilized in diverse industrial applications. Operating on three-phase alternating current (AC), the most common power supply in industrial settings, it converts electrical energy into mechanical energy through magnetic field interactions. Known for its high power output, superior efficiency, and capability to perform continuously under demanding conditions, it is the perfect solution for heavy-duty machinery and equipment. Anubhuti Power System is a leading manufacturer in India, offering top-quality and efficient 3 Phase AC Motors to meet various industrial requirements.

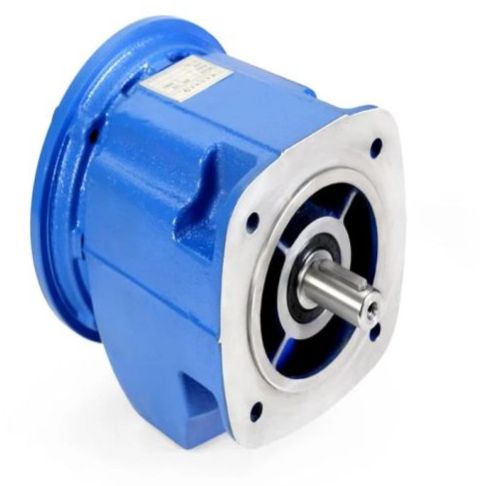

The Vertical Helical Gear Motor is a premium power transmission solution designed for high torque, energy efficiency, and vertical mounting. Engineered with precision-cut helical gears, the Vertical Helical Gear Motor ensures smooth operation, high load capacity, and long service life in demanding vertical drive systems.
Perfect for applications such as agitators, mixers, conveyors, and lifting systems, the Vertical Helical Gear Motor delivers superior torque transmission with minimal backlash and noise. Its compact vertical design saves space while providing optimal power output in continuous or heavy-duty operations.
Key Features of Vertical Helical Gear Motor:
High Efficiency: The Vertical Helical Gear Motor operates with low power loss and excellent output performance.
Vertical Mounting Design: Ideal for vertical shafts, saving space and improving load alignment.
Durable & Reliable: Constructed with hardened steel gears and rigid housing for long-lasting durability.
Low Noise & Vibration: Helical gears in the Vertical Helical Gear Motor ensure quiet and smooth transmission.
Custom Gear Ratios: Available in multiple configurations to suit varied speed and torque needs.
Applications of Vertical Helical Gear Motor:
Vertical Agitators & Mixers
Cooling Towers
Material Lifting Systems
Chemical & Food Processing
Packaging & Conveyor Lines
When you need vertical power transmission with high efficiency and low maintenance, the Vertical Helical Gear Motor is the perfect choice. Built for performance and durability, the Vertical Helical Gear Motor is trusted across industries for vertical-drive solutions.
The Gear Motor is a reliable and efficient solution that combines an electric motor with a precision gearbox to deliver high torque at low speeds. Designed for smooth and consistent power transmission, the Gear Motor is widely used in industrial automation, material handling, conveyors, packaging machines, and robotics.
Built with high-quality components, the Gear Motor offers long service life, low maintenance, and quiet operation. Its compact size and integrated design make it ideal for space-constrained applications where controlled motion and efficiency are key.
Key Features of Gear Motor:
High Torque Output: The Gear Motor delivers powerful torque at reduced speeds.
Compact Design: Space-saving, ideal for tight installations.
Smooth & Silent Operation: Precision-cut gears ensure quiet, low-vibration performance.
Energy Efficient: Optimized for continuous-duty cycles with minimal power loss.
Easy to Install & Maintain: Standard mounting options and low servicing needs.
Applications of Gear Motor:
Conveyor Belts & Lifting Systems
Packaging & Labeling Machines
Textile & Printing Equipment
Robotics & Automation
Food Processing Machinery
Choose the Gear Motor for precise speed control, robust performance, and long-term reliability. Whether for small machines or heavy-duty setups, the Gear Motor ensures smooth and efficient power delivery.
ANUBHUTI gears sizes, transmission ratios and main dimension according to standard series of numbers. Economic mass production, comprehensive maintenance of stocks, favorable delivery periods,
Easy servicing, low weight, compact design with high efficiency due to case-hardened steels of the highest strength, amply dimensioned bearing, very srnooth running with low noise due to ground helical gears and lapped high precision spiral bevel gears, housing of vibration-damping design of grey cast iron. The use of the most up to date machining equiprnents with constant production control by rneans of the most recent measuring machines.
GEAR BODY :- It is made of close grain cast iron, which is absolutely dust proof & oil tight.
GEARS :- Gears are helical type-made of cast iron, hardened alloy steel, Gear teeth are hobbed and profile ground for smooth & silent running.
OIL SEAL:- Silicon oil seals are used to resist very high temperature resulting from the heaters on the barrel.
BEARING :- Taper roller bearings of ample capacity are used to withstand thrust and radial loads.
LUBRICATION :- Lubrication is done by splash of oil, no separate care is required except periodic checking of oil level
– Use proper grade of gear oil only.
– Change first filling of oil after two months of operation and them after every six months.
Additional Information:
Payment Terms : D/A, D/P
Packaging Details : BOX
Delivery Time : 2 to 4 days
