BHAMBAR AUTOMATIONS PRIVATE LIMITED

BHAMBAR AUTOMATIONS PRIVATE LIMITED
location Dhandari Kalan, Ludhiana, Punjab

gstGST : 03AANCB6130C1Z7 5.0/5
View Number

Our Products

  1. Milling Machines 6 Products available
  2. Machine And Precision Tools 1 Products available

Milling Machines

We are leaders in the market for providing best range of Hobbing Milling Machine, Hydraulic Horizontal Milling Machine, Hydraulic Vertical Milling Machine, All Geared Universal Milling Machines and Vertical Milling Machines

Hobbing Milling Machine

Hobbing Milling Machine
₹ 22.22 Lakh / Piece Get Latest Price
  • Brand Name BHAMBAR
  • Material Cast Iron
  • Finishing Paint
  • Driven Type Electric
  • Shape As per machine
  • Weight 3000 kg
  • Speed Range 12
  • Maximum Height 6 feet

Milling Machine manufacturers in India

Milling machine India

Milling Machine manufacturers

Milling Machine Manufacturers in Ludhiana

Milling Machine Manufacturers in Rajkot

Universal Milling Machine Manufacturers

Universal Milling Machine Manufacturers in India

Universal Milling Machine Manufacturers in Ludhiana

Universal Milling Machine Suppliers

All Geared Universal Milling Machine

All Geared Vertical Milling Machine

Vertical Milling Machine

Vertical Milling Machine Manufacturers

Vertical Milling Machine Manufacturers in India

Vertical Milling Machine Manufacturers in Ludhiana

Vertical Milling Machine Suppliers

Vertical Milling Machine Manufacturers

Heavy Duty Milling Machine

Ram Type Milling Machines

Turret Ram Vertical Milling Machine Manufacturers

Knee Type Milling Machine Manufacturers

SPM Milling Machines

Special Purpose Milling Machines

horizontal milling machine

knee milling machine

best milling machine

universal vertical milling machine

universal milling

universal horizontal milling machine

All Geared universal milling machine

Hydraulic Milling Machine

Bhambar Milling

Bhambar Milling Machine

Production Milling Machine

Automatic Milling Machine

Milling Machine suppliers

View Complete Details
Ask Latest Price & Details
Hydraulic Horizontal Milling Machine

Hydraulic Horizontal Milling Machine
₹ 11.11 Lakh / piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Driven Type Electric
  • Phase Single Phase
  • Certification CE Certified
  • Material Stainless Steel
  • Country of Origin India
  • Total Carbohydrate 1 Year
  • Number Of Flower Automatic

STANDARD EQUIPMENTS :

  • Draw Bar
  • Power Pack with Cylinder
  • Electrical Control Panel with Switch Box & Motors
  • Machine Lamp
  • Bellow Covers & Base Splash Tray


OPTIONAL EQUIPMENTS :

  • Extra Hydraulic Manifold for Clamp & Unclamp with Electrical
  • Collet Adaptor Set
  • Hydraulic Oil
  • NC Controlled Rotary Table
  • NC Control Dividing Head
  • Spindle Taper ISO 50 Standard
  • Milling Machine Vice
  • Electric Coolant Pump & whichever not mentioned in standard


Note :

  • Being committed to continual improvement, all specifications are subject to change without prior notice.
  • We always focus to do customization/ automation in machines as per our customer’s need.
  • Jig Fixtures, Tooling, Cutters & Inserts, Job Clamps etc. in buyer’s scope.
  • Final Inspection is mandatory once before despatch from our factory to avoid unsought advices.

Specifications

MODEL HMS 500 HMS 700
Table Size 1100 x 300 1300 x 300
T-Slots/Bolt Size/C.D. 3/M16/65 3/M16/65
X-Traverse (Longitudinal) 500 (Hydraulic Feed/Rapid) 700 (Hydraulic Feed/Rapid)
Y-Traverse (Cross Traverse) 200 (Manual) 250 (Manual)
Z-Traverse (Vertical Traverse) 300 (Manual) 350 (Manual)
Table Loading Capacity 200 Kgms. 300 Kgms.
Spindle Taper Standard ISO 40 ISO 40
Spindle Speeds & Range 12 (45-1100 RPM's) 12 (45-1100 RPM's)
Arbor Diameter 25.4 mm 25.4 mm
Feed Range Hydraulic Variable Hydraulic Variable
Rapid Quick Quick
Milling Spindle Motor 2 HP 3 HP
Hydraulic Power Pack Motor 2 HP 3 HP
Coolant System, if Required 0.1 HP 0.1 HP
View Complete Details
Ask Latest Price & Details
Hydraulic Vertical Milling Machine

Hydraulic Vertical Milling Machine
₹ 11.11 Lakh / piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Country of Origin India
  • Number Of Flower Automatic
  • Brand Name BHAMBAR
  • Material Cast Iron
  • Total Carbohydrate 1 Year
  • Certification CE Certified
  • Phase Single Phase
  • Driven Type Hydraulic
  • Country of Origin 220V

STANDARD EQUIPMENTS :

  • Draw Bar
  • Power Pack with Cylinder
  • Electrical Control Panel with Switch Box & Motors
  • Machine Lamp
  • Bellow Covers & Base Splash Tray


OPTIONAL EQUIPMENTS :

  • Extra Hydraulic Manifold for Clamp & Unclamp with Electrical
  • Hydraulic Oil
  • Collet Adaptor Set
  • Milling Machine Vice
  • Electric Coolant Pump & whichever not mentioned in standard


Note :

  • Being committed to continual improvement, all specifications are subject to change without prior notice.
  • We always focus to do customization/ automation in machines as per our customer’s need.
  • Jig Fixtures, Tooling, Cutters & Inserts, Job Clamps etc. in buyer’s scope.
  • Final Inspection is mandatory once before despatch from our factory to avoid unsought advices.

Specifications

MODEL VMS 500 VMS 700
Table Size 1100 x 300 1300 x 300
T-Slots/Bolt Size/C.D. 3/M16/65 3/M16/65
X-Traverse (Longitudinal) 500 (Hydraulic Feed/Rapid) 700 (Hydraulic Feed/Rapid)
Y-Traverse (Cross Traverse) 200 (Manual) 250 (Manual)
Z-Traverse (Vertical Traverse) 300 350
Table Loading Capacity 200 Kgms. 350 Kgms.
Spindle Taper Standard ISO 40 ISO 40
Spindle Speeds & Range 12 (45-1100 RPM's) 12 (45-1100 RPM's)
Quill Travel Manually 90 mm 90 mm
Feed Range Hydraulic Variable Hydraulic Variable
Rapid Quick Quick
Milling Spindle Motor 2 HP 2 HP
Hydraulic Power Pack Motor 2 HP 3 HP
Coolant System, if Required 0.1 HP 0.1 HP
View Complete Details
Ask Latest Price & Details
All Geared Universal Milling Machines

All Geared Universal Milling Machines
₹ 2.22 Lakh / piece Get Latest Price
  • Min. Order (MOQ) 1 piece
  • Usage Industrial
  • Certification ISI Certified
  • Power 6-9kw
  • Country of Origin India
  • Brand Name BHAMBAR
  • Total Carbohydrate 1 Year
  • Number Of Flower Automatic

SALIENT FEATURES

  • Convenient & User Friendly Design.
  • Highly Rigid Casting Frame.
  • Superior Quality Casting with Chemical Compositions
  • Independent Motor Drives for Spindle & Feeds
  • Single Lever Control for Rapid & Feeds
  • Massive Range of Spindle speeds & XYZ Axis Feeds
  • XYZ Axis can be run Automatically as well as Manually
  • Fully Reliable Hardened Gears and EN Alloy Steel Shafts/Acme Screws
  • » All parts are interchangeable with Standard Designs
  • ISI/CE Marked Electrical.



STANDARD EQUIPMENTS:

Draw Bar, Electrical Control Panel with Switch Box & Motors, Machine Lamp, Bellow Guards, Base Splash Tray, Arbour with Hardened Bushe



OPTIONAL EQUIPMENTS

Vertical Attachment, Ram Type Head, Side Vertical Head, Duplex Head Attachment, Slotting Attachment, Rack Cutting, Universal Dividing Head as per order, Rotary Table as per order, Milling Machine Vice as per order, Electric Coolant Pump & whichever not mentioned in standard

Additional Information:

Packaging Details : Universal Milling Machine Manufacturers

Specifications

Model UMG 700 UMG 850 UMG 1100 UMG 1200 UMG 1300

Work Table Size 1350300 1600x350 1900x400 2100X400 2300500
Swivel of Table 45° *45° *45° FIX FIX
T-Slot Nos. / Bolt Size 3/ M16 3/ M6 5/ M16 5/ M20 5/ M20
T-Slot Centre Distance 70 90 80 90 95
Distance From Spindle to Table max/min 400-0 500-00 550-50 600-50 650-50
X-Longitudinal Table Travel 700 850 1100 1200 1300
Y-Cross Table Travel 240 330 450 500 550
Z-Knee Vertical Gap 410 500 600 650 700
Table Loading Capacityi n (kgms.) 350 700 1200 1800 2500

Feeds & Rapids in X-Y-Z Axis

No. of Feeds 18 18 18 18 18
Range of Longitudinal Feed/min 10 10 500 10 10 500 10 10 500 10 10 500 10 10 500
Range of Cross Feed /min 10 10 500 10 10 500 10 10 500 10 10 500 10 10 500
Range of Vertical Feed /min 2510125 2510125 2510125 2510125 2510125
No. Of Rapid Traverse 1 1 1 1 1
Longitudinal Rapid Feeds / min 1500 1500 1500 1000 1000
Cross Rapid Feeds/ min 1500 1500 1500 1000 1000
Vertical Rapid Feeds/min 375 375 375 275 275

Electrical
Spindle Motor/ RPM’s 3HP/ 1440 5 HP/ 1440 7.5 HP/1440 10 HP/ 1440 10 HP/ 1440
XYZ Axis Feed Motor 2kw 2kw 3kw Akw Akw
Coolant Motor 0.1 HP 0.1 HP 0.1 HP 0.1 HP 0.1 HP

Floor and Packing Dimensions ( Approx ).

Overall Length 2000 2050 2500 2700 2800
Overall Width 1750 1950 2500 2600 2700
Overall Height 1800 1880 2400 2700 2800
Net Weight kgms. 2500 3500 4200 5500 7000
Gross Weight with Wooden Packing 3500 4600 5500 6800 8500
View Complete Details
Ask Latest Price & Details

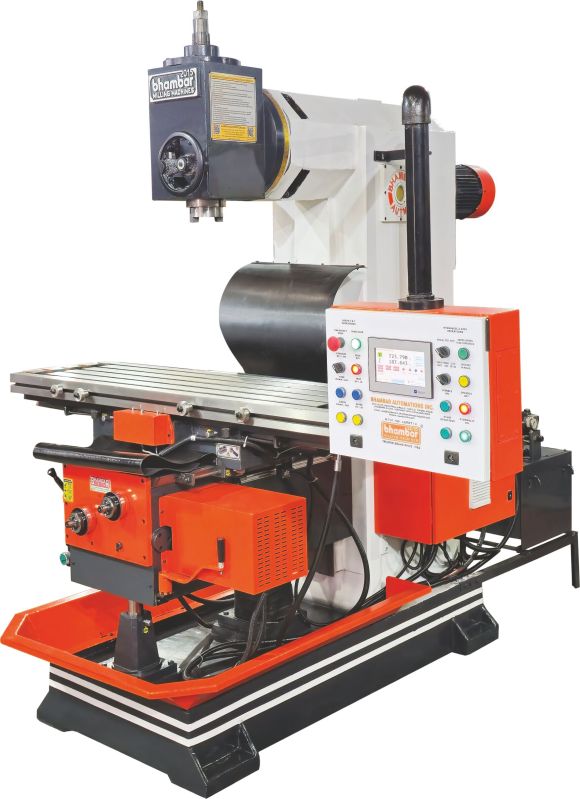

Vertical Milling Machines

Vertical Milling Machines
₹ 22.22 Lakh / piece Get Latest Price
  • Min. Order (MOQ) 1 piece
  • Feature Servo Hydraulic Controlled
  • Automation Grade Servo
  • Brand Name BHAMBAR
  • Material Cast Iron
  • Finishing Paint
  • Driven Type Hydraulic
  • Shape As per machine

Specification Modification On Customer Demand

View Complete Details
Ask Latest Price & Details
Horizontal Vertical Milling Machine

Horizontal Vertical Milling Machine
₹ 22.22 Lakh - ₹ 33.33 Lakh / piece Get Latest Price
  • Min. Order (MOQ) 1 piece
  • Material Cast Iron
  • Driven Type Electric
  • Certification CE Certified
  • Country of Origin 220V
  • Number Of Flower Ram Turret
  • Phase Single Phase
  • Total Carbohydrate 1 Year
  • Country of Origin India

STANDARD EQUIPMENTS :

  • Draw Bar
  • Electrical Control Panel with Switch Box & Motors
  • Machine Lamp
  • Bellow Guards
  • Base Splash Tray
  • Arbour with Hardened Bushes

Specifications

MODEL UMG 700 UMG 850 UMG 1100
Work Table Size 1350×300 1600×350 1900×400
Swivel of Table ±45° ±45° ±45°
T-Slot Nos. / Bolt Size 3/ M16 3/ M16 5/ M16
T-Slot Centre Distance 65 90 80
Distance From Spindle to Table max/min 400-0 500-00 550-50
X-Longitudinal Table Travel 700 850 1100
Y-Cross Table Travel 225 325 450
Z-Knee Vertical Travel 410 500 600
Table Loading Capacity in (kgms.) 350 700 1200
FEEDS & RAPIDS IN X-Y-Z AXIS
No. of Feeds 18 18 18
Range of Longitudinal Feed/min 18 to 400 18 to 400 18 to 400
Range of Cross Feed /min 18 to 400 18 to 400 18 to 400
Range of Vertical Feed /min 2.5 to 62 2.5 to 62 2.5 to 62
No. Of Rapid Traverse 2 2 2
Longitudinal Rapid Feeds / min 900, 1500 900, 1500 900, 1500
Cross Rapid Feeds/ min 900, 1500 900, 1500 900, 1500
Vertical Rapid Feeds/min 147, 210 147, 210 147, 210
SPINDLE DETAILS
No of Spindle Speeds 12 12 12
Range of Spindle Speeds (RPM) 45-1120 45-1120 45-1120
Spindle Taper Standard ISO 40 ISO 40 ISO 40
Arbour Diameter 25.4 25.4 32
ELECTRICAL
Spindle Motor/ RPM’s 3HP/ 1440 5 HP/ 1440 7.5 HP/1440
XYZ Axis Feed Motor 2 HP 2 HP 3 HP
Coolant Motor 0.1 HP 0.1 HP 0.1 HP
FLOOR & PACKING DIMENSIONS (APPROX.)
Overall Length 2000 2050 2500
Overall Width 1750 1950 2500
Overall Height 1800 1880 2400
Net Weight kgms. 2500 3500 4200
Gross Weight with Wooden Packing 3500 4600 5500
View Complete Details
Ask Latest Price & Details
