Champion offers one to one replacement of all Notch Wire Lubricating Oil filters used in Marine Engines.

Any micron rating & dimension. Replacement for Kanagawa/Taisei/Yoowoon and other brands are available.

The bead/sand mill screen is the core filter element on the grinder of Bead Mill

Champion bead mill screen filter (wedge wire screen filter element) is composed of a V-shaped profile surface wire and stainless steel support bar, which has the characteristics of smooth surface, no edges and corners, no burr, and even gap.

The materials are stainless steel 304, 316L, Hastelloy, nickel base alloy, super duplex stainless steel, Monel alloy, etc. we can also make them according to customers requirements.

Material: Stainless steel 304, 316, 316L.

Hard chrome thickness: 0.15mm or as your need.

Slot size: 0.4mm or as your need.

Applications

Chemical industries

Coating and ink

Paint

Pulp & paper

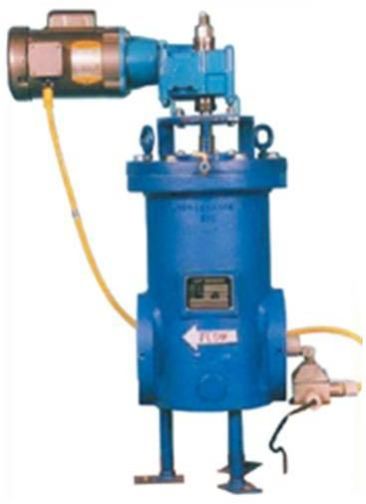

Champion offers automatic self-cleaning filtration system designed for continuous maintenance-free filtration for all major manufacturing and processing industries. It removes solid contamination from low viscosity fluids such as water, sea water, process water, cooling water and machine tool coolants. Its rugged construction and self-cleaning feature provide companies with increased machinery reliability resulting in reduced operating, labor and maintenance costs. Superior removal of contamination particles from water is accomplished with Slotted Tube Wedge Wire Filter Elements ranging from 50 to 3, 000 microns
The automatic self-cleaning process begins, as soon as, the filter elements become contaminated. Due to the unique single element cleaning process, the total filtered flow is not reduced during the cleaning process. Flow rates range can range from 20-31, 000 GPM and housings are available with ANSIDINmounting port flanges from 12” to 36” NB. Champion can supply numerous combinations of housing materials, as well as, system operating equipment to reach the optimum installation for every industry application. The use of automatic self-cleaning filters leads to a significant decrease in service and maintenance intervals resulting in time and labor savings. As well, costs for replacement equipment and waste disposal can be minimized.

Champion suction water filters are designed for continuous removal of suspended particles from all types of liquids. Most of the backwash filters utilize line pressure for backwashing the filter element. So they need to be installed in pressure side of pump. champion offers automatic backwash filters & strainers ideal for installation on suction side of pumps. the inbuilt cleaning mechanism is not at all dependent on line pressure.

We are offering automatic self cleaning seawater filter. Champion as a premier provider of filtering products, we are continually seeking ways to bring new advances in filtration to our customers. Through technology, many manual filters now have automatic counterparts. Reduced maintenance and 24-hour, unattended operation are just two of the many benefits of self-cleaning filters. take advantage of champion's experience ask us how automatic filters can reduce labor, boost productivity, reduce downtime and offer continual protection for your valuable equipment. Self-cleaning filters may be the perfect choice for your organization. champion self-cleaning filters feature: removal to 10 microns works on suction or pressure side installation with equal efficacy rugged wedge wire screen cylinders are used as filter media cleaning of filter element is achieved by scraper line pressure is not utilized for cleaningbackwash. solids removed regardless of specific gravity perforated, mesh or wedge wire screen elements high temperature designs viscosity up to 10, 000 cps.

We are offering Automatic Backwash Filter. Champion Suction Water Filters are designed for continuous removal of suspended particles from all types of liquids. Most of the backwash filters utilize line pressure for backwashing the filter element. So they need to be installed in pressure side of pump. Champion offers Automatic Backwash Filters & Strainers ideal for installation on Suction Side of Pumps.

Champion offers Replacement Stainless SteelNotch Wire ElementFilter AF150RM. The Filter AF150RM is used for M.E F.O automatic filter. Notch wire element is manufactured by CNC Hydraulic treated thin stainless steel notch wire around the cylindrical filter core. it is a high-precision filter mainly used to boats and ships. Notch Wire Element can handle fluids having high viscosity, ideal for high temperature/pressure applications.

Champion offer Manual Self-cleaning filters specifically designed to provide efficient filtration for liquids, including those of high viscosity, requiring continuous filtration without interruption to the flow during the cleaning process. There is no operator contact with the process fluid. High quality wedge wire stainless steel elements are highly effective in removing contaminant particles as small as 10 micron (µm). The filter is available for either manual or fully automatic electric or pneumatic operation. The range of optional control devices makes it particularly suitable for continuous processes and for service with high contamination levels. BENEFlTS No operator contact with liquid during cleaning operation.



The Notch Wire Filter Element AF210TP AF210TF AF150RM is used for M.E F.O automatic filter strainer.



It is manufactured by wrapping specially treated thin stainless steel notch wire around the cylindrical filter frame.



Notch Wire element have a very high structural strength. It can be backwashed or reverse air-blown for cleaning.

Champion offer Automatic Self Cleaning Filters exclusively designed for Miscella Filtration & Vegetable Oil Filtration in Solvent Extraction Plants. Fully automatic in nature - no manual removal of filter elements or draining is required. The Filter will clean by itself and drain the dirt automatically. Installation of these Filters ralmost eliminate choking of downstream equipment e.g. heaters, by removing any solid particles and flakes from the Hexane-oil Miscella. They also reduce loss of Hexane and can repay their costs in less than one operating season. The heart of the filtration system is a very precise and sturdy Wedge Wire Filter Element coupled by inbuilt Dirt Scrapper. It is extremely robust and carries unconditional warranty of 3 years.



Automatic Self Cleaning Filters for Molasses in Sugar Industries & Refineries and other heavy duty applications for 24 X 7 non stop service Champion Automatic Self Cleaning Filters - HDX Series are specially designed for heavy-duty applications in sugar processing, unlike common filters. This filter has automatic heavy duty scraper cleaning mechanism which effectively removes all scale . Applications In sugar cane factories and refineries: Pre-filtration of molten syrup, prior to clarification. Pre-filtration before ultra-filtration. Filtration of spilt clarified water. Filtration after bleaching. Filtration of diluted syrup before or between evaporators. Filtration of the resulting centrifuged liquid. As a trap or safety filter. Filtration of the water from the refining process. A very rugged & robust wedge wire filter is used as the filter element. This is coupled with a spider assembly having a scraper system. The liquid enters the body and flows through the element from outside to inside. Debris is collected on the outside surface of the wedge wire element. When the clogging exceeds a pre-set limit or based on set time intervals, a motor rotates the scraper blades against filter element. By this the collected debris is shaved off the filter element surface and filtration area gets regenerated without any interruption or stoppage of flow. The debris accumulated in the vessel during element rotation is automatically drained. All this happens in just a few seconds without any manual intervention. Designed for non-stop service!!! Contact us for more information.
