AGA manchinery Ltd

xiamen, China

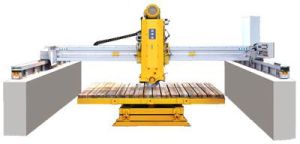

We are offering marble granite machine. Stone bridge saw for processing marble granite stones. It is applicable on cutting and trimming slab, countertop, vanity, steps, etc. this bridge saw works by industiral computer with programs for automatic cut, and also capable of manual operation. All the operations are achieved from the touch screen panel. the saw is able to cut 3.2 m length and 2 m width with laser guide sensor for cutting guide. The table tilts up to 85 for easy load of big slabs and also turns 90360 degree to change the cutting direction. feature 1. Long bridge structure for cutting big slab. 2. Titling table for easy load of big slab. 3. Automatic cut by program on plc system. 4. Precise movements on x, y, z axis ensuring cutting accuracy +-0.2mm 5. Electric parts from japan for stability and long service time. 6. Main parts made of cast iron for heavy duty work and stable performance. stone bridge saw specification model hq400 hq600 hq700 blade size φ300-φ450 mm φ300-φ600 mm φ300 - φ700 mm blade tilting na na 0°- 45° table size (l×w) 3200×2000 mm 126”×79” table rotation 0°- 90° 360° 0°- 360° table tilt 0°- 85° max. Cut size 3200×2000 mm 126”×79” spindle motor 15 kw 20hp 15 kw 20hp 18.5 kw 25hp size (l×w×h) 6×4.8×2.9 m 6×4.8×3 m 6×5.7×3.5 m weight 6, 300 kg 6, 500 kg 7, 500 kg

We are offering granite cutting machine. Automatic granite bridge saw for cutting kitchen slab, countertop, benchtop, vanity, etc. This bridge saw is able to cut 3200mm length and 2000mm width. (126”×78”). the blade travels on the beam and it also provides power tilting 0 - 45 degree for mitre edge. The table turns 0 – 360 degree automatically and also tilts 0 - 85 degree hydraulic for easy load of the material. The laser guide and sensors provides high accuracy for the machining tolerance. this granite bridge saw machine is computer control and able to program for up to 99 repeat cuts automatically and also capable of manual operation. the machine structure is made of very strong cast iron for stability and long lifetime. It also provides covered oil bath for the movements of bridge rails. also all the functions are operated on the control panel that make it very user friendly. granite bridge saw specification blade size 400-625mm 16”-25” cut length 3200mm 126” cut width 2000mm 78” cut thick 170mm 7” blade tilt 0 - 45° table rotate 0 - 360° table tilt 0 - 85° spindle motor 15kw 20hp size (l×w×h) 6000×3000×2600mm weight 7200 kg

We are offering marble machine. Stone bridge saw for processing marble granite stones. It is applicable on cutting and trimming slab, counter top, vanity, steps, etc. this bridge saw works by industiral computer with programs for automatic cut, and also capable of manual operation. All the operations are achieved from the touch screen panel. the saw is able to cut 3.2 m length and 2 m width with laser guide sensor for cutting guide. The table tilts up to 85 for easy load of big slabs and also turns 90360 degree to change the cutting direction. feature 1. Long bridge structure for cutting big slab. 2. Titling table for easy load of big slab. 3. Automatic cut by program on plc system. 4. Precise movements on x, y, z axis ensuring cutting accuracy +-0.2mm 5. Electric parts from japan for stability and long service time. 6. Main parts made of cast iron for heavy duty work and stable performance. stone bridge saw specification model hq400 hq600 hq700 blade size φ300-φ450 mm φ300-φ600 mm φ300 - φ700 mm blade tilting na na 0°- 45° table size (l×w) 3200×2000 mm 126”×79” table rotation 0°- 90° 360° 0°- 360° table tilt 0°- 85° max. Cut size 3200×2000 mm 126”×79” spindle motor 15 kw 20hp 15 kw 20hp 18.5 kw 25hp size (l×w×h) 6×4.8×2.9 m 6×4.8×3 m 6×5.7×3.5 m weight 6, 300 kg 6, 500 kg 7, 500 kg

We are offering stone cutting machine. Stone splitter applicable for cutting granite cobblestone, cube stone, pavers, etc. the spltter machine is made of strong cast iron and high quality parts ensuring stable performance and the special design of fast lift up movement greatly improves the working efficiency. The splitter tooth tools are of advanced design and made of alloy steel that make it sharp and durable. specification max. Cut length 400 mm max. Split thickness 300 mm main motor power 11 kw hydraulic flow rate 47l hydraulic pressure 80t dimension (lxwxh) 2x1x2.1 m weight 1, 800 kg

We are offering splitting machine. Hydraulic stone splitter machine applicable for splitting granite cube stone, cobble stone, paver stones, etc. the splitter machine body is made of strong cast iron and high quality parts ensuring stability during working. the special design of fast lift up movement greatly improves the working efficiency. also the tooth tools are of advanced design and alloy steel that make it sharp and durable. stone splitter specification max. Cut length 300mm max. Split thickness 300mm main motor power 7.5kw hydraulic flow rate 40l hydraulic pressure 60t dimension (lxwxh) 1.7 x 1 x 2 m weight 1, 500 kg
