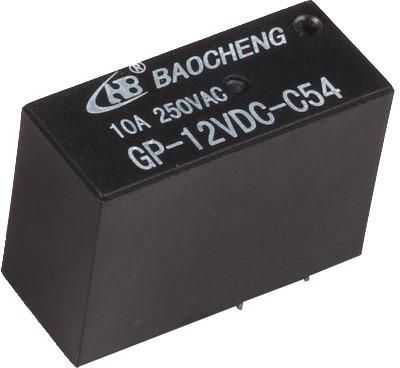

We offer the best product range of GP Relay.
Baocheng export excellent power relay, telecom relays and automotive relays.
25A switching capability
THT&QT terminals layout available
Ideal for motor load switching
One group of NO contact form
Option for sealed and dust-proof type
UL insulation gradeClass F
Environmental friendly product
Outline dimension: 30.5 x 16 x 23.5mm & 30.5 x 16 x
Power Relays, Telecom Relays, Automotive Relays, Latching Relays For Sale
26.5mm
| Contact Ratings | |
| Contact Form: | 1A |
| Contact Material: | AgSnO2 |
| Contact Load Capacity: | 1A:25A/250VAC, 277VAC; |
| 1.5HP 250VAC; TV-10 | |
| Max. Switching Current: | 25A |
| Max. Switching Power: | 6250VA |
| Mechanical Endurance: | 1*107OPS |
| Electrical Endurance: | 1*105OPS |
| Technical Ratings | |
| Insulation Resistance: | 1000M |
| Dielectric Strength(Between coil&contact): | 4500VAC |
| Operate Time (Max.): | 20ms |
| Release Time (Max.): | 10ms |
| Ambient Temperature: | -40 85 |
| Terminal Type: | THT & QT |
Coil Ratings
Nominal Voltage
(5-48)VDC
Nominal Coil Power
0.9W
Additional Information:
Payment Terms : T/T
Packaging Details : Carton
Delivery Time : Normally 10-15 days
