Our Products

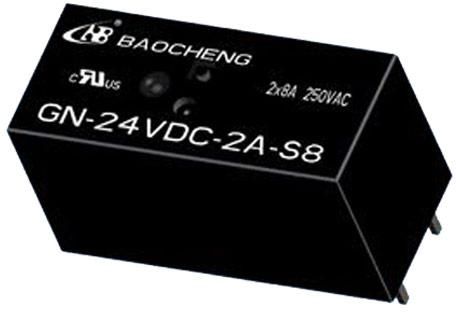

Our Complete range of products are BS6 Relay, M4S Relay, GN Relay, BS4 Relay and NB902 Relay.
Baocheng export excellent power relay, telecom relays and automotive relays.
16A High load capability
THT terminal types for PCB layout
High sensitivity: 200mW
One group of NO contact form
Low height, flat construction
Option for sealed and flux-tight type
UL insulation grade
Environmental friendly product
Outline dimension: 23 x 16.2 x 10.6mm
| TechnicalRatings | |
| InsulationResistance: | 1000M |
| DielectricStrength(Betweencoil&contact): | 2500VAC |
| OperateTime(Max.): | 15ms |
| TerminalType: | THT |
| Coil Ratings | |
| Nominal Voltage | (5-48)VDC |
| Nominal Coil Power | 0.2W, 0.4W |
Additional Information:
Payment Terms : T/T
Packaging Details : Carton
Delivery Time : Normally 10-15 days

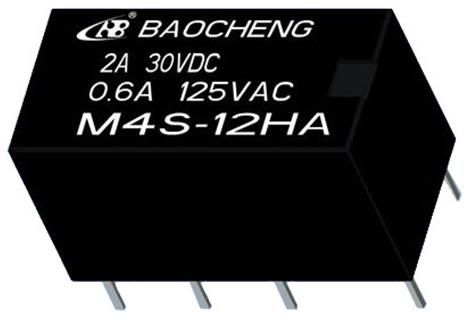

relay type:m4s relay
baocheng export excellent power relay, telecom relaysand automotive relays.
bifurcated contacts form
high switching capacity: 125vac/60w
dip structure, matching 16 pin ic socket
epoxy sealed for automatic-wave soldering and cleaning
environmental friendly product
outline dimension: 20.2 x 10 x 11.5mm
| contactratings | |
| contactform: | 2c |
| contactmaterial: | agni(goldclad) |
| contactloadcapacity: | 0.6a, 1a/125vac, 2a/30vdc |
| max.switchingcurrent: | 2a |
| max.switchingpower: | 125va/60w |
| mechanicalendurance: | 1*107ops |
| electricalendurance: | 1*105ops |
telecom relays, telecom relays 19f, telecom relays exporter, china
| technicalratings | |
| insulationresistance: | 1000m |
| dielectricstrength(betweencoil&contact): | 1000vac |
| operatetime(max.): | 7ms |
| releasetime(max.): | 4ms |
| ambienttemperature: | -3070 |
| terminaltype: | dip |
.
| Contact Form: | 1A, 1B, 1C; 2A, 2B, 2C |
| Contact Material: | AgCdO, AgSnO2 |
| Contact Load Capacity: | 1A, 1B, 1C:16A/250VAC;12A/250VAC |
| 2A, 2B, 2C:8A/250VAC | |
| Max. Switching Current: | 16A |
| Max. Switching Power: | 4000VA |
| Mechanical Endurance: | 1*107OPS |
| Electrical Endurance: | 1*105OPS |
| Technical Ratings | |
| Insulation Resistance: | 1000M |
| Dielectric Strength(Between coil&contact): | 5000VAC |
| Operate Time (Max.): | 15ms |
| Release Time (Max.): | 8ms |
| Ambient Temperature: | -40 85 |
| Terminal Type: | THT |
| Coil Ratings | |
| Nominal Voltage | (5-48)VDC |
| Nominal Coil Power | 0.4W |
Additional Information:
Payment Terms : T/T
Packaging Details : Carton
Delivery Time : Normally 10-15 days

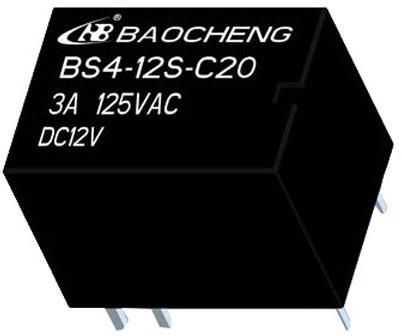

relay type:bs4 relay
baocheng export excellent power relay, telecom relaysand automotive relays.
5a switching capability
standard pcb layout
dielectric strength between coil and contact 1kv
no, nc, no&nc contact form available
ul insulation gradeclass f
environmental friendly product
outline dimension: 15.5 x 11 x 11.5mm
power relays, automotive relays, latching relays manufacturer & supplier
| contactratings | |
| contactform: | 1a, 1b, 1c |
| contactmaterial: | agni |
| contactloadcapacity: | 1a, 2a, 3a, 5a/125vac, 30vdc |
| max.switchingcurrent: | 5a |
| max.switchingpower: | 625va/150w |
| mechanicalendurance: | 1*107ops |
| electricalendurance: | 1*105ops |
| technicalratings | |
| insulationresistance: | 100m |
| dielectricstrength(betweencoil&contact): | 1000vac |
| operatetime(max.): | 10ms |
| releasetime(max.): | 5ms |
| ambienttemperature: | -3070 |
| terminaltype: | dip |
| coilratings | |
| nominalvoltage | (3-24)vdc |
| nominalcoilpower | 0.2w, 0.36w, 0.45w |
.

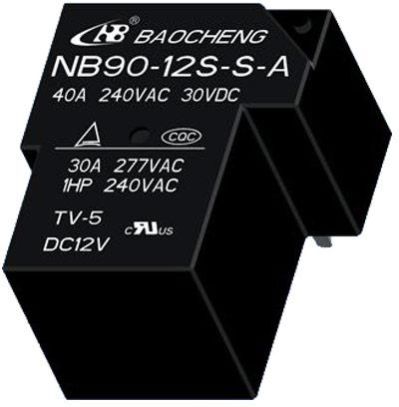

Baocheng export excellent power relay, telecom relays and automotive relays.
40A switching capability
THT&QT terminal types for heavy duty
Dielectric strength between coil and contact 2.5KV,
max.4KV
NO, NC, NO&NC contact form available
Option for sealed and flux-tight type
UL insulation gradeClass F
Environmental friendly product
Outline dimension: 32 x 27.2 x 28mm & 32 x 27.2 x
20.5mm
Baocheng supply electromagnetic relays, power relays, telecom relays and automotive relays. We wish to hand in hand with global customers to pursuit excellent quality and cast perfect products to share happiness life bring by technology.
| ContactRatings | |
| ContactForm: | 1A, 1B, 1C |
| ContactMaterial: | AgCdO, AgSnO2 |
| ContactLoadCapacity: | 1A:40A/240VAC, 30VDC |
| 1B:40A/240VAC, 30VDC | |
| 1C:40A/240VAC, 30VDC | |
| Max.SwitchingCurrent: | 40A |
| Max.SwitchingPower: | 9600VA/1200W |
| MechanicalEndurance: | 1*107OPS |
| ElectricalEndurance: | 1*105OPS |
Additional Information:
Payment Terms : T/T
Packaging Details : Carton
Delivery Time : Normally 10-15 days

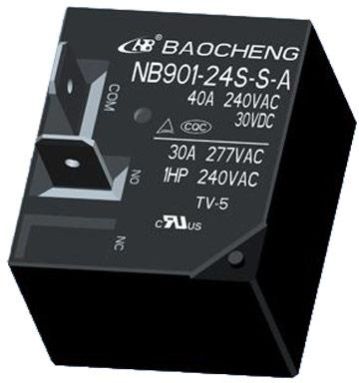

baocheng export excellent power relay, telecom relays and automotive relays.
40a switching capability
compact structure
dielectric strength between coil and contact 2.5kv,
max.4kv
no, nc, no&nc contact form available
option for sealed and open type
ul insulation gradeclass f
environmental friendly product
outline dimension: 32 x 27.2 x 20mm
baocheng hot selling power relays, telecom relays, automotive relays and latching relays.
| contactratings | |
| contactform: | 1a, 1b, 1c |
| contactmaterial: | agcdo, agsno2 |
| contactloadcapacity: | 1a:40a/240vac, 30vdc |
| 1b:40a/240vac, 30vdc | |
| 1c:40a/240vac, 30vdc | |
| max.switchingcurrent: | 40a |
| max.switchingpower: | 9600va/1200w |
| mechanicalendurance: | 1*107ops |
| electricalendurance: | 1*105ops |
| technicalratings | |
| insulationresistance: | 1000m |
| dielectricstrength(betweencoil&contact): | 2500vac |
| operatetime(max.): | 15ms |
| releasetime(max.): | 10ms |
| ambienttemperature: | -4085/105 |
| terminaltype: | tht |
| coilratings | |
| nominalvoltage | (5-110)vdc |
| nominalcoilpower | 0.9w |
.
Additional Information:
Payment Terms : T/T
Packaging Details : Carton
Delivery Time : Normally 10-15 days
Baocheng export excellent power relay, telecom relays and automotive relays.
30A switching capability
THT&QT terminal types for heavy duty
Dielectric strength between coil and contact 2.5KV,
max.4KV
NO, NC, NO&NC contact form available
Option for sealed and flux-tight type
UL insulation gradeClass F
Environmental friendly product
Outline dimension: 32 x 27.2 x 28mm & 32 x 27.2 x
20.5mm
Baocheng produces Relay Switch, Relay Electronics, Relay Coil and Basic Relay. With modern production workshop more than 5, 000 m2, our factory absorb the internal and external advanced technology, introduce and develop over 10 automatic production lines.
| ContactMaterial: | AgCdO, AgSnO2 |
| ContactLoadCapacity: | 1A:30A/240VAC, 30VDC |
| 1B:20A/240VAC, 30VDC | |
| 1C:30A/240VAC, 30VDC | |
| Max.SwitchingCurrent: | 30A |
| Max.SwitchingPower: | 7200VA/900W |
| MechanicalEndurance: | 1*107OPS |
| ElectricalEndurance: | 1*105OPS |
Additional Information:
Payment Terms : T/T
Packaging Details : Carton
Delivery Time : Normally 10-15 days

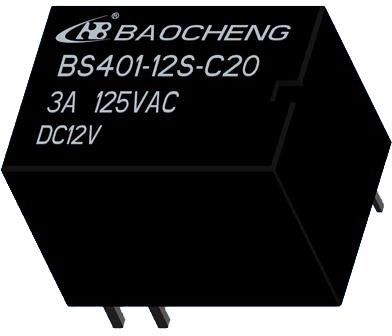

relay type:bs401 relay
baocheng export excellent power relay, telecom relaysand automotive relays.
5a switching capability
standard pcb layout
dielectric strength between coil and contact 1kv
no, nc, no&nc contact form available
ul insulation gradeclass f
environmental friendly product
outline dimension: 15.5 x 11 x 11.5mm
| contactratings | |
| contactform: | 1a, 1b, 1c |
| contactmaterial: | agni |
| contactloadcapacity: | 1a, 2a, 3a, 5a/125vac, 30vdc |
| max.switchingcurrent: | 5a |
| max.switchingpower: | 625va/150w |
| mechanicalendurance: | 1*107ops |
| electricalendurance: | 1*105ops |
| technicalratings | |
| insulationresistance: | 100m |
| dielectricstrength(betweencoil&contact): | 1000vac |
| operatetime(max.): | 10ms |
| releasetime(max.): | 5ms |
| ambienttemperature: | -3070 |
| terminaltype: | dip |
| coilratings | |
| nominalvoltage | (3-24)vdc |
| nominalcoilpower | 0.2w, 0.36w, 0.45w |
.

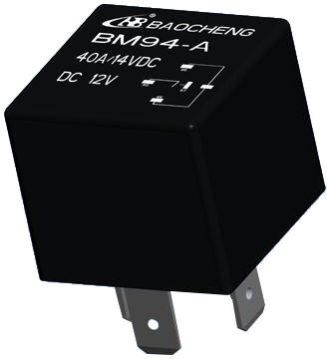

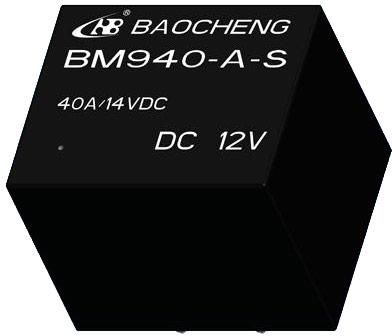

relay type:bm940 relay
baocheng export excellent power relay, telecom relaysand automotive relays.
40a switching capability
pcb layout mounting
eu&american terminal types available
no, no&nc contact form optional
environmental friendly product
outline dimension: 26.8 x 21.5 x 22.3mm
automotive relays, automotive relays for sale, factory
| contactratings | |
| contactform: | 1a, 1c |
| contactmaterial: | agsno2 |
| contactloadcapacity: | 1a:40a/14vdc 1c:40a/14vdc;30a/14vdc |
| max.switchingcurrent: | 40a |
| max.switchingpower: |
|
| mechanicalendurance: | 1*107ops |
| electricalendurance: | 1*105ops |
| technicalratings | |
| insulationresistance: | 100m |
| dielectricstrength(betweencoil&contact): | 500vac |
| operatetime(max.): | 10ms |
| releasetime(max.): | 10ms |
| ambienttemperature | -40125 |
| terminaltype: | tht |
| coilratings | |
| nominalvoltage | (6-24)vdc |
| nominalcoilpower | 1.6w, 1.9w |
.
.

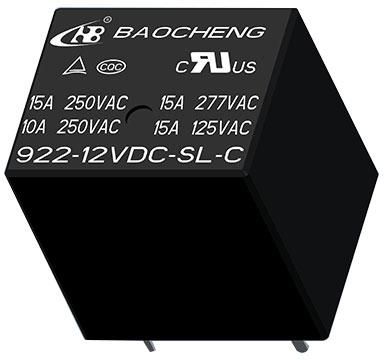

Baocheng export excellent power relay, telecom relays and automotive relays.
Normal 15A switching capability
Standard PCB layout
Dielectric strength between coil and contact 1.5KV
NO, NC, NO&NC contact form available
Option for sealed and flux-tight type
UL insulation grade
Environmental friendly product
Outline dimension: 20.3 x 16.5 x 20.5mm
Baocheng supply electromagnetic relays, power relays, telecom relays and automotive relays. We wish to hand in hand with global customers to pursuit excellent quality and cast perfect products to share happiness life bring by technology.
| ContactForm: | 1A, 1B, 1C |
| ContactMaterial: | AgCdO, AgSnO2 |
| ContactLoadCapacity: | 1A:10A/250VAC;12A/125VAC;15A/250VAC, 277VAC |
| 1B:10A/250VAC | |
| 1C:10A/250VAC;12A/125VAC;15A/250VAC, 277VAC | |
| Max.SwitchingCurrent: | 20A |
| Max.SwitchingPower: | 4155VA/420W |
| MechanicalEndurance: | 1*107OPS |
| ElectricalEndurance: | 1*105OPS |
| TechnicalRatings | |
| InsulationResistance: | 100M |
| DielectricStrength(Betweencoil&contact): | 1500VAC |
| OperateTime(Max.): | 10ms |
| ReleaseTime(Max.): | 5ms |
| AmbientTemperature: | -40 |
| TerminalType: | THT |
Additional Information:
Payment Terms : T/T
Packaging Details : Carton
Delivery Time : Normally 10-15 days

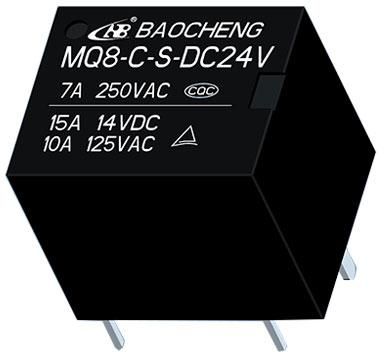

relay type:mq8 relay
baocheng export excellent power relay, telecom relaysand automotive relays.
tight structure and light weight
high current contact capacity (carrying current:
35a/10min. 25a/1h)
improved heat resistance
option for sealed and flux-tight type
conform to tuv approval standard
environmental friendly product
outline dimension: 15.5 x 12.5 x 13.5mm
latching relays, high sensitivity latching relays wholesaler, china
| contactratings | |
| contactform: | 1a, 1b, 1c |
| contactmaterial: | agsno2 |
| contactloadcapacity: | 20a/14vdc15a/14vdc;10a/125vac |
| max.switchingcurrent: | 35a |
| max.switchingpower: |
|
| mechanicalendurance: | 1*107ops |
| electricalendurance: | 1*105ops |
| technicalratings | |
| insulationresistance: | 100m |
| dielectricstrength(betweencoil&contact): | 500vac |
| operatetime(max.): | 10ms |
| releasetime(max.): | 5ms |
| ambienttemperature: | -4085 |
| terminaltype: | tht |
| coilratings | |
| nominalvoltage | (6-24)vdc |
| nominalcoilpower | 0.6w, 0.8w |

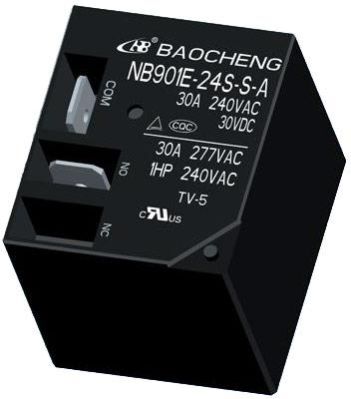

relay type:nb90e relay
baocheng export excellent power relay, telecom relaysand automotive relays.
30a switching capability
compact structure
dielectric strength between coil and contact 2.5kv,
max.4kv
no, nc, no&nc contact form available
option for sealed and open type
ul insulation grade: class f
environmental friendly product
outline dimension: 32 x 27.2 x 20mm
telecom relays, telecom relays 19f, telecom relays exporter, china
| contactratings | |
| contactform: | 1a, 1b, 1c |
| contactmaterial: | agcdo, agsno2 |
| contactloadcapacity: | 1a:30a/240vac, 30vdc |
| 1b:20a/240vac, 30vdc | |
| 1c:30a/240vac, 30vdc | |
| max.switchingcurrent: | 30a |
| max.switchingpower: | 7200va/900w |
| mechanicalendurance: | 1*107ops |
| electricalendurance: | 1*105ops |
| technicalratings | |
| insulationresistance: | 1000m |
| dielectricstrength(betweencoil&contact): | 2500vac |
| operatetime(max.): | 15ms |
| releasetime(max.): | 10ms |
| ambienttemperature: | -4085/105 |
| terminaltype: | tht |
| coilratings | |
| nominalvoltage | (5-110)vdc |
| nominalcoilpower | 0.9w |
.
.
Baocheng export excellent power relay, telecom relays and automotive relays.
40A switching capability
THT&QT terminal types for heavy duty
Dielectric strength between coil and contact 2.5KV,
max.4KV
NO, NC, NO&NC contact form available
Option for sealed and flux-tight type
UL insulation gradeClass F
Environmental friendly product
Outline dimension: 32 x 27.2 x 28.5mm & 32 x 27.2 x
20.5mm
Baocheng produces Relay Switch, Relay Electronics, Relay Coil and Basic Relay.
| ContactRatings | |
| ContactForm: | 1A, 1B, 1C |
| ContactMaterial: | AgCdO, AgSnO2 |
| ContactLoadCapacity: | 1A:40A/240VAC, 30VDC |
| 1B:40A/240VAC, 30VDC | |
| 1C:40A/240VAC, 30VDC | |
| Max.SwitchingCurrent: | 40A |
| Max.SwitchingPower: | 9600VA/1200W |
| MechanicalEndurance: | 1*107OPS |
| ElectricalEndurance: | 1*105OPS |
Additional Information:
Payment Terms : T/T
Packaging Details : Carton
Delivery Time : Normally 10-15 days
Baocheng export excellent power relay, telecom relays and automotive relays.
30A switching capability
THT&QT terminal types for heavy duty
Dielectric strength between coil and contact 2.5KV,
max.4KV
NO, NC, NO&NC contact form available
Option for sealed and flux-tight type
UL insulation gradeClass F
Environmental friendly product
Outline dimension: 32 x 27.2 x 28.5mm & 32 x 27.2 x
20.5mm
Baocheng hot selling power relays, telecom relays, automotive relays and latching relays. We always insist the operation concept of creating and share, abide by the service concept of quality first, service best and with the passion of do every relays well to create Baocheng relays for world famous brand.
| ContactRatings | |
| ContactForm: | 1A, 1B, 1C |
| ContactMaterial: | AgCdO, AgSnO2 |
| ContactLoadCapacity: | 1A:30A/240VAC, 30VDC |
| 1B:20A/240VAC, 30VDC | |
| 1C:30A/240VAC, 30VDC | |
Additional Information:
Payment Terms : T/T
Packaging Details : Carton
Delivery Time : Normally 10-15 days

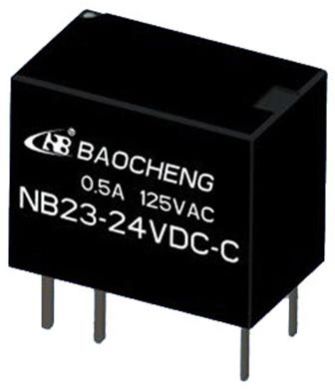

relay type:nb23 relay
baocheng export excellent power relay, telecom relaysand automotive relays.
1a switching capability
high sensitivity, low power consumption 150mw
standard dip structure
one group of no&nc contact form available
plastic sealed type
environmental friendly product
outline dimension: 12.5 x 7.5 x 10mm
telecom relays, telecom relays 19f, telecom relays exporter, china
| contactratings | |
| contactform: | 1c |
| contactmaterial: | agni(goldclad) |
| contactloadcapacity: | 0.5a, 1a/125vac;1a/30vdc |
| max.switchingcurrent: | 1a |
| max.switchingpower: | 62.5va/30w |
| mechanicalendurance: | 1*107ops |
| electricalendurance: | 1*105ops |
| technicalratings | |
| insulationresistance: | 1000m |
| dielectricstrength(betweencoil&contact): | 1000vac |
| operatetime(max.): | 5ms |
| releasetime(max.): | 5ms |
| ambienttemperature: | -3070 |
| terminaltype: | dip |
| coilratings | |
| nominalvoltage | (3-24)vdc |
| nominalcoilpower | 0.15w, 0.2w |
.
relay type:bm94 40a relay
baocheng export excellent power relay, telecom relaysand automotive relays.
40a switching capability
various mounting terminations available
dust-proof type
no, nc, no&nc contact form available
environmental friendly product
outline dimension: 28 x 28 x 25+16mm
latching relays, high sensitivity latching relays wholesaler, china
| contactratings | |
| contactform: | 1a, 1b, 1c |
| contactmaterial: | agsno2 |
| contactloadcapacity: | 1a:40a/14vdc |
| 1b:30a/14vdc | |
| 1c:40a/14vdc;30a/14vdc | |
| max.switchingcurrent: | 40a |
| max.switchingpower: |
|
| mechanicalendurance: | 1*107ops |
| electricalendurance: | 1*105ops |
| technicalratings | |
| insulationresistance: | 100m |
| dielectricstrength(betweencoil&contact): | 500vac |
| operatetime(max.): | 7ms |
| releasetime(max.): | 5ms |
| ambienttemperature: | -40125 |
| terminaltype: | tht&plug-in |
| coilratings | |
| nominalvoltage | (6-24)vdc |
| nominalcoilpower | 1.6w, 1.8w |
.

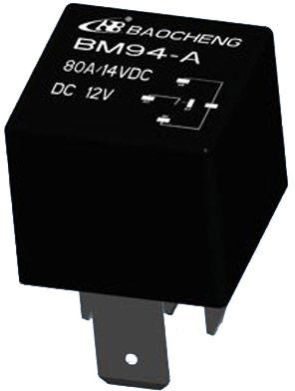

relay type:bm94 80a relay
baocheng export excellent power relay, telecom relaysand automotive relays.
80a switching capability
various mounting terminations available
dust-proof type
no, nc, no&nc contact form available
environmental friendly product
outline dimension: 29 x 29 x 26.5+16mm
telecom relays, automotive relays, latching relayschina manufacturer
| contactratings | |
| contactform: | 1a, 1b, 1c |
| contactmaterial: | agsno2 |
| contactloadcapacity: | 1a:80a/14vdc |
| 1b:60a/14vdc | |
| 1c:80a/14vdc;60a/14vdc | |
| max.switchingcurrent: | 80a |
| max.switchingpower: |
|
| mechanicalendurance: | 1*107ops |
| electricalendurance: | 1*105ops |
| technicalratings | |
| insulationresistance: | 100m |
| dielectricstrength(betweencoil&contact): | 500vac |
| operatetime(max.): | 10ms |
| releasetime(max.): | 7ms |
| ambienttemperature: | -40105 |
| terminaltype: | tht&plug-in |
| coilratings | |
| nominalvoltage | (6-24)vdc |
| nominalcoilpower | 1.8w, 2.3w |
.
Jacky Zhou (NINGBO BAOCHENG ELECTRONICS COLTD)No.91,Changfeng Bridge Rd, Yuyao City, Ningbo, China, China
Share us via
