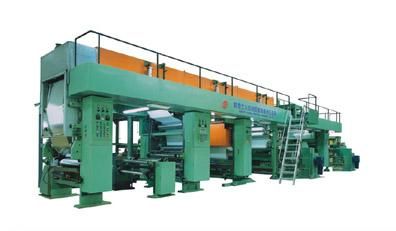

Offering Laminating machine.Main Features 1. Gravure print and back coating are controlled with the independent motors. 2. Wet laminating is driven with the servomotor with the multi-rollers coating in uniform and stable coating volume. 3. The wool-paper roller and the steel roller press each other to complete the embossing with the good patterns. 4. Automatic dual-position splicing systems are used in rewinding and unwinding in high automation and high efficiency. 5. Over is in three-section temperature control in high efficiency and stability quality. 6. Imported PLC close-loop tension control system is used in the machine for constant tension. 7. Luxury appearance design. Technical Parameters Max web width 1050 mm Lam.emboss speed 150mmin Unwind paper dia 1500mm Unwind alfoil dia 500mm Rewind dia 1500mm

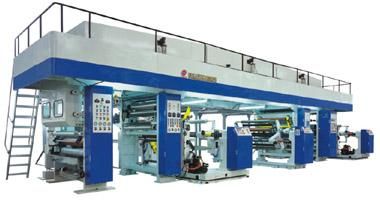

Offering Laminating machine.Main Features 1. Independent double-arm, dual-working position rotary turret 2. Heavy doctor in independent driving can be adjusted at three dimensions for controlling doctor vibration efficiently 3. Feeding roller system and low-damping dancer system control the tension fluctuation efficiently. 4. Gluing pressing roller with direct pressure makes the web breadth at even pressure. 5. Imported EPC system assures the unwinding edge smooth and tidy. 6. Three-roller system with direct pressure makes the whole web even pressure; double- chill roller system is at S-type with good cooling effect; they have the active performance and tension is very stable. 7. Anilox roller is driven independently with varispeed control. 8. Safety design, drying hood has the anti-explosion discharge device. Technical Parameters Max lami.speed 200mminalfoil lami 100-120mmin The 1st unwind dia 600800 The 2nd unwind dia 600800 Rewind dia 8001000 Drying method electricity heating, steam heating or oil heating(choose freely )

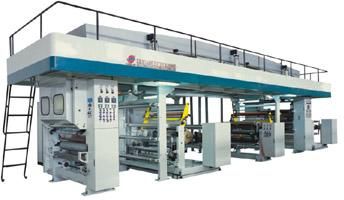

Offering Laminating machine. Main Features 1. Pneumatic openclose drying hood in safe design, enclosed updown drying hoods reduce the residual impregnant at maximum and also make the web pulling conveniently. 2. Rewind rotary turret with the web-pressed roller, and reel is braced with shaftless cones or pneumatic shaft. 3. Independent double-arm dual-working position rotary turret, and single- working position is used for the 2nd alfoil unwinding. 4. Laminating roller is driven independently; close-loop tension control makes the films laminated at the same tension and the finished product is very smooth and tidy. 5. Imported EPC system assures the unwinding web edge tidy. 6. Doctor system at three-dimension adjustment 7. The design has the ideas of safety and environment protection; early-volatilized solution is discharged before going into the drying hood. Technical Parameters Max lami.speed 150mminalfoil lami.80-100mmin The 1st unwind dia 600 The 2nd unwind dia 600 Rewind dia 800 Drying method electricity heating, steam heating or oil heating(choose freely)

Having Laminating Machine.Main Features 1. Dual-position, double-arm and double-cutter unwind unit, and nonstop splicing reel. 2. Lami. cooling roller, lami. pressure roller and backpressure roller press each other respectively. 3. Steady laminating pressure, and extruding film has the good smoothness. 4. Anilox roller glues quantificationally; pressure roller is the initiative roller. 5. Air second used design can save the source and reduce the cost. 6. Six-section tension control, PLC systemic control 7. Die head for the extruder can extrude double layers. 8. Man-Machine-Interface operation is easy, direct-view and safe. Technical Parameters Max lam. Width 1250mm Max lam.speed 180mmin Main unwind dia 800mm Auxiliary unwind dia 500mm Rewind dia 1000mm
