Shaanxi Beiren Printing Machinery Co.,Ltd

Wuxi City, Jiangsu, China

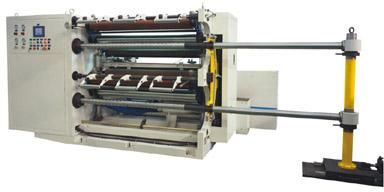

Offering Slitting Machine. Main features 1. Horizontal structure, unwindingrewinding can be completed at double sides. 2. Unwinding reel is clamped with cones; hydraulic device assists to complete the reel loading and LPC system controls the line position of the web. 3. Ultrasonic reel diameter detector is used with residual reel alarming system. 4. Constant tension for unwinding, taper tension for rewinding 5. Imported pneumatic slip-rewinding shaft; setting- length alarm system; automatic two-step machine stop 6. Backpressure reel-pressed cylinder makes rewinding reel tidy and good tightness. 7. Man-machine-interface, CPU centralized control system 8. Humanistic design, convenient loadingunloading Technical Parameters Main technical data Max unwind dia 800mm Max rewind dia. 500mm Reel width 6001300mm Slitting width 501300mm Slitting accuracy 0.3mm Max slitting speed 300mminPEPVC200mmin Rewind accuracy 0.3mm

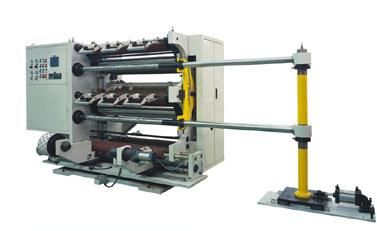

Main featuresOffering Slitting Machine. 1. Vertical structure, unwinding and rewinding can be done at the same side. 2. Unwinding reel is clamped pneumatically with shaftless cones; reel width is electrically controlled and also with line position control LPC system. 3. Ultrasonic reel diameter detector is used with residual reel alarming system 4. Pneumatic slip- rewinding shaft; automatic setting-length alarm system. 5. Backpressure reel-pressed cylinder makes rewinding reel tidy and good tightness. 6. Man-machine-interface, CPU centralized control system 7. Small area occupancy and one person can operate it freely. Technical Parameters Main technical data Max unwind dia 800mm Max rewind dia 500mm Reel width range 6001300mm Slitting width 501300mm Slitting accuracy 0.3mm Max slitting speed 300mminPEPVC200mmin Rewind accuracy 0.3mm

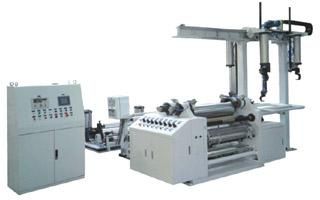

Offering Slitting machine. Main features 1. Pneumatic unwinding shaft, pneumatic dancer arm assists to complete reel loading, pneumatic brake controls tension, also with the platform for web ends to butt jointing. 2. Ultrasonic reel diameter detector is used with residual reel alarming system 3. Two sets of LPC control systems at high accuracy control, one is unwinding LPC control system and the other is course LPC control system. 4. Pneumatic rewinding shaft, dancer arm support, double rewinding shafts, setting- length alarm system, automatic machine stop. 5. Rewinding adopts the mode of constant rotate speed or constant linear speed. 6. Rewinding reel-unloading system can reduce the intensity of labor. 7. Man-machine-interface, CPU centralized control system. Technical Parameters Main technical data Max unwind dia 500mm Max rewind dia. 1000mm Reel width 500mm800mm Slitting width 48mm60mm72mm Slitting accuracy 0.1mm Max slitting speed 300mmin Rewind accuracy 0.3mm
