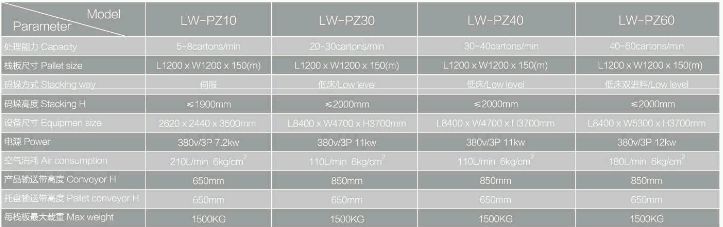

LW palletizers series of palletizer is used for food and beverage, chemical industry, etc.; It is suitable for all kinds of cartons, plastic boxes, the stretch film and barrels, and other types of packaging's stack , Machiner is made of different speed of belt, Steering mechanism Sorting box Area Carton Pallet Are main part lifting mechanism Pallet output roller line etc.

Main Feature :Machine frame is adopt welding way. Strond and durable, base is adjustable. the main lifting platform adopt the SEW motor drive, entry adopt accelerate conveyor to separate infeed case, stack pushing area adopt roller conveyor, 2.5m stack output, free roller conveyor, use the safety protection device, adopt Germany Siemens PLC control system, man-machine interface, portable fault automatic display

Working process :Automatic running process is separated into carton input automaticlly, carton turn automaticlly, section automatic, palletizer, palletize moving, palletizer lift, stack input, palletizer come down, palletizer output, all can finish automaticlly.

Equipment specification :Automatic servo palletizer ‘s frame is delicate and cabinet, small footprint, small noise and pollution; adopt four shaft servo control, pallet form clear and beautiful. Apply to cartons, film bag, plastic crate products such as pallet, application in food, condiment, beverage, cosmetic, pharmaceutical, electronics and other industries. Adopt panasonic servo motor, Siemens PLC, danfoss frequency converter, SMC pneumatic components, ensure the reliability of the system hardware.

Feature :

• Touch screen operation accomplish the man-machine dialogue, using the Siemens PLC  to control number of carton sequence stacking, pallet supply and discharge can be programmed and controlled.
• the symmetry and compact structure design, suitable for the narrow space of the existing production sites.
• Pallet stroage is big, can load 15 empty pallet, can supply empty stack automaticlly.
• No need change any stacking parts, can finish several kinds of stacking way. Only need choose the suitable parematers will be ok.

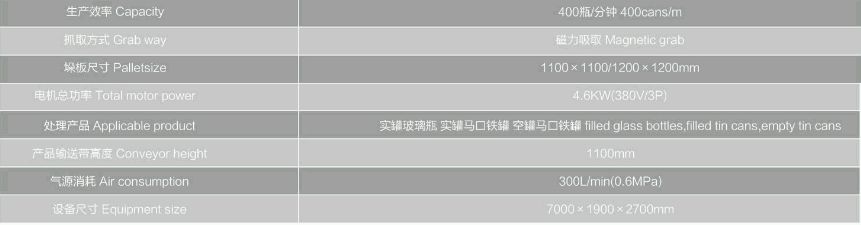

Filled Cans palletizer is suitable for palletizer and depalletizer of the filled glass bottles, filled tin cans, empty tin cans, it is main composed of conveying system and palletizing system. Working way uses magnetic grab movement. The equipment uses Germany Siemens PLC, Japanese Panasonic sewo motor control system, equipment operation is stable and reliable.

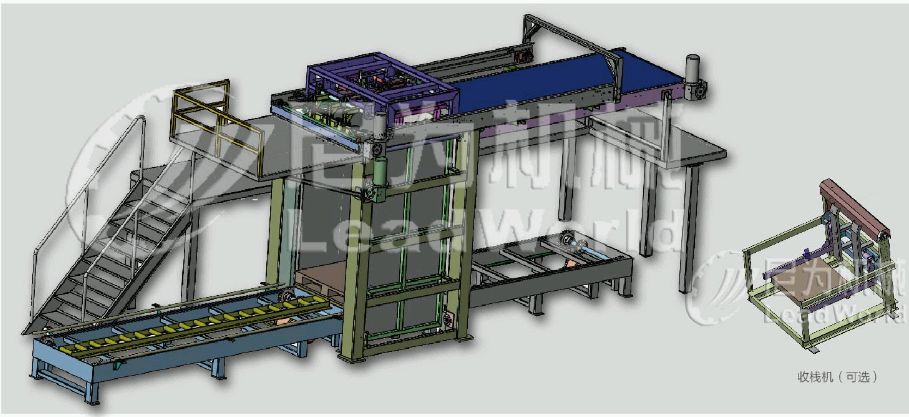

De-palletizer mainly is used to de-palletize various glass jar. It will de-palletizer the empty bottle from stack to conveyor again and again. Save much manpower, improve working efficiency.

Main elements :

• Full stack conveyor
• Full stack elevator part
• Clamping and pushing de-palletizer part
• Bottle buffer conveyor
• Interlayer paperboard storage platform
• Empty stack conveyor
• Automatic empty stack collecting device(choosable)
• Stairs and working platform
• Electrical controlling part

Machine feature :

• Mainly is made of good quality carbon steel tube by welding, appearance is processed with  stoving varnish, beautifui designed.
• The machine maid part is made of high-quality carbon steel pipe, and the structure is stable. Include one fulled multi-layers stack storaging area. Conveyor power system is match with tranducer; driving system adopt high-strength double row roller chain, include guide bar; the guard bar of double sides for fulled stack is adopt high-quality steel pipe, can correct the stack direction; the main stacking station is designed with oriented structure to ensure the cans to come into smoothly.
• The whole full multi-layers stack elevator staition is designed with double direction clamp plate, can insure the whole full multi-layers stack keep into correct shape, in case the jar or cans will drop or break when elevat; elevator motor match with tranducer, if electric is stopped suddenly, elevator won’t drop down, will keep at same area, in sure worker’s safe; elevator is Double guide cantilever structure, stable, high quality loading ability, high area Utilization; power driving system adopt high-strength double row roller chainï¼ï¿½ stable elevating; machine top installs sensor(magnet switch), can check the fulled stack position, contorlling elevator accuracy.
• De-palletizing process is finished by Surrounded clasp structure. It will contorl the whole layer of fulled stack when move, then tranducer controlling motor will drive synchronous belt to work, insure the cans or jar won’t change shape or fall down when move directly.
• Bottle conveyor adopt stainless steel plate, belt material is POM, stable moving, high abrasive resistance.
• This machine also designed with empty stack automatic collecting machine, lift motor match with tranducer, empty Lift beam is drived by cylinder, can open and close automaticlly. Empty stack biggest loading quantity is 10 pieces.
• This machine can add paperboard automatic collecting device, matching with 10 pieces of organ type suction cups, absorbsolidly. Also can be used to certain range of cruved paperboard. The absorbing device can match with Surrounded clasp de-palletizer structure, we de-palletizer come back, absorb device also will finish the whole process, and absorb the paperboard to paperboard storage platform. Save empty jar&cans de-palletizer time, improve working efficiency.

Main Feature: Structural framework is welded. strong and durable and has adjustable base functions, the main lifting platform USES the SEW motor drive, entry speed conveyor belt to separate infeed case, stack is delivered by roller conveyor. 2.5m length of conveyor to output the stack. All adopt roller conveyor. Adopt German Siemens PLC controlling system, movable and can connect to computer. Will display the fault automatically. working process: Can finish the follow process automatically:Input carton, turn over carton, separate the carton into one line and another line, stack, move stack, input stack, output stack. Equipment specification: Automatic servo palletizer, delicate and cabinet, small footprint, small noise and pollution; adopt four-axis servo controlling system, pallet form clear and beautiful. Apply to cartons, film bag, plastic crate products such as pallet, application in food, condiment, beverage, cosmetic, pharmaceutical, electronics and other industries.With panasonic servo motor, Siemens PLC, danfoss frequency converter, SMC pneumatic components sent agtech electrical components such as vacuum suction cups, to ensure the reliability of the system hardwareFeature: Touch screen operation is adopted to accomplish the man-machine dialogue, using the Siemens PLC programmable control number of carton sequence stacking, pallet supply and discharge can be programmed to control.the symmetry and compact structure design, suitable for the narrow space of the existing production sites.Taken the pallet database is big, can accommodate 15 empty pallet, which can realize automatic supply pallet.(pallet library is optional)neednt change the stacking parts can complete several stacking way, only need to obtain the parameters is OK.

Main Feature: Structural framework is welded. strong and durable and has adjustable base functions, the main lifting platform USES the SEW motor drive, entry speed conveyor belt to separate infeed case, stack is delivered by roller conveyor. 2.5m length of conveyor to output the stack. All adopt roller conveyor. Adopt German Siemens PLC controlling system, movable and can connect to computer. Will display the fault automatically. working process: Can finish the follow process automatically:Input carton, turn over carton, separate the carton into one line and another line, stack, move stack, input stack, output stack. Equipment specification: Automatic servo palletizer, delicate and cabinet, small footprint, small noise and pollution; adopt four-axis servo controlling system, pallet form clear and beautiful. Apply to cartons, film bag, plastic crate products such as pallet, application in food, condiment, beverage, cosmetic, pharmaceutical, electronics and other industries.With panasonic servo motor, Siemens PLC, danfoss frequency converter, SMC pneumatic components sent agtech electrical components such as vacuum suction cups, to ensure the reliability of the system hardwareFeature: Touch screen operation is adopted to accomplish the man-machine dialogue, using the Siemens PLC programmable control number of carton sequence stacking, pallet supply and discharge can be programmed to control.the symmetry and compact structure design, suitable for the narrow space of the existing production sites.Taken the pallet database is big, can accommodate 15 empty pallet, which can realize automatic supply pallet.(pallet library is optional)neednt change the stacking parts can complete several stacking way, only need to obtain the parameters is OK.

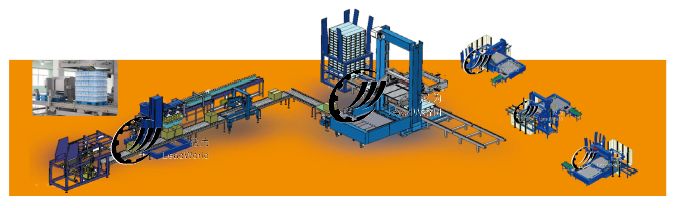

LW palletizers series used for food and beverage, chemical industry, etc. Package is suitable for all kinds of cartons, plastic boxes. the stretch film and barrels, and other types of packaging's stack, Machiner’ s hosts By the double speed belts Steering mechanisms Sorting box Areas Pallet carton Areas main part lifting mechanisms Pallet output roller line etc composition

Features :

• Structural framework for the welding way, strong and durable and has adjustable base functions, the main lifting platform
• Uses the Sew motor drive. Entry speed conveyor belt to separate into the box, entry expedite conveyor belt to separate into the box to separations The stack area roller conveyors 2.Sm Chain conveyor outputs free roller conveyors use the safety protection devices USES Germany Siemens PLC control system, man-machine interface, portable fault automatic display.
• Run automatically divided into automatic into the boxs veer cartons separate lines s Be piled in heapss Removes liftings push pallet into down come out and other steps.

Sprocket wheel type carton packing machine has the characteristics of simple structure, easy to maintain. Use Siemens PLC, Danfoss transducer, Schneider low-voltage electrical appliances and the SEW motor, the machine performance is stable and reliable. Can process different kinds of bottle, professional design team can offer professional design.

Specification :

• Vertical storage, cartons can be added at any time without stopping the machine;
• Suitable for forming and sealing cartons of the same size.
• Manually adjust to change the carton sizes(finishing in 2-3minutes);
• Advanced photo electricity induction control system
• Rationally designed, the forming, folding and sealing process are accomplished simultaneously;
• Cutter Safety system to prevent hands form stabbed by the cutter
• Heavy duty built, both steel and stainless steel types.

Main Feature :Structural framework is welded. strong and durable and has adjustable base functions, the main lifting platform USES the SEW motor drive, entry speed conveyor belt to separate infeed case, stack is delivered by roller conveyor. 2.5m length of conveyor to output the stack. All adopt roller conveyor. Adopt German Siemens PLC controlling system, movable and can connect to computer. Will display the fault automaticlly.

Online payment processing that we offer is secure, instant and hassle-free. Apart from online payment, we also facilitate payment against purchases through offline mediums. Owing to our excellent in-house amenities in Shanghai(China), we deliver a huge assortment of products to the customers. Empty & Filled Can Palletizer has a high-strength body with precise dimensions and a protective polish on the surface.

Sprocket wheel type carton packing machine has the characteristics of simple structure, easy to maintain. Use Siemens PLC, Danfoss transducer, Schneider low-voltage electrical appliances and the SEW motor, the machine performance is stable and reliable. Can process different kinds of bottle, professional design team can offer professional design.

Specification :

• Vertical storage, cartons can be added at any time without stopping the machine;
• Suitable for forming and sealing cartons of the same size.
• Manually adjust to change the carton sizes(finishing in 2-3minutes);
• Advanced photo electricity induction control system
• Rationally designed, the forming, folding and sealing process are accomplished simultaneously;
• Cutter Safety system to prevent hands form stabbed by the cutter
• Heavy duty built, both steel and stainless steel types.

Main Feature :Structural framework is welded. strong and durable and has adjustable base functions, the main lifting platform USES the SEW motor drive, entry speed conveyor belt to separate infeed case, stack is delivered by roller conveyor. 2.5m length of conveyor to output the stack. All adopt roller conveyor. Adopt German Siemens PLC controlling system, movable and can connect to computer. Will display the fault automaticlly.
