Shanghai Shanggao Valve Group Co. Ltd

Shanghai, China

We are offering four way ball valves. Type:worm gearmanualelectric motor design and process standards:iso9001api 6d parameters:ac 380v50 hz

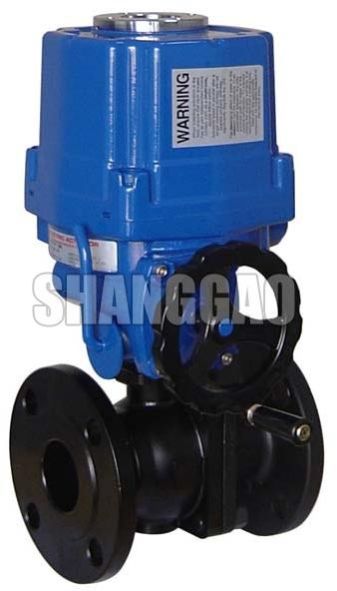

We are one of the reliable Manufacturers, Suppliers, and Exporters of Floating Ball Valve. The Floating Ball Valve, which we offer is greatly demanded for their smooth surface finish and precise designs. Floating Ball Valve promises a longer functional life, owing to its excellent weatherability, resistance against corrosion and high tensile strength.

Technical Specifications :

• Design standard : API 608 BS 5351 GB/T 12237
• face to face standard : ASME b16.10  GB/T12221
• flange ends :ASME b16.5 GB/T 9113
• fire safe design : API  607
• pressure test : API 6d/598 GB/T13927
• body material : carbon steel, stainless steel, alloy steel
• nominal diameter :1/2'' to 10''
• pressure range : 1.6Mpa to 10.0Mpa
• working temperature : -196^oc- +200^oc

Operation :  wrench, worm gear, electric, etc. design features simple structure with good tightness and small torque; with a fully-welded valve body, full bore and the minimum flow resistance (zero actually); fire safe, anti-static  and anti-blowout stem desjgn application long distance pipe lines for petroleum, chemical industry, metallurgy, light industry, power station, urban construction water supply, as well as oil, gas and natural gas transmission and so on.

Product Specifications :

• Body material : carbon steel, stainless steel, alloy steel
• Nominal diameter : 2"to 60"(DN50DN1500)
• Pressure range : Class150, to 2500(PN10PN420)
• Working temperature :-196^oc+200^oc
• Operation: wrench, worm gear, electric, etc.

Design Features : Simple structure with good tightness and small torque; With a fully-welded valve body, full bore and the minimum flow resistance (zero actually); Fire safe, anti-static and anti-blowout stem desjgn; Valve seat function DBB, DIB-1, DIB-2;

We are one of the reliable names engaged in manufacturing, supplying and exporting Double Eccentric Ball Valve. The Double Eccentric Ball Valve is suitable to transmit sedimentary, crystallizable, and  impurity mediums. Double Eccentric Ball Valve has an eccentric structure works on wedging sealing principle, actuated by a d-ring mechanism to tighten, control flow and open-close valve. Double Eccentric Ball Valve is a normal half ball valve and v type half ball valve.

Details :

• Design Standard : API 6D
• Face to face standard : ASME b16.10
• Flange ends : ASME b16.5
• Pressure test : API 598
• Body material : carbon steel, stainless steel, alloy steel
• Nominal diameter :  50mm to 200mm
• Pressure range : 1.6Mpa to 10.0Mpa
• Working temperature : -46°C to +560°C
• Force:Manual/gear/electric/pneumatic
