Shanghai Shanggao Valve Group Co. Ltd

Shanghai, China

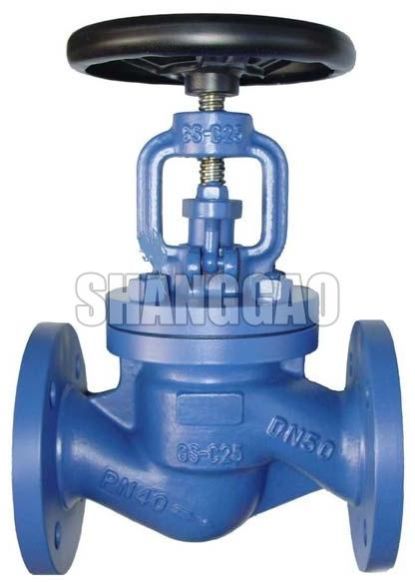

Our company is a prominent Bellow Seal Globe Valve Manufacturer, Exporter and Supplier from China. The Bellow Seal Globe Valve is widely appreciated for its seamless finish, better precision, corrosion resistance and high durability. Used for regulating the liquid flow in pipeline, our Bolted Bonnet Type Bellow Seal Globe Valve finds wide application in different industries such as water, steam, oil, chemicals etc. We make available Bellow Seal Globe Valve in numerous technical specifications at affordable prices.

Specifications

• Rating 150# , 300#, 600#
• Forged Steel Rating -800#
• Size : 1/2” TO 16”
• According to Standards : BS 5352 / BS 6755 / BS 1873 /ASME B 16.34 / DIN 3356 / API 602 / API 603 / API 598

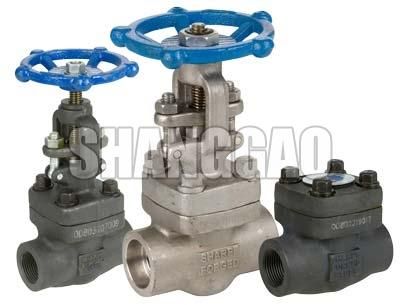

We are offering Forged Steel gate Valve.

Body:ASTM A105

*Operate type:manual, gear and electric motor.

*Ending face:RF, RTJ&BW.

*Size:12''--2''

*Working pressure:1.6Mpa--25Mpa

*Temperature:-196---600

*Standards:API598ISO9001

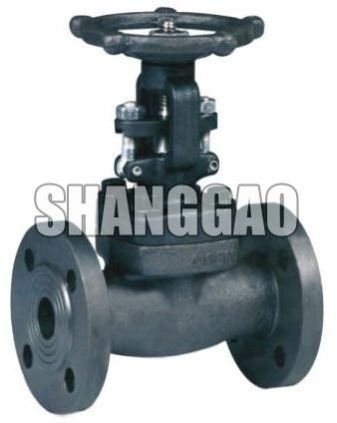

We are offering forged globe valve. packaging & delivery packaging details: poly bag, paper case, wooden case. Delivery detail: depend on the quantity and detail of packing specifications high pressure globe valve design std: api 6006d flanged std : asme b16.5 face to face std: asme b16.10 testing std: api 59 specification: size:2"24"class:150lb, 150lbs, 300lbs, 600lbs, 900lbs, 1500lbs as specified in b16.34fp. Full port designos&y outside screw and yokebb. Bolted bonnetflexible wedge , fully guidedchoice of solid or split wedgerenewable seat ringsforged t-head stemrising stem and non-rising handwheelflanged(rf) or butt welding ends . high pressure globe valve standards: design & mamufacture:api600 (iso 10434)face-to-face or end-to-end : ansi b16.10pressure temperature ratings: asme b16.34flange dimension(rf): ansi b16.5 for nps24"butt welding (bw): ansi b16.25inspection & test: api598

We are one of the reliable names engaged in manufacturing, supplying and exporting Angle Type Globe Valve. The Angle Type Globe Valve is made using carbon steel, stainless steel, alloy steel that ensure resistance against corrosion, sturdiness and excellent weatherability. The Angle Type Globe Valve is designed for smooth flow of fluid.

Construction :

• The inlet and outlet passageways of the valve form a right angle, which allows the medium flowing through the valve, thus generating a certain pressure loss.
• Baiting openings are designed as two types: one with pipe connector and another flat.
• The value is provided by erosion-proof and corrosion-resisting guard plates that protect valve body from being flushed and corroded by the medium at opening



Technical Specifications :

• Design standard : ASME B16.34, GB/T 12235, BS1873
• Face to face standard : ASME B16.10 GB/T 12221
• Flange ends : ASME B16.5, GB/T 9113
• Pressure test : API 598, GB/T 13927


Product Specifications :

• Body material : carbon steel, stainless steel, alloy steel
• Nominal diameter : 1/2", 24", DN15DN600
• Pressure range : Class150, 2500, PN10PN420
• Working temperature : -196^oC, 560^oC
• Operation :  wrench, worm gear, electric, etc.



Design Features : Sealing surface adopts sphere sealing, making the sealing face line-contact with each other, guaranteeing reliable tightness, and preventing scarring. High abrasion-resisting and erosion-proof performances. The valve is designed as a back seal structure, ensuring no medium leakage occurs in the stuffing box, reliable tightness and online replacement of packing. Its valve stem sealing is realized by the collaboration of flexible and woven graphite, ensuring a more reliable tightness.



Application : Chemical fertilizer, mining, metallurgy, aluminum oxide and other industries
