Shanghai Shanggao Valve Group Co. Ltd

Shanghai, China

Technical Specifications :

• Design standard :   API 600 GB/T 12234
• Face to face standard :   ASME B16.10 GB/T 12221
• Flange ends :   ASME B16.5 ASME B16.47GB/T 9113
• Pressure test :  API 6D API 598GB/T 13927
• Body material :   carbon steel, stainless steel, alloy steel
• Nominal diameter :  1/2" 60"DN151500
• Pressure range :   Class150, 2500PN10PN420
• Working temperature  : -196^oC+560^oC
• Mode of operation  : Hand wheel, gear, Electric , Pneumatic

Application  :  Electricity, petroleum, chemical industry, papermaking, metallurgy, aerospaceand other industries

Product Specifications :

• Body material : carbon steel, stainless steel, alloy steel
• Nominal diameter : 1/2" 60"DN151500
• Pressure range: Class150, 2500PN10PN420
• Working temperature: -196^oC+560^oC
• Mode of operation:Hand wheel, gear, Electric , Pneumati

Application  : Electricity, petroleum, chemical industry, papermaking, metallurgy, aerospaceand other industries

Specification:

Model:ZA61 ZA561/961

Force:manual, motor and gear

Pressure:900lb 1500lb

size:1/2'' to 20''

Body:ASTM A216-WC ASTM A217-WC1, WC6/9  ASTM A351 CF8 CF8M CF3 CF3M

Seat:ASTM A105 ASTM A182-F11 F22 F 5 F9

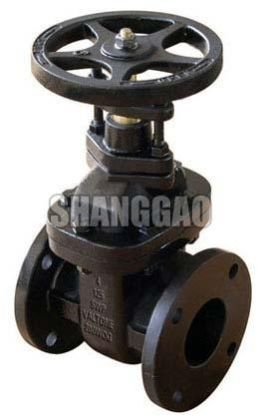

We are a reputed firm engaged in manufacturing, exporting and supplying the best quality Cast Iron Gate Valve. Fabricated using top notch grade iron metal, the Cast Iron Gate Valve is available in wide range of sizes. Our Cast Iron Gate Valve is designed with utmost precision ensuring easy installation and smooth functioning.  Further, the valve is widely applauded for its superb finish and durable life.

Specifications:Z44T/Z45T/Z41T/Z15T

Pressure:1.0Mpa 1.6Mpa 150LB

Size:15mm to 500mm

Ending:Flange, thread.

Standards:ISO9001:2008

SW Gate Valve is a valve that opens by lifting a round gate out of the path of the fluid. The SW Gate Valve facilitates regulated flow of the liquid. Our SW Gate Valve features sturdy construction and superb finish owing to its high grade fabrication and coating. Also, it possesses optimum resistance against corrosion.

Specification:

Standards:API/ISO9001

Model:ZA61 ZA561/961

Force:manual, motor and gear

Pressure:900lb 1500lb

size:1/2'' to 20''

Body:ASTM A216-WCB

         ASTM A217-WC1, WC6/9/5

         ASTM A351 CF8 CF8M CF3 CF3M

Seat:ASTM A105 ASTM A182-F11 F22 F 5 F9
