Valves & Valve Fittings

We are leaders in the market for providing best range of Thread Ending Safety Valve, Reducing Valve, Cast Iron Valve, Cast Steel Valve and Monel Metal Valve

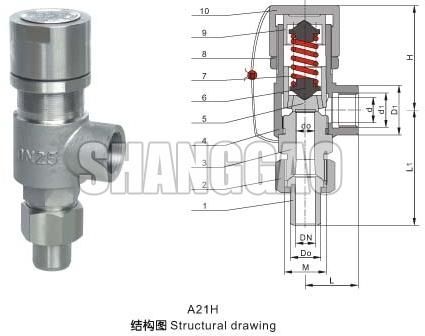

Thread Ending Safety Valve

Thread Ending Safety Valve
We are offering Thread Ending Safety Valve. Size 12" - 20" (10mm - 500mm) pressure class150 - 2500 (0.06 mpa- 42.0 mpa) temperature -196 +580 degc. Material alloy steel, carbon steel design standard asme, api, jis, din, gost, iso.et.
View Complete Details
Ask Latest Price & Details
Reducing Valve

Reducing Valve
1) It is a kind of pilot operated pressure reducing valve; 2) Especially be suitable for steam, and for water also; 3) Max. Inlet pressure: 16 bar, 25 bar 4) Outlet pressure (Springs Pressure setting range): Yellow: 0.2 to 3 Bar Blue: 2.5 to 7 bar Red: 6 to 12 bar 5) Diameter: 15 - 200mm 6) Medium temperature: 0 280 C 7) Max. Inlet to outlet pressure: 20: 1 8) Body material: Cast steel (WCB) Pressure Adjusment Spring: 60SI2Mn Pilot Valve: Cast steel Internal Strainer: Stainless Steel (1Cr18ni9Ti ) Body Gasket: Flexible graphite Adjustment Screw & Locked Nut: Cast steel Main Valve Spring: 50CrVA Main Valve & Main Valve Seat: 2Cr13 Pressure Sensing pipe: Copper 9) As per Germany (DIN), ANSI, GB standards manufactured; Flanged connection as per PN-25, PN-16.
