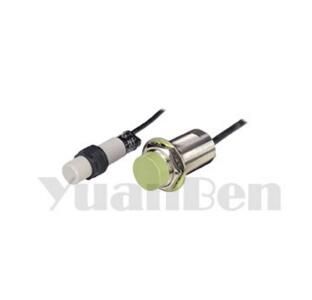

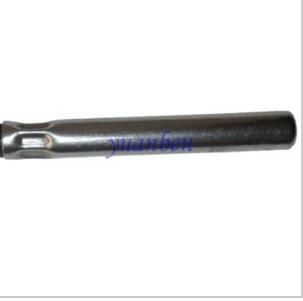

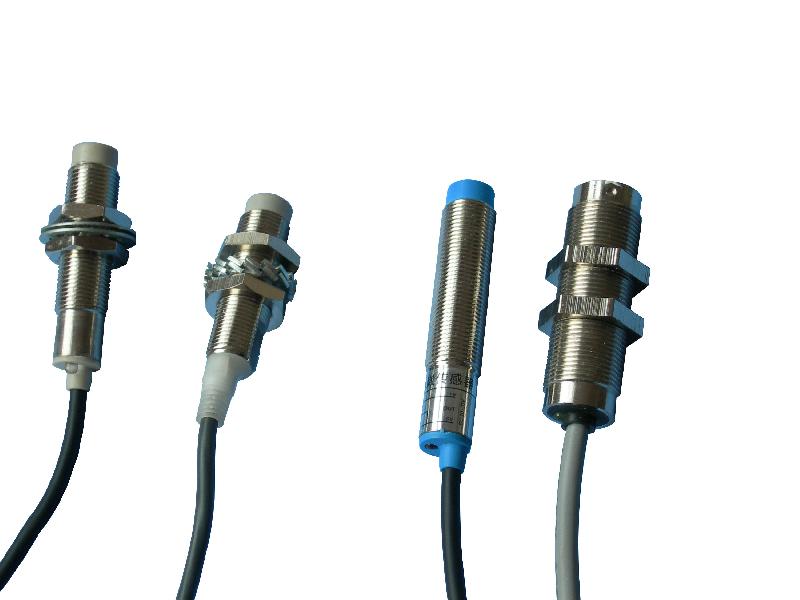

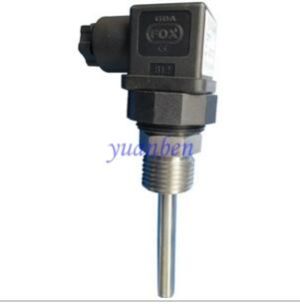

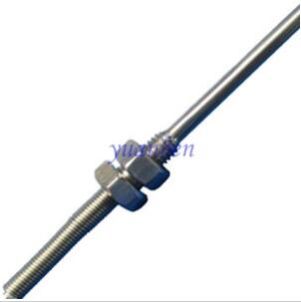

We are leaders in the market for providing best range of IPS-001 Inductive Position Sensor, MEA-60 Absolute Rotary Encoder, IPS-004 Inductive Position Sensor, TSP-031 Platinum Resistance Temperature Sensor and TSP-078A Platinum Resistance Temperature Sensor
We have developed a separate unit for keeping a large stock. This unit is managed and maintained by our adroit professionals and fulfills the ever-growing needs of the clients. Place orders with us, timely deliveries of the same are our prime responsibility!
Specifications :

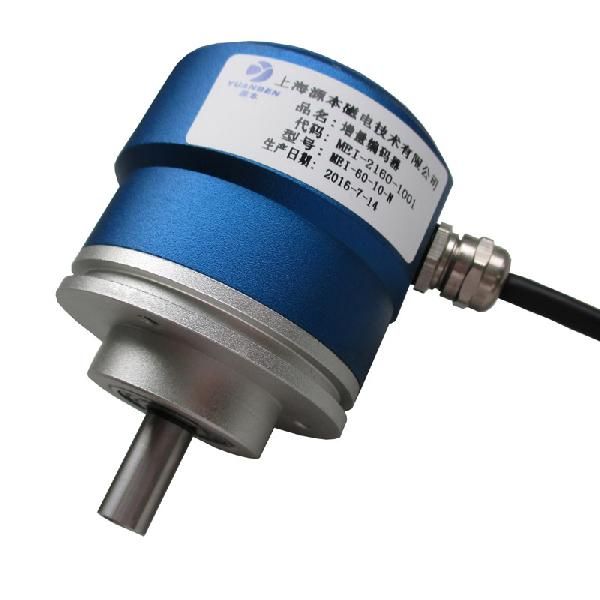

Far-famed for the excellent MEA-60 Absolute Rotary Encoder, we are a notable supplier thriving on the customers' trust for a long time now. To stock our product for wholesale distribution, we have a state-of-the-art storage facility equipped with the latest inventory control management system. It enables us to meet bulk or retail requirements with ease.
Description
Technical Specification
| System data | |
| Reading type | Axial reading |
| Resolution | 12 bits |
| Maximum speed | >10,000 rpm |
| System accuracy | ±100 mdeg (±360 arcsec) |
| Repeatability | Better than unit of resolution |
| Hysteresis | 0 μs |
| Electrical data | |
| Supply voltage | 5 V ± 10 %, other voltages on request |
| Set-up time | After switch-on ≤ 5 ms After wake-up ≤ 0.3 ms |
| Current draw | Operation Max. 150 mA Sleep mode < 1 mA |
| Mechanical data | |
| Available ring sizes (outer diameter) | 49 mm |
| Material type | Ring EN 1.4005 / AISI416 or EN 1.4104 / AISI430F with vulcanised HNBR rubber |
| Cable | Ø4.2 ± 0.2 mm, PUR high flexible cable, drag-chain compatible, double-shielded 8 × 0.05 mm2; durability: 20 million cycles at 20 mm bend radius |
| Environmental data | |
| Temperature | Operating -40 °C to +85 °C Storage -40 °C to +110 °C |
| Vibration – read head only (55 Hz to 2000 Hz) | 300 m/s2 (IEC 60068-2-6) |
| Shock – read head only (11 ms) | 300 m/s2 (IEC 60068-2-27) |
| Protection | IP65 |
Details
| CAN bus | |
| Standard | J1939 |
| Update rate | 20 Hz |
| Resolution | 12 bits |
| Latency | 250 μs |
| Asynchronous serial RS422 RS485 | |
| Baud rate | 4,800 bps, |
| Data format | 8 bits, no party, 1 stop bit |
| Update rate | On demand or continuous |
| Resolution | 12 bits |
| Latency | 250 μs |
| PWM | |
| Base frequency | 180 Hz |
| Step duration | 0.1110 μs |
| Update rate | 180 Hz |
| Output resolution | 12 bits per revolution |
| Latency | 250 μs |
| SSI (optional CRC) | |
| Maximum clock frequency | 20 MHz |
| Update rate | 4 kHz |
| Resolution | 12 bits |
| Latency | 250 μs to 500 μs |
| Timeout (monoflop time) | 20 μs |
| SPI slave (chain possible, master mode optional) (available on request) | |
| Maximum clock frequency | 20 MHz |
| Update rate | 4 kHz |
| Resolution | 12 bits |
| Latency | 250 μs to 500 μs |
| I2C / TWI slave (available on request) | |
| Maximum clock frequency | 400 kHz |
| Update rate | 4 kHz |
| Resolution | 12 bits |
| Latency | 250 μs to 500 μs |
| Analogue current (available on request) | |
| Current range | For AZ output 0 mA - 20 mA |
| For AF output | 4 mA - 20 mA |
| Update rate | 4 kHz |
| Output resolution | 12-bit DAC |
| Latency | 300 μs |
| Analogue voltage (available on request) | |
| Voltage range | For VV output 0 V - 10 V (min. 12 V supply) |
| For VP output | 10 % - 90 % of supply voltage |
| Update rate | 4 kHz |
| Output resolution | 12-bit DAC |
| Latency | 300 μs |
Electrical Connector
| Colour | CAN bus | SSI | Asynchronous serial RS485 | Asynchronous serial RS422 | PWM |
| Inner shield | 0 V (GND) | 0 V (GND) | 0 V (GND) | 0 V (GND) | 0 V (GND) |
| White | Sleep | Clock | Sleep | Sleep | Sleep |
| Brown | Clock | ||||
| Grey | CANL | Sleep | TX data out | ||
| Red | 5 V supply | 5 V supply | 5 V supply | 5 V supply | 5 V supply |
| Green | Data | RX/TX Data | RX data in | ||
| Yellow | Data | RX/TX Data | RX data in | ||
| Pink | CANH | TX data out | PWM out | ||
| Blue | 0 V (GND) | 0 V (GND) | 0 V (GND) | 0 V (GND) | 0 V (GND) |
Superior transportation facilities, efficient workforce and on-time delivery of the products make us stand out from the crowd. Owing to our sound quality system, we are capable of carrying out strict quality analysis of the product basket.
Technical Specifications of Barrel Shaped DC Type :
The assistance of our sophisticated packaging system and skilled personnel, we are able to meet the standard as well as customized packaging requirements of the clients with ease. Working in close coordination with the genuine logisticians, we dispatch the products in the dedicated time.
Description
Features
Applications : It can be widely used in many fields in the industry and in household equipment for temperature measurements, such as home appliances (ovens, refrigerators, air-conditioner) cars (engine, car interior), processing industries (plastic, food, chemical, car, electronics industries), domestic and industrial heating facilities.
Details : The TSN temperature sensor are widely used in many fields in the industry and in household equipment for temperature measurements in water and under pressure up to 100 bars.
Graph
Technical Parameters
| Item | Pt 100 Technical Parameter |
|---|---|
| Value of Resistance | 100Ω |
| Testing Temp. Range | -30¸250 |
| Testing Temp. Accuracy | Grade A, or Grade B see attached table |
| Operating Current | 2mA max, self heating tolerance1 1mA recommended |
| Thermal Time Constant | <0.5 S 20mm Outer Dia. |
| Linearity | ±0.1at-30~125 full range or ±2.0 at 55 ~300 full range |
| Basic Resistance and Interchangeability R0±ΔR0 | 1000±1Ω@0 or1000±2Ω@ |
| Self Heating | Typical<15mw/ 20mm Outer Dia. |
| Stability | Better than 0.25/Y , for fixed ambient , 0.05/Y |
| Long-term Stability | R0 drifting≤ 0.04 (500after 1000H) |
| Anti-vibration Grade | >40g (10—2000Hz) |
| Shock Resistance Grade | At 500, >l00g accelerated speed (8 5mS after wave) |
| Testing Current | 0.3-Max 1mA . |
| Insulation Resistance | >100MΩ at 20>2MΩ, >50MΩ/50VDC at 25 |
Dimension
| Accuracy | Allowable deviation () | Allowable resistance value deviation ( Ω ) at 0 |
|---|---|---|
| Grade A | ±(0.15+0.002) | ±0.06Ω |
| Grade B | ±(0.3+0.005) | ±0.12Ω |
Over the years, our company has a cemented its position in Shanghai(China) and is determined to become a trusted provider in other markets as well. We efficiently carry out systematic process at every stage, to make certain that the product basket is developed as per the specified requirements.
Features :
Applications : It can be widely used in many fields in the industry and in household equipment for temperature measurements, such as home appliances (ovens, refrigerators, air-conditioner) cars (engine, car interior), processing industries (plastic, food, chemical, car, electronics industries), domestic and industrial heating facilities.
We are known for providing only flawless range of products as we store the entire lot under safe environment in our spacious warehouse. Moreover, the lot is regularly checked by our experts. Buyers can rest assured; the delivery of consignments will be done within the stipulated time. Our products can be ordered in bulk as well as in retail.
Description
Features
Applications : It can be widely used in many fields in the industry and in household equipment for temperature measurements, such as home appliances (ovens, refrigerators, air-conditioner) cars (engine, car interior), processing industries (plastic, food, chemical, car, electronics industries), domestic and industrial heating facilities.
Graph

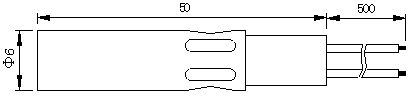

Welding Diagram
Details
| Item | Pt 100 Technical Parameter |
|---|---|
| Value of Resistance | 100Ω |
| Testing Temp. Range | -30¸250 |
| Testing Temp. Accuracy | Grade A, or Grade B see attached table 1 |
| Operating Current | 2mA max, for min. self heating 0.3 1mA recommended |
| Thermal Time Constant | <5 Sï 20mm Outer Dia. |
| Linearity | ±0.1 at-30 ~125 full range or ±2.0 at 55 ~300 full range |
| Basic Resistance and Interchangeability R0±ΔR0 | 1000±1Ω@0 or1000±2Ω@0 |
| Self Heating | Typical<15mw/ 20mm Outer Dia. |
| Stability | Better than 0.25 /Y, for fixed ambient , 0.05/Y |
| Long-term Stability | R0 drifting≤ 0.04ï (500after 1000H) |
| Anti-vibration Grade | >40g (10—2000Hz) |
| Shock Resistance Grade | At 500,100g accelerated speed (8 5mS after wave) |
| Testing Current | 0.3-max. 1mA |
| Insulation Resistance | >100MΩ at 20>2MΩ, >50MΩ/50VDC at 25 |
Specifications
| Accuracy | Allowable deviation () | Allowable resistance value deviation ( Ω ) at 0 |
|---|---|---|
| Grade A | ±(0.15+0.002) | ±0.06Ω |
| Grade B | ±(0.3+0.005) | ± 0.12Ω |
We make sure that the products we offer to our clients will remain free from any kind of damage. Thus, we store the entire lot under secured environment in our capacious warehouse. With strong industrial experience, we make sure that the packaging is done as per the stated norms, by this; the products that we deliver are absolutely safe from the getting damaged.
Description
Features
Applications : It can be widely used in many fields in the industry and in household equipment for temperature measurements, such as home appliances (ovens, refrigerators, air-conditioner) cars (engine, car interior), processing industries (plastic, food, chemical, car, electronics industries), domestic and industrial heating facilities.

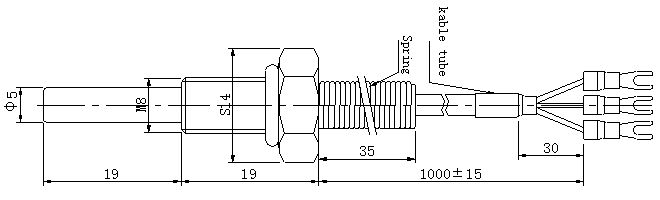

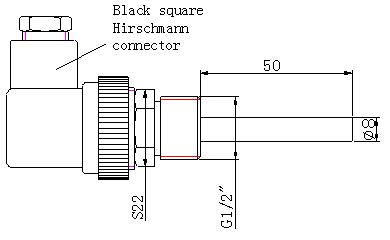

Product Dimension
Technical Parameters
| Item | Pt 100 Technical Parameter |
|---|---|
| Value of Resistance | 100Ω |
| Testing Temp. Range | -30¸ 250 |
| Testing Temp. Range | Grade A, or Grade Bïsee attached table 1 |
| Operating Current | 2mA max, for min. self heating 0.3,1mA recommended |
| Thermal Time Constant | <5 S 20mm Outer Dia. |
| Linearity | ±0.1at-30~125 full range or ±2.0 at55 ~300 full range |
| Basic Resistance andInterchangeability R0±ΔR0 | 1000±1Ω@0 or 1000±2Ω@0 |
| Self Heating | Typical<15mw/ 20mm Outer Dia. |
| Stability | Better than 0.25/Y, for fixed ambient , 0.05/Y |
| Long-term Stability | R0 drifting≤ 0.04(500after1000H) |
| Anti-vibration Grade | >40g (10—2000Hz) |
| Shock Resistance Grade | At 500, 100g accelerated speed (8 5mS after wave) |
| Testing Current | 0.3- max. 1mA |
| Insulation Resistance | >100MΩ at 20>2MΩ, >50MΩ/50VDC at 25 |
Graph
Details
| Accuracy | Allowable deviation (oc) | Allowable resistance value deviation ( Ω ) at 0oc |
|---|---|---|
| Grade A | ±(0.15+0.002) | ±0.06Ω |
| Grade B | ±(0.3+0.005) | ± 0.12Ω |
