ShenZhen Mairay Automation Equipment Co.,Ltd

ShenZhen, China

• MOQ 1 Set(s)
• CertificationCE
• ConditionNew
• Country of OriginAC220/380V
• Model NumberRS-350
• StockYes
• Brand NameMairay
• After-sales Service Providedyes
• Total Carbohydrate1 year

• MOQ 1 Set(s)
• CertificationCE
• ConditionNew
• Stockno
• Total Carbohydrate1 year
• Country of OriginAC380
• Machine size2600 X 1200 X 1650mm
• Model NumberRS-300
• Brand NameMairay
• After-sales Service Providedyes

• MOQ 1 Set(s)
• Brand NameMairay
• After-sales Service Providedyes
• Country of OriginChina

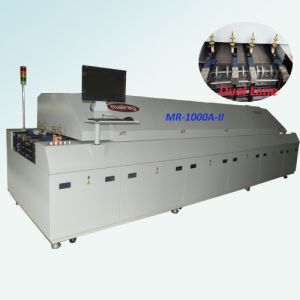

• Model NumberMR-1000A
• preheat length3891mm
• Availability2350kg
• Number Of Flowerautomatic
• sizeL6160*W1550*H1520mm

• MOQ 1 Set(s)
• preheat length2800mm
• Country of OriginChina
• Availability2250kg
• After-sales Service ProvidedYes
• Model NumberMR-8800C
• Number Of FlowerAutomatic
• size4200*960*1420mm
• Brand NameMairay

Outside dimension(l*w*h) 4200x960x1420mm weight approx.2250kg number of heating zones up8bottom8 cooling zone up2bottom2(enforced cooling) heating zones length 2800mm electric supply required 3phase, 380v 5060hz (option: 3phase, 220v 5060hz) power for warm up 15kw power consumption 5kw warming time approx.20 minute temp. Setting range room temp. --- 300℃ control system pc+plc temperature control precision ± 1.0℃ heating element especial heating elements for long life commutated element aluminium alloy plate abnormal alarm abnormal temperature (extra-high extra-low temp.) board dropped alarm yellow–warming; green-normal; red-abnormal lane quantity 1 max.width of pcb 400mm (option:450mm) components height top bottom height of pcb is 25mm converyor direction l to r; r to l fixed rail side front rail fixed(option:rear rail fixed) pcb transmission agent "air-reflow = chain + mesh , n2-reflow=chain(mesh is option)" center support(optional) "prevent pcb get deformed due to pcb too wide or component too heavy" converyor height 900+-20mm converyor speed range 300～2000mmmin lubrication auto-afflux standard temp. Thermocouple slot standard driven top hood opening standard cooling method forced-air (standard), water-chiller (option)

• MOQ 1 Set(s)

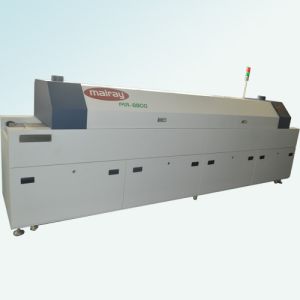

• Model NumberMR-800C
• Number Of FlowerAutomatic type
• machine size4800*1250*1520mm
• control methodPC+PLC
• Country of OriginChina
• After-sales Service ProvidedYes
• Availability2250kg
• Brand NameMairay
• preheat length2800mm

• MOQ 1 Set(s)

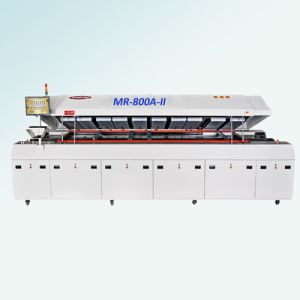

• Model NumberMR-800A
• Country of OriginChina
• Machine size5240x1370x1500mm
• Brand NameMairay
• Availability2350kg
• After-sales Service ProvidedYes
• Preheating length2800mm
• Number Of FlowerAutomaitc

Outside dimension(l*w*h) 5240x1370x1500mm weight 2350kg number of heating zones up8bottom8 cooling zone up2bottom2(enforced cooling), 850mm heating zones length 2800mm electric supply required 3phase, 380v 5060hz (option: 3phase, 220v 5060hz) power for warm up 30kw power consumption 8kw warming time approx.20 minute temp. Setting range room temp. --- 300℃ control system pc+plc temperature control precision ± 1.0℃ heating element especial heating elements for long life commutated element aluminium alloy plate abnormal alarm abnormal temperature (extra-high extra-low temp.) board dropped alarm yellow–warming; green-normal; red-abnormal lane quantity 1 max.width of pcb mesh:500mm rail:350mm components height top bottom height of pcb is 25mm converyor direction l to r; r to l fixed rail side front rail fixed(option:rear rail fixed) pcb transmission agent "air-reflow = chain + mesh , n2-reflow=chain(mesh is option)" center support(optional) "prevent pcb get deformed due to pcb too wide or component too heavy" converyor height 900+-20mm converyor speed range 300～2000mmmin lubrication auto-afflux standard temp. Thermocouple slot standard driven top hood opening standard cooling method forced-air (standard), water-chiller (option)

• MOQ 1 Set(s)
• CertificationCE
• ConditionNew
• Country of OriginAC380V
• After-sales Service Providedyes
• Model NumberWS-350
• Total Carbohydrate1 year
• Stockyes
• Brand NameMairay

• MOQ 1 Set(s)
• Country of OriginChina
• Brand NameMairay
• Number Of Flowerautomatic
• Model NumberMR-800A
• After-sales Service Providedyes
• Availability2350
