XINGCHENGJIE PRECISE EQUIPMENT CO.,LTD

shenzhen, .., China

• MOQ 1 piece

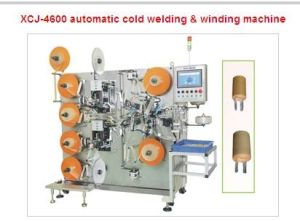

We are offering automatic cold welding machine, winding machine (xcj 4600) 1. Can take-up and high-voltage electrolytic alumium foil paper. 2. The machine design uses a single-voltage winging needle with a stable winding length and pitch, high electrolytic and high electrolytic and high production equipment. 3. The first two layers of paper or of four rolls paper and features selection in the leed with a pad paper on the function(optional). 4. Produce a pair or two pairs of ear pieces of the electrolytic container. 4. Using high precision touch screen for data srtup and operation, easy maintenance and easy operation. specifications: dimensions: 1920lx1200wx1650h weight: 190kgs power: ac220v 50hz pressure: 5.5kg/f/cm2 coating color: optional applicable standard: product diameter: dia. 22~dia. 45 product height: 40~80mm foil length: 700~3500mm foil width: ~70mm electrolytic paper width: 35~75mm roll pin diameter: dia. 4.0 dia. 4.5 dia. 5.0 dia. 5.5 mechanical speed: foil length: speed (pcs/min) 700~1000 11~14 1000~1500 9~11 1500~2000 6~9 2000~2800 5~7 2800~3500mm 3~5 configuring specification features: 1, negative outsourcing, the negative pole at the bottom role: to enhance the internal heat capacity of the capacitor 2, lead site pad of paper role: to prevent the capacitor leads in the work area overheating, resulting in the breakdown of electrolytic paper and caused short-circuit 3, pre-punching device effect: to reduce producing aluminum dust when formation of nails rivet, reduce product short-circuit probability. 4, partial core wire detection and correction role: reducing the inductance and impedance for capacitor under high frequency. 5, guided needle righting device role: to prevent the guide pin skew nailed or deflection nailed when it's nail riveted. 6, synchronous winding device for winding needles with different size. role: to effectively ensure the element without phenomenon of non-core pulling.

• MOQ 1 Piece
• BrandXINGCHENGJIE

We are offering automatic winding machine. device characteristics. 1.the device for the production of high-frequency capacitance and low resistance series capacitor of solid sub-prime. 2.the device uses dual servo spindle and reel positioning device, machine go foil winding and nail length and speed can be set in the chinese display, conveninet adjustment, fault location can be the first time responses on the screen. 3.the equipment uses seven dymanic vaccum and the various anti-scratch device. Can effectively guarantee the minumal volume of dust inside the product . Thereby reducing the short-circut phenomenon products. 4.vaccum way nails machine guided needle absorption and desription, copper and iron guid pin can be used. With a negagive outsourcing or outsourcing options electrolynic paper, complete with tape or glue can choose the setting mode. 5.nailed curved and mold level by way of option modules. Can effectiely reduce the impedance , simple and quick. applicable standard foil length 50-260mm electroylic paper width 4.5-10.6mm the number of nail needle 3-4 complete way glue or tape mechanical speed φ5x11l 55-60 φ6x12l 50-55 φ8x14l 40-45 φ10x16l 35-40 Configuring Specification Features: 1, Negative Outsourcing, the negative pole at the bottom Role: To enhance the internal heat capacity of the capacitor 2, Lead site pad of paper Role: To prevent the capacitor leads in the work area overheating, resulting in the breakdown of electrolytic paper and caused short-circuit 3, Pre-punching device Effect: To reduce producing aluminum dust when formation of nails rivet, reduce product short-circuit probability. 4, Partial core wire detection and correction Role: Reducing the inductance and impedance for capacitor under high frequency. 5, Guided needle righting device Role: To prevent the guide pin skew nailed or deflection nailed when it's nail riveted. 6, Synchronous winding device for winding needles with different size. Role: To effectively ensure the element without phenomenon of non-core pulling.

• MOQ 1 Piece

We are offering automatic winding machine. device characteristics. 1.the winding three -in -one nail reliable performance, enhance space utlization, non-traditional aluminum fitting and mixing problems, reduce labor and material costs. 2.this machine adopts plc programmable design circuit designer control over the nail , winding length of the speed set with the text display, fault display directly, set easy to operate. 3.the local optinal vacuum device can absorb the foil ash;other optional short-circuit testing organization can detec sub-prime internal short circut. 4.double or four -lays paper structure of electrolytic paper, aluminium foil, overlapping high volume electrolysis paper can be short. Is 12-18 in the high voltage products for the machine the best choice. 5.negative foil guid wire nail machine on the flat before the department si adding a layer of aluminum foil, increase the capacitor in a dynamic exchange of work against the abiity of microwave to prevent short circuits caused by excessive current breakdown. 6.can choose to complete way to glue or tape device, can also chose t dua-function, according to different products to choose the best way to completion. 7. This model may choose to make products with high pressue cusion the negative foil. Pre-punching.pad of paper.short-circuit repair and other functioins. Thereby improving product quality. applicable standard foil length 500-800mm foil width 10-26mm electroylic paper width 12-29mm the number of nail needle 3-7 roll pin diameter φ2.5 φ3.0 φ3.5 complete way: glue or tape mechanical speed φ10x16l 53-56 φ12-20l 42-50 φ13-20l 25-30 φ16x25l 20-35 φ18x36l 15-25. Configuring Specification Features: 1, Negative Outsourcing, the negative pole at the bottom Role: To enhance the internal heat capacity of the capacitor 2, Lead site pad of paper Role: To prevent the capacitor leads in the work area overheating, resulting in the breakdown of electrolytic paper and caused short-circuit 3, Pre-punching device Effect: To reduce producing aluminum dust when formation of nails rivet, reduce product short-circuit probability. 4, Partial core wire detection and correction Role: Reducing the inductance and impedance for capacitor under high frequency. 5, Guided needle righting device Role: To prevent the guide pin skew nailed or deflection nailed when it's nail riveted. 6, Synchronous winding device for winding needles with different size. Role: To effectively ensure the element without phenomenon of non-core pulling

• MOQ 1 Piece
• BrandXINGCHENGJIE

We are offering automatic winding machine. Device characteristic. 1.the device is specially produced slender, electric pencil style capacitor. 2.the equipment uses seven dynamic vacuum and the various anti-scratch device. Can effectively gurantee the minimal volume of dust inside the product. Thereby reducing the short circuit phenomenon products. 3.used along with double paper and four-plys paper. As well as use double tape and single tape. Positive and negative leads on the pad of paper and foil pad used along with the negative. 4.modle is pressed flat nailed by curved mold method with the flat mold. Can effectively reduce the resistance. The operation simple and quick . 5.the model change foil, electrolytic paper and tape width are not required to replace part. 6.this molde may choose to make products with high-pressure adding cushion the negative foil. Pre-punching. Pad of paper. Short circuit repair and other functions to improve product quality. 7. The device uses servo positioning device winding. applicable standard foil length 60-1200mm foil width 22-23mm electroylic paper width 25-76mm the number of nail needle 4-8 roll pin diameter î¦2.5 î¦3.0 complete way: glue or tape mechanical speed î¦6.3x36l 18-21 î¦8x50l 18-21 î¦8x60l 18-21 î¦10x60l 16-18 î¦10x80l 16-18 î¦12.5x60l 15-17 Configuring Specification Features: 1, Negative Outsourcing, the negative pole at the bottom Role: To enhance the internal heat capacity of the capacitor 2, Lead site pad of paper Role: To prevent the capacitor leads in the work area overheating, resulting in the breakdown of electrolytic paper and caused short-circuit 3, Pre-punching device Effect: To reduce producing aluminum dust when formation of nails rivet, reduce product short-circuit probability. 4, Partial core wire detection and correction Role: Reducing the inductance and impedance for capacitor under high frequency. 5, Guided needle righting device Role: To prevent the guide pin skew nailed or deflection nailed when it's nail riveted. 6, Synchronous winding device for winding needles with different size. Role: To effectively ensure the element without phenomenon of non-core pulling

• MOQ 1 Piece
• BrandXINGCHENGJIE

We are offering automatic winding machine. Device characteristics. 1.the winding machine is most suitable for the production of solid capacitors and chip capacitor element. 2.the winding three -in -one nail reliable performance, enhance space utlization, non-traditional aluminum fitting and mixing problems, reduce labor and material costs. 3.the mechanical drive machanism with dual servo motor system, the main shaft and the reel servo servo positioning device to ensure the quality and stability, away from the needle and guid for establishments of the excellent, fast, high productivity, 4.this machine adopts plc programmable design circuit designer control over the nail , winding length of the speed set with the text display, fault display directly, set easy to operate. 5.the use of the molds are high precision grinding process, parts with high precistion, standard hardness, abrasion resistance is strong, beautiful appearance. applicable standard foil length 12-120mm foil width 1.6-1.8mm electroylic paper width 1.9-2.1mm the number of nail needle 2 roll pin diameter φ1.2 φ1.5 complete way: glue or tape mechanical speed φ4x4.0l 45-50 φ5-4.0l 50-55 φ5-4.2l 50-55 φ6.3-4.5l 45-50 φ6.3-4.2l 45-50 Configuring Specification Features: 1, Negative Outsourcing, the negative pole at the bottom Role: To enhance the internal heat capacity of the capacitor 2, Lead site pad of paper Role: To prevent the capacitor leads in the work area overheating, resulting in the breakdown of electrolytic paper and caused short-circuit 3, Pre-punching device Effect: To reduce producing aluminum dust when formation of nails rivet, reduce product short-circuit probability. 4, Partial core wire detection and correction Role: Reducing the inductance and impedance for capacitor under high frequency. 5, Guided needle righting device Role: To prevent the guide pin skew nailed or deflection nailed when it's nail riveted. 6, Synchronous winding device for winding needles with different size. Role: To effectively ensure the element without phenomenon of non-core pulling

• MOQ 1 Piece
• BrandXINGCHENGJIE

We are offering automatic winding machine. Device characteristics 1. The product uses the famous brand plc programmable control design, the production, winding length with text display speed setting, fault display direct, set convenient operation. 2. The machine can be being able to draw a piece of dust collection device of dust. 3. Will be extremely, extremely piece, ear tapes respectively in the unit loaded diaphragm can produce product, need not form fission producer in the receiving of the machine will be good extremely again in place of roll machine winding, reduce the waste of material such as a piece of , and can greatly improve production efficiency of equipment. 4.the machine has axial and homonymous equipment for choice. 5.the machine is suitable for used in the production of battery production line automation equipment Technical parameters pole piece length: 80-300mm pole piece width: 30-45 mm diaphragm width: 33-48mm Tabs width: 1.5-4mm nailed needles: 3-7pcs needle distance: 2.0-2.5mm roll diameter: Φ1.5 Φ2.0 Φ2.5 production diameter: Φ7.2-Φ12 weight : 1200/1350 KG size : 350x110x150cm power: AC220V 50HV painting color: optional mechanical speed î¦7.2x35l 17-19 î¦7.2x45l 17-19 î¦8x50l 16-18 î¦10x50l 15-17 î¦12x50l 12-14
