Backed by our prime motto to provide our clients with best in class products in a stipulated time frame, we have emerged as a superior manufacturer and trader of a wide gamut of16 Channel Temperature Scanner Logger.These loggers are manufactured under the strict supervision of our competent manpower. Also, our range of16 Channel Data Loggeris widely appreciated for attributes such as data saved directly on USB pen drive in an ms excel compatible file, no need of any complicated or additional software for managing data, etc.

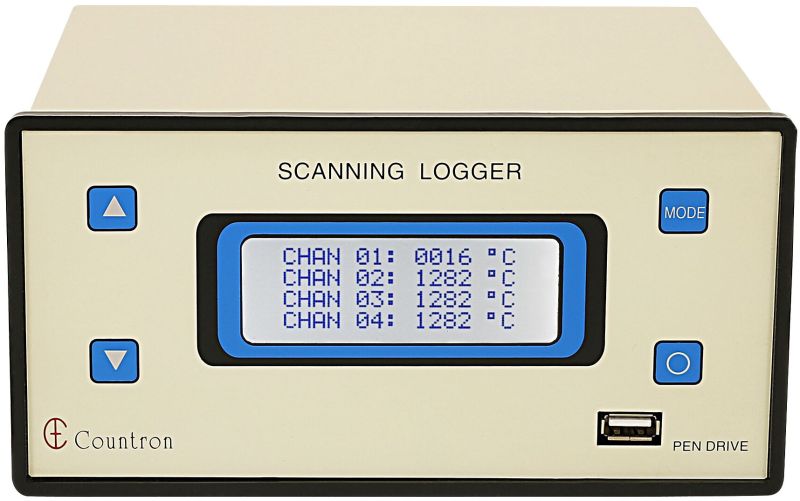

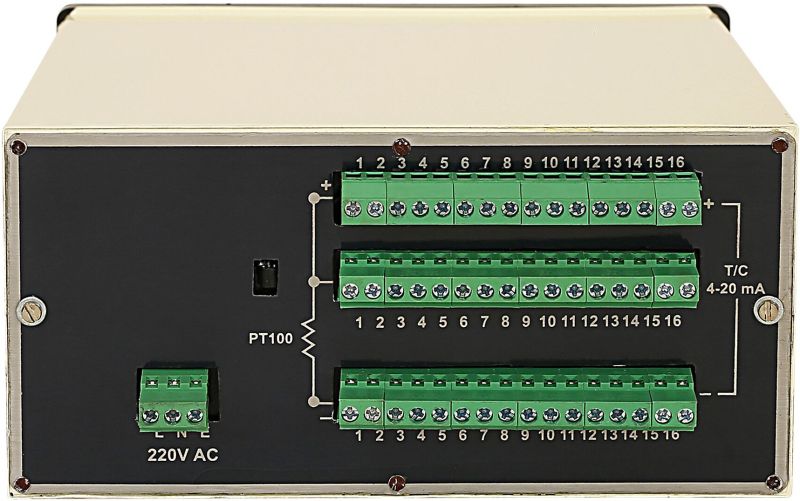

Model code:CT716

Product Name:16 channelTemperature Scanner Logger

Category:data_logger

Sub Category:Data Logger

Features

• Microprocessor based linearized for J/K/R Thermocouples and PT100 temperature sensors.
• 4 line alphanumeric LCD display with back-light for user friendly displays
• Auto cold junction compensation for thermocouples and 3 wire input for PT100
• Number of usable channels selectable from 1-16.
• Auto/Manual mode of scanning selectable
• Rate of logging settable by user in Mins:Secs
• Digital offset user settable for individual channels
• Internal Real Time Clock with battery backup for saving values along with Date and Time
• Saving data on Pen drive allows a very large amount of storage space at very low cost.

Specification

8 CHANNEL UNIVERSAL TEMPERATURE SCANNER LOGGER
CT708

Features:

Data saved directly on USB Pen drive in an MS Excel compatible file

Microprocessor based linearised for J/K/R Thermocouples and PT100 temperature sensors.

Auto cold junction compensation for thermocouples and 3 wire input for PT100

Number of usable channels selectable.

Auto/Manual mode of scanning selectable

Rate of logging settable by user in Mins:Secs

Digital offset user settable for individual channels

Internal Real Time Clock with battery backup for saving values along with Date and Time

No need of any complicated or additional software for managing data

Saving data on Pen drive allows a very large amount of storage space at very low cost.

Specifications

Display : 0.56 Red LED display for Channel Number

0.56 Red LED display for Temperature

Sensor : J/K/R Thermocouples and 3 wire PT100 sensor user selectable

Range : J-T/C : 0 to 750 C K-T/C : 0 to 1250 C R-T/C : 0 to 1700 C

PT100: -100.0 to +600.0 C

Resolution : 1 C for thermocouples and 0.1 C for PT100

Channels : Maximum 8

Scanning Rate: User settable from 1-99seconds

Resolution : 1 C for Temperature

Digital Offset : User settable individually for each channel

Logging Rate : 1 second to 99Mins59seconds

Data Logging : Directly create a .csv file on the Pen Drive (compatible with Excel) giving a tabular format values of Date, Time and selected channels

Real Time Clock: Adjustable Calendar (Month/Date) and Time (Hrs:Mins)

Accuracy : 1 C 1 Least Significant Digit for Thermocouple

0.1 C 1 Least Significant Digit for PT100

Power Supply : 230V AC 15% at 50/60Hz

Front Facia : 96mm x 96mm

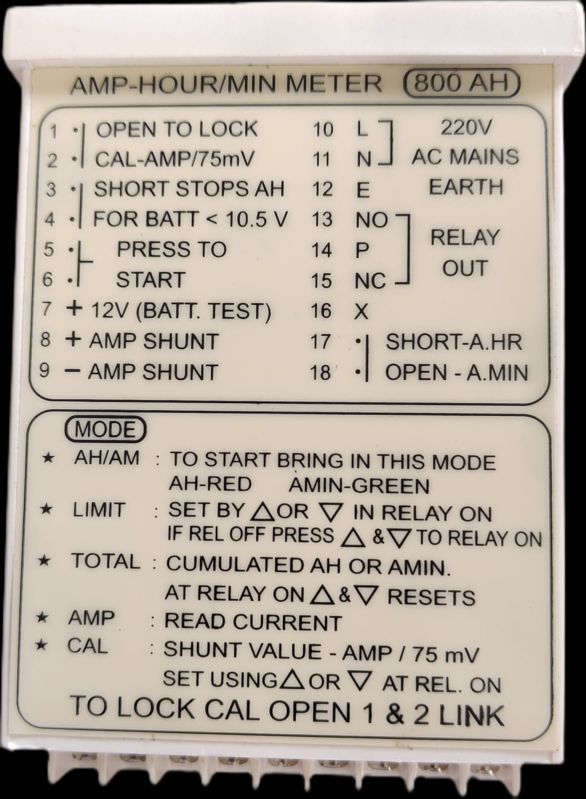

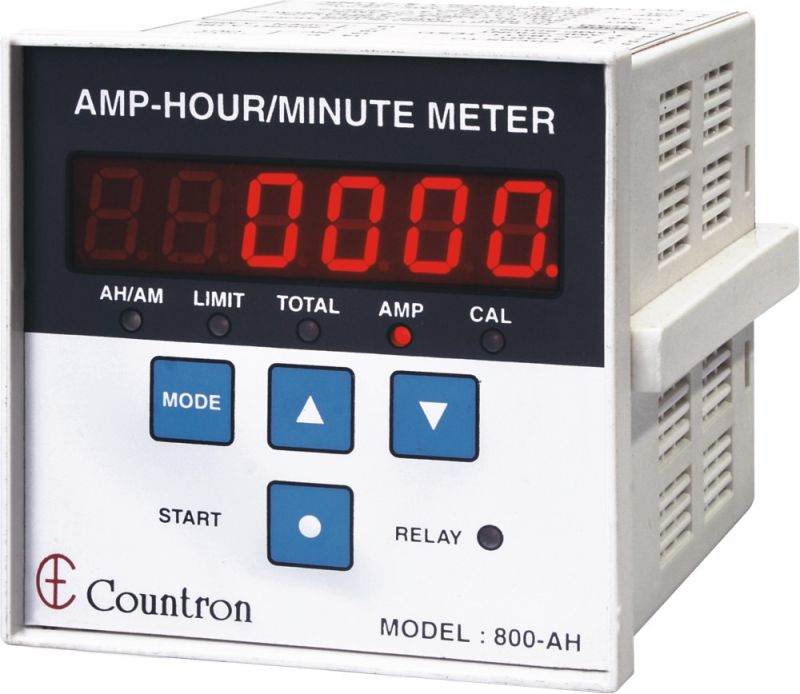

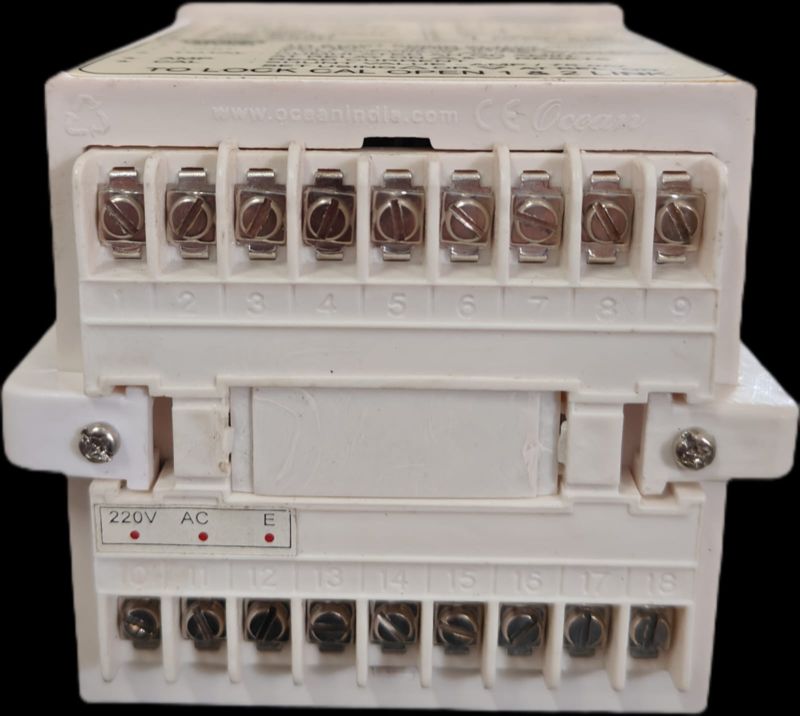

programmable amp-hour meter
model 800ah

features

amp-hr/amp-min indicator/controller for

o electroplating thickness control

o testing battery amp-hr

shunt calibration programmable

stores cumulative amp-hour

instantaneous current display

settable limit for amp-hr/min

front membrane switches for easy operation

non-volatile memory for storing settings, hence no battery required

specifications

1. display : 6 red 7 segment leds of 0.56 character height.

2. current display : max 9999 amps using a shunt of current/75mv. user programmed.

3. amp-hour : max 9999 a-h for each preset cycle. (amp-hour range is selected by shorting pin 17-18 at the rear)

4. amp-minute : max 9999 a-min for each preset cycle. (amp-minute is selected, opening the link between pin 17 & 18).

5. max shunt : max value of 9999 amp corresponding to 75mv

6. totaliser : 6 digits for amp-hour or amp-min. i.e. 99, 99, 99. (readable for 10 sec by going into total mode).

7. limit : up to 9999 ah or amin. setting (in limit mode using incr./ decr. switches).

8. relay contact : one no-p-nc of 5 amp rating.

9. trigger start : by pressing front panel switch or closing a rear external contact.

10.battery back-up : not required. programmed values & readings, including a-h stored in eprom.

11.lock : electronic lock for calibration (open link between pin 1 & 2 to lock cal)

12.low volt. trigger: set at 10.5v internally. for testing 12v battery ah. (with pin 3 & 4 shorted).

13.increased res. : 0.1ah or 0.1amin facility by shifting internal jumper.

14.supply : 220v ac 10%

15.size : front fascia 96mm x 96mm din size. depth 135mm. cut out : 91mm x 91mm.

16.weight : 800 grams

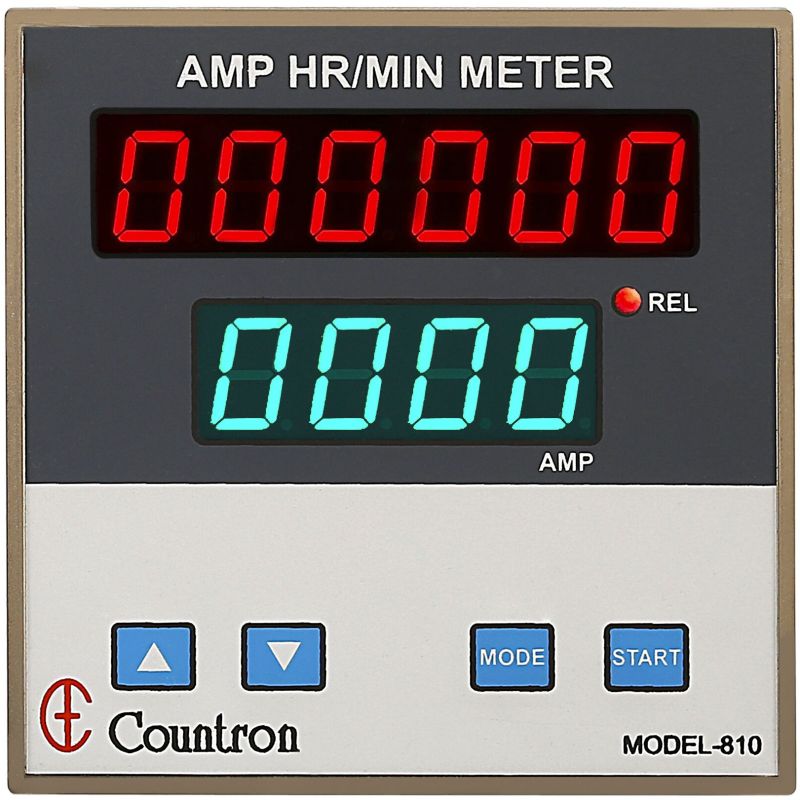

PROGRAMMABLE AMP. HOUR METER MODEL 810AH

INTRODUCTION:

This micro-controller based programmable Amp-Hour Meter is designed to integrate and display DC current flowing respect to time. It becomes a measure of the total current energy.

A preset limit of this integrated current can be pre-programmed and when the limit is reached, a relay is switched ON to trigger an alarm. A 6 digit display for Ampere Hour and a 4 digit display for Current is provided.

In addition, an internal limit of 10.5V is preset so that a 12V Battery can be tested for its A-H. As soon as the 12V battery discharges to a voltage below10.5V the Amp-Hour meter stops automatically.

The instrument reads current also. For different ranges, the equipment can be user-programmed for different shunt resistances.

SPECIFICATIONS:

1. Display : 6 RED 7 Segment LEDs of 0.56 character height. 4 Digit Green display for Current

2. Current : Max 9999 Amps using a shunt of current/75mV. User programmed.

3. Amp-Hour : Max 999999 A-H for each preset cycle.

4. Amp-Min : Max 999999 A-Min for each preset cycle

5. Max shunt : Max value of 9999 Amp corresponding to 75mV

6. Totaliser : 6 Digits for Amp-Hour or Amp-Min. i.e. 99, 99, 99

7. Limit : Up to 999999 AH or Amin. setting

8. Relay Contact : One NO-P-NC of 5 Amp rating

9. Trigger start : By pressing front panel switch or closing a rear external contact.

10. Battery : Not required. All programmed values and readings including A-H stored in EEPROM

11. Lock : Electronic lock for calibration

12. Low Voltage : Set at 10.5V internally. For testing 12V Battery AH

13. Supply : 220V AC 10%

14. Size : Front Fascia: 96mm x 96mm. Depth: 50mm.

15. Weight : 800 grams

16. Mounting : Panel mounted

17. Resolution : 0.1AH or 0.1AMin user selectable through front panel

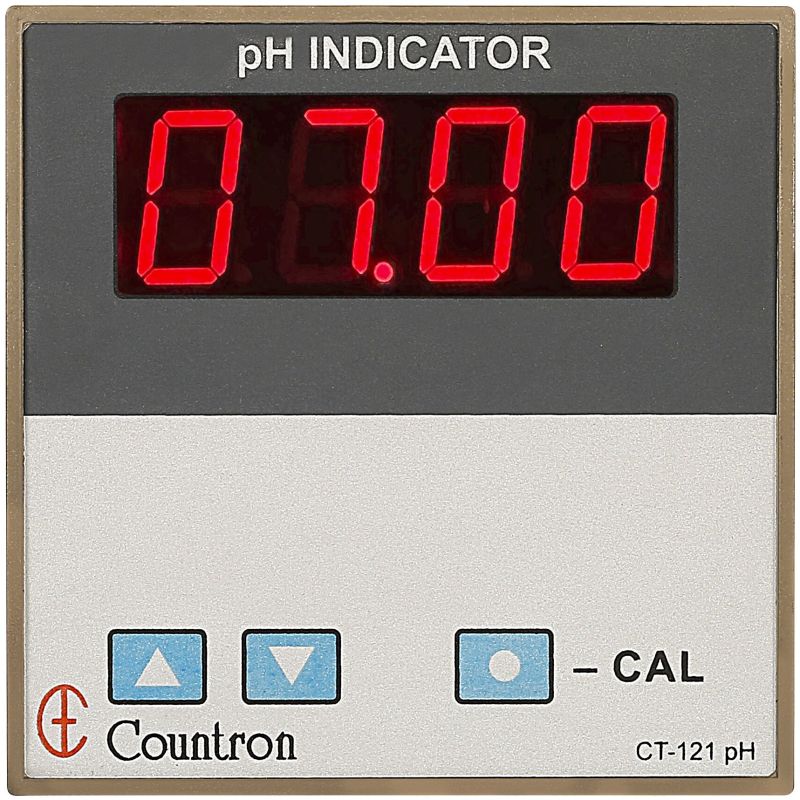

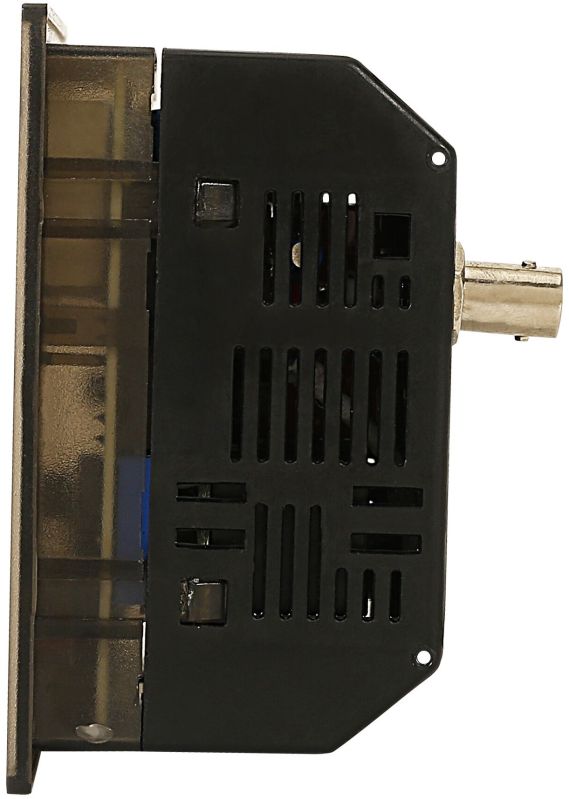

pH Indicator Model 121pH

Features

rn
• Accurate pH display with calibration facility on front panel.
rn
• Large 0.8 Red 7 Segment Display
rn
• Auto Temp Compensation using external PT100
rn
• Digital calibration for pH-7 and pH-4

  Specifications


rn
• Display : 312 Digit Red, 0.8 character height LED display
rn
• Range : 0.00 to 14.00 pH
rn
• Auto Temp : 0-100 C using PT100 ext. sensor compensation
rn
• Calibration : Standard pH-7 : 7.00 1
rn
• Slope pH-4 : 4.00 1
rn
• Accuracy : 0.5% 1 Digit
rn
• Input Impedance: >1012
rn
• Supply :220V AC 10% @ 50/60Hz
rn
• Size : Front facia - 96mm x 96mm x 40mm
rn
• Cut Out - 92mm x 92mm
rn
• Enclosure : Plastic ABS
rn
• Weight : 700gms
rn
• Slim enclosure of only 40mm depth


rn

pH Controller, Model 112pH

Features

Accurate pH display with calibration facility on front panel.

Large 0.8 Red 7 Segment Display

Independent 2 Set Point controller with separate relays for each set limit

Auto Temp Compensation using external PT100

Digital calibration for pH-7 and pH-4

Slim enclosure of only 50mm depth

Specifications

Display : 312 Digit Red, 0.8 character height LED display

Range : 0.00 to 14.00 pH

Auto Temp : 0-100 C using PT100 ext. sensor compensation

2 Relay Outputs :Contact rating 5A at 220V AC

Relay Logic : Acid Relay ON for pH> Set Limit + Hysterisis

Base Relay ON for pH < Set Limit - Hysterisis

Calibration : Standard pH-7 : 7.00 1

Slope pH-4 : 4.00 1

Accuracy : 0.5% 1 Digit

Input Impedance: >1012

Supply :220V AC 10% @ 50/60Hz

Size : Front facia - 96mm x 96mm x 50mm

Cut Out - 92mm x 92mm

Enclosure : Plastic ABS

Weight : 700gms

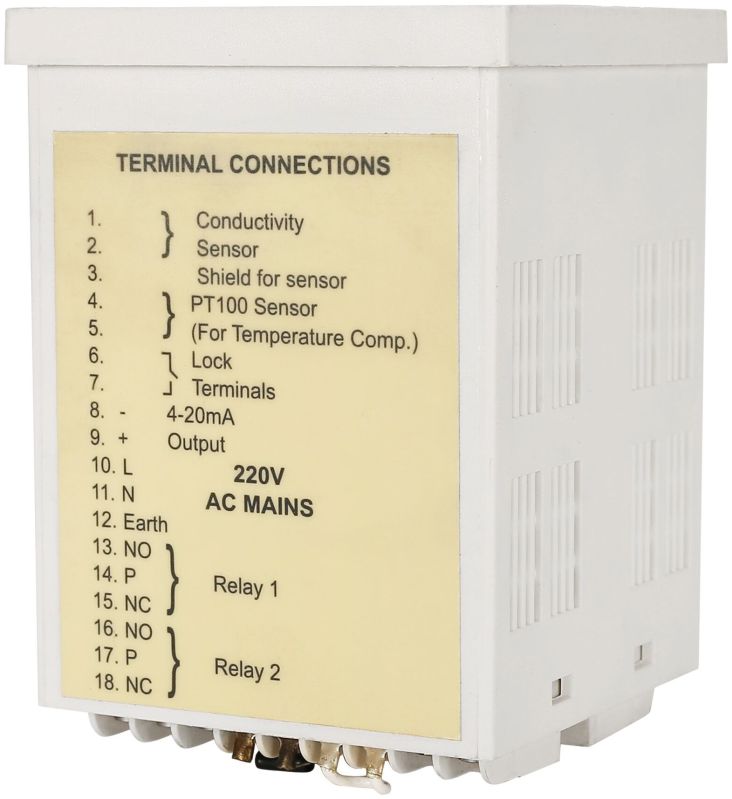

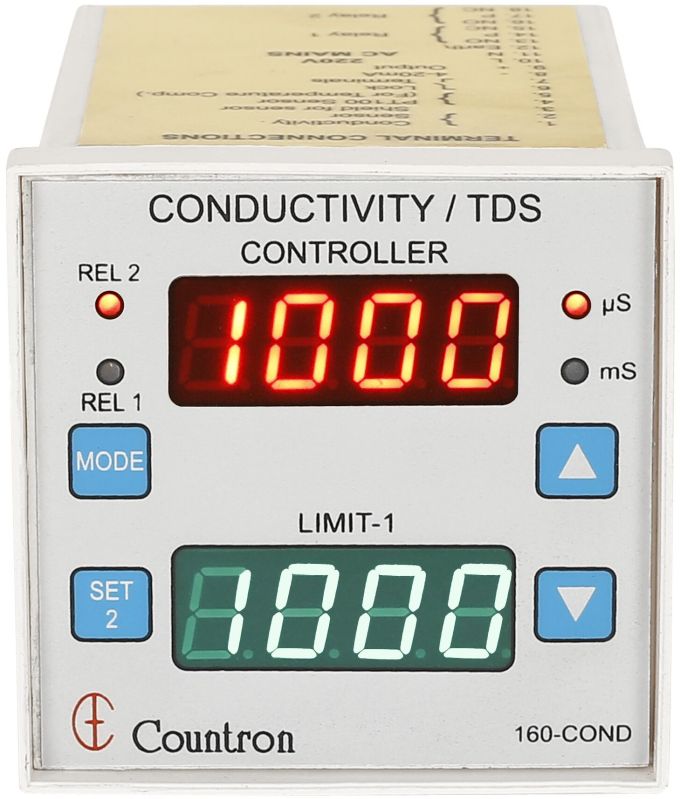

Conductivity/TDS Controller Model 160-COND

Features

Auto/Manual temperature compensation selectable

Conductivity and TDS selectable from front panel

Cell Factor selectable for both 1.0 and 0.1

4 Step Range selection 0.1s to 199.9ms for conductivity

Digital calibration for Conductivity/TDS

Auto Temp Compensation using PT100 sensor

Dual set limit with separate relay outputs

Settable hysteresis for both set limits

Bright Red LED display with separate display for set limit-1

Aesthetically designed front panel with membrane switches and ABS cabinet

Specifications

Display : 0.56 Red LED 7 segment Display for Conductivity/TDS

0.56 Red LED 7 segment Display for Set-Limit-1

Ranges : Conductivity: 19.99ms 199.9ms1999 s 0.1 Cell 19.99ms 1.0 Cell199.9s 1999 s19.99s 199.9s

TDS: 0-1999ppm

Resolution : Conductivity: 0.01ms or 0.01s depending on range & Cell factor

TDS: 1ppm

Auto Temp. Comp. : 0-100 C using PT100 external sensor

Manual Temp. Comp. : Settable from front panel from 0-100.0 C

Cond/TDS Calibration : Digital calibration by factor multiplication from 0.75-1.25

Recorder Output : Isolated 4-20mA => 0-2000 (for whatever unit and resolution selected (Maximum termination 250)

Control Output : Two set of NO-P-NC, 5 Amps potential free Relay Contacts.

Relay 1 ON, for Cond/TDS < Set Limit1 Hysterises1

Relay 1 OFF, for Cond/TDS > Set Limit1

Relay 2 OFF, for Cond/TDS < Set Limit2

Relay 2 ON, for Cond/TDS > Set Limit2 + Hysterises2

Accuracy : 0.5% 1 Digit

Supply : 220V AC 10% @ 50Hz

Enclosure : Plastic (ABS). Size -96x96x110mmm

Weight : 900gms

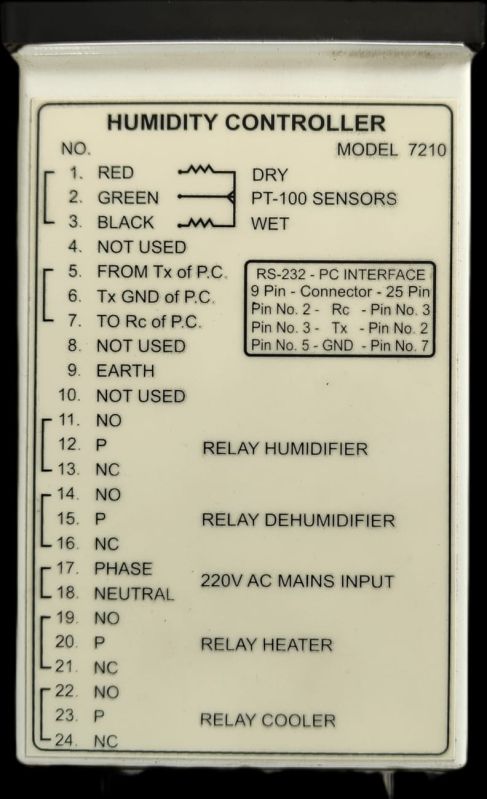

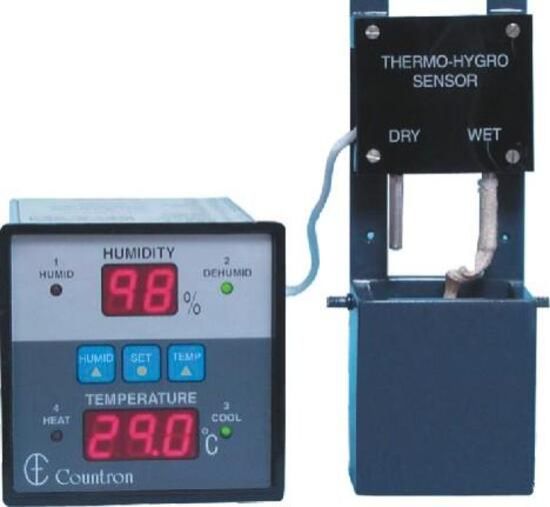

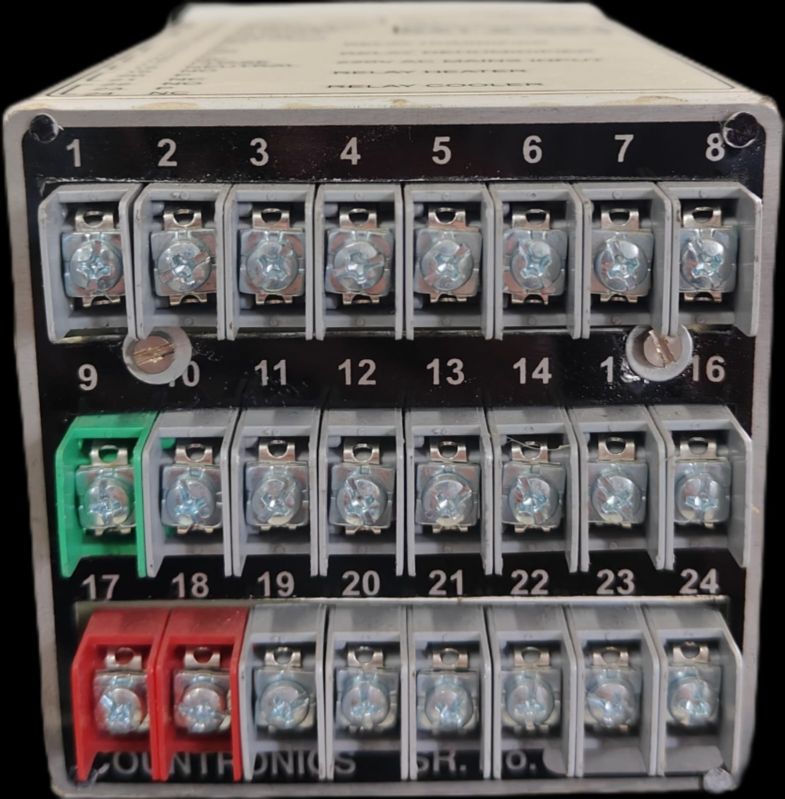

Digital Humidity/Temperature Controller
Model 7210

Features

Direct, accurate display of Humidity and Temperature

Uses the classical Dry/Wet temperature sensing technique

Sensors are sealed Platinum PT100 type in S.S. immune to atmosphere gases etc.

No need of any look-up table as the embedded software accesses the table from the micro controller memory.

A sturdy sensor body has in-built water reservoir with facility to connect a water-drip to ensure the wick never dries up.

4 Control outputs for Humidifier, De-humidifier, heater and cooler.

Specifications

Display : 2 Digits 0.56 RED 7 Segment LED for Humidity.3 Digits 0.56 RED 7 Segment LED for Temperature

Display Range : 0-99% for Relative Humidity and 0-99.9 C for Temperature

Resolution : 1% for Relative Humidity and 0.1 C for Temperature

Control Range : 0 to 99% for Humidity (over temperature range 0 to 65 C) and 0 to 99.9 C temperature

Accuracy : 2% 1 Least Significant Digit for Humidity.0.2 C 1 Least Significant Digit for Temperature

Settings : By front panel membrane touch switches.

Control Output : Humidifier ON for RH < SET HUMID 1%De-humidifier ON for RH > SET HUMID + 1%Heater ON for Temp. < SET TEMP 0.5%Cooler ON for Temp. > SET TEMP + 0.5 C

Control Relays : 4 sets of NO-P-NC of 5A/220V AC contact rating

Power Supply : 230V AC 15% at 50/60Hz

P.C. Interface : RS-232 output available on extra cost.

Mounting Type : Panel Type

Front Facia : 96mm x 96mm

Weight : 1.2 Kgs.

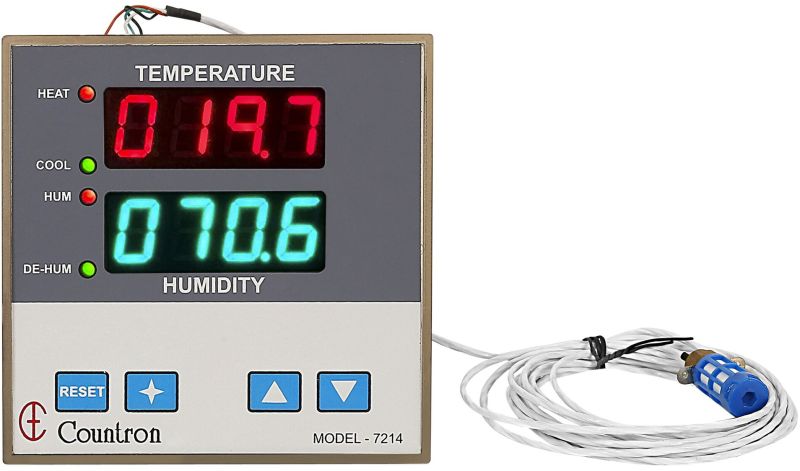

HUMIDITY/TEMPERATURE CONTROLLER
Model 7214

Features

Bright 7 segment, 4 Digit Green Display for Humidity and 4 Digit Red Display for Temperature

4 separate Limits and Solid State Relay (SSR) outputs for Heater, Cooler, Humidifier and De-Humidifier.

Proportional (PWM) SSR outputs for Heater and Humidifier with user settable Percentage Power

On/Off SSR outputs for Cooler and De-Humidifier with user settable Hysterisis

Digital Offset control for Temperature and Humidity

Capacitive sensor for 0-100% Humidity and -20 C to +80 C

Non-Volatile memory to hold settings and counts

Specifications

Display : 4 Digit, 7 segment Green LED display (0.56 height) for Humidity4 Digit, 7 segment Red LED display (0.56 height) for Temperature

Range : 0-100.0% for Humidity (in 5 C to 50 C temperature range) -20.0 C to +80.0 C for Temperature

Set Limits : 0-100.0% for Humidifier , 0-100.0% for De-Humidifier, -40.0 C to +100.0 C for Heater, -40.0 C to +100.0 C for Cooler

Percentage Power: 0-200% for Set Limits of Humidifier and Heater.

Hysterisis : 0-9.9 for De-Humidifier and Cooler

Digital Offsets : -19.9 to +19.9 for Humidity, -19.9 to +19.9 for Temperature

Sensor Supply : 5V DC

SSR Outputs : +12VDC outputs Heater, Cooler, Humidifier and De-Humidifier

Memory Retention: 10 years

Mounting : Panel Mounting

Size : 96mm x 96mm. Depth 50mm

Weight : Approx. 375 gms.

Operating Temp. : 0-50 C

Humidity : 95% RH

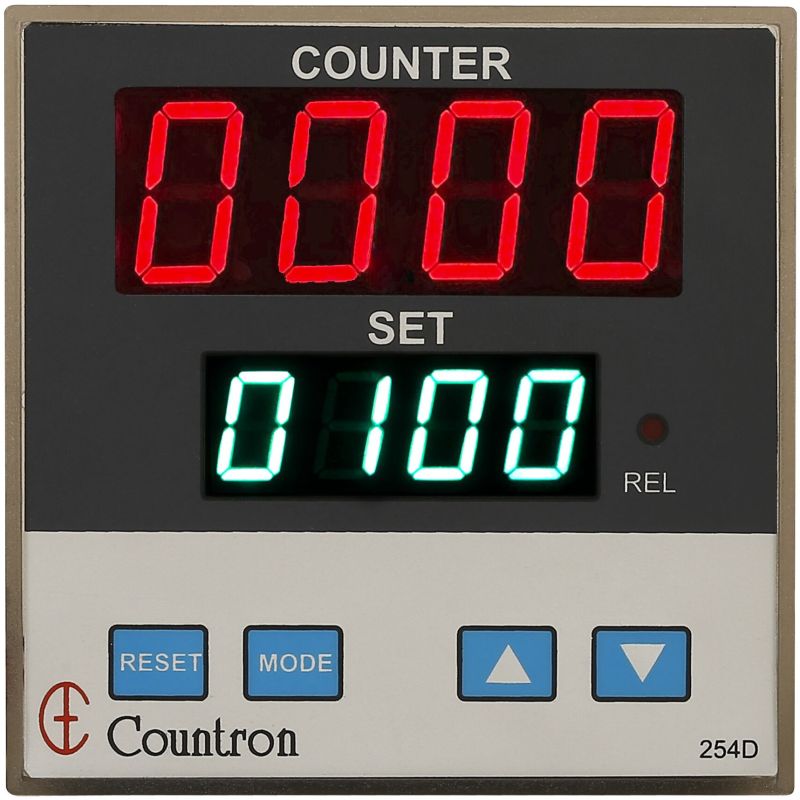

PROGRAMMABLE COUNTER - MODEL 254D

Features

4 Digit Preset Counter with separate displays for Count and Set Limit

Large 0.8 display for count, 0.56

Programmable Multiplying and dividing factor

Pre-settable Batch Counter

Up/Down Counting Selectable

Normal/Auto-Reset with Time setting

Non-Volatile memory to hold settings and counts

Password for Program configuration lock

Specifications

Display : 4 Digit, 7 segment LED display (0.8 height) for Count4 Digit, 7 segment LED display (0.56 height) for Limit

Range : Maximum Count of 9999

Set Points : Single set points programmable from 1-9999

Batch Limit : Batch limit setting from 0 to 999

Operating Modes : a. Auto Mode (Time Settable) b. Manual Mode (Delay set to Zero)

Count Inputs : a. Voltage Pulse : 3V to 30V DC amplitude from proximity switchb. Potential free contact from limit switch, relay or micro switch

Input Frequency : 0 to 1 KHz

Sensor Supply : 10V DC, short circuit protected

Multiplying Factor: Programmable from 1-99

Division Factor : Programmable from 1 to 99

Reset Input : a. Front Panel b. Remote reset by rear terminals

Relay Outputs : NO-Pole-NC contact rated at 5Amp @ 230 V AC

Memory Retention: 10 years

Configuration Lock: By Password

Mounting : Panel Mounting

Size : 96mm x 96mm. Depth 50mm

Weight : Approx. 375 gms.

Operating Temp. : 0-50 C

Humidity : 95% RH

MICROPROCESSOR BASED TIMER
Model 1050D

Features:

6 different timing ranges of 99.99sec, 999.9sec, 9999sec, 99Mins59Secs, 9999Mins, 99Hrs59Mins

Press to start/Power On start/Cyclic modes settable

Delayed On/Off programmable by user from front panel

Up/Down time counting user settable

User settable starting On/Off time for cyclic mode

Number of cycles settable for cyclic mode

Non-volatile memory to save configuration and timing

Configuration lockable by Password

Front Reset/Start switch with parallel terminals at rear

Aesthetically designed panel with membrane switches

Specifications:

Display : 4 Digit 0.8 Red 7 segment LED display for Time 4 Digit 0.56 Red 7 segment LED display for Set TimeRed LED to indicate current status of Relay On/Off

Modes : User settable from front panelo Power On starto Press to start (with battery backup selection using EEPROM)o Cyclic action

Number of Cycles : 1-199 cycles settable for cyclic mode after which the timer stops Setting number of cycles to Zero disables number of cycles setting

Reset/Start : Front Reset/Start switch with parallel terminals at rear to connect additional switch, if required.

Relay logic : Settable delayed On/Off, 5 Amps/220V AC Dual Relay Contact outputs

Timing direction : Up/Down time counting user settable

Memory : Non-volatile EEPROM to save settings

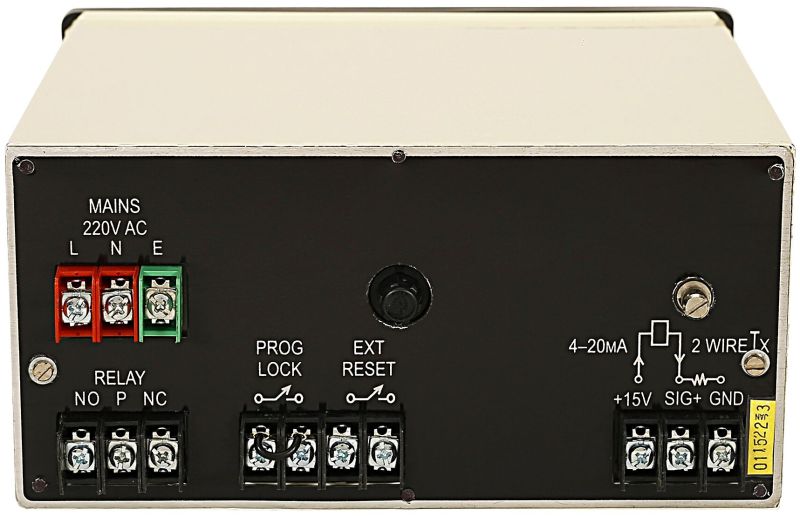

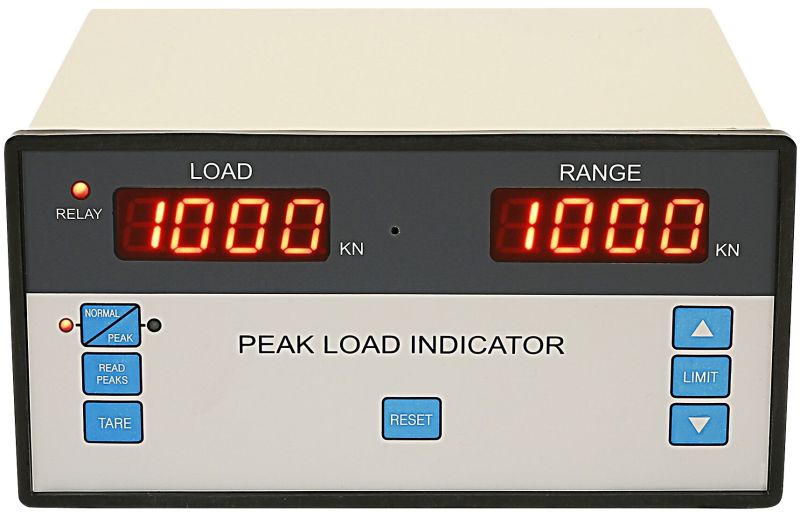

PEAK LOAD RECORDING INDICATOR
MODEL CT901

Features

Separate displays for load indication and maximum range

Range for load indication corresponding to 4-20mA input digitally settable from front panel

Peak/Normal mode selectable

Up to 9 peaks can be recorded and recalled

Buzzer annunciation at Peak

Relay output for load limit detection with limit digitally settable

Digital tare provided to remove initial error

Non-volatile memory for saving configuration

Configuration lock at rear to prevent tampering with Range

Aesthetically designed front panel with membrane switches

Specifications

Display : 4 Digit 0.56 7 segment Red LED display for Load (KN)4 Digit 0.56 7 segment Red LED display for Set Point (KN)

Rangeo Range : 1KN to 9999o Load : 1KN to Rangeo Set Load (Limit) : 1KN to 9999

Accuracy : 0.1% of Full Scale 1 digit

Input : From 2 wire loop transmitter giving 4-20mA output 4-20mA input => 0 - Range

Relay Logic : When Actual Load Set Load Limit relay switches On.

Normal/Peak Mode : Selectable from front panel with LED indication of mode

Peak Read : Last 9 peaks can be recalled with facility to reset memory

Peak Detection : Peak hold is resettable from front Reset Switch or by a parallel rear external contact

Tare Facility (Zero) : Digital Tare using front panel Tare switch up to a maximum of 50KN (for removing initial offset error)

Memory : Non-volatile EEPROM to save settings

Configuration Lock : On rear terminals to prevent unauthorized/accidental alteration of Range using front switches

Supply : 220V AC 15% @ 50/60Hz

Dimensions : Front Fascia: 96mm x 192mm Cut Out : 92mm x 188mm
