The company shares glorious credentials with the reputed Manufacturers, Suppliers and Exporters of FA Series Tube End Facer from Maharashtra. FA Series Tube End Facer we make available is the perfect choice for quick facing of projected tube ends in heat exchangers, condensers and boilers. To meet the bulk and urgent requirements of the buyers, we maintain a large stock of the Tube End Facer.
Features of 'FA' Series Tube End Facer

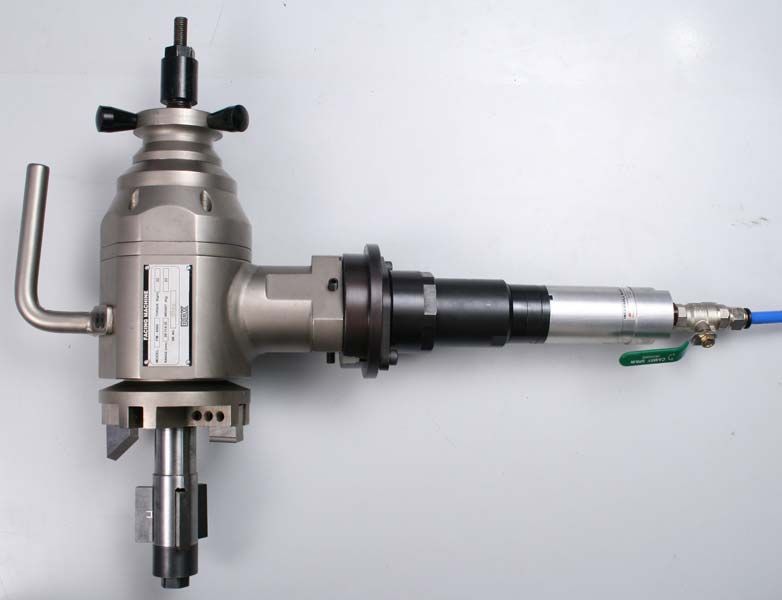

Featuring modular and ergonomic design, our FM-4500 Tube End Facer is designed to bevel, face, and prepare weld edges. We are enlisted among the successful Manufacturers, Suppliers and Exporters of FM-4500 Tube End Facers from Maharashtra. Tube End Facers we make available are suitable for tubes and pipe in the size range of 39mm - 104mm. We hold the expertise of delivering bulk orders of the Tube End Facers.
Specifications
Drive | Pneumatic | Electric | Electric- HD |
---|---|---|---|
Locking Range mm (inch) | 39-104 (1.9/16”- 4.1/16”) | 39 - 104 (1.9/16”- 4.1/16”) | 39 - 104 (1.9/16”- 4.1/16”) |
Idal Speed RPM | 70 | 70 | 115 |
Torque Nm (lbf.ft) | 180 (132.76) | 245 (180.70) | 265 (195.45) |
Feeding Stroke mm (inch) | 40.5 (1.9/16”) | 40.5 (1.9/16”) | 40 (1.9/16”) |
Pneumatic Power HP | 1.33 | - | - |
Air Consumption cfm | 50-60 | - | - |
Air Pressure Bar (psi) | 6 (90) | - | - |
Electric Power watts | - | 1020 | 1800 |
Voltage V | - | 110/220 V | 110/220 V |
Net Weight kg (lb) | 17.0 (37.47) | 18.0 (39.70) | 27.0 (59.52) |
Graph
Our FM-3000 Tube End Facer is reckoned as one of the most powerful machines used on boiler tubes. The company is a reliable Manufacturer, Supplier and Exporter of FM-3000 Tube End Facers from Maharashtra. The modular and ergonomic design of our Tube End Facer makes it very popular among buyers. In order to suit a wide range of diameters, our Tube End Facers allow quick interchangeability of locking jaws.
Specifications
Details | Pneumatic | Electric |
Locking Range mm (inch) | 28 – 76 (1.1/8” - 3”) | 28 – 76 (1.1/8” - 3”) |
Idal Speed RPM | 110 | 75 |
Torque Nm (lbf.ft) | 56 (41.30) | 82 (60.48) |
Feeding Stroke mm (inch) | 40 (1.9/16”) | 40 (1.9/16”) |
Pneumatic Power HP | 0.70 | - |
Air Consumption cfm | 34 - 36 | - |
Air Pressure Bar (psi) | 6 (90) | - |
Electric Power watts | - | 900 |
Voltage V | - | 110 / 220 V |
Net Weight kg (lb) | 8.0 (17.63) | 9.0 (19.84) |

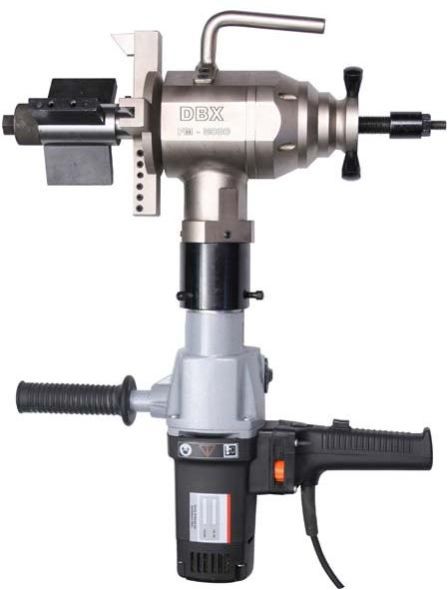

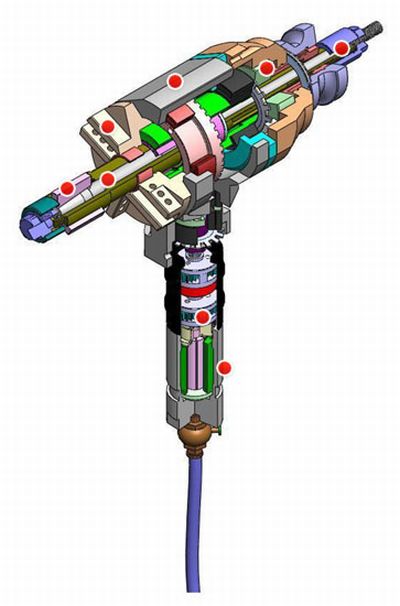

Suitable for a wide range of tube and pipe internal diameters, our FM-8000 Tube End Facers are manufactured in compliance with set industrial norms. The company is a nonpareil Manufacturer, Supplier and Exporter of FM-8000 Tube End Facers from Maharashtra. In order to meet the demands of toughest working conditions, our Tube End Facer is designed to develop high torque. One can obtain the Tube End Facers at nominal rates.
Specifications
Drive | Pneumatic | Electric | Electric- HD |
Locking Range mm (inch) | 49 – 203 (2” – 8”) | 49 – 203 (2” – 8”) | 49 – 203 (2” – 8”) |
Ideal Speed RPM | 52 | 34 | 40 |
Torque Nm (lbf.ft) | 250 (184.40) | 264 (194.70) | 295 (217.60) |
Feeding Stroke mm (inch) | 40.5 (1.9/16”) | 40.5 (1.9/16”) | 40.5 (1.9/16”) |
Pneumatic Power HP | 1.80 | - | - |
Air Consumption cfm | 60-65 | - | - |
Air Pressure Bar (psi) | 6 (90) | - | - |
Electric Power watts | - | 1020 | 1800 |
Voltage V | - | 110 / 220 V | 110 / 220 V |
Net Weight kg (lb) | 21 (46.30) | 22 (48.50) | 30 (66.10) |

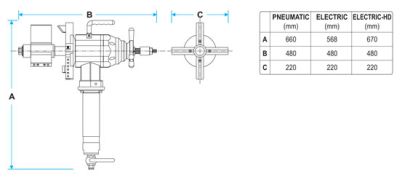

Graph
Graph 01

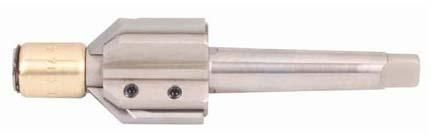

Our company is a prominent Manufacturer, Supplier and Exporter of FC Series Tube End Facers from Maharashtra. The FC Series Tube End Facer we make available come in sizes ranging from 1.1/2 " O.D. TO 4 " O.D. Our Tube End Facers are manufactured in compliance with set industrial norms. Owing to our excellent logistics network, we are capable of delivering bulk orders of the Tube End Facers.
Features of 'FC' Series Tube End Facer

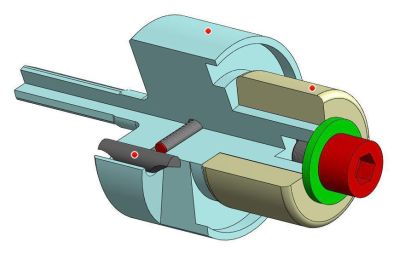

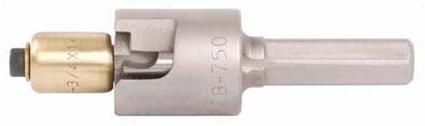

We are a reliable Manufacturer, Supplier and Exporter of FB Series Tube End Facers from Maharashtra. The FB Series Tube End Facer we make available is highly acclaimed as a high speed production tool. Strict quality-tests ensure that only defect-free FB Series Tube End Facers reach the buyers. We hold the expertise of delivering bulk orders of the Tube End Facers within the stipulated time.
Features of 'FB' Series Tube End Facer

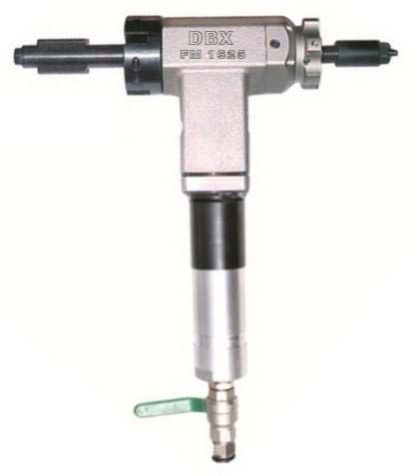

We are enlisted among the successful Manufacturers, Suppliers and Exporters of FM-1625 Tube End Facers from Maharashtra. FM-1625 Tube End Facer we make available is widely used for facing, beveling and weld preparation on different materials like stainless steel, duplex, Inconel, etc. The Tube End Facers offered by us is a lightweight and compact machine. Easy to install and operate, our Tube End Facers in condensers and heat exchangers.
Specifications
Details | Pneumatic | Electric |
Locking Range mm (inch) | 20 – 42 (3/4” - 1.5/8”) | 20 – 42 (3/4” - 1.5/8”) |
Idal Speed RPM | 235 | 250 |
Torque Nm (lbf.ft) | 29 (21.38) | 45 (33.19) |
Feeding Stroke mm (inch) | 23 (7/8”) | 23 (7/8”) |
Pneumatic Power HP | 0.583 | - |
Air Consumption cfm | 15-18 | - |
Air Pressure Bar (psi) | 6 (90) | - |
Electric Power watts | - | 700 |
Voltage V | - | 110 / 220 V |
Net Weight kg (lb) | 4.8 (10.58) | 5.5 (12.12) |
