Industrial Cleaning Machine #324360

Sugar Mill Tube Cleaners

  • Voltage 220V
  • Automatic Grade Semi Automatic
  • Power 1-3kw
  • Warranty 1 Year
  • Driven Electric
  • Material Metal

We are presenting wide assortments of Sugar Mill Tube Cleaners, which include Open Sugar Mill Tube Cleaner and Enclosed Sugar Mill Tube Cleaner. These ranges of Tube Cleaners are available in various sizes, dimensions and specifications. Buyers can obtain these cleaners from us at economical rates and we ensure their timely execution without fail. We can process bulk orders and can also consider urgent requirements.

View Complete Details

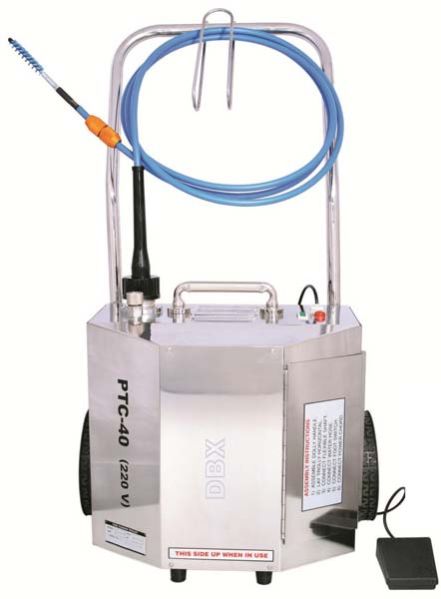

Electric Tube Cleaner

  • Warranty 1 Year
  • Power 1-3kw
  • Material Metal
  • Use Cleaning
  • Automatic Grade Semi Automatic
  • Driven Electric

Are you in search of Wholesale Electric Tube Cleaner at economical rate? If yes, then you are at right place. We have cemented our position in both national and international markets as a foremost Manufacturer, Exporter and Supplier of Electric Tube Cleaner. With adherence to international quality standards, this tube cleaner is fabricated using optimum quality metal components. Sturdy design, corrosion resistant and long working life are some of the salient features of our Electric Tube Cleaner.

Details

  • Electric Tube Cleaners are environment friendly, compact and easily maneuverable units that used to clean straight and curved tubes in heat exchangers, condensers, boilers and other tubular apparatus.
  • Water consumption can be regulated as needed.
  • Easy interchangeability of various shafts and accessories for maximum versatility
  • They work by attaching a cleaning tool (to be determined on type of deposit to be cleaned) to a flexible shaft.
  • The Electric Tube Cleaner provides rotary motion to the flexible shaft, which rotates the cleaning tool inside the tube.
  • If needed water passes through the flexible shaft to aid in flushing out of the deposits
  • All Electric Tube Cleaners are supplied with forward direction foot switch. Dual direction foot switches are available on request.


Features Of Electric Tube Cleaner :

  • Water flushes through the shaft and helps remove deposits from tube.
  • Forward direction foot switch enables operator to concentrate on cleaning operation without worrying about cleaner.
  • Flexible shaft can be easily disconnected.
  • Stainless steel body for use in the harshest environments
  • Easy interchangeability of various shafts and accessories for maximum versatility
  • Large wheels for easy transportation.
  • Water consumption can be regulated as needed.

Specifications

Tube I. D. Tube Cleaner
Model No.

Motor Power Motor
Speed
RPM
Weight Dimension
mm inch HP kW lbs. Kg. High Wide Deep
6.4-25.4 1/4-1 PTC-40 1/2 0.40 890 62 28 38"(975mm) 21"(535mm) 18"(457mm)
6.4-25.4 1/4-1 PTC-60 3/4 0.60 890 66 30 38"(975mm) 21"(535mm) 18"(457mm)
25.4&UP 1&UP PTC-75 1 0.75 1780 70 32 38"(975mm) 21"(535mm) 18"(457mm)
25.4&UP 1&UP PTC-150 2 1.50 1780 84 38 40"(1015mm) 22"(560mm) 19"(482mm)




Graph


Download Detail File : Click Here
View Complete Details

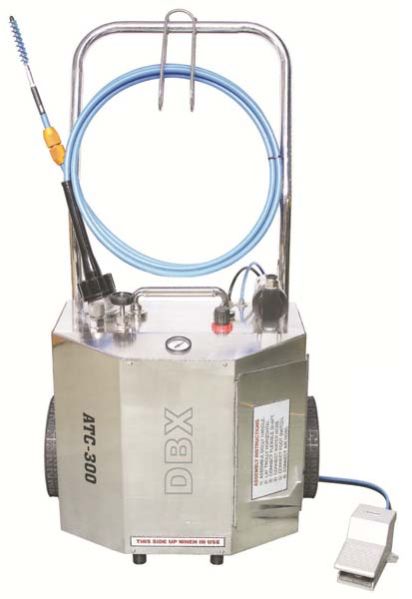

Heat Exchanger Tube Cleaner

  • Easy Maneuverability Large Wheels
  • Automatic Grade Semi Automatic
  • Time Saving Simultaneous water flush to remove deposits from tubes.
  • Driven Electric
  • Material Metal
  • Warranty 1 Year

Our company is widely acclaimed as a trustworthy Manufacturer, Exporter and Supplier of Heat Exchanger Tube Cleaner. Our Pneumatic Tube Cleaner is available in different assortments in various length, dimensions and specifications. We can also consider customized solutions for the same as per the specifications mentioned by buyers. We are providing this Tube Cleaner at the best market rate without compromising its quality. We are efficient enough to deliver retail as well as bulk orders within predefined time frame.

Details

  • Power master Model ATC-300 Extra Heavy Duty Pneumatic Tube Cleaning Machine includes air filter, regulator, lubricator, adjustable speed/torque control, tool storage box and air foot paddle. Shaft rotation can be set at optimum speed for each application.
  • It is excellent for application where using electric equipment is hazardous.
  • The ATC-300 uses a cleaning tool mounted to the tip of a flexible shaft, which is available in different lengths and diameters to fit the size of the tube to be cleaned.
  • For wet applications as the shaft rotates inside its watertight nylon casing, the unit feeds water through the casing to the cleaning tool.
  • A foot pedal controls shaft rotation and water flow. While the operator feeds the rotating shaft assembly through the tube, the water flushes out deposits as they are loosened.


Features of Pneumatic Tube Cleaners

  • Shock Resistant - Excellent for applications where using electric equipment is hazardous.
  • Corrosion Resistant - Stainless steel cover and chassis for long life
  • Versatile - Interchangeability of different size flexible shafts and tube cleaning tools
  • Speed/Torque control - Shaft rotation can be set at optimum speed for each application.
  • No Tooling - Quick disconnect of flexible shaft.
  • Cleanliness - Foot pedal for operator convenience to activate shaft rotation and water flow to reduced water consumption and Cleaner working area.

Specifications

Tube I.D. Model
No.
Motor Power Motor Speed
RPM
Weight Dimension
mm inch HP KW Ibs. kg. High Wide Deep
6.4 & UP 1/4 & UP ATC-300 4 3.00 300-3000 64 29 38"(975mm) 22"(560mm) 16"(406mm)


View Complete Details
