Electric Cutting Tools #324360

OTC Series Internal Tube Cutters offered by us cuts tub in one turn and thus saving a lot of cutting time. Our company is a reliable Manufacturer, Supplier and Exporter of OTC Series Internal Tube Cutters from Maharashtra. Our OTC Series Internal Tube Cutters are capable of cutting non-ferrous and thin walled ferrous tubes. We hold the expertise of delivering bulk orders of the Internal Tube Cutters.

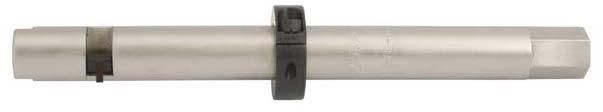

Features of One Revolution Internal Tube Cutter - OTC Series

• DBX “One Revolution” Internal Tube Cutter pierces and cuts off non-ferrous and thin walled ferrous tubes in one revolution
• This “One Revolution” Internal Tube Cutter is designed for hand operation using a ratchet handle
• The Cutter Tool Bit operates on an eccentric principle. The Tube Cutter is entered in the tube with the Tool Bit in closed position; ratchet is applied and turned in clockwise direction. The Tool Bit contacts the tube during the One Revolution and pierces the tube wall and as turning is continued the Tool Bit shears through the tube along its circumference. This Cutter is fitted with an adjustable collar enabling it to reach into tubes at various distances and they are available in optional increments of 2”(50.8mm). Standard adjustable reach is 6”(152.4mm). ”A” reach = 8”(203.2). “B” reach = 10” (254.0mm). “C” reach = 12” (304.8mm) etc.
• All Cutters are available for MM tube sizes also.

Available in sizes ranging from 5/8" O.D. TO 1 1/2" O.D, our ATP Series Internal Tube Cutters are used to cut the tube from inside. We are a trusted Manufacturer, Supplier and Exporter of ATP Series Internal Tube Cutters from Maharashtra. The Internal Tube Cutters come with a complete set of pilots covering the entire range of tube thickness.

Features of Push Type Internal Tube Cutters - ATP Series

• DBX “Push Type” Internal Tube Cutters quickly cuts through the walls of ferrous tubes in Condensers and Heat Exchangers as a step in their removal from the tube sheet.
• This sturdy “Push Type” Internal Tube Cutters can be used with a portable Electric or Air Drill Motor
• “Push Type” Cutters are simple to operate. Merely insert it into the tube, apply power, press inward and the tube can be cut in a few seconds. Releasing of inward pressure automatically retracts the Cutter Bit. These Tube Cutters are equipped with an adjustable collar suitable for reaching into tubes at various depths
• The replaceable cutting bit can be interchanged in a few seconds. Standard adjustable reach is 4”(101.6mm) and they are available in optional increments of 2”(50.8mm). “A” reach = 6”(152.4mm). “B” reach = 8”(203.2mm). “C” reach = 10”(254.0mm) etc
• All Tube Cutters come with a complete set of pilots covering the entire range of tube thickness for a particular tube O.D. (ATP-625 tube cutters come with a built in pilot suitable for one tube ID only.)
• All Tube Cutters are available for MM tube sizes also. Please enquire
• Sizes Available of ATP Series Tube Cutters    5/8" O.D. TO 1 1/2" O.D
• Models Available of ATP Series Tube Cutters    ATP-625 TO ATP-1500

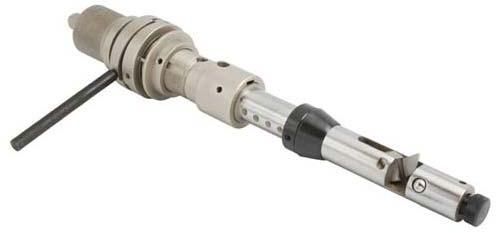

PR-68 Series Internal Tube Cutter we make available is designed for cutting thick walled boiler tubes. Our company is an eminent Manufacturer, Supplier and Exporter of PR-68 Series Internal Tube Cutters from Maharashtra. Owing to our excellent logistics network, we are capable of delivering bulk orders of the Internal Tube Cutters within the stipulated time. The entire range of the Tube Cutters is reasonably priced by us.

Features of Internal Tube Cutter - PR68 Series

• PR-68 tube cutters are ideal for tube cutting thick walled boiler tube of 2” O.D. and higher.
• The Internal Tube Cutters PR-68 is driven via the square in a clockwise direction using either an electric, pneumatic or hydraulic driving machine.
• PR-68 type tube cutters are available in standard reach of 4” (101.6mm). Additional reaches in increments of 4” are available up to 16” (406.4mm).
