Hydraulic Machines

We offer the best product range of Hydraulic Tube Expansion System (Hydex).

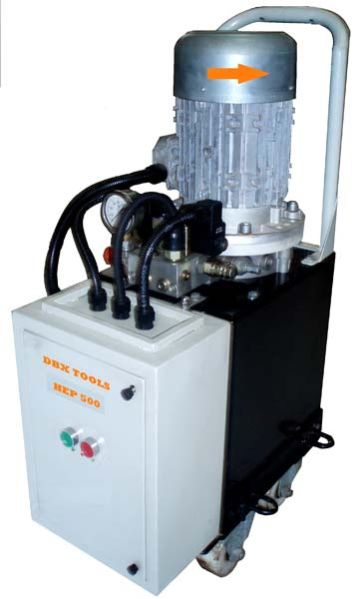

Hydraulic Tube Expansion System (Hydex)

Hydraulic Tube Expansion System (Hydex)
  • Availability 15-55kg
  • Automatic Grade Semi Automatic
  • Total Carbohydrate 1 Year
  • Power 1-3kw
  • Driven Electric
  • Material Metal

For Hydraulic Tube Expansion System (Hydex) at industry-leading rates, you can completely rely on us. We are an eminent Manufacturer, Supplier and Exporter of Hydraulic Tube Expansion Systems from Maharashtra. Our Hydraulic Tube Expansion Systems are compact and thus easy to use inside boilers. The Tube Expansion Systems offered by us require very low maintenance. One can obtain the Tube Expansion Systems at affordable rates.



Features :

  • Drive communicates with the pump via 9v DC remote control. This ensures safety and eliminates the need of electrical cord between pump and drive that other manufacturers provide.
  • Silent during use. In comparison electric and pneumatic tube expansion systems are noisy.
  • Compact, therefore easy to use inside boiler drums.
  • Compatibility - Same powerpack for all the 4 drives to expand 5/8” o.d to 4” o.d tube.
  • Very High Torque Developed - can expand large diameter, thick wall tubes in thick tube sheets easily.
  • Long life + low maintenance.
  • Boiler erections get completed in record time.
  • Can be use for long working hours because drive is unaffected by heat.
  • Dual drive powerpack is available to connect 2 drives to a single powerpack to cut down tube expansion time cycle by a further 50%.
  • Microprocessor controls on the pump automate the expansion cycle. Trip, pause and reverse times for the drive are adjustable.
  • No need for repeated manual STOP/START of the drive during the expansion cycle - completely automatically

Hyadraulic Pump Specifications

  Hydraulic Pump Models
HEP-300 HEP-500 HEP-1000 TWIN HEAD
Oil Tank Capacity (Litres) 30 45 138
Hydraulic Oil SAE VG 68 SAE VG 68 SAE VG 68
Maximum Working Pressure ( bar) 100 100 100
Net Weight ( kgs) 80 100 220
Overall Dimensions (mm) 610 x 270 x 985 820 x 320 x 985 1775 x 550 x 1200
Electric Motor 3 hp. Single phase 5 hp. 3 phase 10 hp. 3 phase
Voltage 230 v / 110 v 415v 415v
Standard Hose Size (Length) 1/2” (10 mtrs.) 1/2” (10 mtrs.) 1/2” (10 mtrs.)

Download Detail File : Click Here

Hyadraulic Drives Specifications

Tube Expansion Range Drive Drive No Load
Speed (RPM)		 Drive Weight Kgs.
Steel Tube O.D. Copper Tube O.D. Model
No.		 Square Socket
Inch		 With HEP-300/500/1000
mm inch mm inch
15 - 25 5/8 - 1 25 - 38 1-1.1/2 HED-3 3/8 620/954/800 9.6
19 - 38 3/4 - 1.1/2 32 - 64 1.1/4-2.1/2 HED-4 3/8 & 1/2 350/480/400 9.7
38 - 76 1.1/2 - 3 50 - 102 2-4 HED-5 1/2 & 3/4 62/84/70 11.0
50 - 102 2 - 4 - - HED-6 3/4 & 1 40/62/54 11.5



Hydraulic Hose Specifications

Model No. Hose Power
HE/HS/1210/2 2 x 1/2” x 10
HE/HS/5815/2 2 x 5/8” x 15
HE/HS/5820/2 2 x 5/8” x 20
HE/HS/1210/4 4 x 1/2” x 10
HE/HS/5815/4 4 x 5/8” x 15
HE/HS/5820/4 4 x 5/8” x 20

Supply Cable Specifications

Model No. Supply Cable Length
HE/SC/15 15
HE/SC/20 20
HE/SC/25 25
