Our Products
Contact us for excellent quality Continuous Hydraulic Tube Pullers at market-leading rates. We are an established Manufacturer, Supplier and Exporter of Continuous Hydraulic Tube Pullers from Maharashtra. The entire range of the Hydraulic Tube Pullers is manufactured in compliance with set industrial norms. Strict quality-tests ensure that only defect-free Hydraulic Tube Pullers reach the buyers. Bulk orders of the Tube Pullers are processed by us as per the specific requirements of the buyers.
Features of Continuous Hydraulic Tube Puller
Tube Puller Power Pack - Specifications
Hydraulic Tube Puller Guns - Specifications
Our company shares glorious credentials with the proficient Manufacturers, Suppliers and Exporters of NW Series Grooving Tools from Maharashtra. The NW Series Grooving Tools offered by us require light pressure to cut precision grooves. With the help of our Grooving Tools, the location and depth of the cut can be easily adjusted. The entire range of the Grooving Tools is reasonably priced by us.
Features of NW Series Grooving Tool

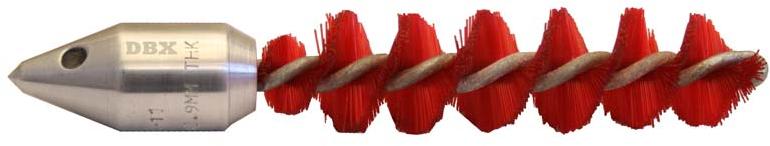

Buy Tube Pilot at market-leading rates from us. We are an established Manufacturer, Supplier and Exporter of Tube Pilots from Maharashtra. The Tube Pilots we make available are designed to protect the tube end during installation into the shell of the heat exchangers. Our Tube Pilots also ensure accurate alignment of the tube while passing through the baffle plates. The entire range of the Tube Pilots is reasonably priced by us.
Features of Tube Guide
Highly acclaimed for its exceptional durability, our ST Series Grooving Tools are suitable for CNC applications. We are a trusted Manufacturer, Supplier and Exporter of ST Series Grooving Tools from Maharashtra. The unmated durability of the Grooving Tools is due to the use high speed steel cryogenically treated tool bit. Bulk orders of the Tools are processed by us as per the specific requirements of the buyers.
Features of 'ST' Series Grooving Tool
Based in Mumbai, Maharashtra, India, we are the well-known Manufacturer and Supplier of Digital Torque Controller (DTA 15). Our team of dexterous professionals fabricates the Digital Torque Controller (DTA 15) using top notch quality basic material like iron, steel, etc. and the latest technology. Owing to its attributes like rugged construction, longer service life, clear & bright digital display and emergency reverse switch, our Torque Controller (DTA 15) is extensively demanded. For economical prices, contact us.
Details :
Technical Specifications
Model | Voltage | Max Amps | Expansion Drive Suitable | Weight (Kg) |
---|---|---|---|---|
Standard Models | ||||
DTA-15 | 110 | 20 | EDB0, EDB1, EDR-2, EDR-3 | 8 |
DTA-15 | 230 | 10 | EDB0, EDB1, EDR-2, EDR-3 | 7 |
Get in touch with us, if looking for Digital Torque Controller (DTW 15). Based in Mumbai, Maharashtra, India, we are the reputed Manufacturer and Supplier of Digital Torque Controller (DTW 15). Our Digital Torque Controller (DTW 15) is in adherence with the laid industry norms and standards. Easy maintenance, sturdy construction, high performance, longer functional life and corrosion resistance are the highlights of our Digital Torque Controller (DTW 15). Rely on us for competitive price!
Details :
Technical Specifications
Model | Voltage | Max Amps | Expansion Drive Suitable | Weight (Kg) |
---|---|---|---|---|
Standard Models | ||||
DTW-15 | 110 | 20 | EDB0, EDB1, EDR-2, EDR-3 | 11 |
DTW-15 | 230 | 10 | EDB0, EDB1, EDR-2, EDR-3 | 10 |
Heavy Duty Models | ||||
DTW-15-E | 110 | 32 | EDB0, EDB1, EDG-2, EDG-3 | 11 |
DTW-15-E | 230 | 16 | EDB0, EDB1, EDG2, EDG-3 | 19 |
Master Tugger Hydraulic Tube Puller that we offer is manufactured using quality approved components and highly advanced techniques under the strict vigilance of experts. It is tested on various quality parameters so as to ensure that only defect-free product reaches the customers’ end. We are one of the prominent Manufacturers and Suppliers of Hydraulic Tube Puller. It can be obtained from us at the best market price.
Features :
Simple and robust operation.
Very little taining of the operator needed. Set up in less than a minute.
High pressure pump for pulling toughest jobs.
Compact and lightweight gun and powerpack.
Removes tube without damage.
Low Set Up time / ease of operation.
Available with choice of electric / Pneumatic operation.
Automatic switchover from low pressure to high pressure.
Interchangeable pulling gun accessories compatible with existing systems on the market.
Single man operation.
Tube Pulling Powerpack Specification
Model | Volts / Phase | Power Hp |
Oil Tank Capacity | Net wt | Dimension | Hydraulic hose Size X Length |
---|---|---|---|---|---|---|
MTPP -300 | 230 / single | 3 | 10 | 68 | 510 x 370 x 680 | 1/4” x 5 Twin Jack Hose |
Tube Pulling Gun - Specification
Model | Pulling Capacity Tons |
Max. Tube O.D Thru Gun. inch |
Stub Pulling Capacity** inch |
Weight Kg lbs. |
Free Pulling Speed Meter / minute |
|
---|---|---|---|---|---|---|
MTPG -15 | 15 | 1 | 1.1/2 | 18 | 40 | 3.3 |
MTPG -30 | 30 | 1.1/2 | 3 | 25 | 55 | 2 |
MTPG -45 | 45 | 3 | 4 | 51 | 112 | 1.3 |
Situated in Mumbai, Maharashtra, India, we are the prestigious Manufacturer and Supplier of Pneumatic Heat Exchangers Expansion Drive. Our Pneumatic Heat Exchangers Expansion Drive is designed and fabricated using durable basic materials in sync with the laid industry norms. It is easy to hold and is widely appreciated owing to its rugged construction, corrosion resistance and fine finish. Place an order with us- we promise timely delivery of even bulk orders.
Technical Specifications
Model | PRD-400 | PRD-600 | PRD-1250 |
Free Speed (rpm) | 400 | 600 | 1250 |
Min Torque(Nm) | 5 | 2.49 | 1.58 |
Max Torque(Nm) | 36 | 21.81 | 12.2 |
Tube Capacity(inch) | 1.1/4 | 1 | 03/04/15 |
Air Consumption(I/min) | 1700 | 1700 | 1700 |
Weight(Kg) | 4.9 | 4.9 | 4.9 |
For Hydraulic Tube Expansion System (Hydex) at industry-leading rates, you can completely rely on us. We are an eminent Manufacturer, Supplier and Exporter of Hydraulic Tube Expansion Systems from Maharashtra. Our Hydraulic Tube Expansion Systems are compact and thus easy to use inside boilers. The Tube Expansion Systems offered by us require very low maintenance. One can obtain the Tube Expansion Systems at affordable rates.
Features :
Hyadraulic Pump Specifications
Hydraulic Pump Models | |||
HEP-300 | HEP-500 | HEP-1000 TWIN HEAD | |
Oil Tank Capacity (Litres) | 30 | 45 | 138 |
Hydraulic Oil | SAE VG 68 | SAE VG 68 | SAE VG 68 |
Maximum Working Pressure ( bar) | 100 | 100 | 100 |
Net Weight ( kgs) | 80 | 100 | 220 |
Overall Dimensions (mm) | 610 x 270 x 985 | 820 x 320 x 985 | 1775 x 550 x 1200 |
Electric Motor | 3 hp. Single phase | 5 hp. 3 phase | 10 hp. 3 phase |
Voltage | 230 v / 110 v | 415v | 415v |
Standard Hose Size (Length) | 1/2” (10 mtrs.) | 1/2” (10 mtrs.) | 1/2” (10 mtrs.) |
Hyadraulic Drives Specifications
Tube Expansion Range | Drive | Drive No Load Speed (RPM) |
Drive Weight Kgs. | ||||
Steel Tube O.D. | Copper Tube O.D. | Model No. |
Square Socket Inch |
With HEP-300/500/1000 | |||
mm | inch | mm | inch | ||||
15 - 25 | 5/8 - 1 | 25 - 38 | 1-1.1/2 | HED-3 | 3/8 | 620/954/800 | 9.6 |
19 - 38 | 3/4 - 1.1/2 | 32 - 64 | 1.1/4-2.1/2 | HED-4 | 3/8 & 1/2 | 350/480/400 | 9.7 |
38 - 76 | 1.1/2 - 3 | 50 - 102 | 2-4 | HED-5 | 1/2 & 3/4 | 62/84/70 | 11.0 |
50 - 102 | 2 - 4 | - | - | HED-6 | 3/4 & 1 | 40/62/54 | 11.5 |
Hydraulic Hose Specifications
Model No. | Hose Power |
HE/HS/1210/2 | 2 x 1/2” x 10 |
HE/HS/5815/2 | 2 x 5/8” x 15 |
HE/HS/5820/2 | 2 x 5/8” x 20 |
HE/HS/1210/4 | 4 x 1/2” x 10 |
HE/HS/5815/4 | 4 x 5/8” x 15 |
HE/HS/5820/4 | 4 x 5/8” x 20 |
Supply Cable Specifications
Model No. | Supply Cable Length |
HE/SC/15 | 15 |
HE/SC/20 | 20 |
HE/SC/25 | 25 |
Compact design, sturdy construction and corrosion resistance are the highlights of our Electric Tube Expansion Drive. Our Electric Tube Expansion Drives are made in conformity to the set international standards under the supervision of our experts. Its various qualitative features make it an attractive deal. Look for us, to get the Electric Tube Expansion Drive at cost-effective prices. From Mumbai, Maharashtra, we are the credible Manufacturer and Supplier of Electric Tube Expansion Drive.
Details :
Technical Specifications
Supply Voltage | Drive Model | Speed | No Load rpm | Expansion range | |||
---|---|---|---|---|---|---|---|
Speed1/Speed2 | Steel tube OD | Copper Tube OD | |||||
inch | mm | inch | mm | ||||
110/230 | EDR - 0 | 1 | 2400 | 3/8" | 10 | 1/2 | 13 |
110/230 | EDR - 1 | 2 | 1000/1900 | 5/8" | 16 | 3/4 | 19 |
110/230 | EDR - 2 | 1 | 560 | 1" | 22 | 1.1/4 | 28 |
110/230 | EDR - 3 | I | 280 | 1.1/4 | 32 | 1.3/4 | 45 |
110/230 | EDG - 2** | 2 | 480/1050 | 2 | 50 | 3" | 76 |
110/230 | EDG - 3** | 2 | 110/380 | 3" | 76 | 4" | 102 |
Note : **Heavy duty drives made in Germany
