Our Products
Leading Manufacturer, Supplier & Retailer of Flow Table and Vibrating Table.
Product Code:EKE 336
Supplied complete as described above, with an electric motor suitablefor operation with 220 volts, 50 Hz, single phase, AC Supply.
Compaction Factor
Compaction factor is the ratio of the weight of partially compactedconcrete to the weight of the concrete when fully compacted in thesame mould. The weight of partially compacted concrete in relation toits fully compacted state is a reasonably good indication of theworkability of concrete.
Product Code:EKE 365
Proper compaction of cement concrete while casting specimens forcompression testing is essential to achieve a better and moreconsistent mixture. ENKAY Vibrating Table is ideally suited for thispurpose. The table top is 500 mm x 500 mm size and has stops alongits edges to prevent moulds from sliding off the table duringoperation.The maximum load capacity is 140 kg. The variable pitch pulleyarrangement permits the frequency to be varied steplessly between60 Cycles/ sec and 43 Cycles/sec. Suitable for operation with 415 V, 3 phase, 50 Hz, AC Supply.
EKE 366Same as EKE 365 but with table top 2m x 1m
EKE 367Same as EKE 365 but with table top 1m x 1m
Product Code:EKE 411
Standrad:IS:5512

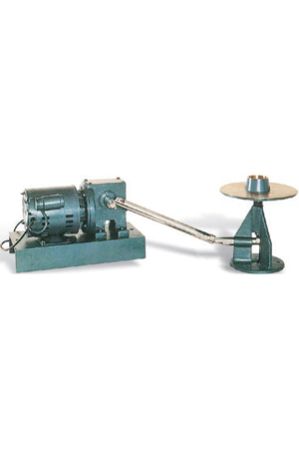

The Flow Table consists of a brass table top 250 2.5 mm dia, mounted on a rigid stand. The table top is reinforced with equallyspaced ribs and allowed to drop through 12 mm by a ground andhardened cam.The Motor Drive assembly using the gear box is designed to rotate thecam through the shaft at 100 rpm.Suitable for operation on 220 V, 50 Hz, single phase AC supplyComplete with Flow mould 100 mm base dia, 70 mm top dia and 50m high.
